39744-0006 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> 39744-0006

Preview

39744-0006: DescriptionPluggable Terminal Blocks TERM BLK VERT MOD BOX 5.0MM 6C-GREEN; CategoryThe connector; File Size131KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

39744-0006 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	39744-0006	-	-	View	Buy Now

39744-0006 Overview

Pluggable Terminal Blocks TERM BLK VERT MOD BOX 5.0MM 6C-GREEN

39744-0006 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Molex
Product Category	Pluggable Terminal Blocks
RoHS	Not Applicable
Number of Positions	6 Position
Pitch	5 mm
Factory Pack Quantity	280

Preview

Download Datasheet

View All

13

12

11

10

9

8

7

6

5

4

3

2

1

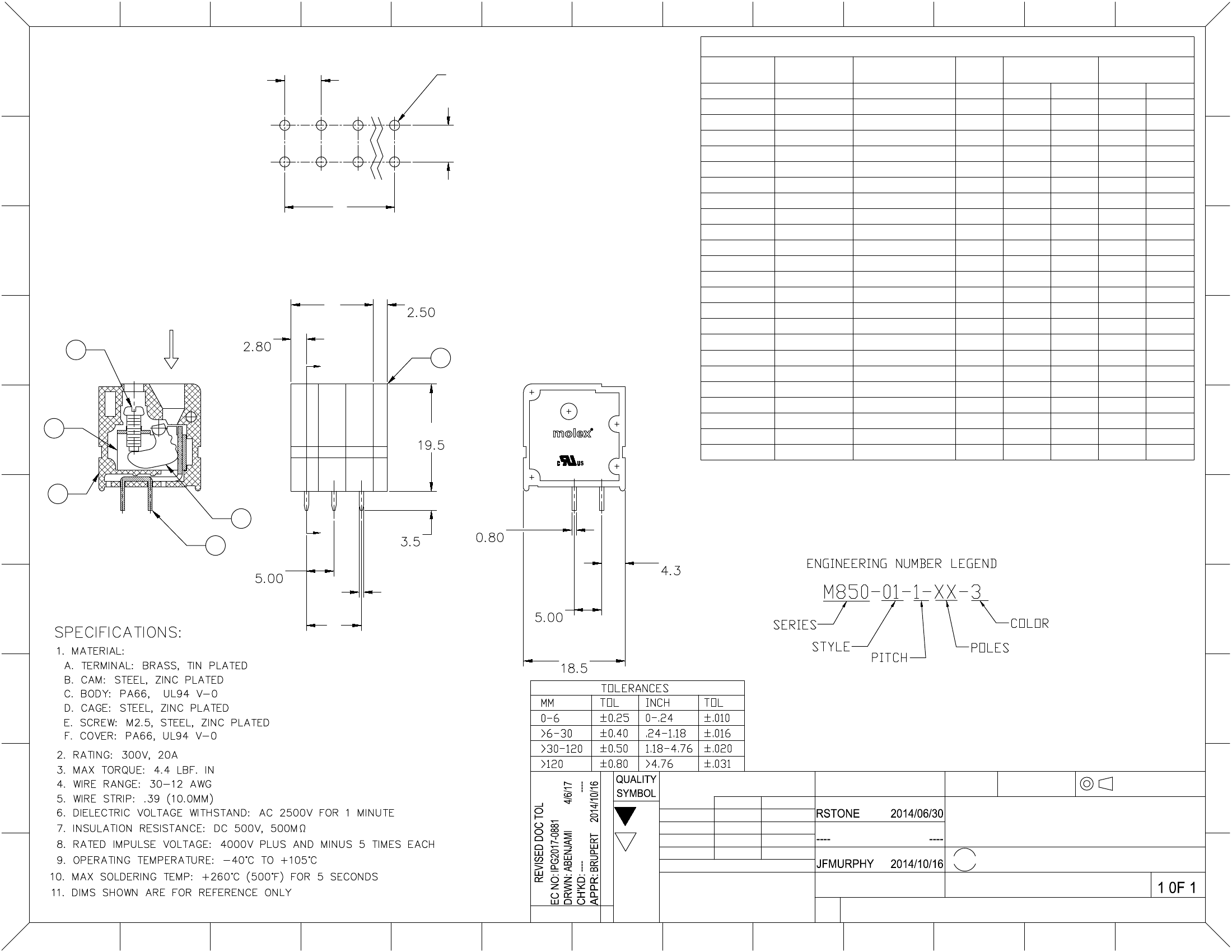

PART NUMBER DATA

J

.197

5.00

CIRCUITS

1.40

I

.197

5.00

B

PCB LAYOUT

H

A

WIRE ENTRY

G

.098

.110

F

E

F

D

.77

M850

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

PART

NUMBER

397440001

397440002

397440003

397440004

397440005

397440006

397440007

397440008

397440009

397440010

397440011

397440012

ENGINEERING

NUMBER

M850-01-1-01-3

M850-01-1-02-3

M850-01-1-03-3

M850-01-1-04-3

M850-01-1-05-3

M850-01-1-06-3

M850-01-1-07-3

M850-01-1-08-3

M850-01-1-09-3

M850-01-1-10-3

M850-01-1-11-3

M850-01-1-12-3

M850-01-1-13-3

M850-01-1-14-3

M850-01-1-15-3

M850-01-1-16-3

M850-01-1-17-3

M850-01-1-18-3

M850-01-1-19-3

M850-01-1-20-3

M850-01-1-21-3

M850-01-1-22-3

M850-01-1-23-3

M850-01-1-24-3

COLOR

GREEN

A IN mm

.20

.39

.59

.79

.98

1.18

1.38

1.57

1.77

1.97

2.17

2.36

2.56

2.76

2.95

3.15

3.35

3.54

3.74

3.94

4.13

4.33

4.53

4.72

5.0

10.0

15.0

20.0

25.0

30.0

35.0

40.0

45.0

50.0

55.0

60.0

65.0

70.0

75.0

80.0

85.0

90.0

95.0

100.0

105.0

110.0

115.0

120.0

B IN mm

.000

.197

.394

.591

.787

.984

1.181

1.378

1.575

1.772

1.969

2.165

2.362

2.559

2.756

2.953

3.150

3.346

3.543

3.740

3.937

4.134

4.331

4.528

.00

5.00

10.00

15.00

20.00

25.00

30.00

35.00

40.00

45.00

50.00

55.00

60.00

65.00

70.00

75.00

80.00

85.00

90.00

95.00

100.00

105.00

110.00

115.00

J

I

H

G

F

C

E

REF. LAST 2 DIGITS OF PART NUMBER EQUAL CIRCUIT COUNT

B

A

.14

.197

.033

0.85

.032

.17

E

D

.197

D

B

.73

CONTACT FACTORY FOR OPTIONAL COLORS

C

B

DESCRIPTION

GENERAL TOLERANCES

(UNLESS SPECIFIED)

DIMENSION STYLE

SCALE

DESIGN UNITS

IN/MM

DRAWN BY

DATE

TITLE

CHECKED BY

DATE

---

METRIC

THIRD ANGLE

PROJECTION

B

=

0

C

mm

4 PLACES

3 PLACES

2 PLACES

1 PLACE

---

INCH

---

=

0

APPROVED BY

DATE

molex

TERM BLOCK, VERTICAL

MODULAR, BOX 5.0MM

----

MOLEX INCORPORATED

SHEET NO.

A

REV

A1

13

12

11

10

9

8

DRAFT WHERE

APPLICABLE

MUST REMAIN

WITHIN DIMENSIONS

7

6

5

MATERIAL NO.

DOCUMENT NO.

SEE CHART

SIZE

A

SD-39744-001

3

2

1

C

THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX

INCORPORATED AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION

4

39744-0006 Related Products

	39744-0006	39744-0002	39744-0003	39744-0010	39744-0007	39744-0009	39744-0005
Description	Pluggable Terminal Blocks TERM BLK VERT MOD BOX 5.0MM 6C-GREEN	Pluggable Terminal Blocks TERM BLK VERT MOD BOX 5.0MM 2C-GREEN	Pluggable Terminal Blocks TERM BLK VERT MOD BOX 5.0MM 3C-GREEN	Pluggable Terminal Blocks TERM BLK VERT MOD BOX 5.0MM 10C-GREEN	Pluggable Terminal Blocks TERM BLK VERT MOD BOX 5.0MM 7C-GREEN	Pluggable Terminal Blocks TERM BLK VERT MOD BOX 5.0MM 9C-GREEN	Pluggable Terminal Blocks TERM BLK VERT MOD BOX 5.0MM 5C-GREEN
Product Attribute	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value
Manufacturer	Molex	Molex	Molex	Molex	Molex	Molex	Molex
Product Category	Pluggable Terminal Blocks	Pluggable Terminal Blocks	Pluggable Terminal Blocks	Pluggable Terminal Blocks	Pluggable Terminal Blocks	Pluggable Terminal Blocks	Pluggable Terminal Blocks
RoHS	Not Applicable	Not Applicable	Not Applicable	Not Applicable	Not Applicable	Not Applicable	Not Applicable
Number of Positions	6 Position	2 Position	3 Position	10 Position	7 Position	9 Position	5 Position
Pitch	5 mm	5 mm	5 mm	5 mm	5 mm	5 mm	5 mm
Factory Pack Quantity	280	480	360	760	240	1240	280

Recommended Resources
