87710-2012 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 87710-2012

87710-2012: DescriptionBoard to Board & Mezzanine Connectors Pwr Rec Vert Press-F ss-Fit .76AuLF 28Ckt; CategoryThe connector The connector; File Size33KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

87710-2012 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	87710-2012	-	-	View	Buy Now

87710-2012 Overview

Board to Board & Mezzanine Connectors Pwr Rec Vert Press-F ss-Fit .76AuLF 28Ckt

87710-2012 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
Body/casing type	RECEPTACLE
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	Tin (Sn)
Contact point gender	FEMALE
Contact material	COPPER ALLOY
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	YES
Installation type	BOARD AND PANEL
Options	GENERAL PURPOSE
Shell material	GLASS FILLED LIQUID CRYSTAL POLYMER
Termination type	PRESS FIT
Total number of contacts	28
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

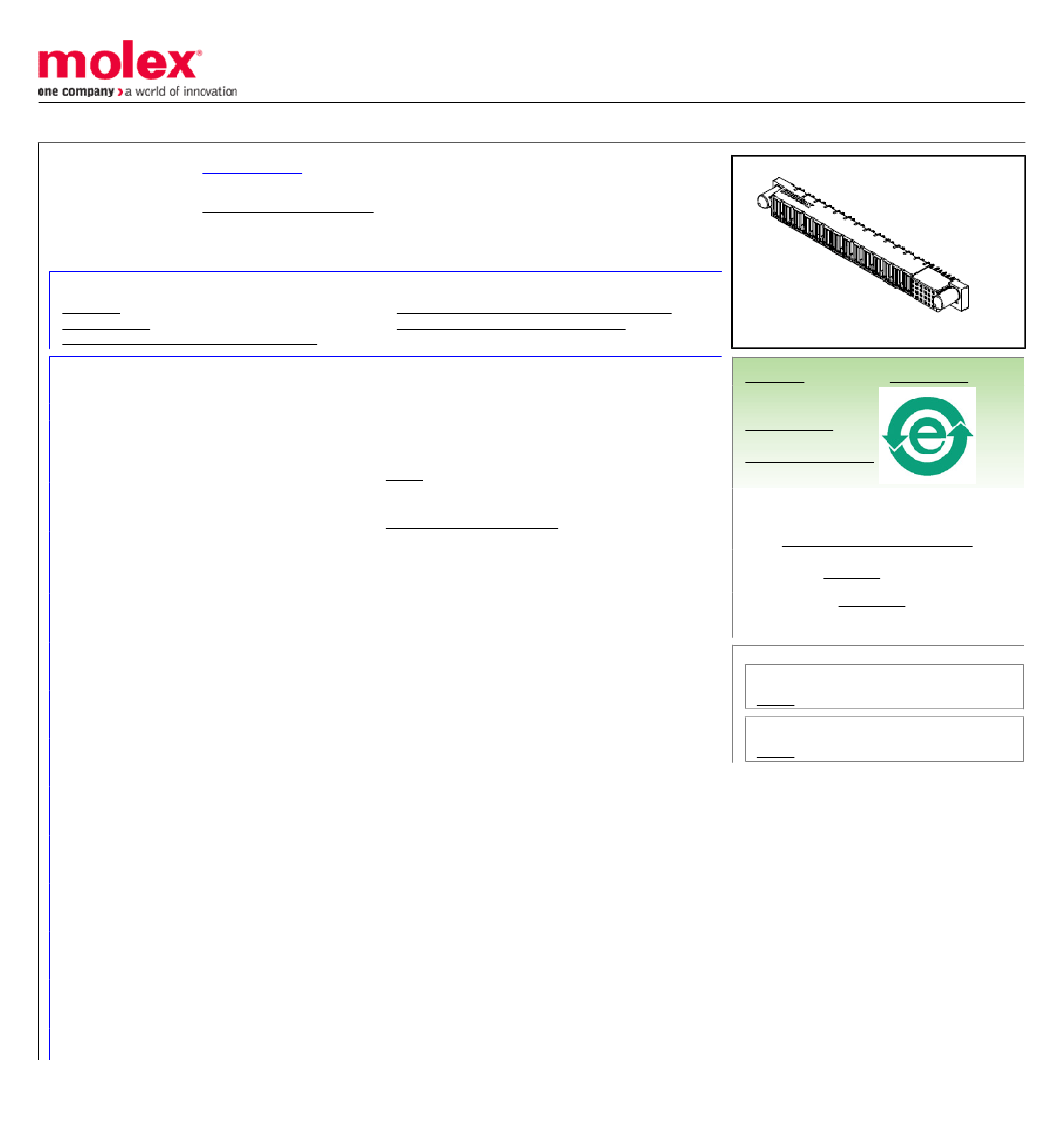

This document was generated on 07/09/2014

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

87710-2012

Active

EXTreme PowerPlus™ (SSI)

6.35mm Pitch, Power, 2.54mm Pitch, Signal, EXTreme PowerPlus™ S-P(B)

Receptacle, Press-fit, Vertical, 0.76µm Gold (Au) Plating, 28 Circuits, Power Beta 4,

Signal 24, No Recessed Power Circuit, Lead-Free

Documents:

3D Model

Drawing (PDF)

Product Specification PS-87633-006 (PDF)

Application Specification AS-87631-018 (PDF)

RoHS Certificate of Compliance (PDF)

image - Reference only

EU RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Low-Halogen Status

Low-Halogen

China RoHS

Series

Agency Certification

CSA

LR19980

E29179

General

Product Family

Series

Application

Comments

Overview

Product Name

UPC

PCB Receptacles

87710

Board-to-Board, Power

No Recessed Power Circuits

EXTreme PowerPlus™ (SSI)

EXTreme PowerPlus™

822350931236

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Physical

(p)ower-(s)ignal Configuration

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

Flammability

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Plating min - Mating

Plating min - Termination

Polarized to Mating Part

Polarized to PCB

Temperature Range - Operating

Termination Interface: Style

4p - 24s

Black

100

94V-0

Yes

Copper Alloy

Gold

Tin

High Temperature Thermoplastic

11.232/g

Vertical

3.43mm

Yes

1.60mm

Tray

2.54mm, 4.45mm, 6.35mm

0.762µm

2.540µm

Yes

-20°C to +105°C

Through Hole - Compliant Pin

Search Parts in this Series

87710Series

Mates With

87667 PCB Headers
