MXR-8PA-3PB(71)

Description
Circular Push Pull Connectors PLG 3P MALE CIRCULAR
CategoryThe connector
File Size464KB,6 Pages
ManufacturerHirose Electric
Environmental Compliance
Download Datasheet Parametric Compare View All

MXR-8PA-3PB(71) Overview

Circular Push Pull Connectors PLG 3P MALE CIRCULAR

MXR-8PA-3PB(71) Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerHirose Electric
Product CategoryCircular Push Pull Connectors
RoHSDetails
ProductConnectors
Connector TypePlug
Contact GenderPin (Male)
Number of Contacts3 Contact
Shell Size8
Mounting StyleCable
Termination StyleSolder
Contact PlatingGold
Current Rating2 A
Voltage Rating100 V
Shell PlatingNickel
Shell MaterialMetal
Factory Pack Quantity1
Unit Weight0.308647 oz

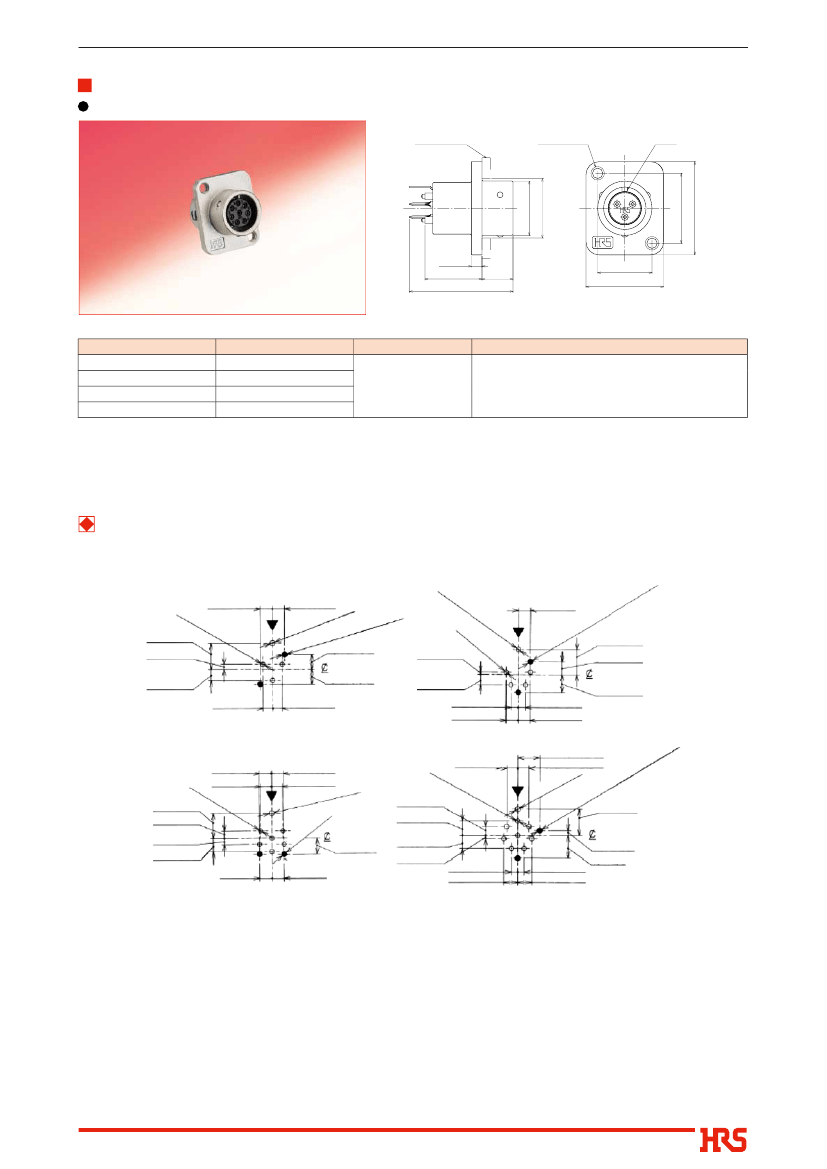

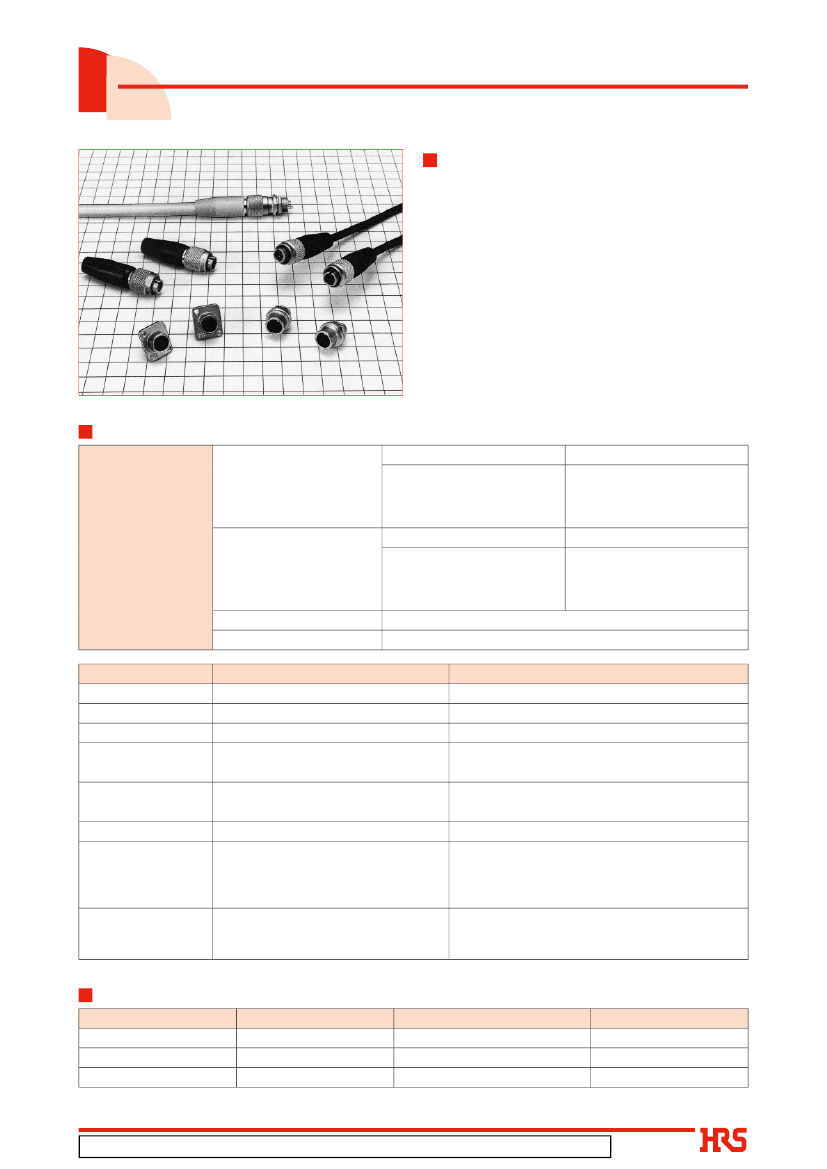

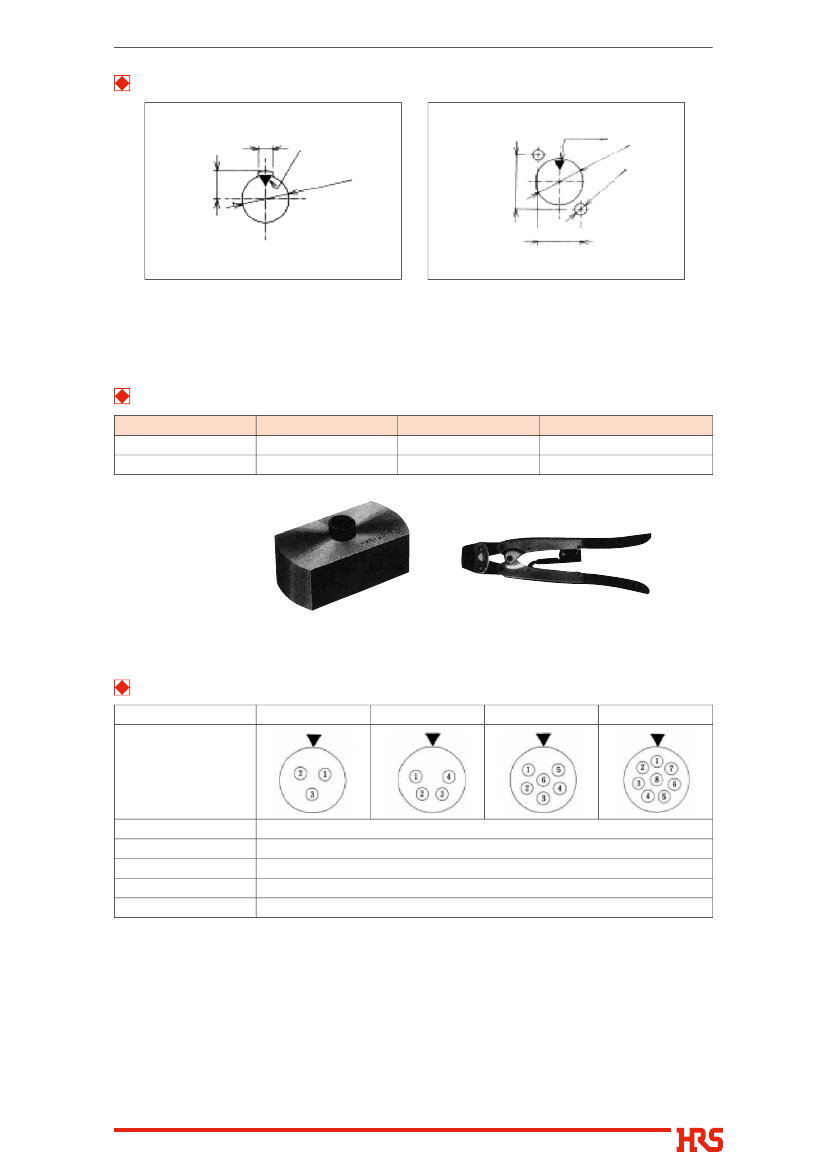

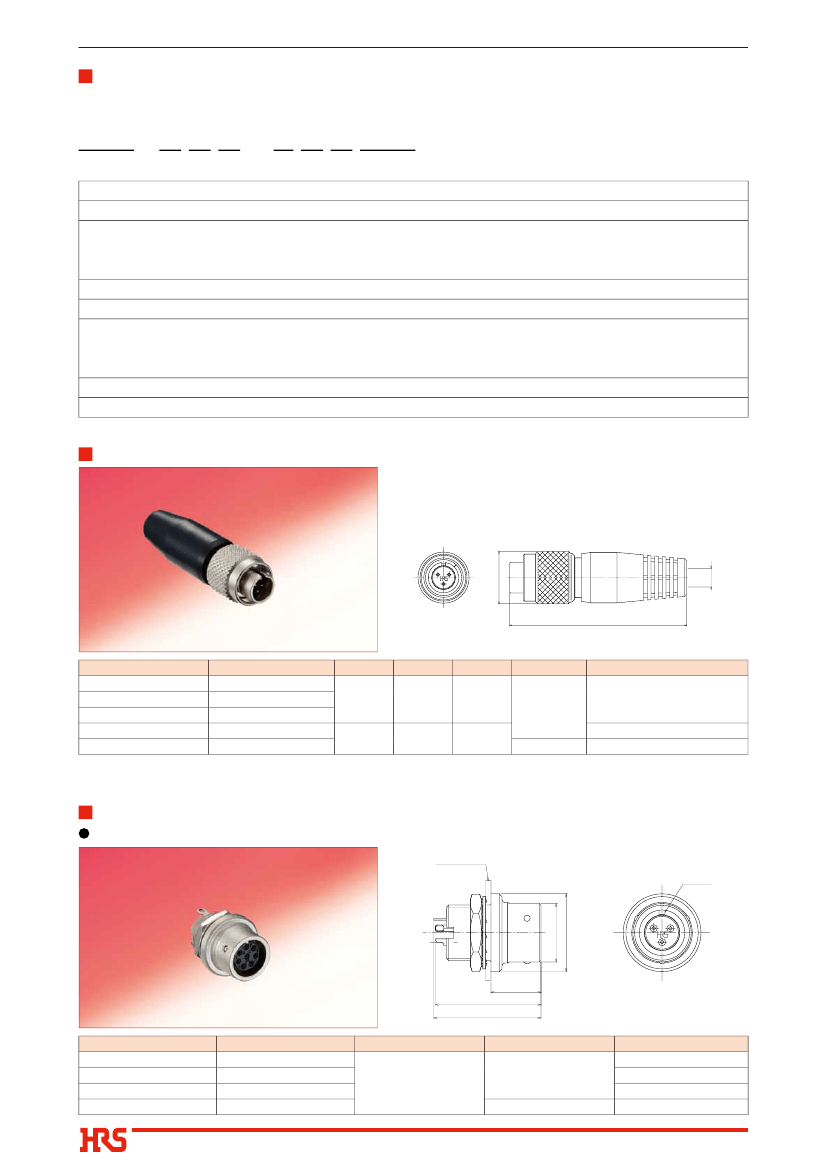

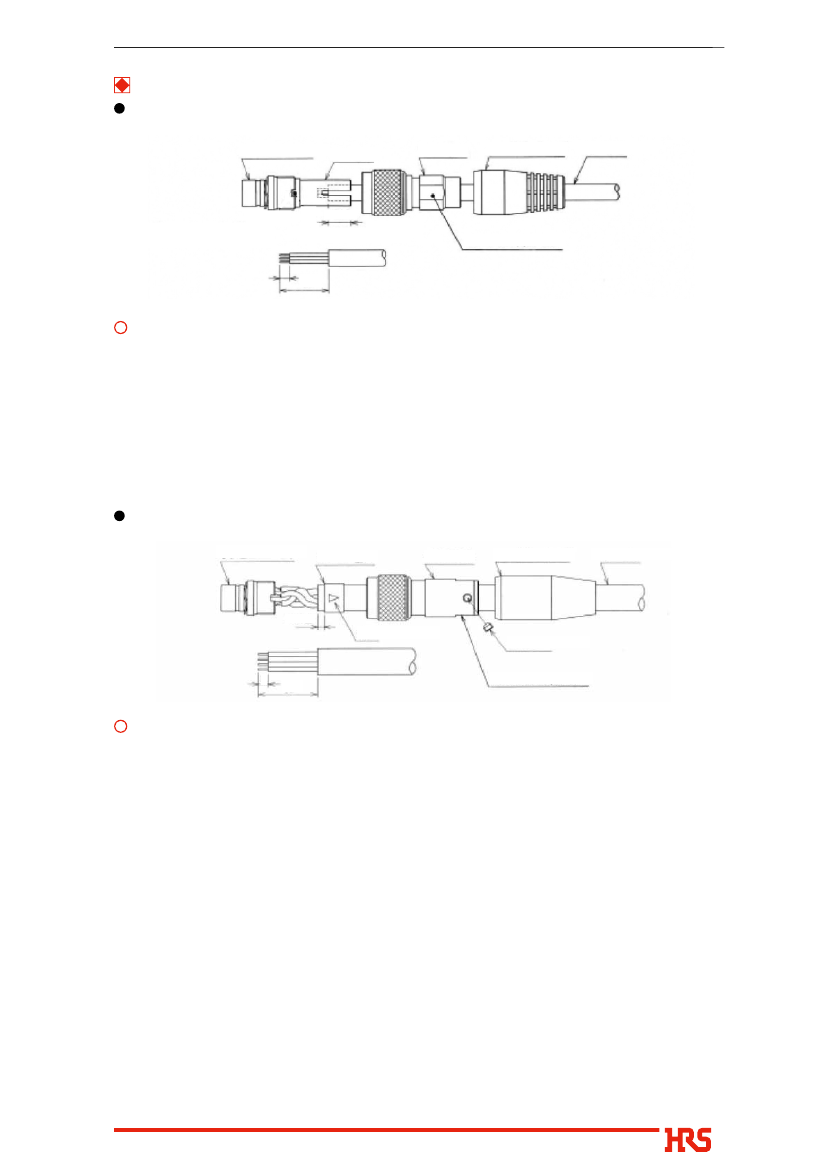

Miniature push-pull connectors with ground function
MXR Series
Features
1. User friendly lock mechanism
The single action push-pull lock function allows
quick connections and disconnections as well as
high density mounting.
2. Grounding function for FCC compliance
Nov.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Metal, outer shell provides stable contact for
grounding.
3. Sequential contact structure
A sequential mating type is available. This version
allows for the contacts to mate in a sequenced
order.
Product Specifications
Number of contacts
Rated current
3
4
6
8
Number of contacts
Rated voltage
3
4
6
8
-25 to +85ç
-10 to +60ç
Conditions
Measured at DC 1A
Measured at DC 100V
AC 300V for 1minute
10 to 55Hz/cycle, amplitude : 0.75mm, 3 axis directions,
2 hours each
Acceleration : 490m/s
2
, duration : 11ms, 3 axis directions,
3 times each
1,000 times
-55ç : 30 minutes
Normal temperature : 10 to 15
minutes
85ç : 30 minutes
Normal temperature :
10 to 15 minutes, left for 5 cycles
Temperature : 40°C, relative humidity : 90 to 95%,
left for 96 hours
Rated current
2A
Ratings
Rated voltage
AC 100, DC 140V
Operating temperature range
Storage temperature range
Items
1. Contact resistance
2. Insulation resistance
3. Withstanding voltage
4. Vibration resistance
5. Shock resistance
6. Mating cycles
Specifications
A maximum of 20mø
A minimum of 1,000Mø
No flashover or dielectric breakdown.
No electrical discontinuity for 10µs or
greater.
No electrical discontinuity for 10µs or
greater.
Contact resistance : a maximum of 40mø
Insulation resistance :
a minimum of 1,000Mø
Insulation resistance :
a minimum of 10Mø (at high humidities)
a minimum of 100Mø (when dry)
7. Temperature cycle
8. Moisture resistance
Materials / Finish
Part
Shell
Insulator
Contact
Material
Aluminum alloy
PBT resin
Copper alloy
Finish
Nickel plating
----------------
Gold plating, partial gold plating
Remarks
----------------
UL94V-0
----------------
In cases where the application will demand a high level of reliability, such as automotive,
please contact a company representative for further information.
2018.7④
1

MXR-8PA-3PB(71) Related Products

MXR-8PA-3PB(71) MXR-8P-8P(71) MXR-8RA-6S(71) MXR-8PA-4PB(71) MXR-8P-8P72
Description Circular Push Pull Connectors PLG 3P MALE CIRCULAR Circular Push Pull Connectors PLG 8P MALE CIRCULAR Circular Push Pull Connectors REC 6POS FEM SOLDER Circular Push Pull Connectors PLG 4P MALE CIRCULAR Circular Push Pull Connectors PLG 8P MALE CIRCULAR
Product Attribute Attribute Value Attribute Value Attribute Value Attribute Value Attribute Value
Manufacturer Hirose Electric Hirose Electric Hirose Electric Hirose Electric Hirose Electric
Product Category Circular Push Pull Connectors Circular Push Pull Connectors Circular Push Pull Connectors Circular Push Pull Connectors Circular Push Pull Connectors
RoHS Details Details Details Details Details
Product Connectors Connectors Connectors Connectors Connectors
Connector Type Plug Plug Receptacle Plug Plug
Contact Gender Pin (Male) Pin (Male) Socket (Female) Pin (Male) Pin (Male)
Number of Contacts 3 Contact 8 Contact 6 Contact 4 Contact 8 Contact
Shell Size 8 8 8 8 8
Mounting Style Cable Cable Panel Cable Cable
Termination Style Solder Solder Solder Solder Solder
Contact Plating Gold Gold Gold Gold Gold
Current Rating 2 A 2 A 2 A 2 A 2 A
Voltage Rating 100 V 100 V 100 V 100 V 100 V
Shell Plating Nickel Nickel Nickel Nickel Nickel
Shell Material Metal Hybrid Metal Metal Metal
Factory Pack Quantity 1 1 1 1 1
Unit Weight 0.308647 oz 0.543995 oz - 0.327695 oz 0.326637 oz
