308016056000413 datasheet, PDF

Datasheet> All Categories > The connector> 308016056000413

308016056000413: DescriptionRack & Panel Connectors 56P CONN CVR SZ 56 14MM CBL DIAMTR; CategoryThe connector; File Size501KB，10 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric View All

308016056000413 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	308016056000413	-	-	View	Buy Now

308016056000413 Overview

Rack & Panel Connectors 56P CONN CVR SZ 56 14MM CBL DIAMTR

308016056000413 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	AVX
Product Category	Rack & Panel Connectors
RoHS	Details
Packaging	Bulk
Factory Pack Quantity	16

Preview

Download Datasheet

View All

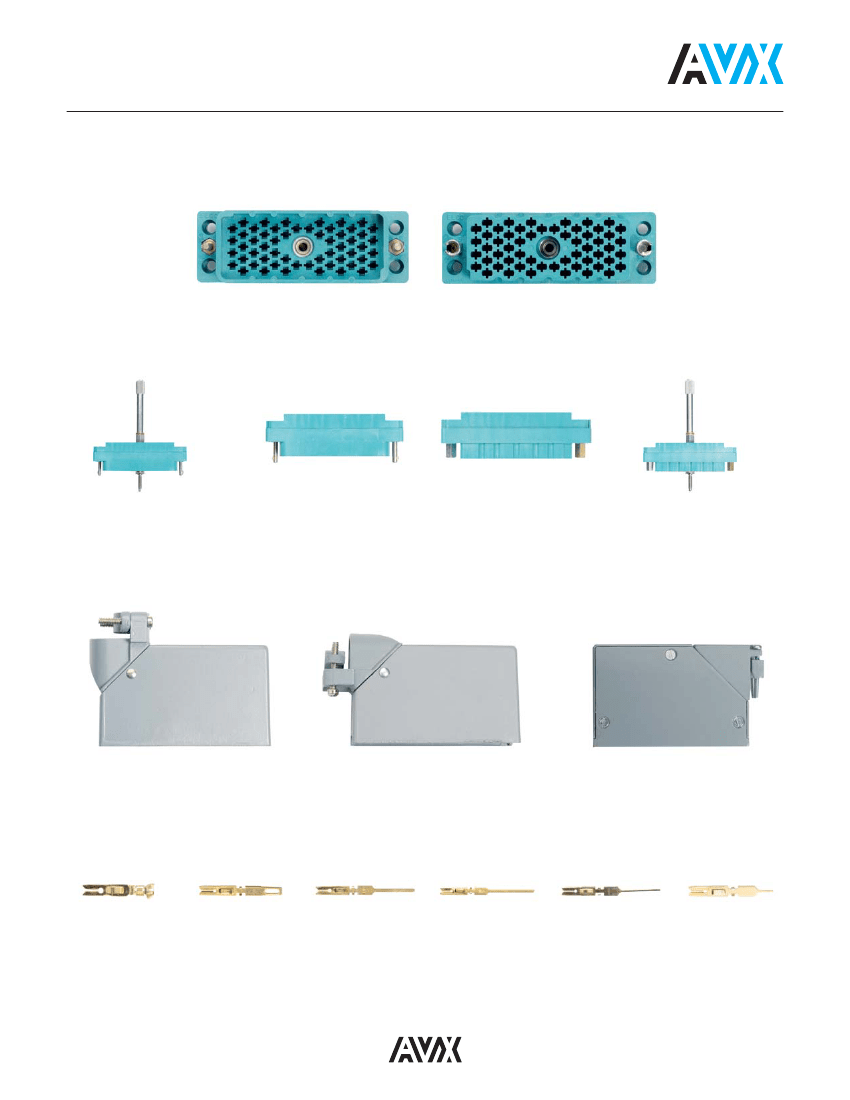

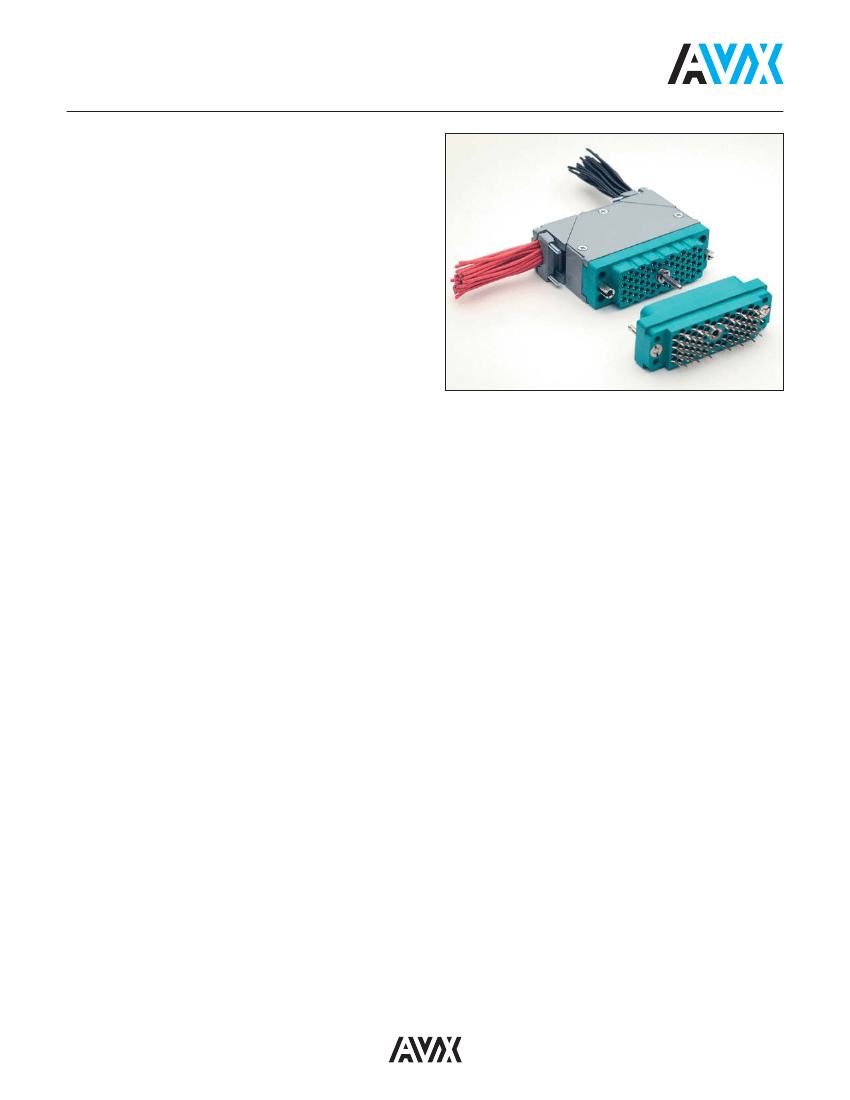

Varicon

Series 8016 – .075" x .130" x .150" Grid Pattern

FEATURES

•

Available in five sizes: 20, 38, 56, 90 and 120 contacts

•

Insertable / removable Varilok contacts

•

Crimp, solder, solderless wrap, and taper tab terminations

•

Exceptional versatility: all hardware can be mounted on

plug or receptacle (see ordering code)

•

Actuating screw facilitates mating and unmating, locks

mated connectors together

•

Polarizing hardware can be set to any of six positions at

factory; can also be reset by user (see polarizing code)

•

Optional cover with top or side cable entry and clamp

•

Optional cable strain relief clamp with adjustable strap

for large or small cable bundles (fits on sizes 38 and 56)

•

Plug and receptacle contacts are protected from

mishandling

•

Guide pins and sockets ensure correct alignment when

mating

•

Aluminum covers

•

CSA acceptable polyester material

TECHNICAL SPECIFICATIONS

Current Rating:

8 amperes, maximum

Contact Resistance:

6 milliohms, maximum

Contact Material:

Phosphor bronze

Contact Plating:

Gold, 10 microinches min.,

over Nickel,

50-100 microinches

Insulator Material:

Thermoplastic 94V-O glass

filled polyester

Insulation Resistance:

5,000 megohms, min.

(polyester)

Sea Level: 1250 volts RMS

3.4" Hg:

625 volts RMS

Cover and Clamp Material and Finish:

Aluminum with clear chromate under grey

enamel finish
