39-01-3029 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 39-01-3029

39-01-3029: DescriptionHeaders & Wire Housings 2 CKT PLUG HOUSING; CategoryThe connector The connector; File Size41KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

39-01-3029 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	39-01-3029	-	-	View	Buy Now

39-01-3029 Overview

Headers & Wire Housings 2 CKT PLUG HOUSING

39-01-3029 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
Factory Lead Time	7 weeks
Is Samacsys	N
Other features	MINI-FIT
body width	0.378 inch
subject depth	0.941 inch
body length	0.291 inch
Body/casing type	PLUG
Connector type	RECTANGULAR POWER CONNECTOR
Contact arrangement	S0P2
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	2200VAC V
Durability	30 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	14.6784 N
Insulation resistance	1000000000 Ω
Insulator color	NATURAL
insulator material	NYLON
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LATCH
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	CABLE
Number of connectors	ONE
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
Guideline	UL,CSA,TUV
reliability	COMMERCIAL
Shell material	POLYAMIDE66
Termination type	CRIMP
Total number of contacts	2
UL Flammability Code	94V-0
Evacuation force-minimum value	.5004 N
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 05/18/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

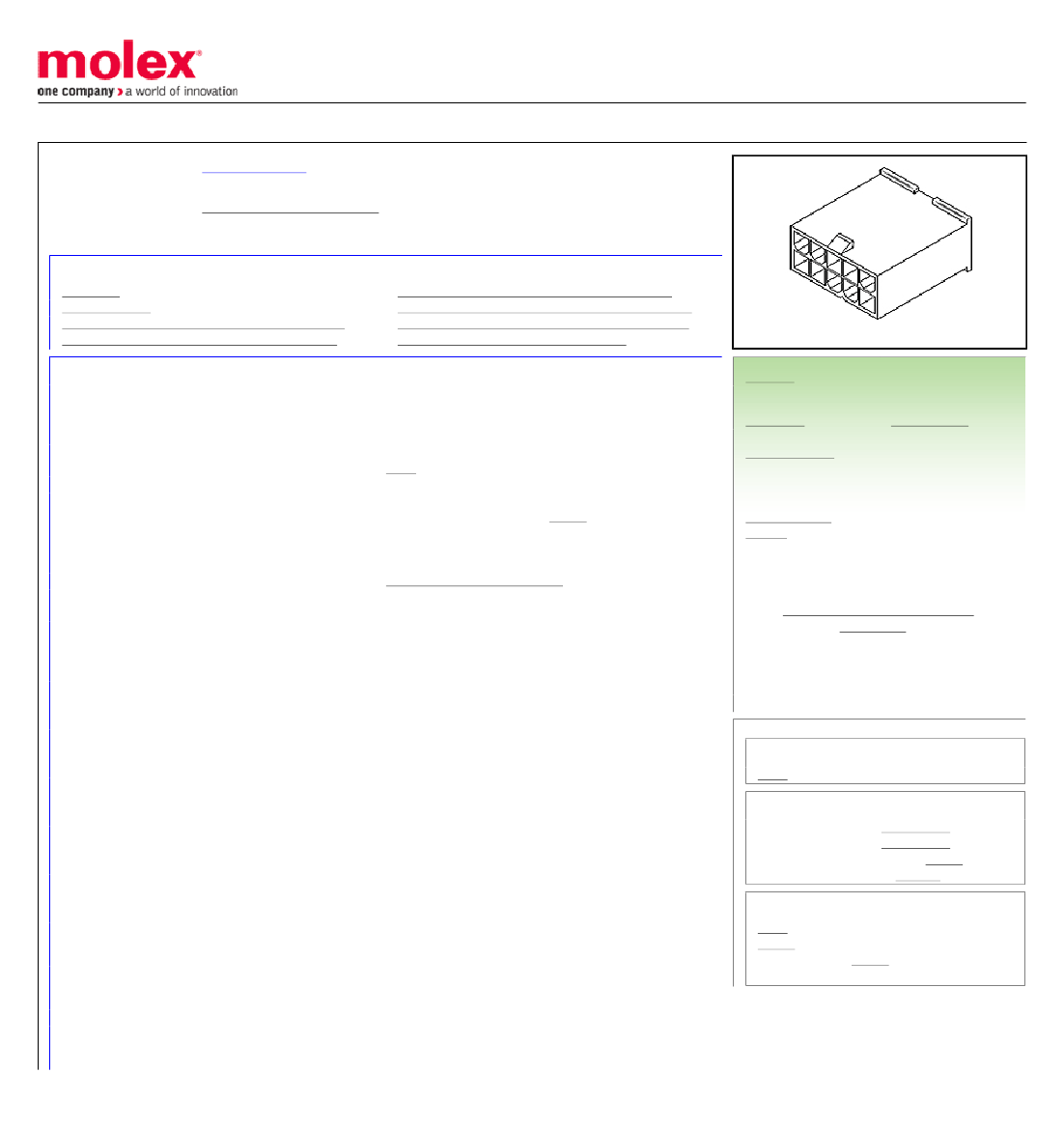

0039013029

Active

Mini-Fit Jr. Power Connectors

Mini-Fit Jr. Plug Housing, Dual Row, 2 Circuits, UL 94V-0, without Panel Mounting

Ears, Natural

Documents:

3D Model

Drawing (PDF)

Product Specification PS-45750-001-001 (PDF)

Product Specification PS-5556-001-001 (PDF)

Agency Certification

CSA

General

Product Family

Series

Application

Comments

Product Specification TS-5556-002-001 (PDF)

Application Specification AS-5557-001-001 (PDF)

Packaging Specification PK-5559-002-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

EU ELV

Compliant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per

-ED/01/2018 (15

January 2018)

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Compliant

Not Contained

LR19980

E29179

Crimp Housings

5559

Power, Wire-to-Board, Wire-to-Wire

Current = 13A max. per circuit when header is mated

to a receptacle loaded with 45750 series terminals

crimped to 16 AWG wire. . See Molex product

specification PS-45750-001 for additional current

derating information.

Mini-Fit Jr. Power Connectors

Mini-Fit Jr.

800753584068

Natural

94V-0

Plug

None

Yes

Nylon

0.900/g

Bag

4.20mm

Yes

-40°C to +105°C

13.0A

N/A

5559-02P1-210

Overview

Product Name

UPC

Physical

Breakaway

Circuits (maximum)

Color - Resin

Flammability

Gender

Glow-Wire Capable

Keying to Mating Part

Lock to Mating Part

Material - Resin

Net Weight

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface

Pitch - Termination Interface

Polarized to Mating Part

Stackable

Temperature Range - Operating

Electrical

Current - Maximum per Contact

Solder Process Data

Lead-freeProcess Capability

Material Info

Engineering Number

Search Parts in this Series

5559 Series

Mates With

Receptacle Housing 39-01-3028 .

Receptacle Housing 39-01-2025 <br>Mini-

Fit Jr. TPA Cable Assembly 45135 <br>Mini-

Fit Jr. Cable Assembly 245135

Use With

5558 Mini-Fit Jr. Male Crimp Terminals.

30490 Mini-Fit Male Grounding Crimp

Terminals <br> 46012 Mini-Fit Plus Crimp

Terminal
