Reinforced Infocom Connectors for Harsh Environment
RJ Field Cat6
NEW
Connecting to people + technology
www.rjfield.com
Amphenol
INFORMATION
CAT5e
CAT6
CAT6A
Standard
ISO 11801
EIA/TIA 568
ISO 11801
EIA/TIA 568
ISO 11801
EIA/TIA 568
Data rate
1 GBit/s
1 GBit/s
10 GBit/s
Frequency
100 MHz
250 MHz
500 MHz
OUR SOLUTIONS
Series
RJFRB
RJF544
RJF5446
RJFEZ
RJF / RJFTV
RJF6 / RJFTV6
RJFTV ATEX
RJFTV6 ATEX
µCom-10Gb+
RJF6A / RJFTV6A
*
High reliability
cables & cordsets
*
Coming soon
CAT5e
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
CAT6
X
CAT6A
Amphenol
2
Cat5e solutions
Download
the Rugged Ethernet & USB catalogue
µCom-10Gb+
Ethernet Micro Connector
Download
the catalogue
or
visit
www.amphenol-socapex.com

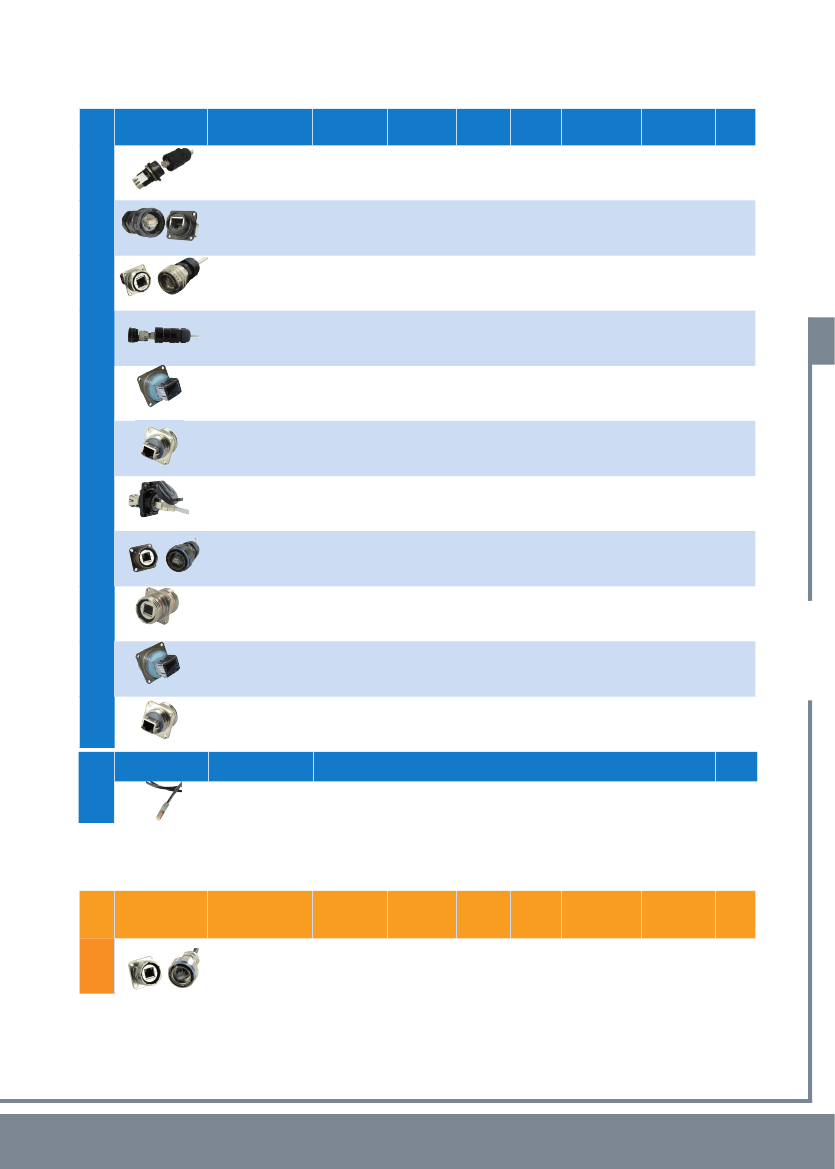

RUGGED ETHERNET CAT6 SOLUTIONS SELECTION GUIDE
Connectors
Series
Indust.
Ethernet Spec.
Coupling
Mechanism
Reverse
bayonet
Shape
Material
Specification
Prime Market
Page
Inustrial &
Telecom
RJFRB
Circular
Plastic
N/A
5
RJF5446
IEC 60603-7
variant 12
Push Pull
Circular
Plastic
N/A
Industrial &
Telecom
7
RJF6
IEC 60603-7
variant 11
Bayonet
Circular
Metal
MIL-DTL-26482
Industrial
Mil/Aero
9
RJF6
CAT6 in line receptacle
IEC 60603-7
variant 11
Bayonet
Circular
Metal
MIL-DTL-26482
Industrial
Mil/Aero
12
RJF6
CAT6 transversally
sealed receptacles
RJF6
CAT6 hermetic
receptacles
RJ Field Cat 6
receptacles with self
closing cap
Bayonet
Circular
Metal
MIL-DTL-26482
Mil/Aero &
Industrial
13
Bayonet
Circular
Metal
MIL-DTL-26482
Mil/Aero &
Industria
14
IEC 60603-7
variant 11
Bayonet
Circular
Metal
MIL-DTL-26482
Industrial
Mil/Aero
15
RJF TV6
Thread
Circular
Metal
MIL-DTL-38999
Series III
Mil/Aero & Rail
Mass Transit
18
Thread
Circular
Metal
21
RJF TV 6
CAT6 transversally
sealed receptacles
RJF TV 6
CAT6 hermetic
receptacles
Cable
Series
High reliabiliy Cat6
cable & cordets
Thread
Circular
Metal
MIL-DTL-38999
Series III
Mil/Aero &
Industrial
22
Thread
Circular
Metal
MIL-DTL-38999
Series III
Mil/Aero &
Industrial
23
Prime Market
Mil/Aero
Page
27
RUGGED ATEX ZONE 2 CAT6 SOLUTION SELECTION GUIDE
Connectors
Series
Indust.
Ethernet Spec.
Coupling
Mechanism
Shape
Material
Specification
Prime Market
Page
MIL-DTL-38999
Series III
Factory
Automation,
Video, Oil & Gas
RJF TV6X
EN60079-15
Thread
Circular
Metal
28
3
Amphenol
RJF TV6
CAT6 through
bulkhead receptacles
MIL-DTL-38999
Series III
Mil/Aero &
Rail Mass
Transit
TABLE
OF CONTENTS
CAT 6 Rugged Ethernet Solutions
RJFRB - CAT6 Ethernet connection system for harsh environment - Industrial Ethernet ............................................................................... 5
RJF5446 - CAT6 Ethernet connection system for harsh environment - Industrial Ethernet ........................................................................... 7
RJF6 - CAT6 Ethernet connection system for harsh environment - Industrial Ethernet .................................................................................. 9
RJF6 - CAT6 in line receptacle ..............................................................................................................................................................................................12
RJF CAT6 receptacle with self closing cap .................................................................................................................................................................... 15
RJF plugs with 360° EMI backshell ................................................................................................................................................................................... 16
RJF special plugs for big insulation wire up to 1.6 mm ........................................................................................................................................... 17
RJF TV6 - CAT6 Ethernet connection system for harsh environment ...................................................................................................................18
RJF TV6 - CAT6 through bulkhead receptacles ..............................................................................................................................................................21
RJFTV plugs with 360° EMI backshell ............................................................................................................................................................................. 24
RJFTV special plugs for big insulation wire up to 1.6mm ....................................................................................................................................... 25
Amphenol
4
Self closing cap (SCC) for RJF TV6/RJFTV receptacles .................................................................................................................................................26
High reliability CAT6 Ethernet cable and cordsets .......................................................................................................................................................27
ATEX Solutions
RJF TVX6 - CAT6 RJ45 explosion proof solution for Zone 2 .....................................................................................................................................28
ROHS
RJF RB
COMPLIANT

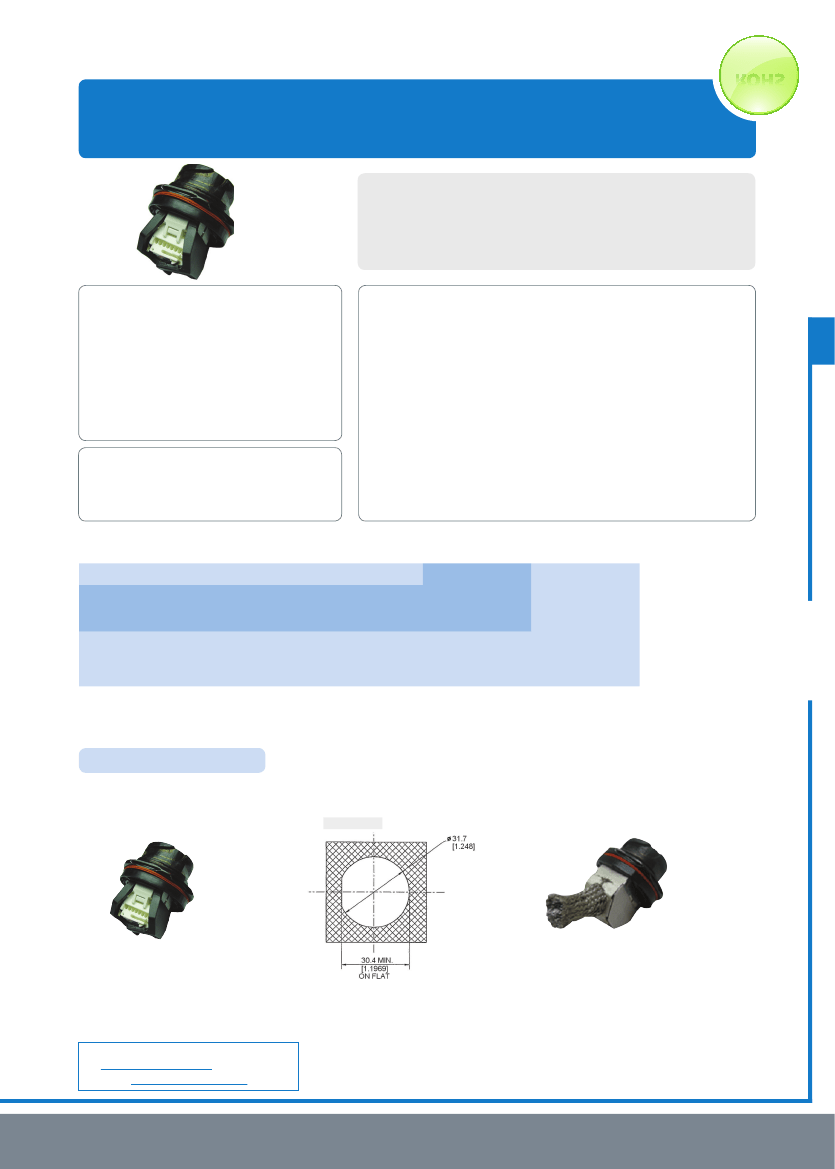

CAT6 Ethernet connection system for harsh environment – Industrial Ethernet
RJFRB allows you to use an Ethernet Class E / Cat 6 connection for 10 BaseT, 100
BaseTX or 1000 BaseT up to 250 MHz networks in harsh environments.
With the patented RJStop® system you can use a standard RJ45 cordset in a
protective
composite
plug which will protect it from shocks, dust and fluids.
No hazardous on-field cabling and grounding!
Applications
n
Telecom equipments
n
Video control
n
Robotics
n
Industrial process control
n
machines
CNC
n
Special machines
n
Motion control
Main characteristics
n
Sealed against fluids and dust (IP68)
n
Shock, vibration and traction resistant
n
cabling operation in field, no tools required
No
n
Reverse bayonet coupling
n
cordset retention in the plug: 70 N in the axis
RJ45
n
Mating cycles: 500 min
n
Compatible with cable diameter from 5,5 mm [0.216 in] to 7 mm [0.275 in]
Environmental protection
n
Sealing: IP68
n
spray > 1000 h
Salt
n
retardant / Low smoke: UL94 V0 and NFF 16102, DIN 5510-2
Fire
n
Thermal shock: 5 cycles at - 40°C / +100°C
n
Operating temperature: - 40°C / +85°C
Data transmission
10 BaseT, 100 BaseTX and 1000 BaseT up to 250
MHz networks
Cat6 per EIA/TIA 568 and ClassE per ISO11801
Part number code
RJF RB
Shell type
7:
composite jam nut receptacle
6:
composite reverse bayonet plug, plastic gland
Back terminations
(for receptacles only)
3U:
IDC cat6 - unshielded
3F:
IDC cat6 - partial shielding
3S:
IDC cat6 - 100% shielded
Examples:
- receptacle, IDC cat6, unshielded
RJF RB 73U
- plug
RJF RB 6
7
3U
Receptacle
n
3: IDC CAT 6 termination (rear mounting)
Type
Panel Drilling
Unshielded:
RJF RB 73U
Partial shielding
RJF RB 73F
Shielded:
RJFRB73S
Cat5e version: page 10 of the Field series catalogue.
