KUSBV-AS-2-N-WHT: DescriptionUSB Connectors A TYPE VERT WHT SKT STACKED; CategoryThe connector; File Size32KB，1 Pages; ManufacturerKycon

Download Datasheet Parametric Compare View All

KUSBV-AS-2-N-WHT Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	KUSBV-AS-2-N-WHT	-	-	View	Buy Now

KUSBV-AS-2-N-WHT Overview

USB Connectors A TYPE VERT WHT SKT STACKED

KUSBV-AS-2-N-WHT Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Kycon
Product Category	USB Connectors
RoHS	N
Product	USB Type A Connectors
Gender	Female
Standard	USB
Number of Contacts	8 Contact
Number of Ports	2 Port
Current Rating	1 A
Mounting Angle	Vertical
IP Rating	-
Color	White
Connector Type	USB Type A Receptacle, stacked
Contact Plating	Gold
Type	Type A
Contact Material	Brass
Flammability Rating	UL 94 V-0
Insulator Color	White
Insulation Resistance	1000 MOhms
Factory Pack Quantity	100

Preview

Download Datasheet

View All

12.5

1.80

11.1

16.9

2.18±0.25

8.5

6.8

Shield Material: brass, 0.30mm thick

Shield Plating: 120u'' thick nickel over 50u''

thick copper

Grounding Strip: stainless steel, 0.20mm thick

13.75±0.25

15.65±0.25

Insulator: PBT thermoplastic,

glass-fiber reinforced, UL94V-0 rated,

black or white color

Contact Material: brass, 0.25mm thick

1

4

13.14±0.25

2.18±0.25

2.0

2.5

Contact Plating Options:

Standard: gold flash on contact area,

120u" min. tin/lead on soldertails,

all over 50u" min. nickel underplate

30 Option: 30u'' gold on contact area,

120u" min. tin/lead on soldertails,

all over 50u" min. nickel underplate

14.65±0.25

Contact Current Rating: 1A max.

Contact Resistance: 30 milliohm max.

8.5

6.8

Insulation Resistance: 1000 Megohm min.

Dielectric Withstanding Voltage: 750V AC (sea level)

4.05±0.25

1.85±0.25

1

4

Insertion Force: 3.57kg max.

Extraction Force: 1.02kg min.

8-Ø0.92±0.08

4-Ø2.3±0.08

Operating Temperature: -55°C to +85°C

Durability: 1500 mating cycles min.

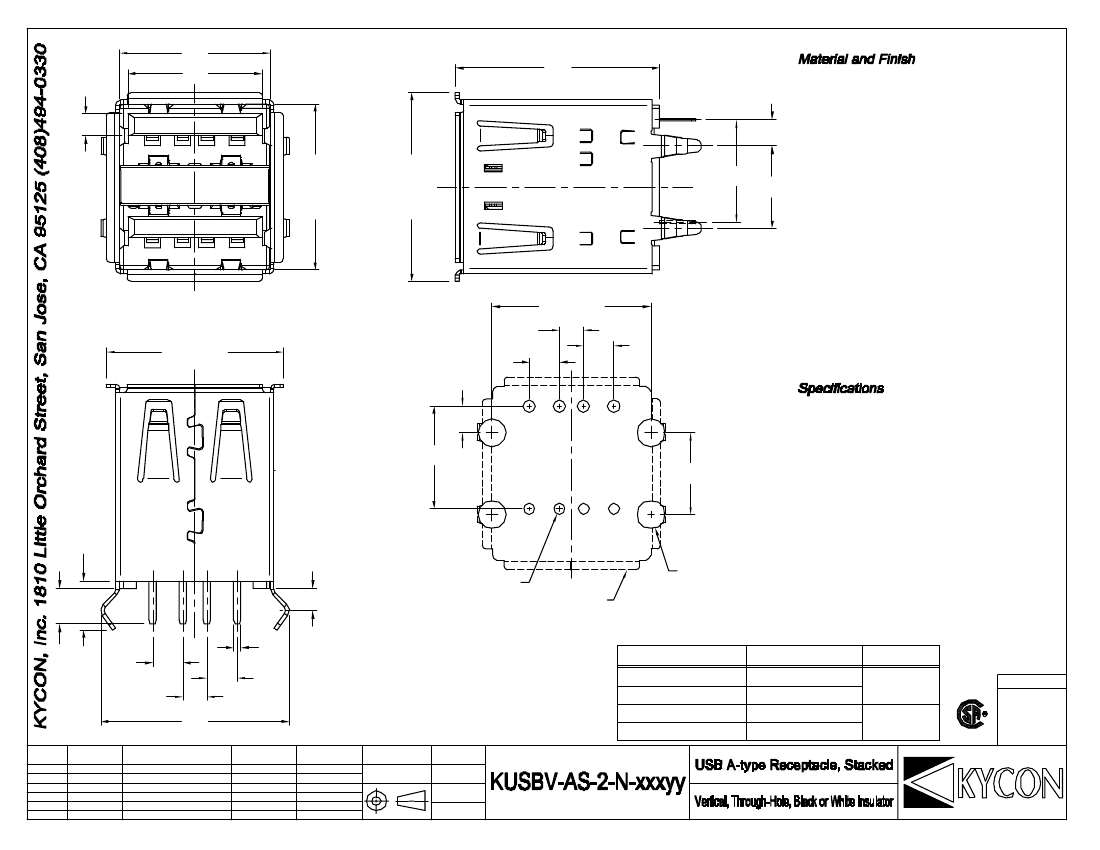

connector profile

Recommended PCB Layout

(top view)

3.0

0.60

2.5

2.0

15.6

REV.

A0

A1

A2

A3

A4

Part Number

KUSBV-AS-2-N-WHT

KUSBV-AS-2-N-WHT30

KUSBV-AS-2-N-BLK

KUSBV-AS-2-N-BLK30

Contact Area Plating

Gold Flash (standard)

30u" Gold (30 option)

Gold Flash (standard)

30u" Gold (30 option)

Insulator Color

White

Tolerances

X.X ± 0.25

X.XX ± 0.15

Unless Stated

Otherwise

Black

C

US

LR78160

DATE

4/18/03

4/23/03

6/5/03

6/25/04

9/19/05

DESCRIPTION

New Drawing

update PCB hole tolerances

Release Drawing

ECO#04-029

ECO#05-043

REV. BY

T. Gokcek

H. MA

R. Aguirre

CHK. BY

C. Leiva

H. MA

C. Leiva

H. Ma

DRAWN BY

T. Gokcek

DATE

4/17/03

UNITS

mm

xxx - insulator color

yy - plating option
