39-03-9042

Description
Headers & Wire Housings New Mini Fit Crimp Rec Hsg 4Ckt
CategoryThe connector    The connector
File Size27KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

39-03-9042 Online Shopping

Suppliers Part Number Price MOQ In stock
39-03-9042 - - View Buy Now

39-03-9042 Overview

Headers & Wire Housings New Mini Fit Crimp Rec Hsg 4Ckt

39-03-9042 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time8 weeks
body width0.46 inch
subject depth0.77 inch
body length0.378 inch
Body/casing typeRECEPTACLE
Connector typeRECTANGULAR POWER CONNECTOR
Contact arrangementS0P4
Contact point genderFEMALE
Contact resistance10 mΩ
Contact styleSQ PIN-SKT
Insulation resistance1000000000 Ω
Insulator colorBLACK
insulator materialNYLON
Mixed contactsYES
Installation option 1FRICTION RAMP
Installation option 2LOCKING
Installation methodSTRAIGHT
Installation typeCABLE
Number of connectorsONE
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
GuidelineCSA,TUV,UL
reliabilityCOMMERCIAL
Termination typeCRIMP
Total number of contacts4

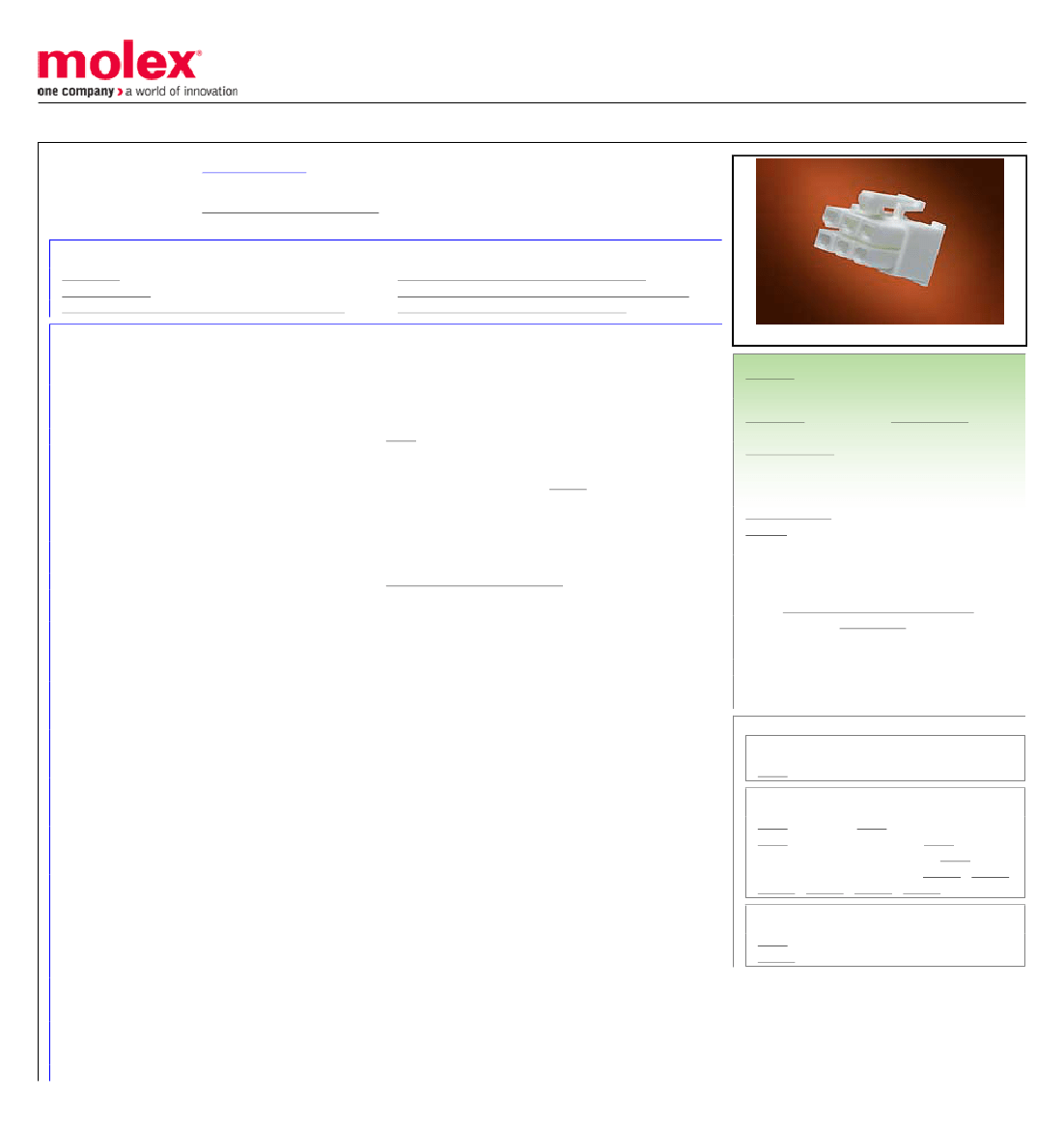

This document was generated on 03/02/2018
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0039039042
Active
Mini-Fit Jr. Power Connectors
Mini-Fit Jr. Receptacle Housing, Dual Row, 4 Circuits, UL 94V-0, Black
Documents:
3D Model
Drawing (PDF)
Product Specification PS-45750-001-001 (PDF)
Agency Certification
CSA
UL
General
Product Family
Series
Application
Comments
Product Specification PS-5556-001 (PDF)
Packaging Specification PK-5557-002-000 (PDF)
RoHS Certificate of Compliance (PDF)
Series image - Reference only
LR19980
E29179
Crimp Housings
5557
Power, Wire-to-Board, Wire-to-Wire
Current = 13A max. per circuit when header is mated
to a receptacle loaded with 45750 series terminals
crimped to 16 AWG wire. . See Molex product
specification PS-45750-001 for additional current
derating information.. Glow Wire Equivalent Part.
E-5557-005
T
Mini-Fit Jr. Power Connectors
Mini-Fit Jr.
800754812382
No
4
Black
94V-0
Receptacle
No
Nylon
1021.000/mg
2
Bag
No
4.20mm
4.20mm
Yes
No
-40°C to +105°C
13.0A
N/A
5557-04R-400
PK-5557-002-000
EU ELV
Not Relevant
EU RoHS
China RoHS
Compliant
REACH SVHC
Not Contained Per
-ED/01/2018 (15
January 2018)
Halogen-Free
Status
Low-Halogen
Need more information on product
environmental compliance?
Email productcompliance@molex.com
Please visit the Contact Us section for any
non-product compliance questions.
China ROHS
ELV
RoHS Phthalates
Green Image
Not Relevant
Not Contained
Current Released Drawing
Current Released Revision
Overview
Product Name
UPC
Physical
Breakaway
Circuits (maximum)
Color - Resin
Flammability
Gender
Glow-Wire Capable
Material - Resin
Net Weight
Number of Rows
Packaging Type
Panel Mount
Pitch - Mating Interface
Pitch - Termination Interface
Polarized to Mating Part
Stackable
Temperature Range - Operating
Electrical
Current - Maximum per Contact
Solder Process Data
Lead-freeProcess Capability
Material Info
Engineering Number
Reference - Drawing Numbers
Packaging Specification
Search Parts in this Series
5557 Series
Mates With
5559 Dual Row, 5566 Vertical with Pegs,
5566 Vertical without Pegs, 5569 Right
Angle Dual Row with Flanges, 5569 Right
Angle Dual Row with Pegs, 43810 , 44068 ,
44281 , 87427 , 42404 , 42440
Use With
5556 Mini-Fit Female Crimp Terminals,
45750 Mini-Fit Plus HCS Crimp Terminal
