Device connector, front mounting - RF-12S2N8AWV00 - 1613712
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

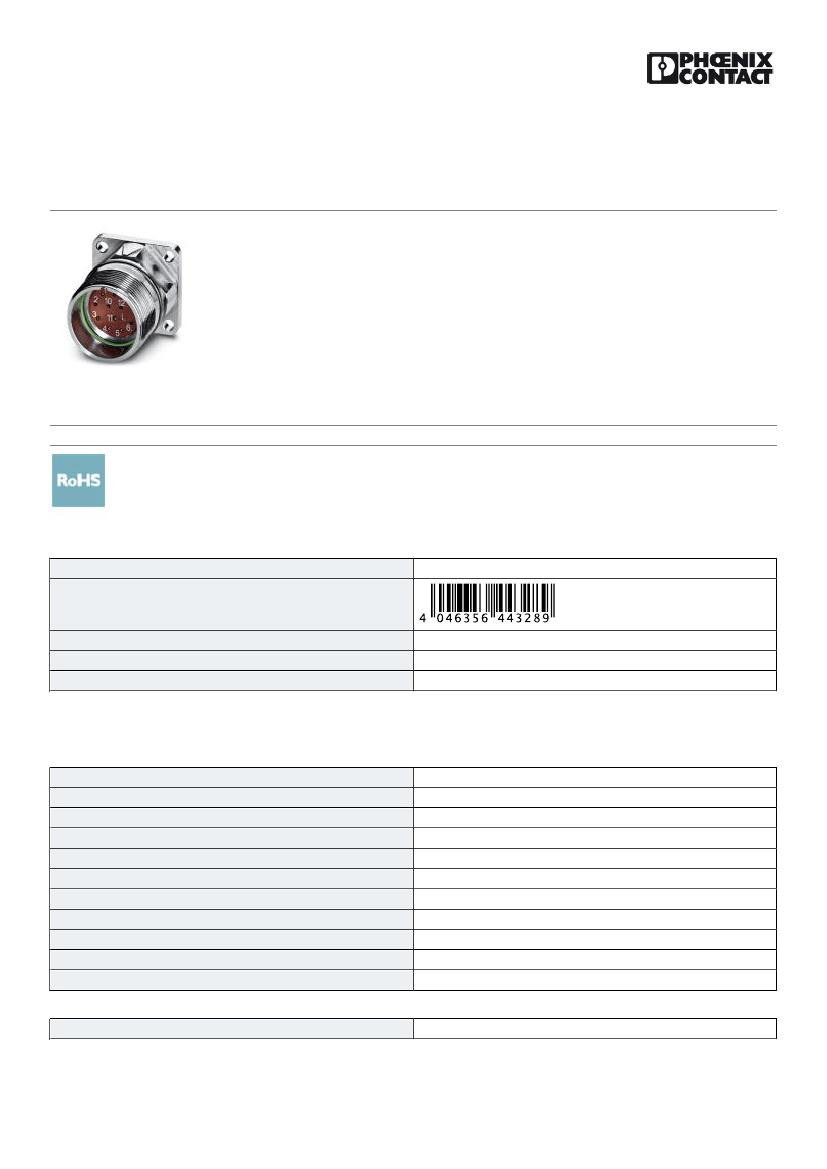

Device connector, front mounting, straight, Screw locking, M23, Number of positions: 12, Type of contact:
Socket, Crimp connection, Axial O-ring, 4x Ø3.2, shielded: yes
The figure shows the product
version with standard contact
chamber numbering
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
Note
4046356443289
85366990
Made to Order (non-returnable)
20 STK
Technical data
General
Note
Type of locking
Direction of rotation of contact chamber numbering
Coding
Contact connection method
Type of contacts
Number of positions
Contact diameter of power contacts
Nominal current per power contact at 25°C
Pg housing screw connection
Mounting type
Order information: Order crimp contacts Ø 1 mm separately
Screw locking
Counter direction
N
Crimp connection
Socket
12
1 mm
8A
none
4x Ø3.2
Ambient conditions
Ambient temperature
-20 °C ... 125 °C
11/14/2016 Page 1 / 3
https://www.phoenixcontact.com/hq/products/1613712
Device connector, front mounting - RF-12S2N8AWV00 - 1613712
Technical data
Ambient conditions
Degree of protection
IP67
Material
Housing material
High-grade steel 1.4305
Specifications according to DIN EN 61984:2001
Installation height max.
Nominal / operating voltage of power contacts
Rated surge voltage of power contacts
Overvoltage category of power contacts
Degree of pollution of power contacts
Overvoltage category of signal contacts
Degree of pollution of signal contacts
2000 m
150 V
2.5 kV
III
3
III
3
Environmental Product Compliance
China RoHS
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Drawings
Dimensional drawing
27,7
16,5
1,1
25,7
19,8
Dimensional drawing
19,8±0,1
3
Ø 4x2,75
Ø 4x3,25
Ø20+0,1
Approvals
Approvals
Approvals
UL Recognized / cUL Recognized / EAC / cULus Recognized
Ex Approvals
Approval details
11/14/2016 Page 2 / 3
4xM2,5/M3
M23x1
https://www.phoenixcontact.com/hq/products/1613712
Device connector, front mounting - RF-12S2N8AWV00 - 1613712
Approvals
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 153698
20
5A
125 V
cUL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 153698
20
5A
125 V
EAC B.01742
cULus Recognized
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
Phoenix Contact 2016 © - all rights reserved
http://www.phoenixcontact.com
11/14/2016 Page 3 / 3
