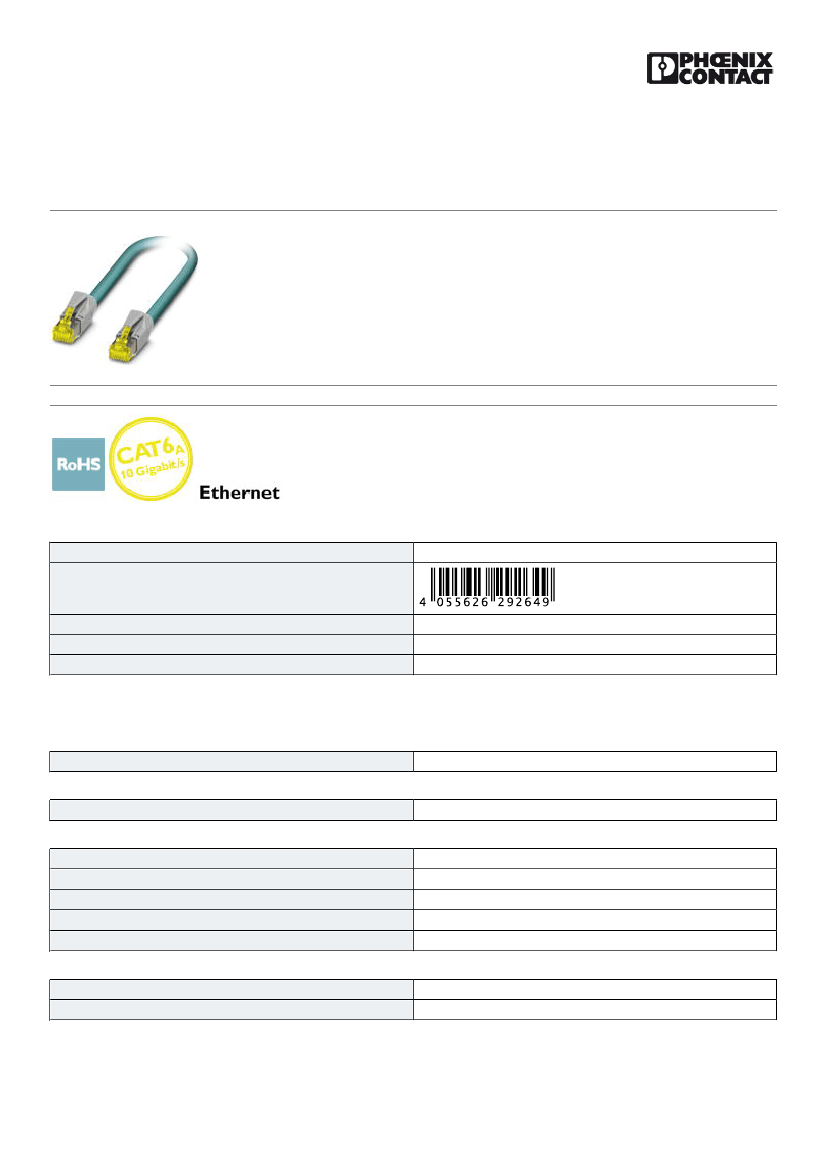

Patch cable - NBC-R4AC-10G/0,5-94F/R4AC-10G - 1422210
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Patch cable, Ethernet CAT6
A
(10 Gbps), 8-position, PUR, water blue RAL 5021, shielded, Plug straight RJ45 /
IP20, on Plug straight RJ45 / IP20, Cable length: 0.5 m
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
Note
4055626292649
85444210
Made to Order (non-returnable)
1 STK
Technical data
Dimensions
Length of cable
0.5 m
Ambient conditions
Ambient temperature (operation)
-25 °C ... 60 °C (RJ45 connector)
General data
Rated current at 40°C
Rated voltage
Number of positions
Signal type/category
Alternative short product description
0.5 A
48 V
8
Ethernet CAT6
A
, 10 Gbps
Patch cable
Characteristics head 1
Head type
No. of positions (pin connector pattern)
Plug straight RJ45 / IP20
8
Characteristics head 2
11/13/2016 Page 1 / 2
https://www.phoenixcontact.com/hq/products/1422210
Patch cable - NBC-R4AC-10G/0,5-94F/R4AC-10G - 1422210
Technical data
Characteristics head 2
Head type
No. of positions (pin connector pattern)
Plug straight RJ45 / IP20
8
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

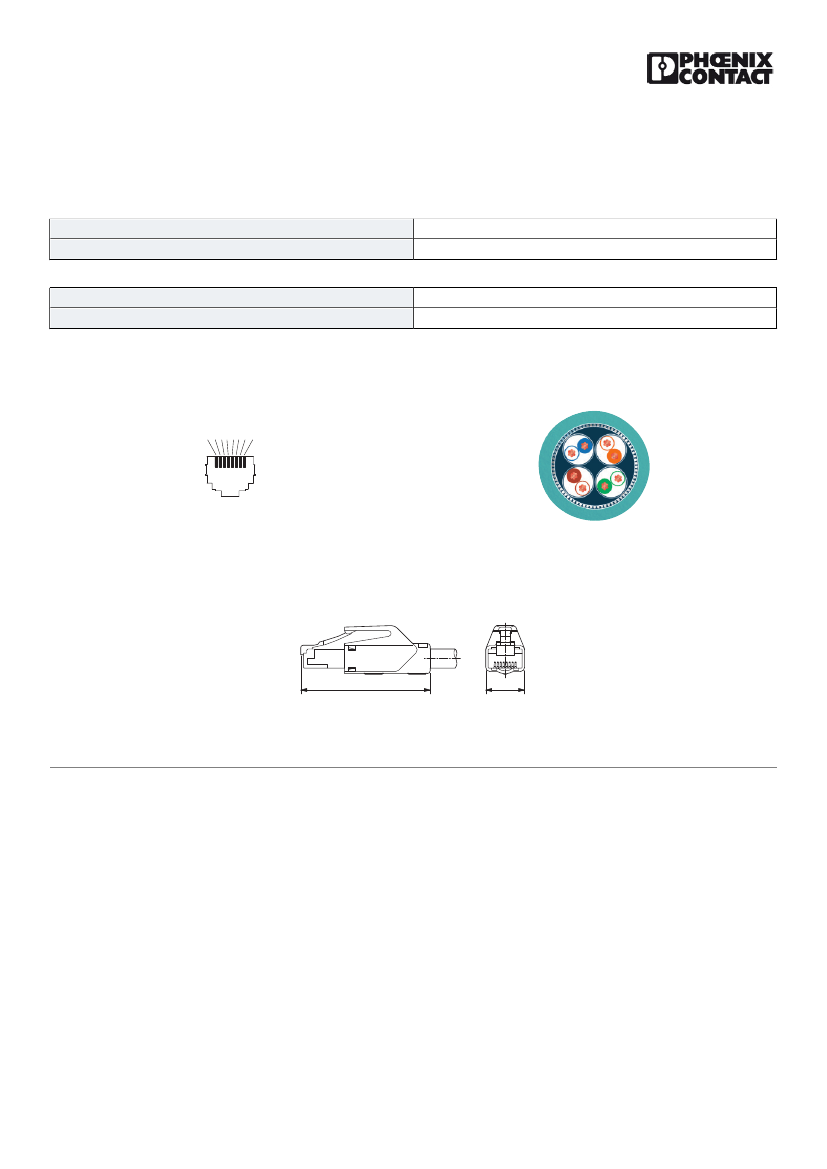

Drawings
Schematic diagram
Cable cross section
8 765 432 1
Connector pin assignment plug RJ45
Ethernet 10 Gbit [94F]
Dimensional drawing
44,65
13,4
RJ45 connector, IP20
