142-0439-001 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 142-0439-001

142-0439-001: DescriptionRF Connectors / Coaxial Connectors STRT PLG LMR-200 GLD; CategoryThe connector The connector; File Size1010KB，3 Pages; ManufacturerCinch Connectivity Solutions; Environmental Compliance

Download Datasheet Parametric View All

142-0439-001 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	142-0439-001	-	-	View	Buy Now

142-0439-001 Overview

RF Connectors / Coaxial Connectors STRT PLG LMR-200 GLD

142-0439-001 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Cinch Connectivity Solutions
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	INSERTION LOSS MAX AT 6GHZ, CAPTIVE CONTACT
Body/casing type	PLUG
Characteristic impedance	50 Ω
Connector type	RF SMA CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	GOLD (30)
Contact point gender	MALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.15 dB
insulator material	PTFE FLUOROCARBON/PFA
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	SMA
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	12.4 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	CRIMP/SOLDER
voltage standing wave ratio	1.47
Base Number Matches	1

Preview

Download Datasheet

View All

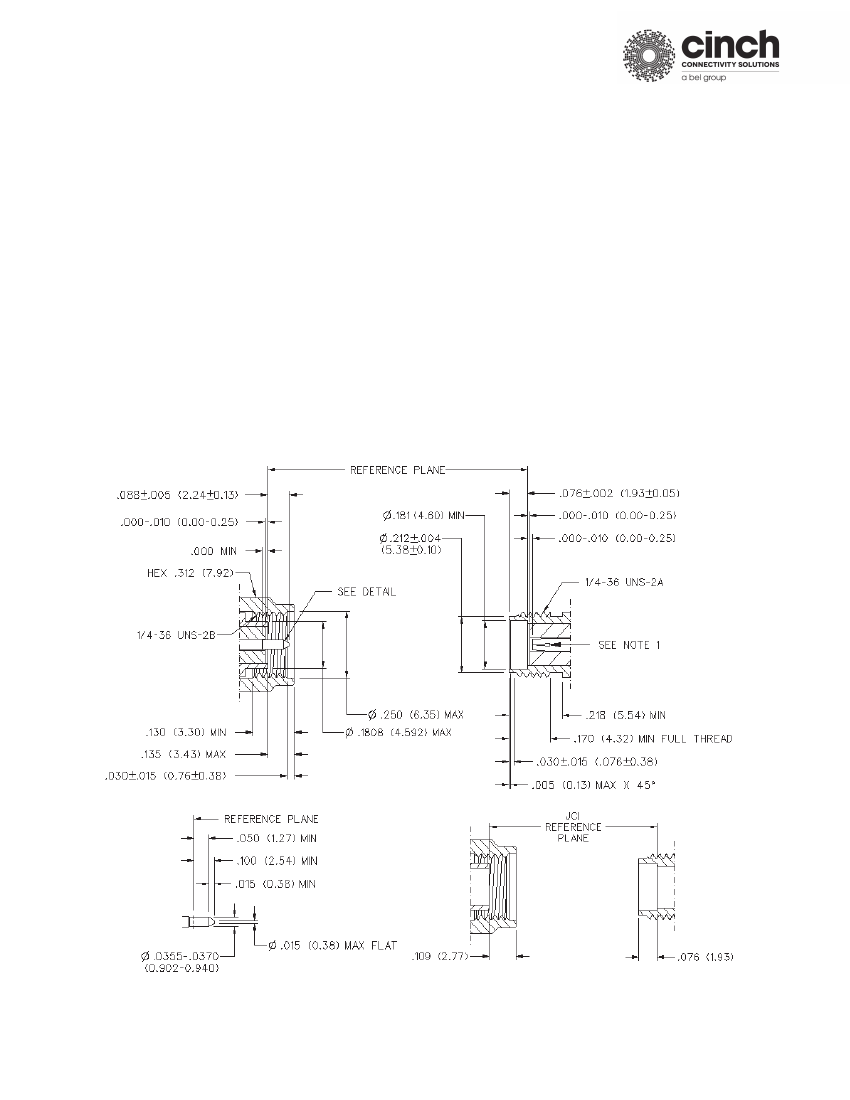

SMA 50 Ohm

Straight Crimp Type Plug (3-piece) -

Captivated Contact

Low Loss Cable

INCHES (MILLIMETERS)

CUSTOMER DRAWINGS AVAILABLE UPON REQUEST

GOLD PLATED

VSWR & FREQ. RANGE

CABLE TYPE

LMR-200, HPF-200, RF-200 1.10 + .03f (GHz) 0-12.4 GHz 142-0439-001

NICKEL PLATED

142-0439-006

“A”

.844 (21.44)

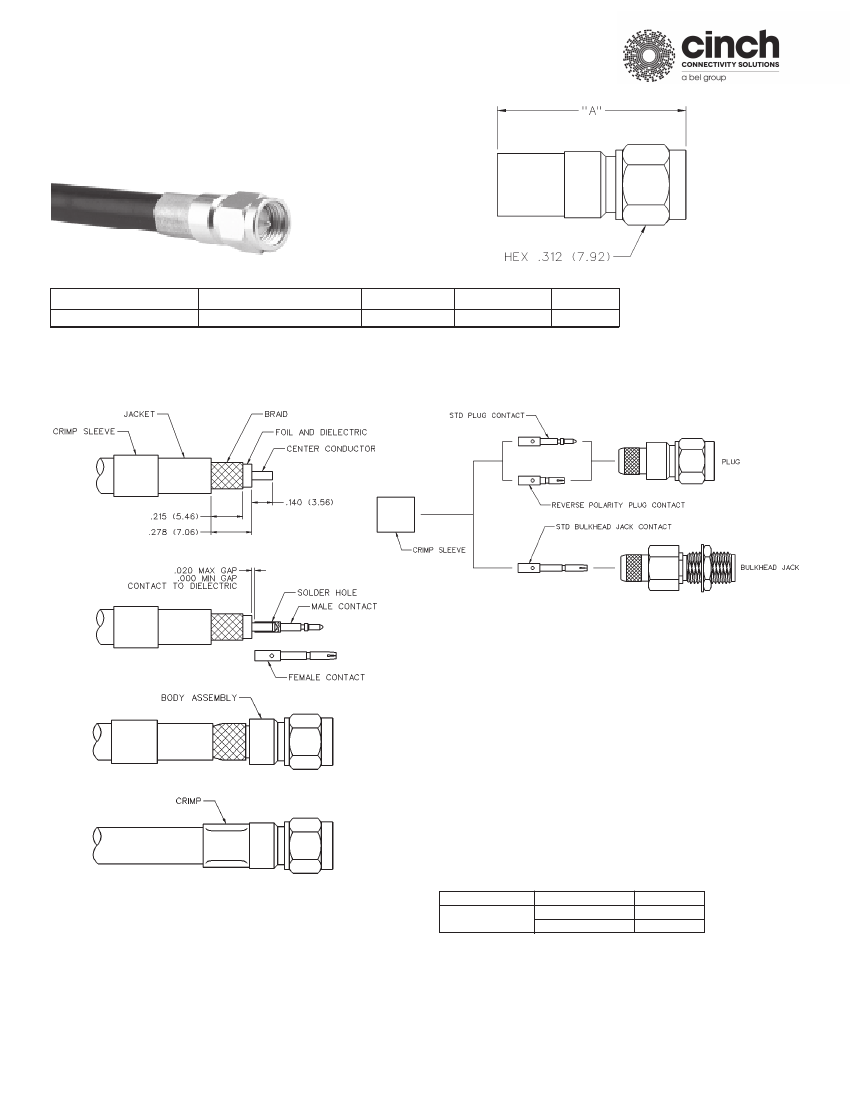

1. Identify connector parts. (3 piece parts - except bulkhead)

2. Strip cable to dimensions shown. Do not nick braid, foil or center

conductor. Cut foil flush with dielectric, do not remove foil. Make

sure that dielectric is clean and free from all particles. Tin center

conductor, keeping solder amount to a minimum. Slide crimp sleeve

onto jacket of cable.

3. Assemble contact onto cable as shown. Position contact such that

a gap of no more than .020 (0.51) is kept between dielectric and

contact. Solder contact to center conductor through solder hole us-

ing .020 (0.51) Diameter solder. Use a minimum amount of solder

for a good joint. Do not allow contact to move into dielectric during

soldering process.

4. Flare braid and slide body assembly over contact, foil and dielec-

tric, then under braid. Seat body assembly firmly onto contact. Ar-

range braid uniformly around crimp stem. Slide crimp sleeve for-

ward and crimp using Johnson Components

hand crimp tool 141-

0000-913 and recommended crimp die hex.

CABLE GROUP

LMR-200

PART NUMBER

142-0439-001

142-0439-006

CRIMP HEX

.213 (5.41)

Cinch Connectivity Solutions

299 Johnson Avenue SW, Waseca, MN 56093 USA • 800.247.8256 • +1 507 833 8822 • cinchconnectivity.com
