Part Number

Search

390HS059Z11504L6

Description
Circular MIL Spec Backshells SPLASH PRF CBL SEAL RC RLFSTRT LIGHT
CategoryThe connector
File Size37KB,2 Pages
ManufacturerGlenair
Websitehttp://www.glenair.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

390HS059Z11504L6 Online Shopping

Suppliers Part Number Price MOQ In stock
390HS059Z11504L6 - - View Buy Now

390HS059Z11504L6 Overview

Circular MIL Spec Backshells SPLASH PRF CBL SEAL RC RLFSTRT LIGHT

390HS059Z11504L6 Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerGlenair
Product CategoryCircular MIL Spec Backshells
RoHSDetails
MIL TypeMIL-DTL-38999 III, IV
Factory Pack Quantity1

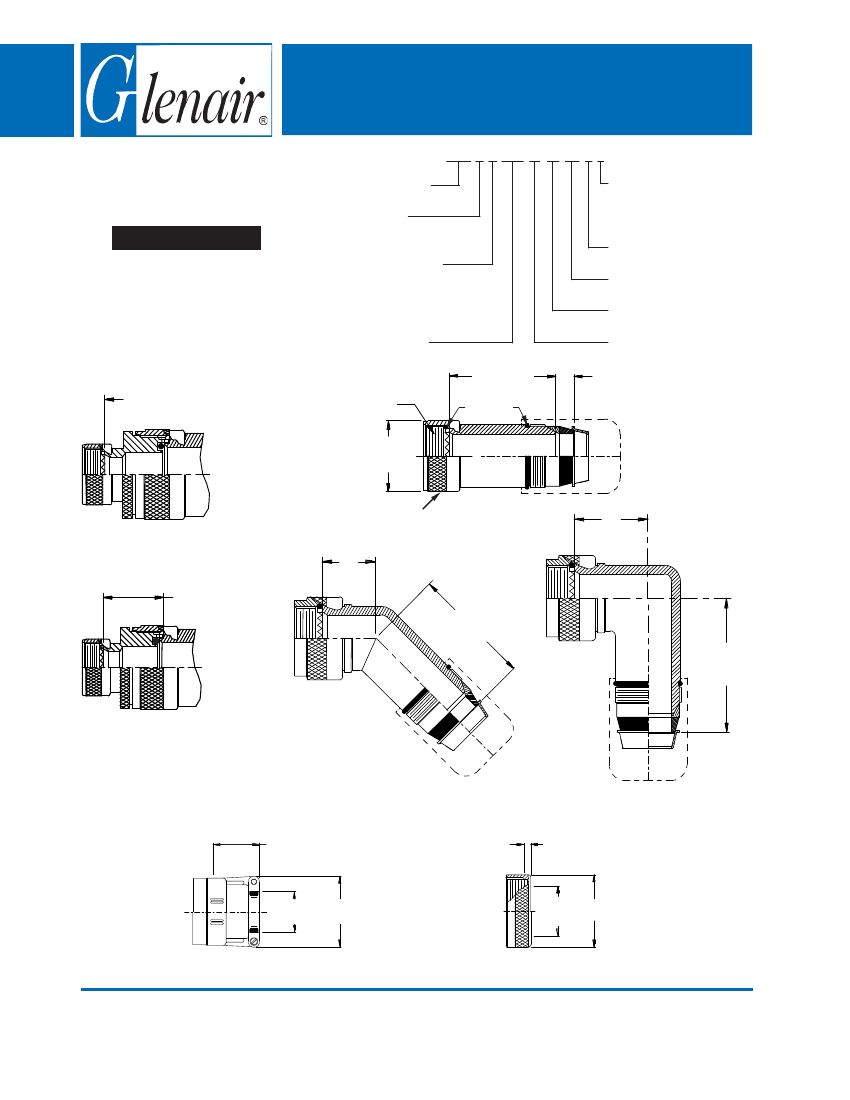

390-059
Splash-Proof EMI/RFI Cable Sealing Backshell
Light-Duty with Strain Relief
Type C - Self-Locking Rotatable Coupling - Standard Profile
39
CONNECTOR
DESIGNATORS
390 F S 059 M 16 05 L 6
Product Series
Connector
Designator
Angle and Profile
J = 90°
H = 45°
S = Straight
Basic Part No.
Length *
A Thread
(Table I)
O-Rings
* Length
± .060 (1.52)
Minimum Order
Length 2.0 Inch
(See Note 4)
H
(Table III)
A-F-H-L-S
SELF-LOCKING
ROTATABLE
COUPLING
TYPE C OVERALL
SHIELD TERMINATION
Length ± .060 (1.52)
Minimum Order Length 2.5 Inch
(See Note 4)
Length: S only
(1/2 inch increments:
e.g. 6 = 3 inches)
Strain Relief Style (L, G)
Cable Entry (Table IV)
Shell Size (Table I)
Finish (Table II)
.312 (7.9)
Max
E Typ.
(Table I)
STYLE 2
(STRAIGHT
See Note 1)
1.00 (25.4)
Max
Anti-Rotation
Device
F
(Table III)
G (Table III)
J
(Table III)
STYLE 2
(45° & 90°
See Note 1)
STYLE L
Light Duty
(Table IV)
.850 (21.6)
Max
STYLE G
Light Duty
(Table IV)
.072 (1.8)
Max
Cable
Range
K
Cable
Range
L
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
1211 AIR WAY
GLENDALE, CA 91201-2497
818-247-6000
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 39 - Page 44
