3M
™

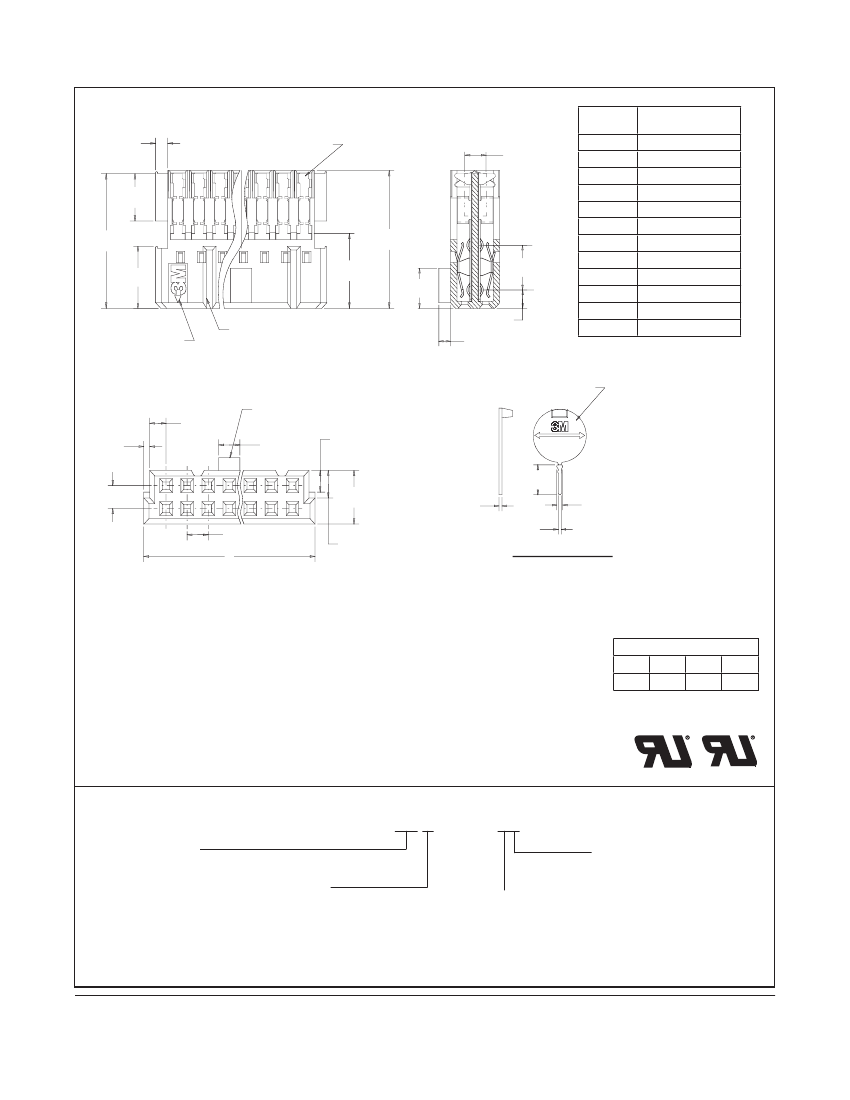

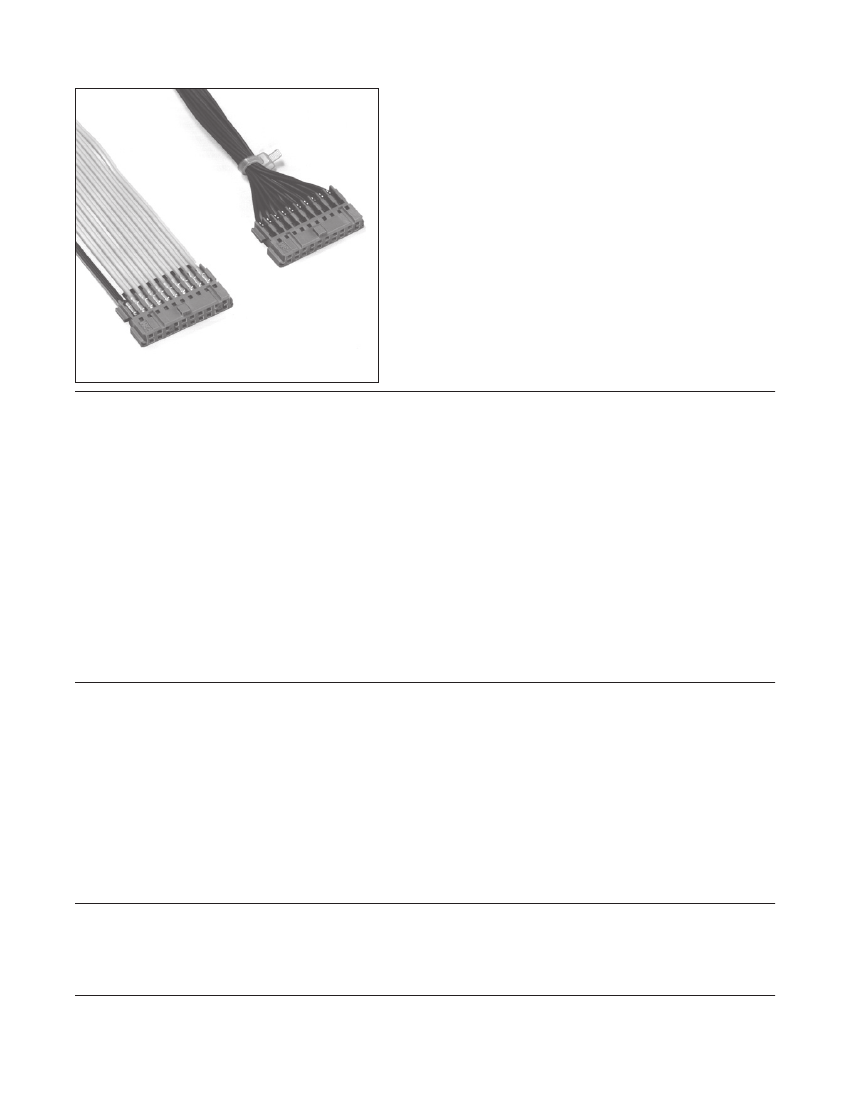

Polarized Wiremount Socket
.100" × .100" 2 row for .100" Pitch Notched Flat Cable or Discrete Wire
•
•
•
•
•
•
•
•
•
CHG Series
Military/DIN 41612 compatibility
Two row, polarized body
Mates to 3M long latch/eject headers and plugs
12 standard sizes, 10-64 positions
Twin slot IDC provides four points of contact
Exclusive L/H 4-wipe contact
3435-0 keying plug is optional - order separately
Accepts discrete wire or notched ribbon cable
See the Regulatory Information Appendix (RIA) in the
“RoHS compliance” section of www.3Mconnectors.com
for compliance information (RIA E1 and C1 Apply)
Date Modified: January 2, 2012
TS-0192-D
Sheet 1 of 2
Physical
Insulation:
Material: Glass Filled Polyester (PBT)
Flammability: UL 94V-0
Color: Gray
Contact:
Material: Copper Alloy
Plating:
Option P
First Wipe Area:
Second Wipe Area,
Underplating and U-Slot
Wire Accommodation:
Marking:
30 µ" [0.76 µm] Gold
100 µ" [ 2.54 µm ] Nickel
See Ordering Information for Options
3M Logo and Orientation Triangle
Electrical
1 Line
4 Adjacent Lines
All Lines
22 AWG
4.5
3.0
1.5
24 AWG
3.75
2.5
1.25
26 AWG
3.5
2.0
1.0
28 AWG
3.5
2.0
1.0
Rating Conditions: EIA-364-070 Method 2, 30°C maximum temperature rise, 20%
derated. Reference appropriate 3M Product Specification for detailed current
derating curves.
Insulation Resistance:
> 1 × 10
9
at 500 V
DC
Withstanding Voltage:
500 V
RMS
at Sea Level
Current Rating:
Environmental
UL File No.: E68080
3
Temperature Rating:
-55°C to +105°C
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Polarized Wiremount Socket
.100" × .100" 2 row for .100" Pitch Notched Flat Cable or Discrete Wire
Contact
Quantity
Contact Identification
(See Note 1)
X
.19
[ 4.8 ]
X
X
X
X
X
.100
[ 2.54 ]
CHG Series
Dimension A
± .006 [ ± 0.15 ]
0.680 [ 17.27 ]
0.880 [ 22.35 ]
0.980 [ 24.89 ]
1.180 [ 29.97 ]
1.380 [ 35.05 ]
1.480 [ 37.59 ]
1.680 [ 42.68 ]
1.880 [ 47.75 ]
2.180 [ 55.37 ]
2.680 [ 68.07 ]
3.180 [ 80.77 ]
3.380 [ 85.85 ]
.078 Ref
[ 1.98 ]
10
14
16
20
24
26
30
.56
[ 14.2 ]
.270
[ 6.86 ]
.330 Ref
[ 8.38 ]
.600 Ref
[ 15.24 ]
.195 Ref
[ 4.95 ]
.150
[ 3.81 ]
.080 Ref
[ 2.03 ]
.055 [ 1.40 ]
34
40
50
60
64
Position 1
Military:
Dual Polarization Slots
Breakaway
Tab
Centerbump
.081 Ref
[ 2.06 ]
.06
[ 1.5 ]
.100
[ 2.54 ]
.07
[ 1.8 ]
.24
[ 6.1 ]
.032
[ 0.81 ]
.026
[ 0.66 ]
.051
[ 1.30 ]
3435
.100 Ref
[ 2.54 ]
.100 Ref
[ 2.54 ]
A
.234 Ref
[ 5.94 ]
.120
[ 3.05 ]
3435-0 Keying Plug
(Optional)
Inch
[mm]
Tolerance Unless Noted
.0
Notes:
1. Contact Wire size Identification:
"6" - 26 and 28 AWG
"2" - 22 and 24 AWG
2. Insulation O.D. = .054 [ 1.37 ] Max
3. Recommended to be mated to a .100" x .100" Pin Strip Header with either a .235" [ 5.97 ] or a .318" [ 8.08 ] mating pin length:
929 Series, 2400 Series and 2300 Series.
4. Other sizes, polarizations and plating options are available as a special order. Higher minimum quantities and lead times will apply.
.00
±.01
.000
±.005
Inch
±.1
[ ] Dimensions for Reference Only
C
Ordering Information
Contact Quantity
(See Table 1)
CHG-20XX-X01010-KXX
*Plating Options:
P = Gold (RIA E1 and C1 apply)
Polarization Options:
J = with Centerbump (Standard)
S = without Centerbump (Special Order)
Wire Size Options:
C= 26 and 28 AWG Solid and Stranded
E= 22 AWG Stranded and 24 AWG Solid or Stranded
TS-0192-D
Sheet 2 of 2
Application Tools: For discrete wire: 3586-12 Pistol Grip and 3624-42 Assembly.
For notched flat cable: 3335 Press (or equivalent), 3739-CHGA Locator Plate.
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
Important Notice
All statements, technical information, and recommendations related to 3M’s products are based on information believed to be reliable, but the accuracy or completeness
is not guaranteed. Before using this product, you must evaluate it and determine if it is suitable for your intended application. You assume all risks and liability associated
with such use. Any statements related to the product which are not contained in 3M’s current publications, or any contrary statements contained on your purchase order
shall have no force or effect unless expressly agreed upon, in writing, by an authorized officer of 3M.
Warranty; Limited Remedy; Limited Liability.
This product will be free from defects in material and manufacture for a period of one (1) year from the time of purchase.
3M MAKES NO OTHER WARRANTIES
INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
If this product is defective within the
warranty period stated above, your exclusive remedy shall be, at 3M’s option, to replace or repair the 3M product or refund the purchase price of the 3M product.
Except
where prohibited by law, 3M will not be liable for any indirect, special, incidental or consequential loss or damage arising from this 3M product, regardless of
the legal theory asserted.
3
3M Electronics Solutions Division
6801 River Place Blvd.
Austin, TX 78726-9000
U.S.A.
1-800-225-5373
www.3Mconnectors.com
Please recycle. Printed in USA.
© 3M 2012. All rights reserved.
RIA-2217B-E
3M is a trademark of 3M Company.
