RC-12S1N121600 - 1598494
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

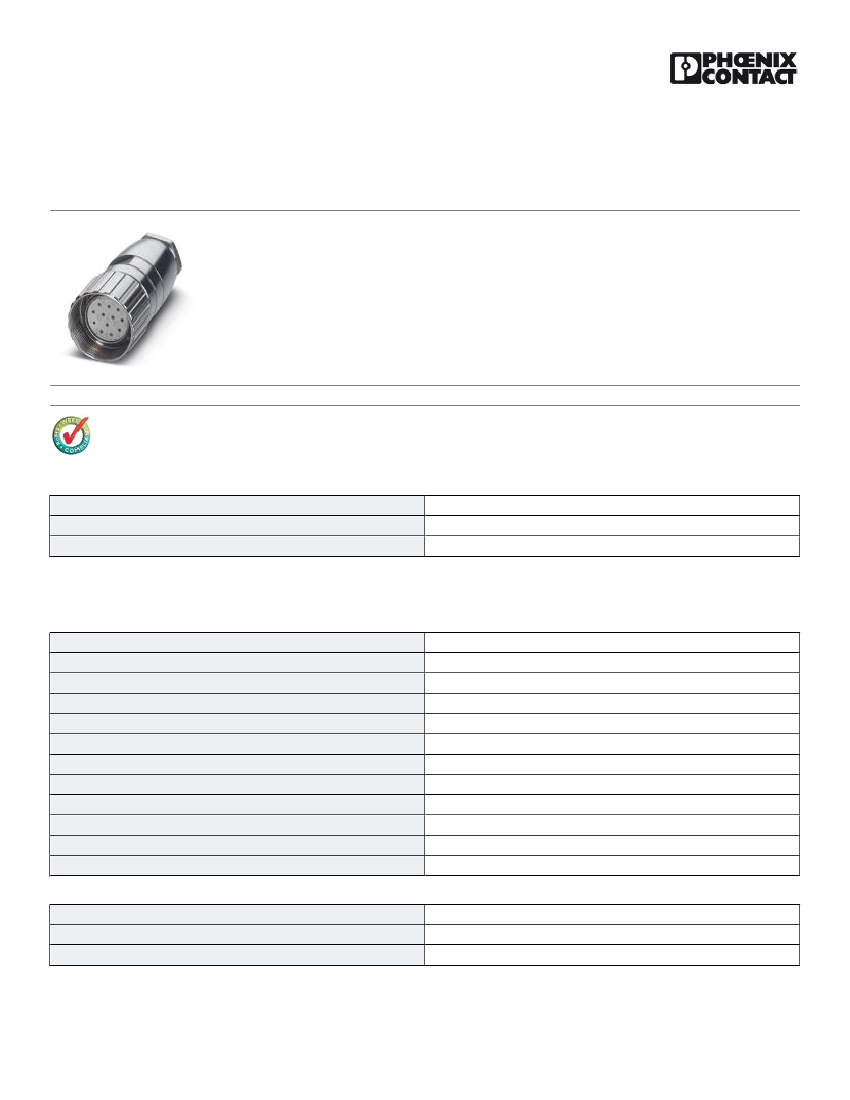

Cable connector, with Pg11 connection thread, straight, shielded: No, Screw locking, M23, Number of positions:
12, Type of contact: Socket, Solder connection, Cable diameter: 8 mm ... 12 mm
Key Commercial Data
Packing unit
Custom tariff number
Country of origin
1 pc
85366990
Germany
Technical data
Data of the insulating body
Coding
Insertion/withdrawal cycles mechanical
Contact connection method
Type of contacts
Number of positions
Contact diameter of power contacts
Litz wire cross section of power contacts min.
Litz wire cross section of power contacts max.
Nominal current per power contact at 25°C
Nominal voltage, power contact
Overvoltage category
Degree of pollution
N
50
Solder connection
Socket
12
1 mm
0.08 mm²
1 mm²
8A
150 V
II
3
Housing data
Housing material
Type of locking
Degree of protection (when plugged in)
Metal
Screw locking
IP65
04/17/2016 Page 1 / 3
https://www.phoenixcontact.com/us/products/1598494
RC-12S1N121600 - 1598494
Approvals
Ex Approvals
Approvals submitted
Approval details
EAC
Drawings
Schematic diagram
N
1
2
3
4
9
10 12
SO
11
5
6
8
7
Dimensional drawing
49,1
Ø26
20
