Rating Conditions: EIA-364-070 Method 2, 30 degrees C maximum temperature
rise, 20% derated. Reference appropriate 3M Product Specification for detailed
current derating curves.
Insulation Resistance:
> 1 × 10
9
Ω
at 500 V
DC
Withstanding Voltage:
500 V
RMS
at Sea Level
Current Rating:
3.00 A, 1 Contact Powered
Environmental
Temperature Rating:
-55°C to +105°C
UL File No.: E68080
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnector.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™

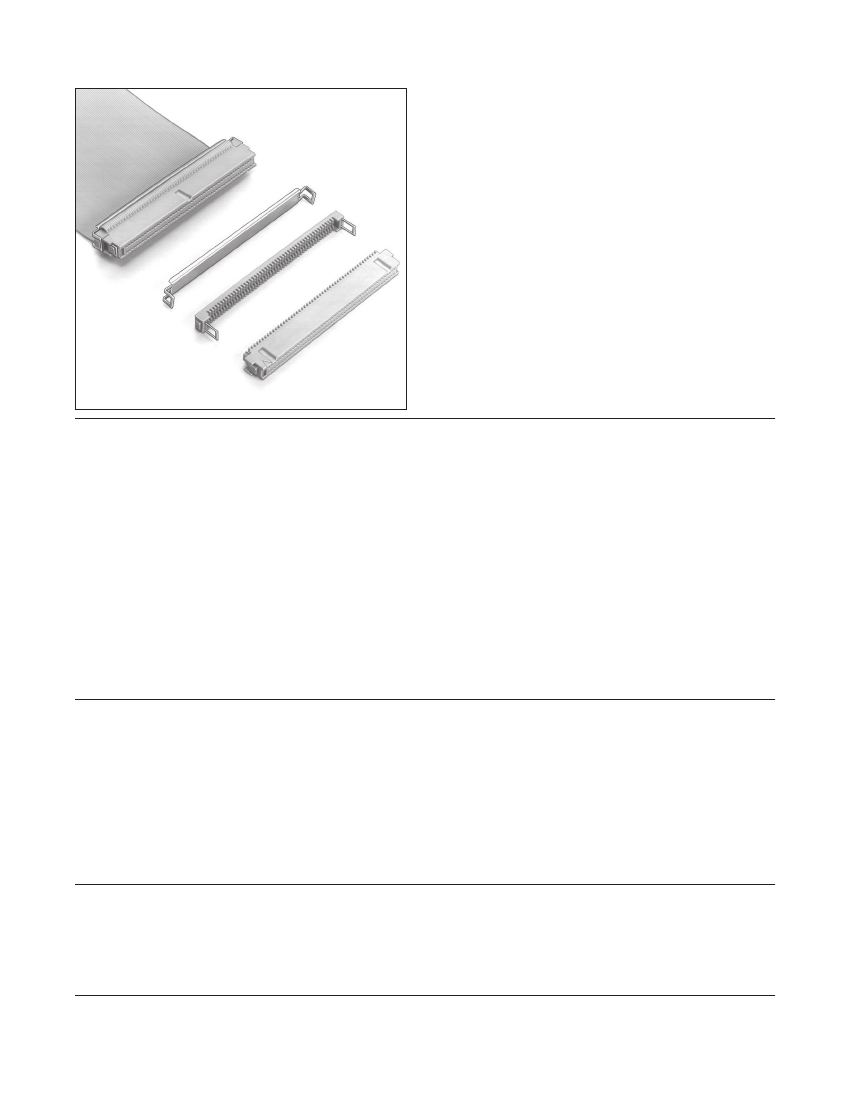

Tripolarized Wiremount Socket
.050" × .100" for .025" Pitch Cable
.23
±
.002
[ 5.8 ]
.30
±
.002
[ 7.6 ]
820 Series
Contact
Quantity
020
026

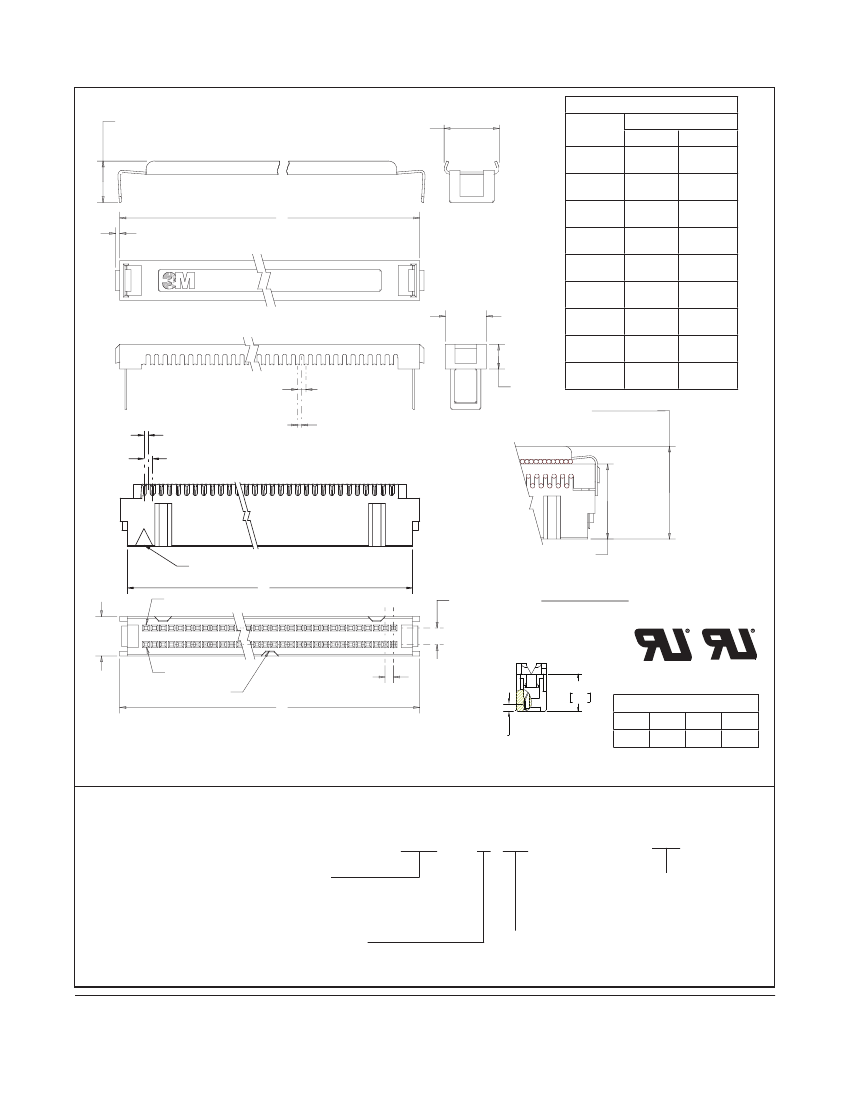

Table 1
Dimensions
A
.755
[ 19.18 ]
.905
[ 22.99 ]
1.155
[ 29.34 ]
1.255
[ 31.88 ]
1.505
[ 38.23 ]
1.755
[ 44.58 ]
1.955
[ 49.66 ]
2.255
[ 57.28 ]
2.755
[ 69.98 ]
B
.670
[ 17.02 ]
.820
[ 17.02 ]
1.070
[ 27.18 ]
1.170
[ 29.72 ]
1.420
[ 36.07 ]
1.670
[ 42.42 ]
1.870
[ 47.50 ]
2.170
[ 55.12 ]
2.670
[ 67.82 ]
.025 (2)
[ 0.64 ]
A
036
040
050
060
.24
[ 6.1 ]
068
080
.050
[ 1.27 ]
.025
[ 0.64 ]
.15
[ 3.8 ]
100
.56 Ref
[ 14.2 ]
(With Strain Relief)
.025
[ 0.64 ]
.050
[ 1.27 ]
Triangle Indicates
Position 1
B
Position 1
.24
[ 6.1 ]
.100
[ 2.54 ]
.46 Ref
[ 11.87 ]
(Without Strain Relief)
Assembled Height
C
Position 2
See Note 1
A
.05 REF.
.050 Ref
[ 1.2 ]
.30
7.6
Inch
[mm]
Tolerance Unless Noted
.0
.00
±.01
.000
±.005
Inch
±.1
Notes:
1. This polarization slot does not exist on the 20 position socket.
2. Recommended to be mated to the .050" X .100" 810XX series headers.
(CONTACT MATING POINT)
[ ] Dimensions for Reference Only
Ordering Information
Socket
82XXX - 600X - XX
Contact Quantity
(See Table 1)
(If Ordered Separately)
Strain Relief
3858-XXX
Contact Quantity:
See Table
Strain Relief:
0 = No Strain Relief
6 = With Strain Relief
Application tools: 3M
™
Press 3640 (or equivalent), 3M
™
Locator Plate 3443-113 , 3M
™
Platen 3442-45.
Plating suffix:
blank = tin lead U slots (App. E3 & C2 Apply)
RB = matte Sn U slots (App. E1 & C1 Apply) [Standard]
TS-0254-D
Sheet 2 of 2
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnector.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
Important Notice
All statements, technical information, and recommendations related to 3M’s products are based on information believed to be reliable, but the accuracy or completeness
is not guaranteed. Before using this product, you must evaluate it and determine if it is suitable for your intended application. You assume all risks and liability associated
with such use. Any statements related to the product which are not contained in 3M’s current publications, or any contrary statements contained on your purchase order
shall have no force or effect unless expressly agreed upon, in writing, by an authorized officer of 3M.
Warranty; Limited Remedy; Limited Liability.
This product will be free from defects in material and manufacture for a period of
ninety (90) days
from the time of purchase.
3M MAKES NO OTHER WARRANTIES
INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
If this product is defective within the
warranty period stated above, your exclusive remedy shall be, at 3M’s option, to replace or repair the 3M product or refund the purchase price of the 3M product.
Except
where prohibited by law, 3M will not be liable for any indirect, special, incidental or consequential loss or damage arising from this 3M product, regardless of
