Part Number

Search

0039303046

Description
Headers & Wire Housings MINI-FIT JR HDR 04P RA 94V-0
CategoryThe connector    The connector
File Size34KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

0039303046 Online Shopping

Suppliers Part Number Price MOQ In stock
0039303046 - - View Buy Now

0039303046 Overview

Headers & Wire Housings MINI-FIT JR HDR 04P RA 94V-0

0039303046 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerMolex
package instructionLOW HALOGEN, ROHS AND REACH COMPLIANT
Reach Compliance Codecompliant
Samacsys Confidence4
Samacsys StatusReleased
Samacsys PartID1148164
Samacsys Pin Count4
Samacsys Part CategoryConnector
Samacsys Package CategoryOther
Samacsys Footprint Name0039303046-4
Samacsys Released Date2020-06-10 10:24:59
Is SamacsysN
Other featuresPOLARIZED
Connector typeRECTANGULAR POWER CONNECTOR
Contact to complete cooperationTIN (200)
Contact completed and terminatedTin (Sn)
Contact point genderMALE
Contact materialBRASS
DIN complianceNO
empty shellNO
Filter functionNO
IEC complianceNO
JESD-609 codee3
MIL complianceNO
Plug information39-01-4041
Mixed contactsNO
Installation typeBOARD
OptionsGENERAL PURPOSE
Shell materialPOLYAMIDE
Termination typeSOLDER
Total number of contacts4
UL Flammability Code94V-0
Base Number Matches1

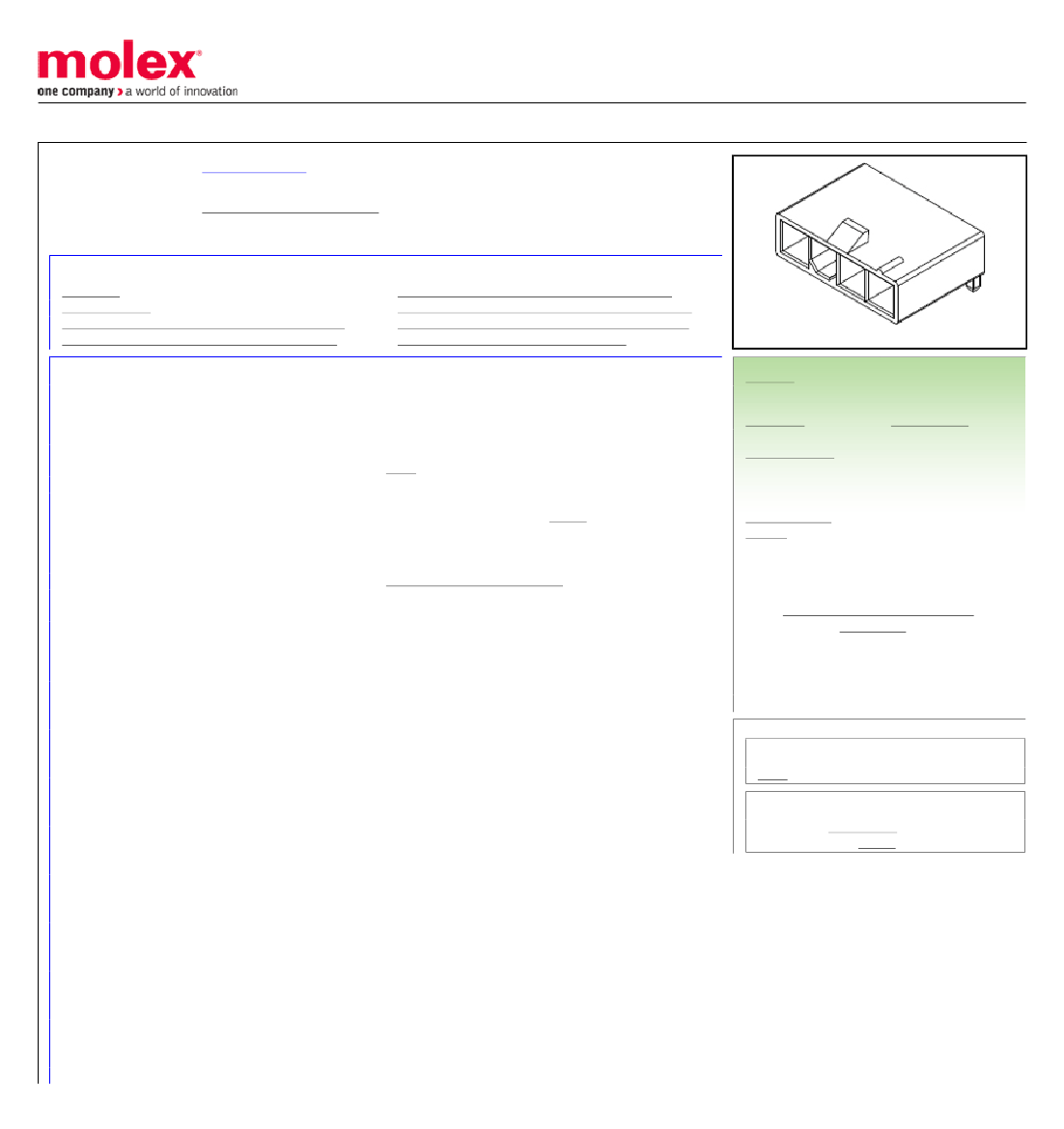

This document was generated on 05/23/2018
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0039303046
Active
Mini-Fit Jr. Power Connectors
Mini-Fit Jr. Header, Single Row, Right Angle, with Snap-in Plastic Peg PCB Lock, 4
Circuits, PA Polyamide Nylon 6/6, 94V-0, Tin (Sn) Plating
Documents:
3D Model
Drawing (PDF)
Product Specification PS-45750-001-001 (PDF)
Product Specification PS-5556-001-001 (PDF)
Agency Certification
CSA
UL
General
Product Family
Series
Application
Comments
Product Specification TS-5556-002-001 (PDF)
Application Specification AS-5557-001-001 (PDF)
Packaging Specification PK-5569-002-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series image - Reference only
EU ELV
Not Relevant
EU RoHS
China RoHS
Compliant
REACH SVHC
Not Contained Per
-ED/01/2018 (15
January 2018)
Halogen-Free
Status
Low-Halogen
Need more information on product
environmental compliance?
Email productcompliance@molex.com
Please visit the Contact Us section for any
non-product compliance questions.
China ROHS
ELV
RoHS Phthalates
Green Image
Not Relevant
Not Contained
LR19980
E29179
PCB Headers
5569
Power, Wire-to-Board
Current = 13A max. per circuit when header is mated
to a receptacle loaded with 45750 Mini-Fit Plus HCS
Crimp Terminal Crimped to 16 AWG wire., See Molex
Product specification PS-5556-001 for additional current
de-rating information.
Mini-Fit Jr. Power Connectors
Mini-Fit Jr.
800754932967
No
4
4
Natural
30
No
94V-0
No
No
None
Yes
Brass
Matte Tin
Matte Tin
Nylon
1.474/g
1
Right Angle
Yes
Yes
1.78mm
Bag
4.20mm
4.20mm
2.540µm
2.540µm
Yes
Overview
Product Name
UPC
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Flammability
Glow-Wire Capable
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Net Weight
Number of Rows
Orientation
PCB Locator
PCB Retention
PCB Thickness - Recommended
Packaging Type
Pitch - Mating Interface
Pitch - Termination Interface
Plating min - Mating
Plating min - Termination
Polarized to Mating Part
Search Parts in this Series
5569 Series
Mates With
Receptacle 39-01-4041 <br>Mini-Fit Jr. TPA
Cable Assembly 45135
