TA6FS20 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> TA6FS20

TA6FS20: DescriptionXLR Connectors SLD Mini XLR Conn 6P FML 0.19" to 0.21"; CategoryThe connector; File Size205KB，2 Pages; ManufacturerSwitchcraft; Environmental Compliance

Download Datasheet Parametric View All

TA6FS20 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	TA6FS20	-	-	View	Buy Now

TA6FS20 Overview

XLR Connectors SLD Mini XLR Conn 6P FML 0.19" to 0.21"

TA6FS20 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Switchcraft
Product Category	XLR Connectors
RoHS	Details
Packaging	Bulk
Factory Pack Quantity	50

Preview

Download Datasheet

View All

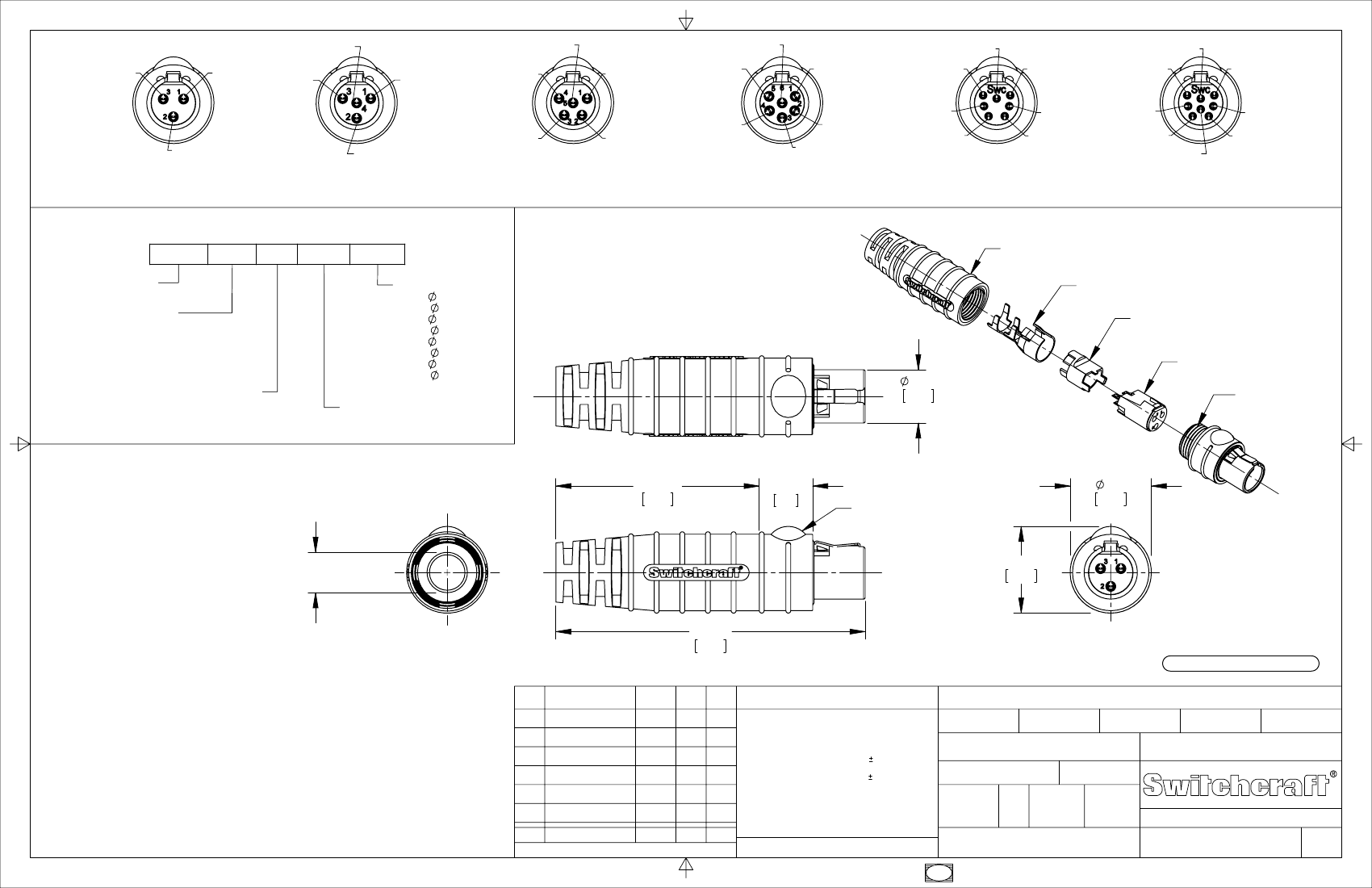

TA3FS SERIES

3 PIN

TA4FS SERIES

4 PIN

TA5FS SERIES

5 PIN

TA6FS SERIES

6 PIN

TA7FS SERIES

7 PIN

AS VIEWED FROM FRONT MATING SIDE

STRAIN RELIEF

HANDLE

TA8FS SERIES

8 PIN

T A

SERIES

NUMBER OF CONTACTS

- 3 PIN 22 AWG PINS

- 4 PIN 22 AWG PINS

- 5 PIN 22 AWG PINS

- 6 PIN 22 AWG PINS

- 7 PIN 28 AWG PINS

- 8 PIN 28 AWG PINS

CABLE SIZE

- 0.100 - 0.120

[ 2.54 - 3.05]

- 0.140 - 0.160

[ 3.56 - 4.06]

- 0.190 - 0.210

[ 4.83 - 5.33]

- 0.230 - 0.260

[ 5.84 - 6.60]

- SEALED VERSION

CABLE CLAMP

INSULATOR

PIN & BASE ASSEMBLY

0.330

8.38

REF

FEMALE HOUSING

WITH BUTTON

SEAL BOOT

GENDER

-FEMALE

PART NUMBER ORDERING CODE

1.26

32.0

HANDLE

0.33

8.4

LATCH

RELEASE BUTTON

0.54

13.6

0.50

12.8

CABLE SIZE

SEE PART NUMBER

ORDERING CODE

1.92

48.7

NOTES:

1. MATERIALS:

HOUSING - COPPER ALLOY, NICKEL PLATED

PIN CONTACTS - COPPER ALLOY, SILVER PLATED

LATCH BUTTON - RIGID THERMOPLASTIC, BLACK

PIN INSULATOR - RIGID THERMOPLASTIC, DARK BROWN

LATCH SPRING - COPPER ALLOY, NICKEL PLATED

CABLE CLAMP - STEEL, TIN PLATED

BUTTON SEAL BOOT - THERMOPLASTIC RUBBER, BLACK

INSERT MOLDED HANDLE - THERMOPLASTIC RUBBER OVER

RIGID THERMOPLASTIC, BLACK

2. THIS PRODUCT IS RoHS COMPLIANT.

TA3FS SHOWN

UNLESS OTHERWISE SPECIFIED

1. ALL DIMENSIONS IN INCHES [mm]

- TWO PLACE DECIMALS

- THREE PLACE DECIMALS

REV

SIZE

FINISH

SPEC No.

FIRST USED ON

DATE DRAWN

CHKD

SCALE

WIDTH

MULT

CUSTOMER DRAWING

THIS DRAWING DESCRIBES A DESIGN CONSIDERED PROPRIETARY IN NATURE, DEVELOPED AND MANUFACTURED

BY SWITCHCRAFT INC. AND IS RELEASED ON A CONFIDENTIAL BASIS FOR IDENTIFICATION PURPOSES ONLY.

LBS/M

MATERIAL

SPEC No.

TEMPER

0.02 [0.5]

0.005 [0.13]

2:1

27629

27552

ECO NUMBER

12-18-15

8-14-15

DATE

TJK

APVD

1/29/13

TJK

9-28-15

PART No.

APVD

SHEET

REVISIONS

DO NOT SCALE DRAWING

NAME

SEALED TINI Q-G

FEMALE, ROHS

REV

TA_FS SERIES

SolidWorks CAD File
