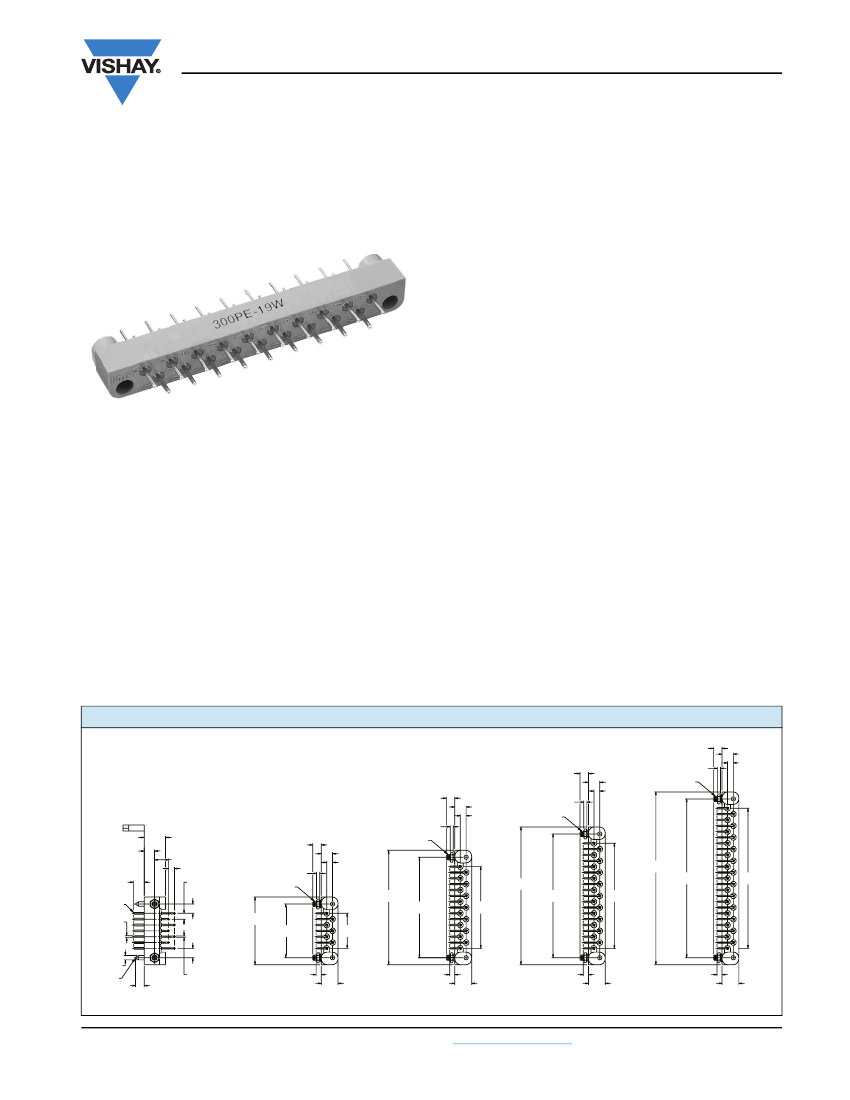

Series 300
Vishay Dale
Printed Circuit Dip Solder Connector
FEATURES
• Right angle or straight through dip solder terminals
• Threaded mounting studs
• Male contacts molded in
• Mating connector has solder cup or dip solder terminals
• Female contacts float to aid in alignment and resist
vibration
• Permanent mounting provides greater reliability
• Polarization provided by contact arrangement and guide
pin location
• Meets applicable paragraphs of MIL-C-55302
MATERIAL SPECIFICATIONS
Contact Pin:
Phosphor bronze
Contact Socket:
Phosphor bronze
Contact Plating:
Gold plated
APPLICATIONS
Where permanent mounting of male connector to printed
circuit board is required with mating female connector
available.
Guide Pins:
Stainless steel, passivated
Standard Body:
Glass-filled diallyl phthalate per MIL-M-14,
type SDG-F green. Other body material supplied upon
request
ELECTRICAL SPECIFICATIONS
Current Rating:
7.5 A
Breakdown Voltage:
At sea level: 3600 V
RMS
At 70 000 feet: 975 V
RMS
PHYSICAL SPECIFICATIONS
Number of Contacts:
7, 15, 19 and 25
Contact Spacing:
0.250", staggered rows provide a 0.125"
grid
Contact Gauge:
#20 AWG
Minimum Creepage Path between Contacts:
0.16"
Minimum Air Spacebetween Contacts:
0.11"

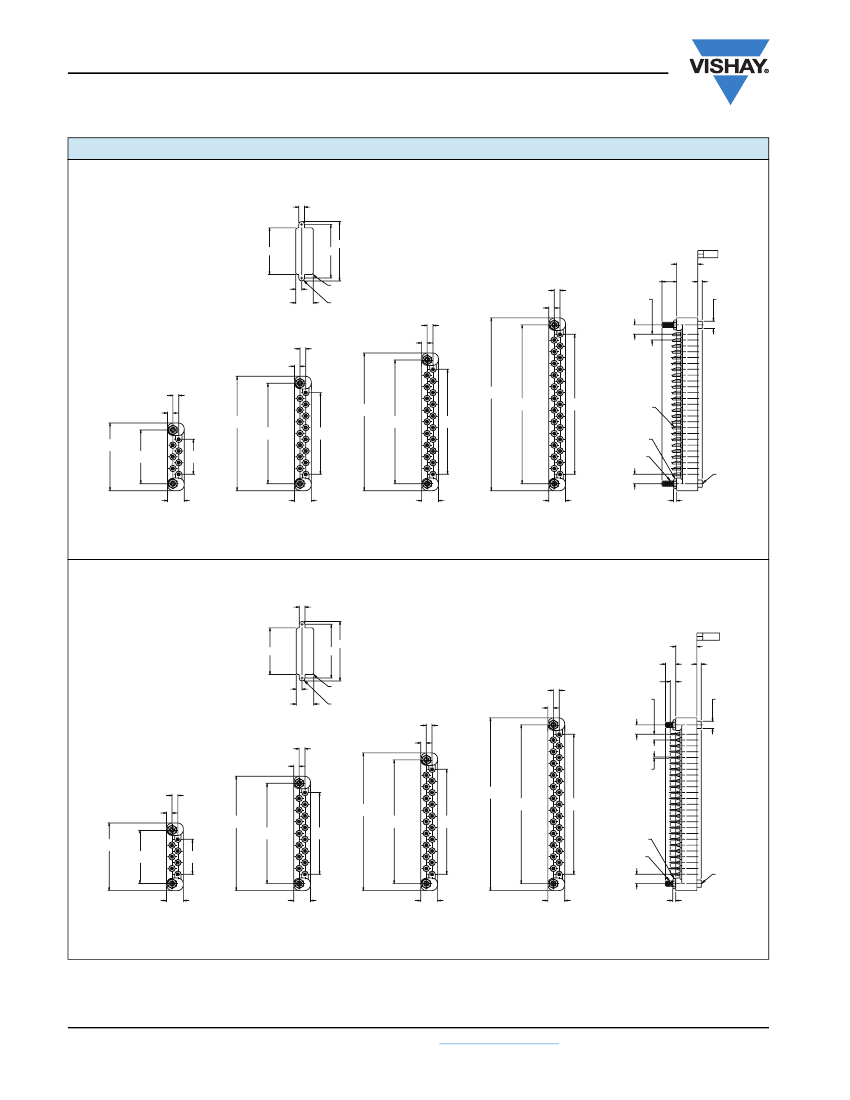

DIMENSIONS
in inches (millimeters)
300PR
0.181 [4.60]
0.242 [6.15]
0.181 [4.60]
0.242 [6.15]
0.125 ± 0.003
[3.180 ± 0.076]
0.010
0.453
[11.5]
0.220 [5.59]
0.300 [7.62]
0.125 ± 0.002
[3.180 ± 0.051]
15/64 [5.95]
0.125 ± 0.003
[3.180 ± 0.076]
(TYP.)
0.200
[5.08]
1.450 + 0.015/- 0.000
[36.800 + 0.381/-0.000]
1.150 + 0.015/- 0.000
[29.200 + 0.381/- 0.000]
0.200
[5.08]
Ø 0.093 [2.36]
(TYP.)
GUIDE PIN
3/16 [4.76]
0.181 [4.60]
0.242 [6.15]
0.06 [1.52]
(TYP.)
4-40 UNC 2A
(TYP.)
0.125 ± 0.003
[3.180 ± 0.076]
0.125 ± 0.003
[3.180 ± 0.076]
0.06 [1.52]
(TYP.)
4-40 UNC 2A
(TYP.)
A
B
C
D
E
F
A
B
C
D
K
L
H
J
0.06 [1.52]
(TYP.)
0.181 [4.60]
0.242 [6.15]
0.125 ± 0.003
[3.180 ± 0.076]
0.06 [1.52]
(TYP.)
4-40 UNC 2A
(TYP.)
2.450 + 0.015/- 0.000
[62.200 + 0.381/- 0.000]
2.150 + 0.015/- 0.000
[54.600 + 0.381/- 0.000]
B
C
D
(0.750)
E
F
H
S
M
N
P
R
A
C
D
E
F
H
J
K
L
B
4-40 UNC 2A
(TYP.)
E
F
H
2.950 + 0.015/- 0.000
[74.900 + 0.381/- 0.000]
2.650 + 0.015/- 0.000
[67.300 + 0.381/- 0.000]
(1.750)
([44.4])
J
K
L
(2.250)
M
N
P
R
S
T
U
V
W
3.700 + 0.015/- 0.000
[94.000 + 0.381/- 0.000]
3.400 + 0.015/- 0.000
[86.400 + 0.381/- 0.000]
([57.2])
M
N
P
S
T
U
V
W
X
Y
Z
AA
BB
CC
R
([76.2])
(3.000)
CONTACT PIN
Ø 0.040 [1.02]
(TYP.)
A
([19.0])
0.032 [0.813]
(TYP.)
7/64 [2.78]
0.36
[9.14]
7 CONTACTS
7/64 [2.78]
0.36
[9.14]
15 CONTACTS
7/64 [2.78]
0.36
[9.14]
19 CONTACTS
7/64 [2.78]
0.36
[9.14]
25 CONTACTS
TYPICAL SIDE VIEW
