310-43-105-40-023000 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 310-43-105-40-023000

310-43-105-40-023000: DescriptionIC & Component Sockets; CategoryThe connector The connector; File Size647KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric Compare View All

310-43-105-40-023000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	310-43-105-40-023000	-	-	View	Buy Now

310-43-105-40-023000 Overview

IC & Component Sockets

310-43-105-40-023000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL (100)
Contact completed and terminated	Tin (Sn)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	5
Base Number Matches	1

Preview

Download Datasheet

View All

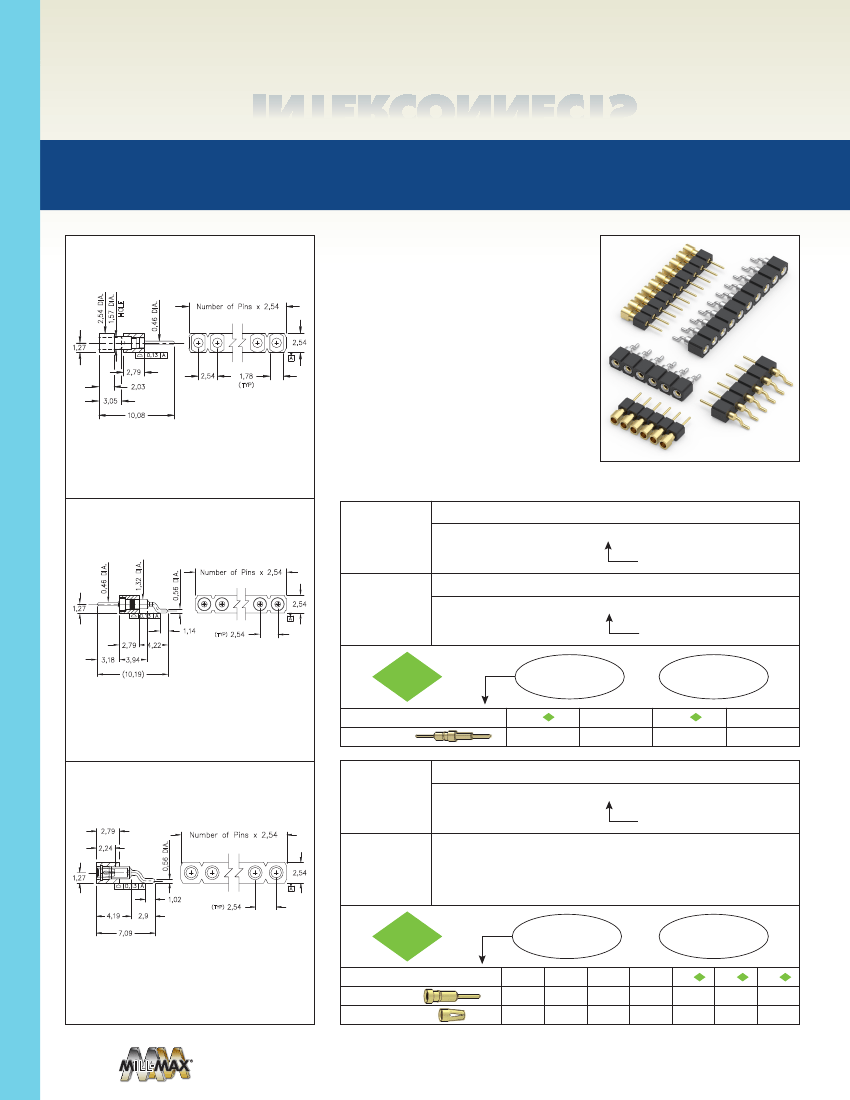

INTERCONNECTS

SERIES 310, 330, 351• 2,54 GRID (0,46 DIA. PINS),

SURFACE MOUNT HEADERS AND SOCKETS • SINGLE ROW STRIPS

Mates with Series 310...023 Surface Mount

Z-Bend Socket (See Fig. 3)

2,54 DIA.

1,57 DIA.

HOLE

0,46 DIA.

•

Series 351 horizontal surface mount headers

are availble with 0,46 dia. pluggable pins

(MM #5102). Series 330 horizontal surface

mount z-bend headers use MM #3027 pins.

See page 224 for details

Number of Pins x 2,54

•

Series 310 horizontal surface mount Z-Bend

2,54

1,27

0,13 A

2,79

2,03

2,54

1,78

(TYP)

sockets uses MM #1023 receptacles that accept

pin diameters from 0,38 - 0,64. See pages 171

for details

suitable for all soldering operations

3,05

10,08

•

Insulators are high temperature thermoplastic,

•

Ideal for daisy chaining parallel boards

Coplanarity 0,13. For pin counts >10 positions,

consult Technical Support.

FIG. 1

Mates with Series 310...023 Surface Mount

Z-Bend Socket (See Fig. 3)

0,46 DIA.

1,32 DIA.

ORDERING INFORMATION

Series 351...002

0,46 Dia. Surface Mount Header

351-10-1_ _-40-002000

Specify number of pins

02-10

FIG. 1

Series 330...027

0,56 DIA.

Number of Pins x 2,54

0,46 Dia. Surface Mount Z-Bend Header

330-XX-1_ _-40-027000

02-10

For

Electrical, Mechanical

& Enviromental Data,

See page 264

1,27

0,13 A

2,54

FIG. 2

RoHS - 2

1,14

2,79

3,18

3,94

(10,19)

4,22

(TYP)

2,54

Specify number of pins

XX=Plating Code

See Below

0,25μm Au

2011/65/EU

Coplanarity 0,13. For pin counts >10 positions,

consult Technical Support.

SPECIFY PLATING CODE XX=

Pin Plating

5,08μm Sn

FIG. 2

Mates with Series 351...002 and 330...027

Surface Mount Header (See Fig. 1 & 2)

2,79

2,24

0,56 DIA.

Series 310...023

0,46 Dia. Surface Mount Z-Bend Socket

310-XX-1_ _-40-023000

02-10

FIG. 3

Specify number of pins

Number of Pins x 2,54

PAGE 50 | INTERCONNECTS

1,27

0,13 A

2,54

1,02

(TYP)

2,54

4,19

7,09

2,9

2011/65/EU

RoHS - 2

XX=Plating Code

See Below

For

Electrical, Mechanical

& Enviromental Data,

See page 264

Coplanarity 0,13. For pin counts >10 positions,

consult Technical Support.

SPECIFY PLATING CODE XX=

Sleeve (Pin)

Contact (Clip)

FIG. 3

5,08μm Sn/Pb 5,08μm Sn/Pb 5,08μm Sn/Pb

5,08μm Sn 5,08μm Sn 5,08μm Sn

0,25μm Au 0,76μm Au

2,54μm Sn/Pb

0,25μm Au 0,76μm Au 2,54μm Sn

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com

310-43-105-40-023000 Related Products

	310-43-105-40-023000	GUS-TSCA-02-2180-DA	310-43-102-40-023000	CHP2208K5970DW	CRCW0805270RFKTBBC
Description	IC & Component Sockets	Array/Network Resistor, Isolated, Tantalum Nitride/nickel Chrome, 0.1W, 218ohm, 100V, 0.5% +/-Tol, -50,50ppm/Cel, 3117,	IC & Component Sockets STANDARD SOCKET HEADER	Fixed Resistor, Metal Glaze/thick Film, 0.75W, 597ohm, 200V, 0.5% +/-Tol, -100,100ppm/Cel, 2208,	Fixed Resistor, Metal Glaze/thick Film, 0.125W, 270ohm, 150V, 1% +/-Tol, -100,100ppm/Cel, 0805,
Is it Rohs certified?	conform to	incompatible	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
JESD-609 code	e3	e0	e4	e4	e3
Objectid	-	802214570	-	965100283	259484214
Country Of Origin	-	USA	-	France	Mainland China
YTEOL	-	5.18	-	7.9	7.75
structure	-	Chip	-	Chip	Chip
Number of terminals	-	24	-	2	2
Maximum operating temperature	-	125 °C	-	155 °C	155 °C
Minimum operating temperature	-	-55 °C	-	-55 °C	-55 °C
Package height	-	0.9 mm	-	0.5 mm	0.45 mm
Package length	-	7.8 mm	-	5.53 mm	2 mm
Package form	-	SMT	-	SMT	SMT
Package width	-	4.4 mm	-	2.05 mm	1.25 mm
Rated power dissipation(P)	-	0.1 W	-	0.75 W	0.125 W
resistance	-	218 Ω	-	597 Ω	270 Ω
Resistor type	-	ARRAY/NETWORK RESISTOR	-	FIXED RESISTOR	FIXED RESISTOR
size code	-	3117	-	2208	0805
technology	-	TANTALUM NITRIDE/NICKEL CHROME	-	METAL GLAZE/THICK FILM	METAL GLAZE/THICK FILM
Temperature Coefficient	-	50 ppm/°C	-	100 ppm/°C	100 ppm/°C
Terminal surface	-	Tin/Lead (Sn/Pb)	-	Gold (Au) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier
Tolerance	-	0.5%	-	0.5%	1%
Operating Voltage	-	100 V	-	200 V	150 V
