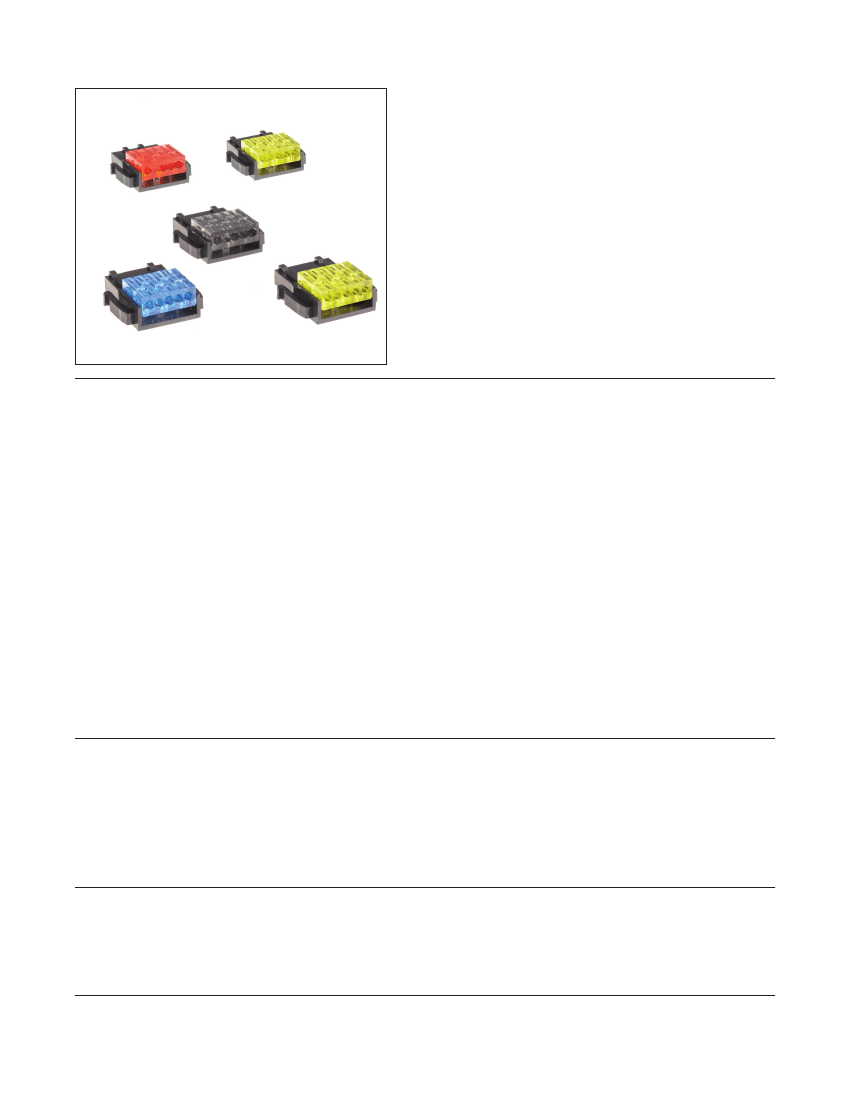

• Easy, labor saving, and reliable IDC termination
• Easy field termination with no special tooling or wire
preparation – no stripping or tinning
• Semi-Transparent color-coded covers for wire inspection
and wire retention
• CC-Link Communication Interconnect Standard
• One-Touch latching mechanism maintains a reliable
interconnection in demanding field applications and
requires only one hand to easily mate and unmate
• Polarization ensures proper interconnecting of mated pairs
• RoHS Compliant. See the Regulatory Information
Appendix (RIA) in the "RoHS compliance" section of
www.3Mconnector.com for compliance information
(RIA E1 & C1 apply).
Date Modified: September 15, 2010
TS-2273-D
Sheet 1 of 2
Physical
Insulation:
Body Material: Nylon
Cover Material: Polycarbonate
Flammability:
UL 94V-0
Body Color: Black
Cover Color: Clear, Yellow, Blue, Red
Contact:
Material: Copper Alloy
Plating:
Underplating: 2.5 µm Ni minimum
Wiping Area: 0.5 µm Au minimum
IDC Termination Area: 2.5 µm Ni minimum
Wire Accommodation:
18 & 20 AWG: PVC, TFE, Foamed PE insulation with solid or 7 - 19 stranded Tinned or
Silver Cu.
MIL-W- 16878/5 EE, MIL-W- 16878/4 E, MIL-W- 16878/1, MIL-W- 16878/2 C
CC-Link Ver 1.10 Cables
Contact 3M for additional wire accommodations
Mating Compatability:
356, 357, 358 Series (with same polarizations)
Electrical
Current Rating:
18 AWG: 10A (1 contact); 7A (2 - 5 contacts)
20 AWG: 9A (1 contact); 6A (2 - 5 contacts)
Rating Conditions: 30° C maximum temperature rise
Voltage Rating:
250 V
Insulation Resistance:
10
3
MΩ min. at 600 V
DC
Withstanding Voltage:
1,000 V
RMS
for 1 minute
Environmental
Temperature Rating:
-20°C to +75°C ambient
UL Rating:
65°C
UL File No.: E68080
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnector.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Power Clamp Wiremount Socket
3 mm, IDC, 5 Position
[0.299]
7.6
355 Series
C
10.2
[0.402]
25.0 [0.984]
7.4
[0.291]
28.0 [1.102]
18.9 [0.744]
4.6 [0.181]
5.6 [0.220]
18.2
[0.717]
12.0
[0.472]
16.7
[0.657]
Available Part Numbers
3M Part Number
35505-6080-A00 GF
35505-6180-A00 GF
35505-6200-A00 GF
35505-6200-B00 GF
35505-6000-B0M GF*
Outside
Diameter Range
of Wire
2.2 - 3.0 mm [.087 - .118"]
2.0 - 2.3 mm [.079 - .091"]
1.6 - 2.0 mm [.063 - .079"]
1.6 - 2.0 mm [.063 - .079"}
2.2 - 3.0 mm [.087 - .118"]
Wire
Gauge
18 AWG
18 AWG
20 AWG
20 AWG
20 AWG
Cover
Color
Clear
Blue
Yellow
Yellow
Red
3.00 [0.118]
12.00 [0.472]
Polarization
*35505-6000-BOM GF connects communication cable with 3 discrete and 1 drain wire. Twist drain
wire 7 or more times to tighten strands and insert into wire position #5.
mm
[Inch]
XX
XX
XX
XX
XX
XX
Tolerance Unless Noted
0
mm
±1
.0
±.3
.00
±.13
[ ] Dimensions for Reference Only
12.00 [0.472]
6.00 [0.236]
Metal Clip Accessory 79116-PCM-01M available for additional latching
security in high demand applications.
Ordering Information
35505 - 6XX0 - X0X GF
Wire Outside Diameter:
0: 2.2 – 3.0 mm
1: 2.0 – 2.3 mm
2: 1.6 – 2.0 mm
Metal Clip Accessory: 79116-PCM-01M
Polarization:
A: Type A (wide)
B: Type B (narrow)
(RIA E1 and C1 Apply)
Option:
0: 3M Original
M: Drain Wire
Wire Size:
0: 20 AWG
8: 18 AWG
TS-2273-D
Sheet 2 of 2
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnector.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
