33011-2004 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> Connector bracket> 33011-2004

33011-2004: DescriptionConnector Accessory,; CategoryThe connector Connector bracket; File Size24KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

33011-2004 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	33011-2004	-	-	View	Buy Now

33011-2004 Overview

Connector Accessory,

33011-2004 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	7166020265
Reach Compliance Code	compliant
Factory Lead Time	8 weeks
Samacsys Manufacturer	Molex
Samacsys Modified On	2018-04-09 01:52:30
Connector bracket type	CONNECTOR ACCESSORY

Preview

Download Datasheet

View All

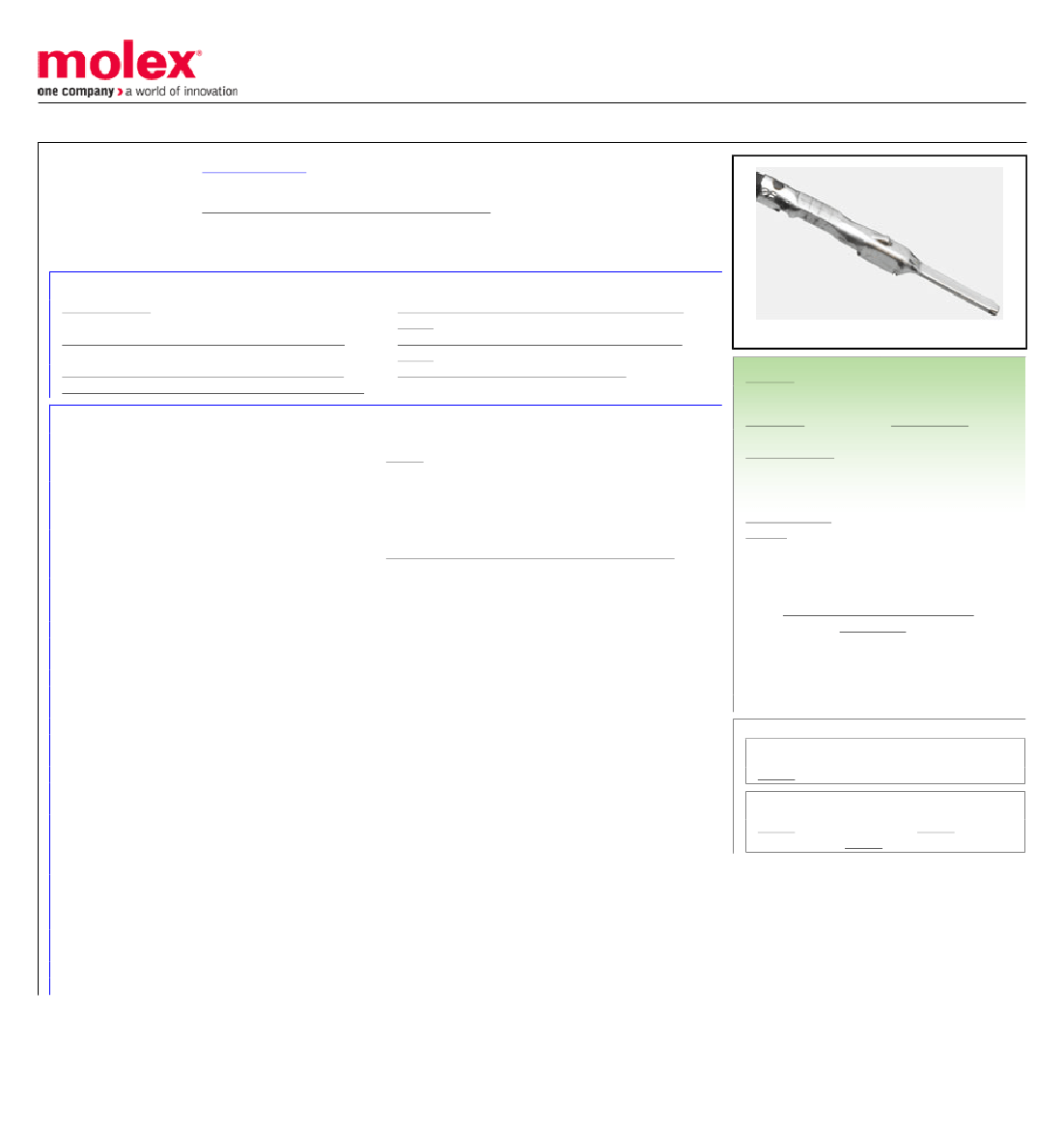

This document was generated on 03/02/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0330112004

Active

MX150 Sealed and Unsealed Connector System

MX150 Male Terminal, Silver Plating, Grip Code M3, Right Reel Payoff, Contact

Material Thickness 0.30mm , Preferred Terminal for use in Sealed Application with

0.35-0.50mm²

Documents:

Drawing (PDF)

Product Specification PS-33012-002-001 (PDF)

Product Specification TS-33000-002-001 (PDF)

Application Specification AS-33000-001-001 (PDF)

General

Product Family

Series

Application

Comments

Application Specification AS-33000-001-CH-001

(PDF)

Application Specification AS-33000-001-FR-001

(PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

EU ELV

Compliant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per

-ED/01/2018 (15

January 2018)

Halogen-Free

Status

Not Relevant

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Not Relevant

Compliant

Not Contained

Crimp Quality Equipment

Overview

Product Name

UPC

Physical

Gender

Grip Code

Material - Metal

Material - Plating Mating

Material - Plating Termination

Net Weight

Packaging Type

Plating min - Mating

Termination Interface: Style

Wire Insulation Diameter

Wire Size AWG

Wire Size mm²

Electrical

Current - Maximum per Contact

Voltage - Maximum

Material Info

Reference - Drawing Numbers

Application Specification

Product Specification

Sales Drawing

Crimp Terminals

33011

Power

For automatic and semi-automatic crimping, use Left

Reel Payoff terminals. See Sales Drawing for Left Reel

Payoff Part Numbers.

Yes

MX150 Sealed and Unsealed Connector System

MX150

884982250598

Male

High Performance Alloy (HPA)

Silver

Tin

0.361/g

Reel

0.762µm

Crimp or Compression

1.70mm max.

N/A

0.35-0.50

Contact Molex

14V DC

Search Parts in this Series

33011 Series

Use With

33482 Dual Row Housing, 33481 Single

Row Housing, 33486 Hybrid Housing

AS-33000-001-001, AS-33000-001-CH-001,

AS-33000-001-FR-001

PS-33012-002-001, TS-33000-002-001

SD-33000-001

This document was generated on 03/02/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
