39535-4010 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 39535-4010

39535-4010: DescriptionPluggable Terminal Blocks 5.08MM EURO HEADER V VERT ME HT BLK 10CKT; CategoryThe connector; File Size34KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

39535-4010 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	39535-4010	-	-	View	Buy Now

39535-4010 Overview

Pluggable Terminal Blocks 5.08MM EURO HEADER V VERT ME HT BLK 10CKT

39535-4010 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Molex
Product Category	Pluggable Terminal Blocks
RoHS	Details
Number of Positions	10 Position
Pitch	5.08 mm
Current Rating	15 A
Voltage Rating	300 V
Mounting Angle	Vertical
Factory Pack Quantity	240

Preview

Download Datasheet

View All

This document was generated on 10/17/2012

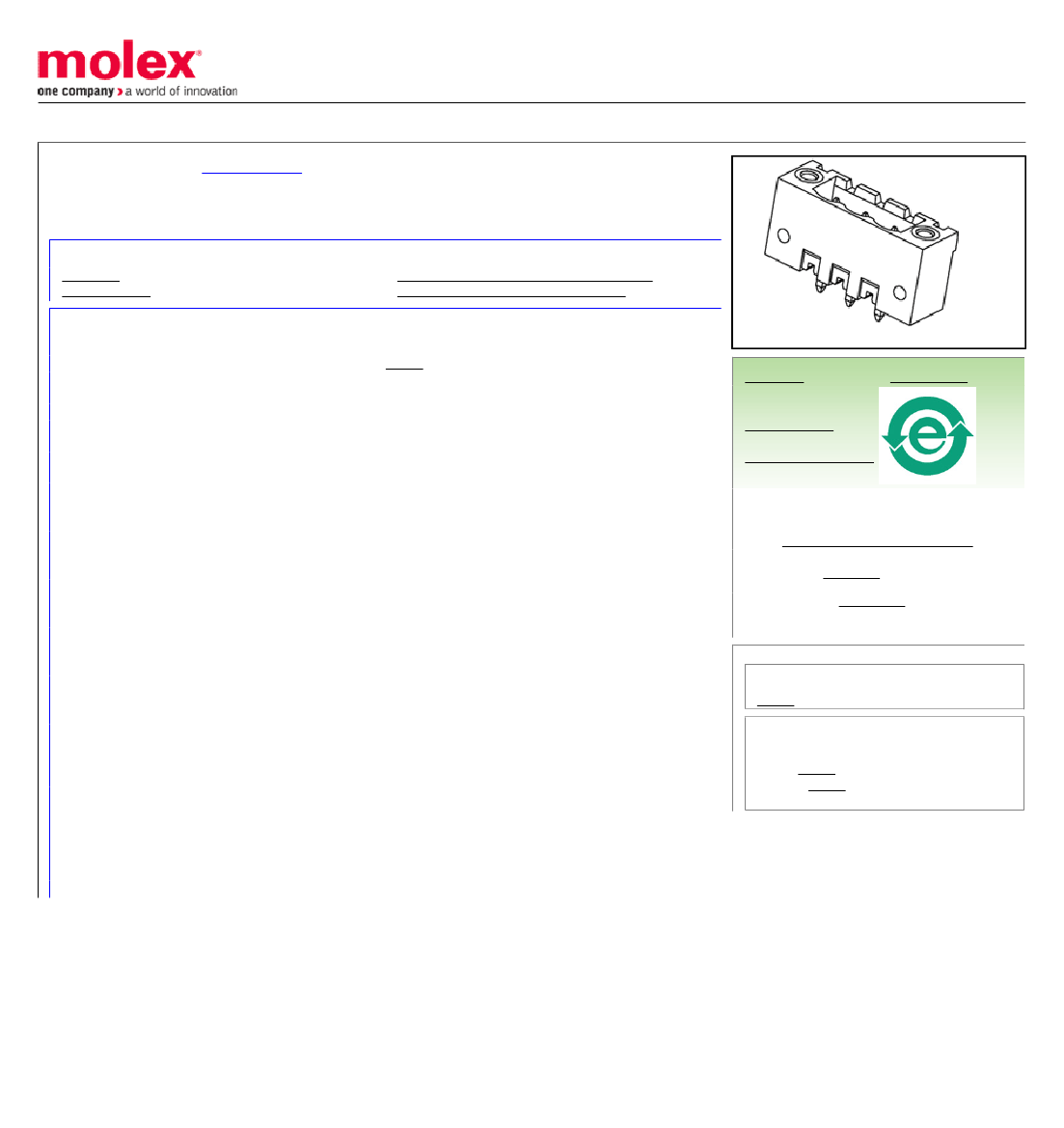

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

39535-4010

Active

5.08mm Pitch Eurostyle™ Vertical PCB Header, with Threaded Retention Inserts,

Surface Mount Compatible, 10 Circuits

Documents:

3D Model

Drawing (PDF)

Product Specification PS-39500-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series

Terminal Blocks

39535

N/A

PCB Header

ESE, Eurostyle™Pluggable

Euro Block

822350492829

image - Reference only

EU RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Low-Halogen Status

Not Reviewed

China RoHS

General

Product Family

Series

Application

Component Type

Product Name

Type

UPC

Physical

Circuits (Loaded)

Entry Angle

Lock to Mating Part

Number of Rows

Orientation

PC Tail Length

PCB Thickness - Recommended

Panel Mount

Pitch - Mating Interface

Pitch - Termination Interface

Polarized to Mating Part

Shrouded

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Wire Size AWG

N/A

Yes

Vertical

5.08mm

3.20mm

5.08mm

Yes

Closed Ends

Yes

-40°C to +140°C

N/A

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Search Parts in this Series

39535Series

Mates With

Most 5.08mm Pitch Industry Standard

Plugs, 39534 Horizontal Plug with Retention

Screws, 39537 Vertical Plug with Retention

Screws

Electrical

Current - Maximum per Contact

Voltage - Maximum

15A

300V

Material Info

Reference - Drawing Numbers

Product Specification

Sales Drawing

PS-39500-001

SD-39501-002, SD-39535-001

This document was generated on 10/17/2012

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
