M80-5L12442MD

Description
Headers & Wire Housings 12+12 WAY M H 3MM PCT 101 LOK
CategoryThe connector    The connector
File Size99KB，1 Pages
ManufacturerHarwin
Websitehttp://www.harwin.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

M80-5L12442MD Online Shopping

Suppliers Part Number Price MOQ In stock
M80-5L12442MD - - View Buy Now

M80-5L12442MD Overview

Headers & Wire Housings 12+12 WAY M H 3MM PCT 101 LOK

M80-5L12442MD Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerHarwin
Reach Compliance Codecompliant
Board mount optionsHOLE .086-.098
body width0.238 inch
body length1.339 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact completed and terminatedTin (Sn) - with Nickel (Ni) barrier
Contact point genderMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact resistance25 mΩ
Contact styleRND PIN-SKT
DIN complianceNO
Durability500 Cycles
Filter functionNO
IEC complianceNO
Insulation resistance100000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED POLYPHENYLENE SULPHIDE
JESD-609 codee3
MIL complianceNO
Plug contact pitch0.079 inch
Match contact row spacing0.079 inch
Mixed contactsNO
Installation option 1M2X0.4
Installation option 2LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing2.0066 mm
Plating thickness30u inch
Rated current (signal)3 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.118 inch
Terminal pitch2 mm
Termination typeSOLDER
Total number of contacts24
UL Flammability Code94V-0

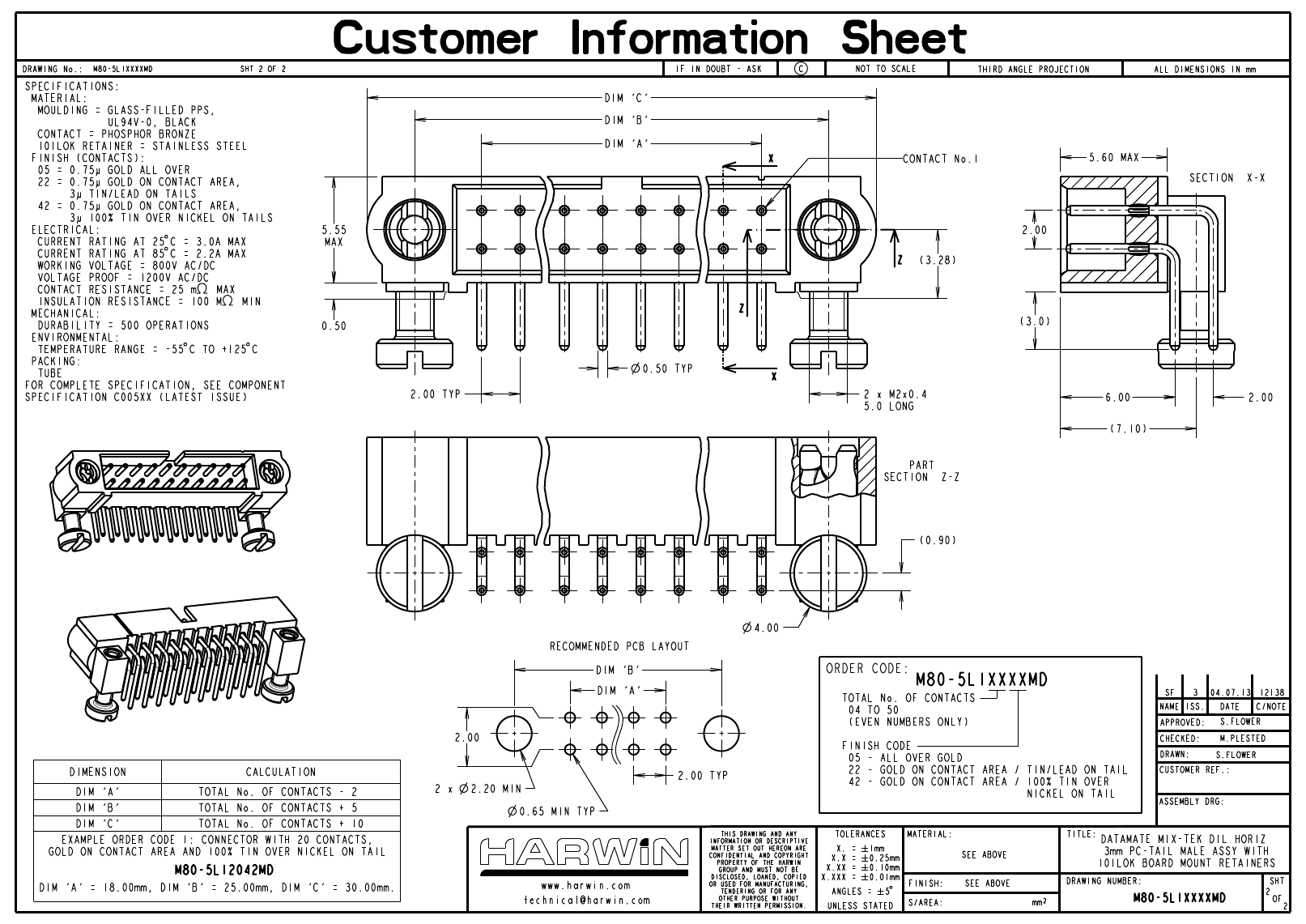

Preview

Download Datasheet

M80-5L12442MD Related Products

M80-5L12442MD M80-5L12042MD M80-5L13042MD M80-5L10842MD M80-5L10405MD M80-5L11005MD M80-5L10605MD M80-5L10805MD
Description Headers & Wire Housings 12+12 WAY M H 3MM PCT 101 LOK Headers & Wire Housings 12P ML JTEK DIL HORZ 3MM TAIL, 2MM PITCH Headers & Wire Housings 15+15 WAY M H 3MM PCT 101 LOK Headers & Wire Housings Power to the Board Headers & Wire Housings 05+05 WAY M H 3MM PCT 101 LOK Power to the Board Power to the Board
Is it lead-free? Lead free Lead free Lead free Lead free Lead free Lead free Lead free Lead free
Is it Rohs certified? conform to conform to conform to conform to conform to conform to conform to conform to
Reach Compliance Code compliant compliant compliant compliant compliant compliant compliant compliant
Board mount options HOLE .086-.098 HOLE .086-.098 HOLE .086-.098 HOLE .086-.098 HOLE .086-.098 HOLE .086-.098 HOLE .086-.098 HOLE .086-.098
body width 0.238 inch 0.238 inch 0.238 inch 0.238 inch 0.238 inch 0.238 inch 0.238 inch 0.238 inch
body length 1.339 inch 1.181 inch 1.575 inch 0.709 inch 0.551 inch 0.787 inch 0.63 inch 0.709 inch
Connector type BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR
Contact to complete cooperation NOT SPECIFIED GOLD (30) NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
Contact completed and terminated Tin (Sn) - with Nickel (Ni) barrier Tin (Sn) - with Nickel (Ni) barrier Tin (Sn) - with Nickel (Ni) barrier Tin (Sn) - with Nickel (Ni) barrier Gold (Au) Gold (Au) Gold (Au) Gold (Au)
Contact point gender MALE MALE MALE MALE MALE MALE MALE MALE
Contact material NOT SPECIFIED PHOSPHOR BRONZE NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
contact mode RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Contact resistance 25 mΩ 25 mΩ 25 mΩ 25 mΩ 25 mΩ 25 mΩ 25 mΩ 25 mΩ
Contact style RND PIN-SKT RND PIN-SKT RND PIN-SKT RND PIN-SKT RND PIN-SKT RND PIN-SKT RND PIN-SKT RND PIN-SKT
DIN compliance NO NO NO NO NO NO NO NO
Durability 500 Cycles 500 Cycles 500 Cycles 500 Cycles 500 Cycles 500 Cycles 500 Cycles 500 Cycles
Filter function NO NO NO NO NO NO NO NO
IEC compliance NO NO NO NO NO NO NO NO
Insulation resistance 100000000 Ω 100000000 Ω 100000000 Ω 100000000 Ω 100000000 Ω 100000000 Ω 100000000 Ω 100000000 Ω
Insulator color BLACK BLACK BLACK BLACK BLACK BLACK BLACK BLACK
insulator material GLASS FILLED POLYPHENYLENE SULPHIDE GLASS FILLED POLYPHENYLENE SULPHIDE GLASS FILLED POLYPHENYLENE SULPHIDE GLASS FILLED POLYPHENYLENE SULPHIDE GLASS FILLED POLYPHENYLENE SULPHIDE GLASS FILLED POLYPHENYLENE SULPHIDE GLASS FILLED POLYPHENYLENE SULPHIDE GLASS FILLED POLYPHENYLENE SULPHIDE
JESD-609 code e3 e3 e3 e3 e4 e4 e4 e4
MIL compliance NO NO NO NO NO NO NO NO
Plug contact pitch 0.079 inch 0.079 inch 0.079 inch 0.079 inch 0.079 inch 0.079 inch 0.079 inch 0.079 inch
Match contact row spacing 0.079 inch 0.079 inch 0.079 inch 0.079 inch 0.079 inch 0.079 inch 0.079 inch 0.079 inch
Mixed contacts NO NO NO NO NO NO NO NO
Installation option 1 M2X0.4 M2X0.4 M2X0.4 M2X0.4 M2X0.4 M2X0.4 M2X0.4 M2X0.4
Installation option 2 LOCKING LOCKING LOCKING LOCKING LOCKING LOCKING LOCKING LOCKING
Installation method RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE
Installation type BOARD BOARD BOARD BOARD BOARD BOARD BOARD BOARD
Number of connectors ONE ONE ONE ONE ONE ONE ONE ONE
PCB row number 2 2 2 2 2 2 2 2
Number of rows loaded 2 2 2 2 2 2 2 2
Maximum operating temperature 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C
Minimum operating temperature -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
PCB contact pattern RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
PCB contact row spacing 2.0066 mm 2.0066 mm 2.0066 mm 2.0066 mm 2.0066 mm 2.0066 mm 2.0066 mm 2.0066 mm
Plating thickness 30u inch 30u inch 30u inch 30u inch 30u inch 30u inch 30u inch 30u inch
Rated current (signal) 3 A 3 A 3 A 3 A 3 A 3 A 3 A 3 A
Guideline UL UL UL UL UL UL UL UL
reliability COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL
Terminal length 0.118 inch 0.118 inch 0.118 inch 0.118 inch 0.118 inch 0.118 inch 0.118 inch 0.118 inch
Terminal pitch 2 mm 2 mm 2 mm 2 mm 2 mm 2 mm 2 mm 2 mm
Termination type SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER
Total number of contacts 24 20 30 8 4 10 6 8
UL Flammability Code 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0
Maker Harwin - Harwin Harwin Harwin Harwin Harwin Harwin
Body/casing type RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE - RECEPTACLE RECEPTACLE
