2.54mm Pitch Bottom Entry Type Connector
MDF7 Series
sFeatures

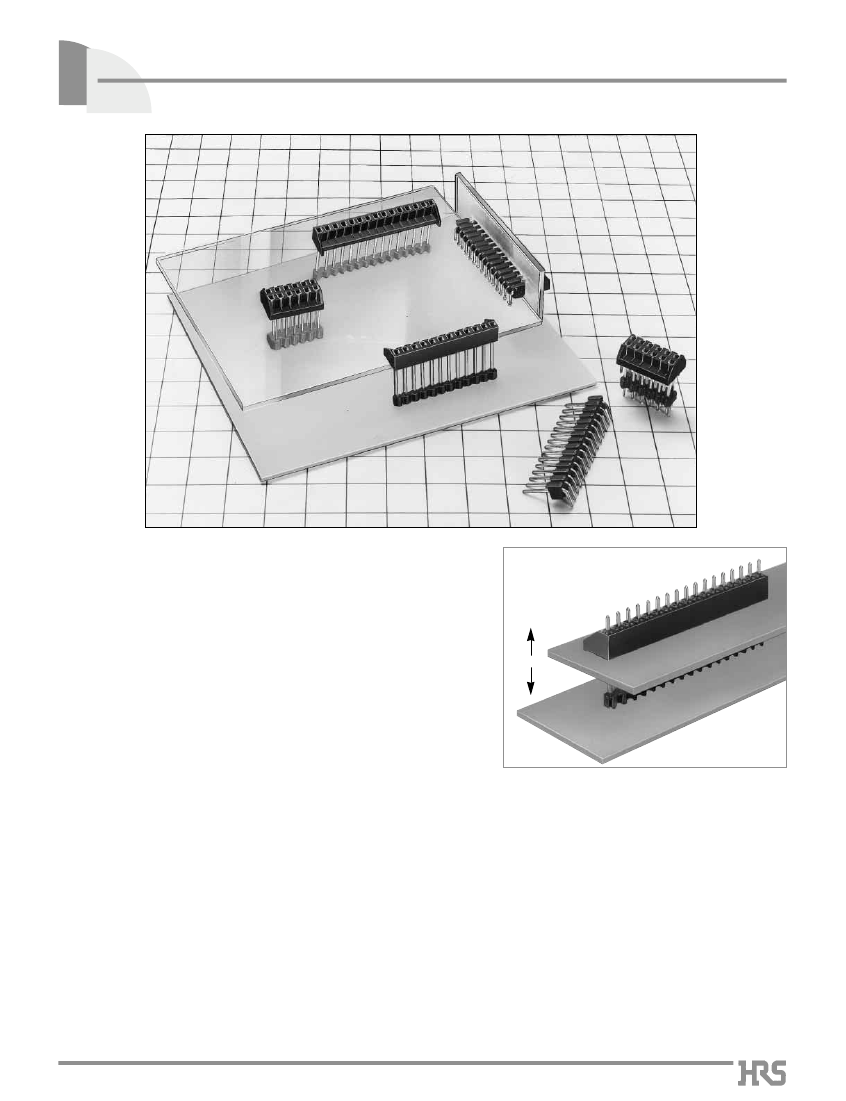

1. Board to Board Size Freely Settable
The board to board size can be set at infinite stages, according to the
header pin through type structure and the diverse header variation.
The board to board size can be set at infinite stages.
Board to Board size Freely settable
2. Integrity of Parts Mounted Surface
The parts mounted surface on two boards aren't face each other, and can
be oriented in the same direction.
3. Wide Variation
Single-row product, double-row product, tin plated and gold plated
products are lined up. In addition, the header to correspond to the board
to board size are prepared. Concerning board to board size, other
products can be provided, in addition to products in this catalog. Please
contact HRS company as required.
sApplications
Internal connection of telephone sets and OA/FA equipment, connection
between IPM, IGBT and the board.
A71
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will
Bottom Entry Type Connector
MDF7 Seriesq2.54mm Pitch
be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
sProduct
Specifications
Rating
Current rating: 3A
Operating Temperature Range: -30ç
to
+85ç(Note 1)
Storage Temperature Range: -10ç
to
+60ç (Note 2)
Storage Humidity Range: 40%
to
70%(Note 2)
Voltage rating: 250V AC Operating Humidity Range: 40%
to
80%
Item
1. Insulation Resistance
2. Withstanding voltage
3. Contact Resistance
5. Vibration
6.
Humidity (Steady state)
7. Temperature Cycle
8. Durability
(Mating/un-mating)
1000M
ohms
min.
Specification
500V DC
650V AC/1 minute
100mA
Condition
No flashover or insulation breakdown.
30m
ohms
max.
4. Single Insertion/Extraction Force MIN 0.4N(40gf), MAX 4.4N(450gf)
Measured by the square steel pin with 0.635±0.002mm
No electrical discontinuity of 1µs or more
Contact resistance: 30m
ohms
max.
Insulation resistance: 500M
ohms
min.
Contact resistance: 30m
ohms
max.
Insulation resistance: 1000M
ohms
min.
Contact resistance: 30m
ohms
max.
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm, 2 hours in each of the 3 directions.
96 hours at temperature of
40 ± 2ç and humidity of 90% to 95%
(-55ç: 30 minutes, 5
to
35ç: 10 minutes
(-85ç:
30 minutes, 5
to
35ç: 10 minutes) 5cycles
Tin plating
Gold plating
: 30 cycles
: 50 cycles
9. Resistance to Soldering heat
No deformation of components affecting performance.
Flow: 260ç for 10 seconds
Manual soldering: 350ç for 3 seconds
Note 1: Includes temperature rise caused by current flow.
Note 2: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature
Range and Humidity range covers non conducting condition of installed connectors in storage, shipment or during
transportation.
Note 3: Information contained in this catalog represents general requirements for this Series. Contact us for the drawings and specifications for
a specific part number shown.
sMaterial
Product
Receptacle
Pin Header
Part
Insulator
Contact
Insulator
Contact
Material
Polyamide
Phosphor bronze
PBT
Brass
Finish
Black
Tin plated or gold plated
Main unit: Black/Locator: Gray
Tin plated or gold plated
Remarks
UL94V-0
–––––––
UL94V-0
–––––––
sOrdering
Information
MDF7
q
q
Series Name
e
Connector Type
S : Single row receptacle
-
*
S - 2.54 DSA
w
e
r
t
: 2.54mm
r
Contact Pitch
t
Contact type
DSA: Straight through hole
DS : Right Angle through hole
: MDF7
w
Number of contacts : 3
to
46
D : Double row receptacle
P : Single row pin header
DP: Double row pin header
A72
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your
Note: The quantity for delivery is determined per pack (100 pcs.). If needed, please order the products per pack.
A
38.1
40.64
43.18
45.72
48.26
50.8
53.34
55.88
58.42
60.96
63.5
Unit: mm
B RoHS
35.56
38.1
40.64
43.18
45.72
48.26 YES
50.8
53.34
55.88
58.42
60.96

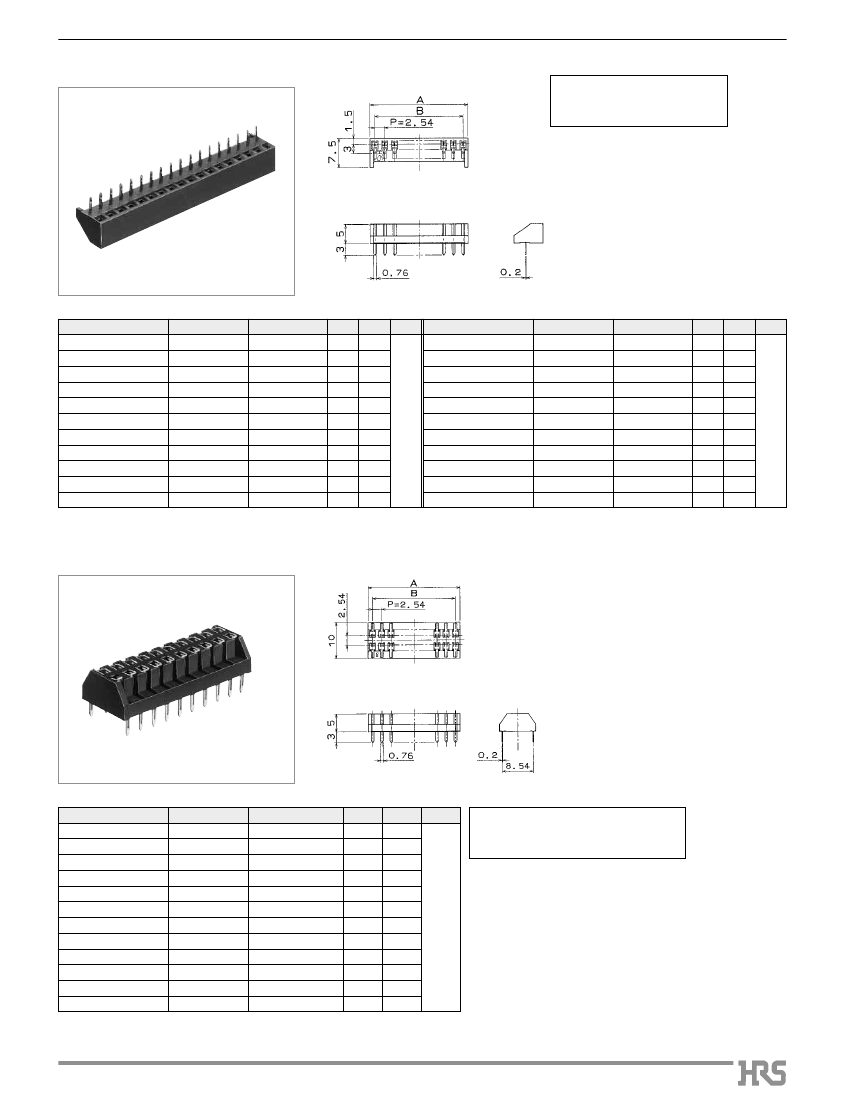

sDouble
Row Receptacle
Unit: mm
Number of Contacts
Part Number
CL No.
A
B
RoHS
[Specific No.]
–
* *
,
(*
*)
(Note 2)
15.24 12.7
12
MDF7-12D-2.54DSA(**) 547-0032-1-**
(55)
:Tin plated
(56)
:Gold plated
17.78 15.24
14
MDF7-14D-2.54DSA(**) 547-0354-8-**
20.32 17.78
16
MDF7-16D-2.54DSA(**) 547-0363-9-**
25.4 22.86
20
MDF7-20D-2.54DSA(**) 547-0033-4-**
27.94 25.4
22
MDF7-22D-2.54DSA(**) 547-0246-5-**
30.48 27.94
24
MDF7-24D-2.54DSA(**) 547-0244-0-**
YES
33.02 30.48
26
MDF7-26D-2.54DSA(**) 547-0247-8-**
38.1 35.56
30
MDF7-30D-2.54DSA(**) 547-0016-5-**
43.18 40.64
34
MDF7-34D-2.54DSA(**) 547-0227-0-**
50.8 48.26
40
MDF7-40D-2.54DSA(**) 547-0228-3-**
58.42 55.88
46
MDF7-46D-2.54DSA(**) 547-0229-6-**
60.46 58.42
48
MDF7-48D-2.54DSA(**) 547-0060-7-**
Note 1: A quantity for delivery is determined per pack (100 pcs.). If needed, please order the products per pack.
Note 2: The MDF7 series 2-row plating specification is different from the single-row plating specification.
No-specification indicates the gold plating, and (01) indicates the tin plating.
A73
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will
Bottom Entry Type Connector
MDF7 Seriesq2.54mm Pitch
be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.

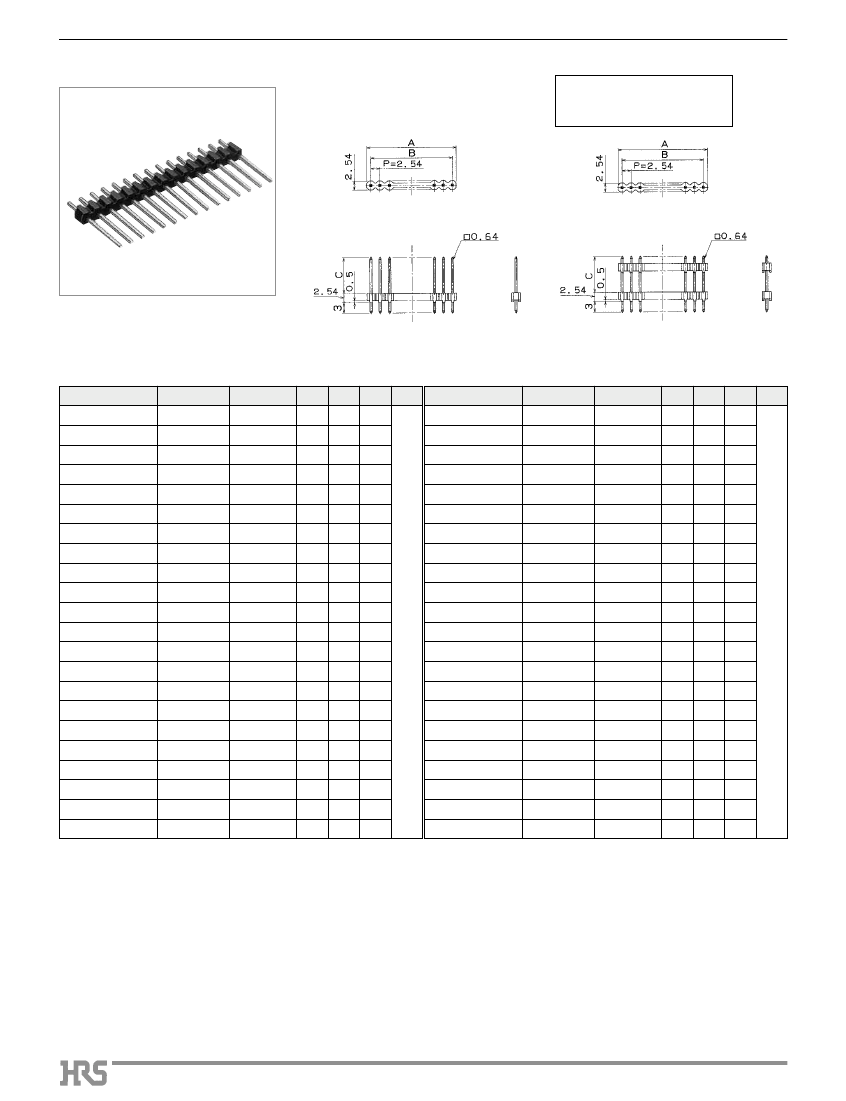

sSingle
Row Straight Pin Header
[Specific No.]
–
* *
,
(*
*)
(55)
:Tin plated
(01)
:Gold plated
qBoard
Through-hole Diameter:
Ø1.0
+
0.1
+
0
[without locator]
[with locator]
qMDF7(Board
to Board Size: 2.54 to 5.5mm)
Part Number
CL No.
Number of Contacts
3
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
A
B
MDF7- 3P-2.54DSA(**) 547-0220-1-**
MDF7- 5P-2.54DSA(
**
) 547-0113-1-**
MDF7- 6P-2.54DSA(**) 547-0130-0-**
MDF7- 7P-2.54DSA(
**)
547-0148-6-**
MDF7- 8P-2.54DSA(
**)
547-0149-9-**
MDF7- 9P-2.54DSA(**) 547-0150-8-**
MDF7-10P-2.54DSA(**) 547-0039-0-**
MDF7-11P-2.54DSA(
**)
547-0151-0-**
MDF7-12P-2.54DSA(**) 547-0043-8-**
MDF7-13P-2.54DSA(**) 547-0152-3-**
MDF7-14P-2.54DSA(
**
) 547-0153-6-**
MDF7-15P-2.54DSA(**) 547-0018-0-**
MDF7-16P-2.54DSA(**) 547-0111-6-**
NDF7-17P-2.54DSA(
**)
547-0154-9-**
MDF7-18P-2.54DSA(**) 547-0022-8-**
MDF7-19P-2.54DSA(**) 547-0155-1-**
MDF7-20P-2.54DSA(
**
) 547-0123-5-**
MDF7-21P-2.54DSA(**) 547-0156-4-**
MDF7-22P-2.54DSA(**) 547-0157-7-**
MDF7-23P-2.54DSA(
**)
547-0158-0-**
MDF7-24P-2.54DSA(**) 547-0159-2-**
MDF7-25P-2.54DSA(**) 547-0023-0-**
7.62 5.08
15.24 12.7
Unit: mm
C
10
10
RoHS
qMDF7B
(Board to Board Size 2.54 to 12mm)
Part Number
CL No.
Number of Contacts
3
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
A
B
MDF7B- 3P-2.54DSA(**) 547-0304-0-**
MDF7B- 5P-2.54DSA(**) 547-0133-9-**
MDF7B- 6P-2.54DSA(**) 547-0131-3-**
MDF7B- 7P-2.54DSA(**) 547-0177-4-**
MDF7B- 8P-2.54DSA(**) 547-0178-7-**
MDF7B- 9P-2.54DSA(**) 547-0179-0-**
MDF7B-10P-2.54DSA(**) 547-0048-1-**
MDF7B-11P-2.54DSA(**) 547-0047-9-**
MDF7B-12P-2.54DSA(**) 547-0041-2-**
MDF7B-13P-2.54DSA(**) 547-0180-9-**
MDF7B-14P-2.54DSA(**) 547-0181-1-**
MDF7B-15P-2.54DSA(**) 547-0024-3-**
MDF7B-16P-2.54DSA(**) 547-0182-4-**
MDF7B-17P-2.54DSA(**) 547-0183-7-**
MSD7B-18P-2.54DSA(**) 547-0025-6-**
MDF7B-19P-2.54DSA(**) 547-0184-0-**
MDF7B-20P-2.54DSA(**) 547-0052-9-**
MDF7B-21P-2.54DSA(**) 547-0185-2-**
MDF7B-22P-2.54DSA(**) 547-0186-5-**
MDF7B-23P-2.54DSA(**) 547-0066-3-**
MDF7B-24P-2.54DSA(**) 547-0067-6-**
MDF7B-25P-2.54DSA(**) 547-0026-9-**
Unit: mm
C
RoHS
7.62 5.08 16.46
12.7 10.16 16.46
15.24 12.7 16.46
17.78 15.24 16.46
20.32 17.78 16.46
22.86 20.32 16.46
25.4 22.86 16.46
27.94 25.4 16.46
30.48 27.94 16.46
33.02 30.48 16.46
35.56 33.02 16.46
38.1 35.56 16.46
40.64 38.1 16.46
43.18 40.64 16.46
45.72 43.18 16.46
48.26 45.72 16.46
50.8 48.26 16.46
53.34 50.8 16.46
55.88 53.34 16.46
58.42 55.88 16.46
60.96 58.42 16.46
63.5 60.96 16.46
YES
12.7 10.16 10
17.78 15.24 10
20.32 17.78 10
22.86 20.32 10
25.4 22.86 10
27.94 25.4
10
30.48 27.94 10
33.02 30.48 10
35.56 33.02 10
38.1 35.56 10
40.64 38.1
10
43.18 40.64 10
45.72 43.18 10
48.26 45.72 10
50.8 48.26 10
53.34 50.8
10
55.88 53.34 10
58.42 55.88 10
60.96 58.42 10
63.5 60.96 10
YES
Note 1: The board to board size in the above table represents the case where the 1.6mm thickness board is used.
Note 2: The quantity for delivery is determined per pack (100 pcs.). If needed, please order the products per pack.
A74
