Light-Duty with Strain Relief
Type C - Self-Locking - Rotatable Coupling - Full Radius
380-106
EMI/RFI Non-Environmental Backshell
38
A-F-H-L-S
SELF-LOCKING
ROTATABLE
COUPLING
CONNECTOR
DESIGNATORS
380 F S 106 M 16 05 L 6
Product Series
Connector
Designator
Angular Function
M = 45∞
N = 90∞
S = Straight
Basic Part No.
A Thread
(Table I)
E Typ.
(Table I)
Length: S only
(1/2 inch increments:
e.g. 6 = 3 inches)
Strain Relief Style (L, G)
Cable Entry (Tables IV, V)
Shell Size (Table I)
Finish (Table II)
Length ± .060 (1.52)
Minimum Order
Length 1.5 Inch
(See Note 4)

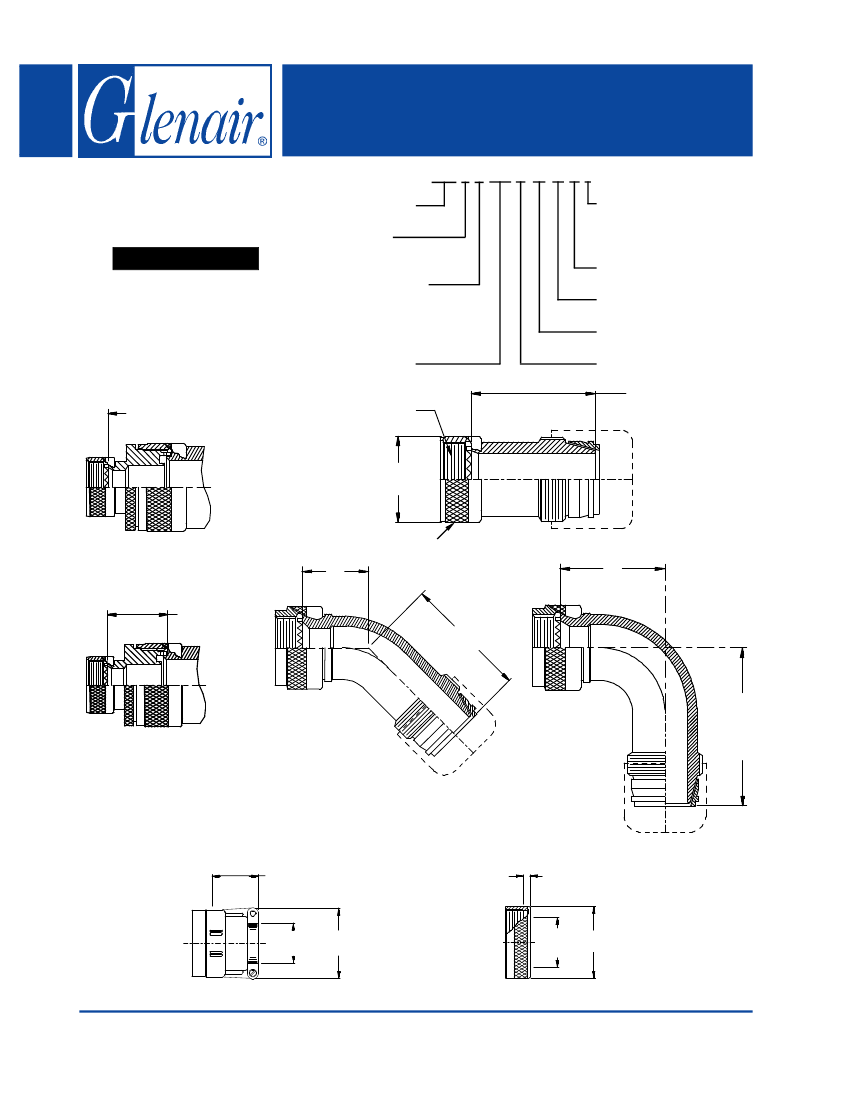

TYPE C OVERALL
SHIELD TERMINATION
Length ± .060 (1.52)
Minimum Order Length 2.0 Inch
(See Note 4)
STYLE 2
(STRAIGHT
See Note 1)
1.00 (25.4)
Max
F
(Table III)
Anti-Rotation
Device (Typ.)
(Table III)
H
G (Table III)
STYLE 2
(45° & 90°
See Note 1)
STYLE L
Light Duty
(Table IV)
.850 (21.6)
Max
Cable
Range
J
(Table
III)
STYLE G
Light Duty
(Table V)
.072 (1.8)
Max
Cable
Entry
K
L
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 38 - Page 44
Light-Duty with Strain Relief
Type C - Self-Locking - Rotatable Coupling - Full Radius
See inside back cover fold-
out or pages 13 and 14 for
unabridged Tables I and II.
TABLE III: ELBOW DIMENSIONS
F
Max
.963 (24.5)
1.017 (25.8)
1.067 (27.1)
1.121 (28.5)
1.170 (29.7)
1.220 (31.0)
1.274 (32.4)
1.328 (33.7)
1.377 (35.0)
1.481 (37.6)
1.584 (40.2)
G
Max
1.177 (29.9)
1.231 (31.3)
1.281 (32.5)
1.335 (33.9)
1.384 (35.2)
1.434 (36.4)
1.488 (37.8)
1.542 (39.2)
1.591 (40.4)
1.695 (43.1)
1.798 (45.7)
H
Max
1.281 (32.5)
1.406 (35.7)
1.531 (38.9)
1.656 (42.1)
1.781 (45.2)
1.906 (48.4)
2.031 (51.6)
2.156 (54.8)
2.281 (57.9)
2.531 (64.3)
2.625 (70.6)
J
Max
1.495 (38.0)
1.620 (41.1)
1.745 (44.3)
1.870 (47.5)
1.995 (50.7)
2.120 (53.8)
2.245 (57.0)
2.370 (60.2)
2.495 (63.4)
2.745 (69.7)
2.865 (72.8)
Shell Size
Conn. Desig.
A-F-L-S H
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
28
32
TABLE II: STANDARD FINISHES
GLENAIR
SYMBOL
B
M
NF
FINISH
Cadmium Plate, Olive Drab
Electroless Nickel
Cadmium Plate, Olive Drab
Over Electroless Nickel
See Inside Back Cover
for Additional Finish Options
Dash
No.
01
02
03
04
05
06
07
08
09
10
TABLE IV: CABLE RANGE
Cable Range
K
Max
Min
Max
.781 (19.8)
.062 (1.6)
.125 (3.2)
.968 (24.6)
.125 (3.2)
.250 (6.4)
1.046 (26.6)
.250 (6.4)
.375 (9.5)
1.156 (29.4)
.250 (6.4)
.500 (12.7)
1.218 (30.9)
.375 (9.5)
.625 (15.9)
1.343 (34.1)
.500 (12.7)
.750 (19.1)
1.468 (37.3)
.625 (15.9)
.875 (22.2)
1.593 (40.5)
.625 (15.9)
1.000 (25.4)
1.718 (43.6)
.750 (19.1)
1.125 (28.6)
1.843 (46.8)
.875 (22.2)
1.250 (31.8)
TABLE V: CABLE RANGE
Cable Entry
L
Dash
Max
Max
No.
.125 (3.2)
.593 (15.1)
01
.250 (6.4)
.718 (18.2)
02
.375 (9.5)
.843 (21.4)
03
.500 (12.7)
.968 (24.6)
04
.625 (15.9)
1.109 (28.2)
05
.750 (19.1)
1.218 (30.9)
06
.875 (22.2)
1.343 (34.1)
07
1.000 (25.4)
1.468 (37.3)
08
1.125 (28.6)
1.593 (40.5)
09
1.250 (31.8)
1.718 (43.6)
10
1. When maximum cable entry (page 21) is exceeded, Style 2 will be supplied.
Dimensions F, G, H and J will not apply. Please consult factory.
2. Metric dimensions (mm) are indicated in parentheses.
3. Cable range is defined as the accommodations range for the wire bundle or
cable. Dimensions shown are not intended for inspection criteria.
4. Consult factory for shorter lengths on straight backshells.
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 38 - Page 45
38
380-106
EMI/RFI Non-Environmental Backshell
