Ordering number : ENN6665A
2SC5699
NPN Triple Diffused Planar Silicon Transistor
2SC5699
CRT Display Horizontal Deflection
Output Applications
Features
•
•
•
•
Package Dimensions
unit : mm
2174A
[2SC5699]
16.0
5.0
High speed.
High breakdown voltage(VCBO=1500V).
High reliability(Adoption of HVP process).
Adoption of MBIT process.
3.4
5.6
3.1
8.0
22.0
21.0
4.0
2.8
2.0
20.4
0.7
0.9
1
2
5.45
3
3.5
0.8
2.1
Specifications
Absolute Maximum Ratings
at Ta=25°C
Parameter
Collector-to-Base Voltage
Collector-to-Emitter Voltage
Emitter-to-Base Voltage
Collector Current
Collector Current (Pulse)
Collector Dissipation
Junction Temperature
Storage Temperature
Symbol
VCBO
VCEO
VEBO
IC
ICP
PC
Tj
Tstg
Tc=25°C
Conditions
5.45
1 : Base
2 : Collector
3 : Emitter
SANYO : TO-3PMLH
Ratings
1500
800
5
8
16
3.0
65
150
--55 to +150
Unit
V
V
V
A
A
W
W
°C
°C
Electrical Characteristics
at Ta=25°C
Parameter
Collector Cutoff Current
Collector Cutoff Current
Collector Sustain Voltage
Emitter Cutoff Current
Collector-to-Emitter Saturation Voltage
Base-to-Emitter Saturation Voltage
Symbol
ICBO
ICES
VCEO(sus)
IEBO
VCE(sat)
VBE(sat)
Conditions
VCB=800V, IE=0
VCE=1500V, RBE=0
IC=100mA, IB=0
VEB=4V, IC=0
IC=4.5A, IB=1.13A
IC=4.5A, IB=1.13A
800
1
3
1.5
Ratings
min
typ
max
10
1.0
Unit
µA
mA
V
mA
V
V
Continued on next page.
Any and all SANYO products described or contained herein do not have specifications that can handle
applications that require extremely high levels of reliability, such as life-support systems, aircraft's
control systems, or other applications whose failure can be reasonably expected to result in serious
physical and/or material damage. Consult with your SANYO representative nearest you before using
any SANYO products described or contained herein in such applications.
SANYO assumes no responsibility for equipment failures that result from using products at values that
exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or other
parameters) listed in products specifications of any and all SANYO products described or contained
herein.
SANYO Electric Co.,Ltd. Semiconductor Company
TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110-8534 JAPAN
52101 TS IM TA-3147 / 82200 TS IM TA-3015 No.6665-1/4
2SC5699
Continued from preceding page.
Parameter
DC Current Gain
Storage Time
Fall Time
Symbol
hFE1
hFE2
tstg
tf
VCE=5V, IC=1A
VCE=5V, IC=5A
IC=3A, IB1=0.6A, IB2=--1.2A
IC=3A, IB1=0.6A, IB2=--1.2A
Conditions
Ratings
min
5
4
7
3.0
0.2
µs
µs
typ
max
Unit

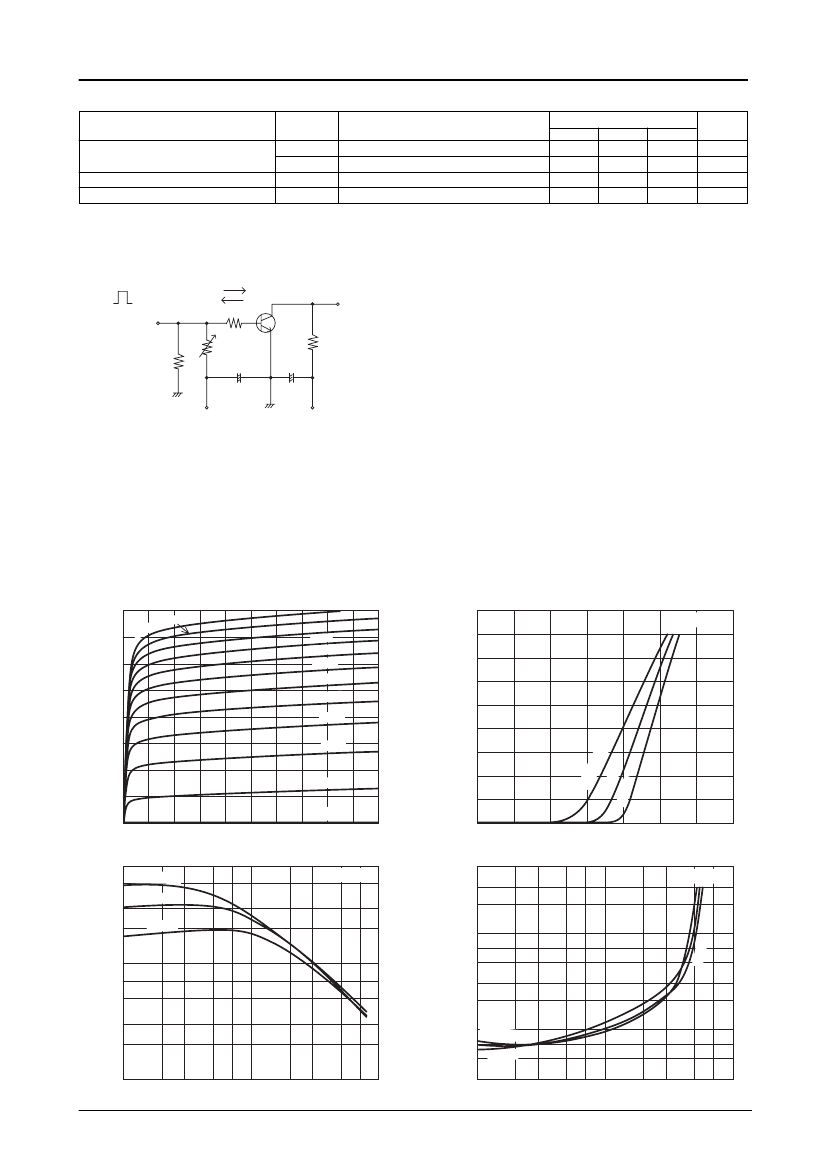

Switching Time Test Circuit
PW=20µs
D.C.≤1%
INPUT
IB1
OUTPUT
IB2
VR
50Ω
+
100µF
VBE= --2V
+
470µF
VCC=200V
RB
RL=66.7Ω
8
7
IC -- VCE
A
2.0
1.8A
1.4A
1.2A
1.0A
0.8A
0.6A
9
IC -- VBE
VCE=5V
1.6A
Collector Current, IC -- A
8
7
6
5
4
Collector Current, IC -- A
6
5
4
3
2
0.4A
0.05A
1
0
0
1
2
3
4
5
6
7
1
IB=0
8
9
10
0
0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
IT02577
IT02576
5
3
Collector-to-Emitter Voltage, VCE -- V
7
5
3
hFE -- IC
Base-to-Emitter Voltage, VBE -- V
VCE(sat) -- IC
Ta=120
°C
25°C
VCE=5V
Collector-to-Emitter
Saturation Voltage, VCE(sat) -- V
25
°
C
--40
°
C
2
Ta=
1
20
°
3
C
0.2A
IC / IB=5
2
DC Current Gain, hFE
2
--40
°C
1.0
7
5
3
2
10
7
5
3
2
0.1
7
5
Ta= --40
°C
120°C
2
3
5
7
1.0
2
3
5
10
IT02579
7
1.0
0.1
2
3
5
7
1.0
2
3
5
Collector Current, IC -- A
10
IT02578
7
3
0.1
Collector Current, IC -- A
25
°
C
No.6665-2/4
2SC5699
7
5

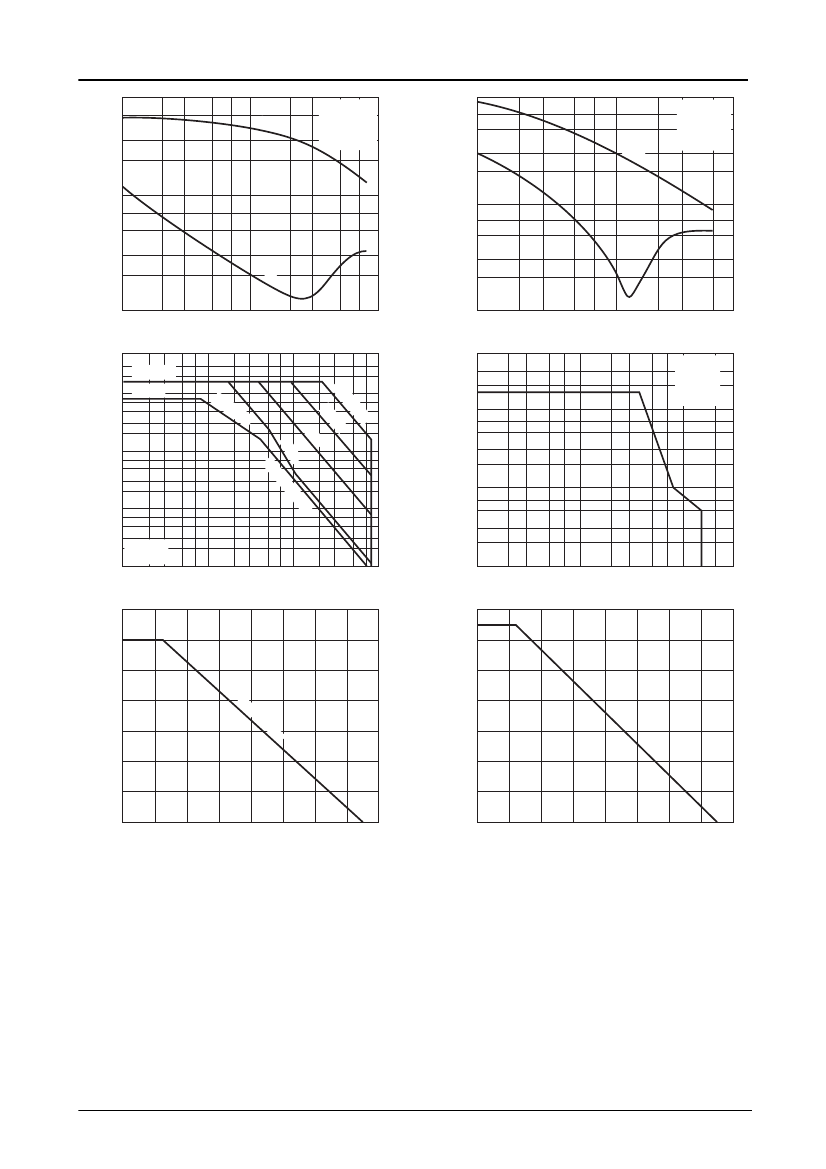

SW Time -- IC
tstg
Switching Time, SW Time --
µs
3
2
Switching Time, SW Time --
µs
VCC=200V
IC / IB1=5
IB2 / IB1=2
R load
10
7
5
3
2
SW Time -- IB2
VCC=200V
IC=3A
IB1=0.6A
R load
ts
tg
1.0
7
5
3
2
1.0
7
5
tf
3
2
tf
0.1
0.1
2
3
5
7
1.0
2
3
5
5
3
2
Forward Bias A S O
ICP=16A
IC=8A
Collector Current, IC -- A
10
IT02580
7
0.1
0.1
2
3
5
7
1.0
2
3
5
7
5
3
2
Reverse Bias A S O
L=500µH
IB2= --1A
Tc=25°C
Single pulse
Base Current, IB2 -- A
IT02581
=1
PT
Collector Current, IC -- A
65
Collector Current, IC -- A
10
7
5
3
2
1.0
7
5
3
2
0.1
7
5
3
2
P
C=
00
W
10
7
5
3
2
1.0
7
5
3
0
µ
30
s
µ
s
s
1m
tio
n
10
ms
DC
op
era
0.01
1.0
Tc=25°C
Single pulse
2
3
5 7 10
2
3
5 7 100
2
3
2
0.1
5 7 1000
IT02573
10
2
3
5
7 100
2
3
5
7 1000
2
3
Collector-to-Emitter Voltage, VCE -- V
3.5
PC -- Ta
Collector-to-Emitter Voltage, VCE -- V
70
65
IT02574
PC -- Tc
3.0
60
Collector Dissipation, PC -- W
2.5
Collector Dissipation, PC -- W
120
140
160
50
2.0
No
40
he
at
1.5
sin
k
30
1.0
20
0.5
0
0
20
40
60
80
100
10
0
0
20
40
60
80
100
120
140
160
Ambient Temperature, Ta --
°C
IT02500
Case Temperature, Tc --
°C
IT02575
No.6665-3/4
