87782-2005: DescriptionDIMM Connectors 0.60mm MiniDimm Assy Assy .76AuLF 244Ckt; CategoryThe connector The connector; File Size26KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

87782-2005 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	87782-2005	-	-	View	Buy Now

87782-2005 Overview

DIMM Connectors 0.60mm MiniDimm Assy Assy .76AuLF 244Ckt

87782-2005 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
Other features	LATCHED
Board mount options	PEG
body width	0.311 inch
subject depth	0.646 inch
body length	3.78 inch
Body/casing type	RECEPTACLE
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	TIN (100) OVER NICKEL
Contact point gender	FEMALE
Contact material	COPPER ALLOY
Contact resistance	30 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Durability	25 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	87782
Plug contact pitch	0.024 inch
Mixed contacts	NO
Installation option 1	LATCH & EJECT
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-10 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	0.108 mm
Plating thickness	30u inch
polarization key	POLARIZED KEY
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal pitch	0.6 mm
Termination type	SURFACE MOUNT
Total number of contacts	244
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

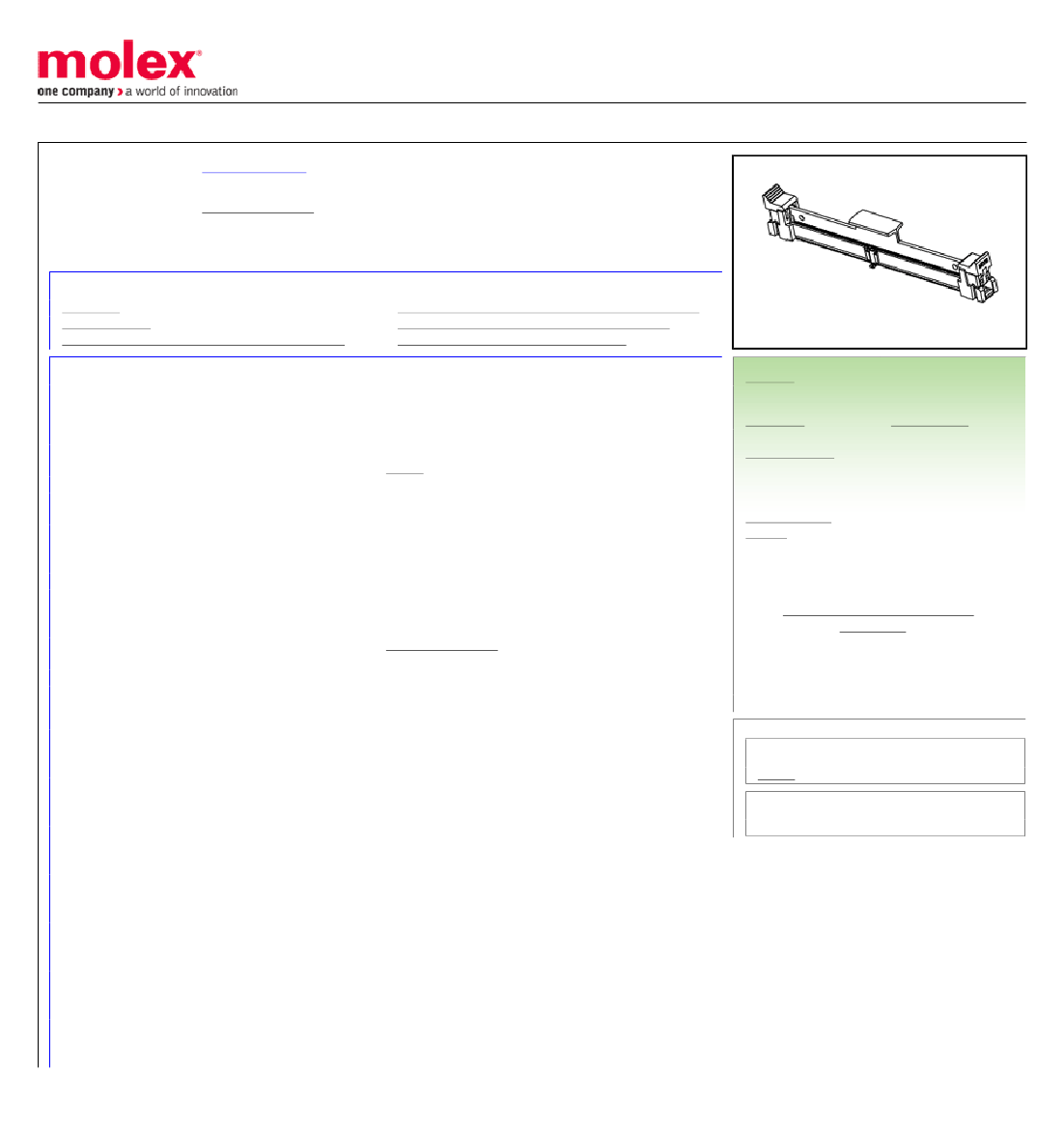

This document was generated on 02/27/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0877822005

Active

MiniDIMM Sockets

0.60mm Pitch miniDIMM DDR2 Socket, Vertical, Surface Mount, 0.76µm Gold (Au)

over Nickel, 1.8V, with Pick and Place Cover, 244 Circuits, Natural (Off White) Latch,

Type A Tray, Lead-Free

Documents:

3D Model

Drawing (PDF)

Product Specification PS-87782-027-001 (PDF)

Agency Certification

CSA

General

Product Family

Series

Comments

Component Type

Data Load Status

Doc Info - Component

Application Specification AS-87782-001-001 (PDF)

Packaging Specification PK-87782-004 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per

-ED/01/2018 (15

January 2018)

Halogen-Free

Status

Not Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

LR19980

E29179

Memory Module Sockets

87782

With Cap

Socket

Collected FY08-Verified FY08

AS-87782-001_3, CAT-87782-001_A, E-87782-005_C2,

PS-87782-027_B, SD-87782-001_D2,

SLM-87782-001_A

Yes

MO-244

0877234071, 0877820071, 0877820244, 0877821081,

0879011043, 0879400140, 0899908178, 0899908179

MiniDIMM Sockets

MiniDIMM

800756730776

244

Vertical (Top Entry)

94V-0

Black

Yes

Natural (Off-White)

Copper Alloy

Gold

Tin

High Temperature Thermoplastic

5.902/g

Yes

Tray

0.60mm

0.762µm

2.540µm

-55°C to +85°C

Surface Mount

Electrical Model

JEDEC Outline

Made From

Overview

Product Name

UPC

Physical

Circuits (Loaded)

Durability (mating cycles max)

Entry Angle

Flammability

Housing Color

Keying to Mating Part

Latch Color

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Plating min - Mating

Plating min - Termination

Temperature Range - Operating

Temperature Range NonOperating

Termination Interface: Style

Search Parts in this Series

87782 Series

Mates With

JEDEC MO-244 Modules
