Base strip - MCV 1,5/ 8-GF-5,08 - 1847673
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Header, Nominal current: 8 A, Rated voltage (III/2): 320 V, Number of positions: 8, Pitch: 5.08 mm, Color: green,
Contact surface: Tin, Mounting: Wave soldering

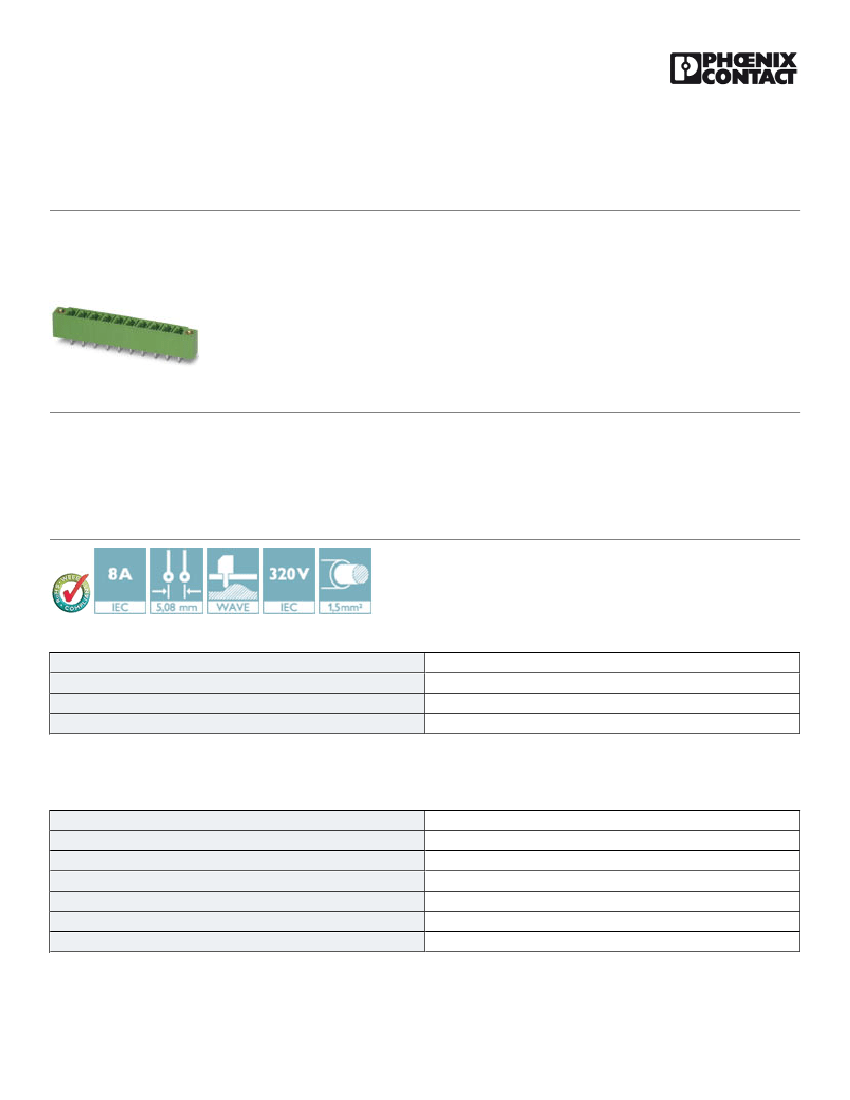

The figure shows a 10-position
version of the product
Product Features
■
■
■
■
Plug-in direction parallel and vertical to the PCB
Low-profile headers
Individual position coding by inserting coding profiles
High dielectric strength of up to 320 V according to III/2
Key Commercial Data
Packing unit
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
3.92 g
85366990
Germany
Technical data
Dimensions
Length
Pitch
Dimension a
Constructional height
Length of the solder pin
Pin dimensions
Hole diameter
7.25 mm
5.08 mm
35.56 mm
10 mm
3.4 mm
0,8 x 0,8 mm
1.2 mm
General
04/26/2016 Page 1 / 5
https://www.phoenixcontact.com/us/products/1847673
Base strip - MCV 1,5/ 8-GF-5,08 - 1847673
Technical data
General
Range of articles
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Maximum load current
Insulating material
Flammability rating according to UL 94
Color
Number of positions
MCV 1,5/..-GF
IIIa
4 kV
4 kV
4 kV
250 V
320 V
400 V
EN-VDE
8A
8A
PBT
V0
green
8
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
EN-VDE
CSA
V0
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
272607xx
27260701
27260701
27260701
27260704
27440402
27440402
27440402
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001121
EC002637
EC002637
04/26/2016 Page 2 / 5
https://www.phoenixcontact.com/us/products/1847673
Base strip - MCV 1,5/ 8-GF-5,08 - 1847673
Classifications
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211810
39121409
39121409
39121409
39121409
Approvals
Approvals
Approvals
CSA / VDE Gutachten mit Fertigungsüberwachung / IECEE CB Scheme / CCA / EAC / cULus Recognized / EAC
Ex Approvals
Approvals submitted
Approval details
CSA
Nominal current IN
Nominal voltage UN
B
8A
300 V
D
8A
300 V
VDE Gutachten mit Fertigungsüberwachung
Nominal current IN
Nominal voltage UN
8A
250 V
04/26/2016 Page 3 / 5
https://www.phoenixcontact.com/us/products/1847673
Base strip - MCV 1,5/ 8-GF-5,08 - 1847673
Approvals
IECEE CB Scheme
Nominal current IN
Nominal voltage UN
8A
250 V
CCA
Nominal current IN
Nominal voltage UN
8A
250 V
EAC
cULus Recognized
Nominal current IN
Nominal voltage UN
B
8A
300 V
D
8A
300 V
EAC
Accessories
Accessories
Coding element
Coding profile - CP-MSTB - 1734634
Coding profile, is inserted into the slot on the plug or inverted header, red insulating material
Labeled terminal marker
04/26/2016 Page 4 / 5
https://www.phoenixcontact.com/us/products/1847673
Base strip - MCV 1,5/ 8-GF-5,08 - 1847673
Accessories
Marker card - SK 5,08/2,8:FORTL.ZAHLEN - 0804280
Marker card, Card, white, labeled, Horizontal: Consecutive numbers 1 - 10, 11 - 20, etc. up to 91 - (99)100, Mounting
type: Adhesive, for terminal block width: 5.08 mm, Lettering field: 5.08 x 2.8 mm
Additional products
Printed-circuit board connector - MC 1,5/ 8-STF-5,08 - 1847411
Plug component, Nominal current: 8 A, Rated voltage (III/2): 320 V, Number of positions: 8, Pitch: 5.08 mm, Connection
method: Screw connection with tension sleeve, Color: green, Contact surface: Tin
Printed-circuit board connector - MC 1,5/ 8-ST1F-5,08 - 1900947
Plug component, Nominal current: 8 A, Rated voltage (III/2): 320 V, Number of positions: 8, Pitch: 5.08 mm, Connection
method: Screw connection with tension sleeve, Color: green, Contact surface: Tin

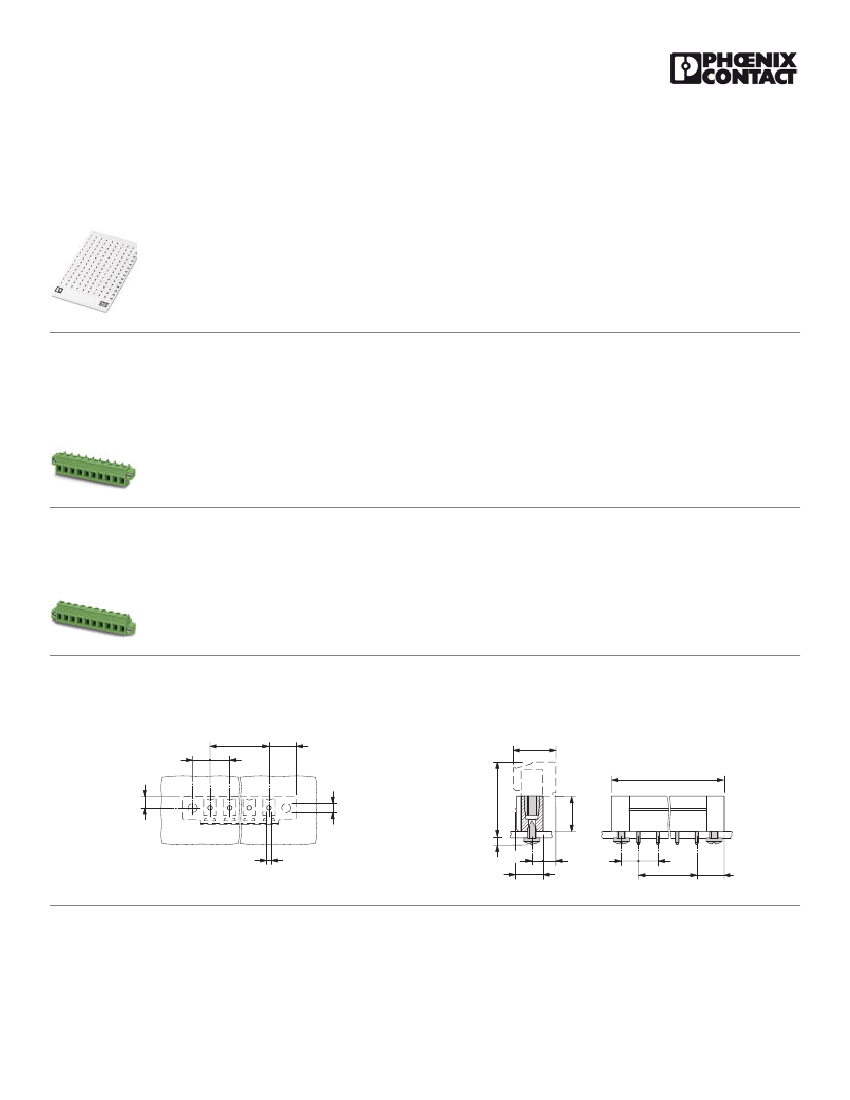

Drawings
Drilling diagram
a
4,5 5,08
2,9
Dimensional drawing
11,1
7,1
a+14,2
2,4
18,1
3,4
1,2
2,9
7,25
9,2
3,4
4,5
5,08
a
7,1
Phoenix Contact 2016 © - all rights reserved
http://www.phoenixcontact.com
04/26/2016 Page 5 / 5
