Part Number

Search

M20-9991345

Description
Headers & Wire Housings 13 SIL VERTICAL PIN HEADER GOLD HT
CategoryThe connector    The connector
File Size40KB,1 Pages
ManufacturerHarwin
Websitehttp://www.harwin.com/
Environmental Compliance

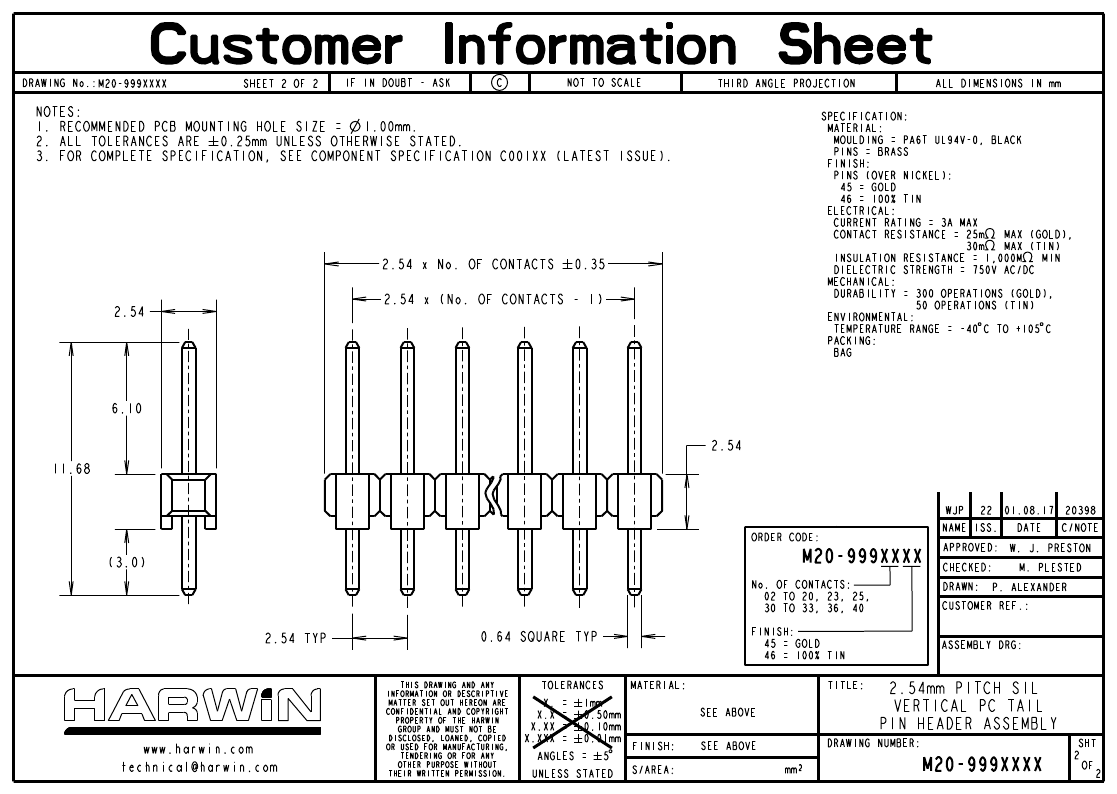

Download Datasheet Parametric View All

M20-9991345 Online Shopping

Suppliers Part Number Price MOQ In stock
M20-9991345 - - View Buy Now

M20-9991345 Overview

Headers & Wire Housings 13 SIL VERTICAL PIN HEADER GOLD HT

M20-9991345 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerHarwin
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
Other featuresROHS COMPLIANT
body width0.1 inch
subject depth0.1 inch
body length1.3 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact completed and terminatedGold (Au)
Contact point genderMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact resistance25 mΩ
DIN complianceNO
Dielectric withstand voltage750VAC V
Durability300 Cycles
Filter functionNO
IEC complianceNO
Insulation resistance1000000000 Ω
Insulator colorBLACK
insulator materialNYLON
JESD-609 codee4
MIL complianceNO
Plug contact pitch0.1 inch
Mixed contactsNO
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of rows loaded1
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
OptionsGENERAL PURPOSE
Rated current (signal)3 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.118 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts13
UL Flammability Code94V-0
