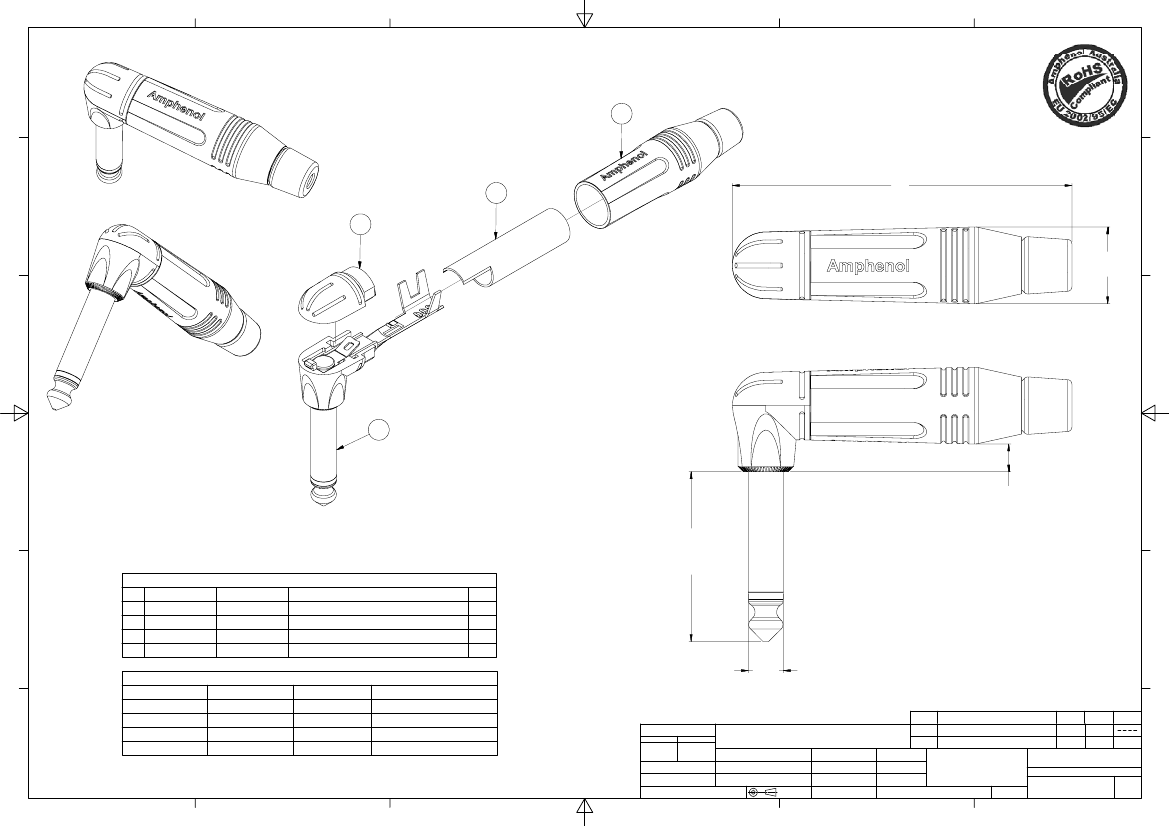

ISO VIEW
1
B
ITEM
1
2
3
4
PART NUMBER
50310028-*30
50300105-*21
51270031-521
53490001-*31
Mono Connector Assembly - Parts List
DWG No
DESCRIPTION
50310028-130-1 RA-MONO PLUG INSERT CONTACT ASSEMBLY
50300105-121-1 RA-TOP CAP
51270031-521-1 RA-BIG TUBE PVC INSULATOR
53490001-331-1 M-SERIES BACKSHELL ASSEMBLY
Part Number according to Shell and Contact
REFERENCE P/No.
SHELL FINISH
55010303-000
NICKEL
55010303-001
NICKEL
55010303-002
BLACK
55010303-003
BLACK
QTY
1
1
1
1
n
6.32
30.60 MAX.
5.0
C
C
B
A
CATALOGUE P/No.
ACPM-RN
ACPM-RN-AU
ACPM-RB
ACPM-RB-AU
Finish
CONTACT FINISH
NICKEL TIP AND SLEEVE
GOLD TIP AND SLEEVE
NICKEL TIP AND SLEEVE
GOLD TIP AND SLEEVE
1
UNLESS OTHERWISE SPECIFIED
TOLERANCE TO BE
UPDATE ASSEMBLY TO COMPLY WITH MODIFIED
COMPONENTS
L.V
L.V
BY
10-05-05
26-08-04
DATE
8374
CHG/No
LINEAR
ANGULAR
X
~
±
1
X ±
0.5
X,X ±
0.1
X
~
X' ±
30'
X,XX±
0.05
X
~
X'X"±
15'
BREAK ALL SHARP EDGES
AND REMOVE ALL BURRS
THIS DOCUMENT IS THE PROPERTY OF AMPHENOL AUSTRALIA PTY.
LTD.. NO PART THEREOF MAY BE REPRODUCED AND USED
WITHOUT THE PRIOR WRITTEN CONSENT OF THE OWNER
0
REV.
TITLE:
FIRST ISSUE
CHANGE DETAILS
DO NOT SCALE
DIMENSIONS IN
55010303000111
DSD:
MATL:
REFER TO COMPONENTS
CKD:
APP'D:
FINISH:
SEE TABLE
CAD FILE:
THIRD ANGLE
PROJECTION
MILIMETRES
SCALE:
1/4" PHONE PLUG
RA - MONO
DATE:
29-06-05
CONNECTOR ASSY
P.M
2:1 UOS
PART No:
REFER TO TABLE
SIZE:
A3
M.N.H
DATE:
L.V
DATE:
26-08-04
17-06-05
Amphenol
Amphenol Australia Pty.Ltd, 2 Fiveways Blvd, Keysborough, Vic3173
DRAWING NO.
SHEET
A
6
5
4
3
2
55010303-000-1
1
1 /1
