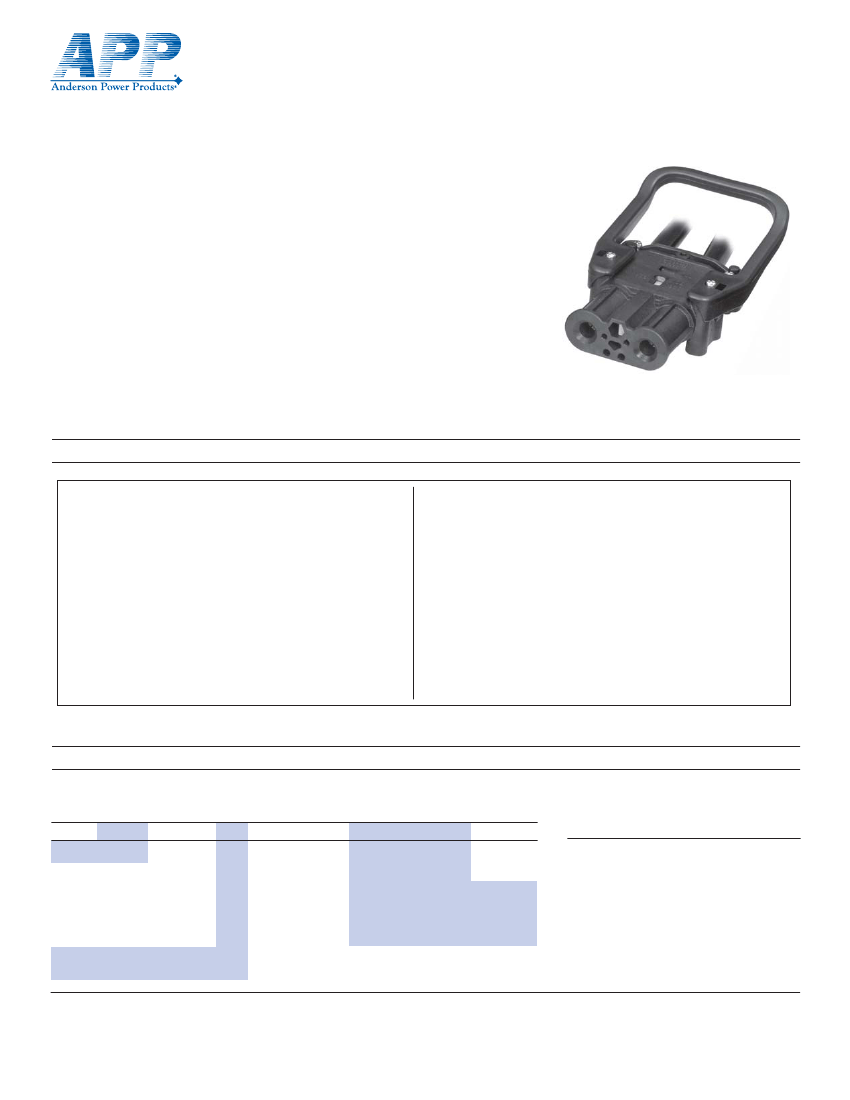

The Anderson Power Products “A” Series Euro
Battery Connector (EBC) uses the DIN43589-1
form factor which has been specially configured
for North American fast battery charging systems.
Unlike other DIN43589-1 connectors, our “A”
Series offers contact and crimp tooling selections
developed for both American Wire Gauge and
Metric cable. We also offer a broader range of
auxiliary wire contacts for communication control
applications.
The connector design incorporates an
advanced, cost effective contact carrier for ease
of assembly and fewer components. All materials
are selected to ensure years of reliable service
under adverse battery environments.
Features
A32 Female DIN 43589-1
EBC Connectors
• Impact resistant plastic housing
PA6 (Nylon) housings provide superior impact
resistance to stand up to rough usage
• Up to four auxiliary contacts
Can be used for battery monitoring and charger
communications. Last mate - first break, auxiliary
contact sizes available from 10AWG to 18AWG.
• Low mating forces
Connectors can be mated and unmated without
the necessity of added hardware
• Hexagonal voltage key for
24V, 36V, 48V, 72V, 80V, or 96V
Key prevents mating of different operating voltages
Note: Will not mate with “E” Series Housings
SPECIFICATIONS
Electrical
Current Rating (Amperes) *
UL
EN1175-1:1998
CSA
Voltage Rating
UL / CSA
EN1175-1:1998
Wire Range
- Power Contacts - AWG (mm²)
- Auxiliary Contacts - AWG (mm²)
Dielectric Withstanding Voltage (AC)
Average Contact Resistance (micro-ohms)
Operating Temperature (°C)
(°F)
Mechanical
Life
a. No Load (mating cycles)
b. Under Load (Hot Plug 5 mating cycles @96V)
Average Mating / Unmating Force (lbf)
(N)
Degree of Protection
Acid Resistence
Contact Retention - minimum (lbf)
(N)
Materials
Housing
Contacts
Hardware
350
320
270
600
150
#1/0 to #4/0 (50 / 95)
#18 to #10 (1.5 / 6)
2,200
30
-25° to 105°
-13° to 221°
>5000
800A
12
53
IP23
1.10g / cm³
100
445
PA6 (Nylon) glass filled
Copper alloy, silver plate
Steel, zinc chromate plate
* Current derating curves must be observed as current capacity will vary dependent on wire cross section and ambient temperature. Maximum current carrying capacity is measured at 40°C / 104°F using
the maximum wire cross section permissible, crimped to contacts using APP recommended tooling.
ORDERING INFORMATION
Connector Part Number Selection
Series
A32
5
00
Gender
5
Socket Nylon
None - Order Separately
0
None
Main
Contact
01
-
Handle
1
Coding
Key
0
Auxiliary Contacts
B
Packaging
9
9 Individual
8 Bulk
A (2) Lower AuxiliaryContacts (320-23)
B (2) Upper Auxiliary Contacts (320-25)
C (2) Lower Auxiliary Contacts & (320-23)
0
2
3
Grey, Wet Cell
Green, Dry Cell
Yellow, Universal
(2) Upper Auxiliary Contacts (320-25)
Accessories
Part
Number
160-13
160-15
16-89
32-89
A320LP-MK
A320HL-MK
994G4
993G4
Description
#10 (6mm²) Lower aux contact
#12 (4mm²) Upper aux contact
Handle kit - low profile
Handle kit - high profile
Latch plate
Handle / lever assembly
Manual release bracket & handle
Manual release mounting plate for
mating half
01 #1/0 AWG / 50 mm²
02 #2/0 AWG / 70 mm²
03 #3/0 AWG / 95 mm²
04 #4/0 AWG
0 No
1 Black
HEADQUARTERS:
Anderson Power Products®, 13 Pratts Junction Road, Sterling, MA 01564-2305 USA T:978-422-3600 F:978-422-3700
EUROPE:
Anderson Power Products® Ltd., Unit 3, Europa Court, Europa Boulevard, Westbrook, Warrington, Cheshire, WA5 7TN United Kingdom T: +44 (0) 1925 428390 F: +44 (0) 1925 428399
ASIA / PACIFIC:
IDEAL Anderson Asia Pacific Ltd., Unit 922-928 Topsail Plaza, 11 On Sum Street, Shatin N.T., Hong Kong T:+(852) 2636 0836 F:+(852) 2635 9036
CHINA:
IDEAL Anderson Technologies (Shenzhen) Ltd., Block A8 Tantou Western Industrial Park, Songgang Baoan District, Shenzhen, PR. China 518105 T: +(86) 755 2768 2118 F: +(86) 755 2768 2218
TAIWAN:
IDEAL Anderson Asia Pacific Ltd., Taiwan Branch, 4F.-2, No.116, Dadun 20th St., Situn District, Taichung City 407, Taiwan (R.O.C.) T: +(886) 4 2310 6451 F:+(886) 4 2310 6460
www.andersonpower.com
A32 Female DIN 43589-1
ORDERING INFORMATION
Tooling
Temperature (°C)
Part
Number
1309G4
1387G3
E160-36
Description
Hand tool for auxiliary contacts #14/18 AWG (2.5 / 2.5 mm²)
Hydraulic tool for power contacts
Extraction tool

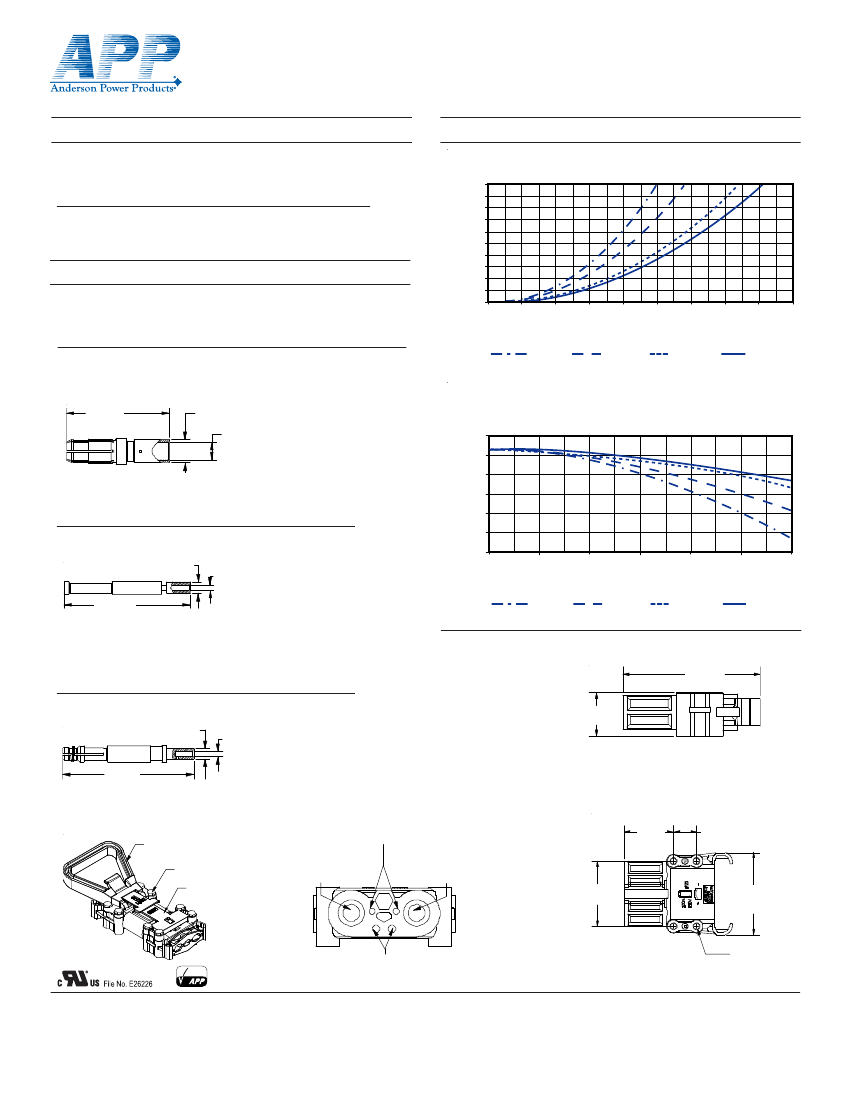

TEMPERATURE CHARTS
50
45
40
35
30
25
20
15
10
5
0
A32 EBC
Temperature Rise
Note: For tooling die information, see tooling chart on website
DIMENSIONS
Socket Contact
Part
Number
320-1150
320-1170
320-1195
320-1104
- Wire -
AWG mm²
#1/0
50
#2/0
70
#3/0
95
#4/0
N/A
-ØA-
in.
mm
0.57 14.5
0.67 17.0
0.78 19.8
0.78 19.8
-Ø
in.
0.43
0.51
0.59
0.61
B-
mm
11.0
13.0
15.0
15.6
-C
in.
2.58
2.58
2.78
2.78
-
mm
65.5
65.5
70.5
70.5
0
50
50mm²
100
150
70mm²
200
250
300
350
400
Current (A)
95mm²
#4/0 AWG
Note: Temperature ratings based on Power Contacts energized only
C
ØA
Ambient Temperature (°C)
ØB
120
100
80
60
40
20
0
A32 EBC Derating Curve
(0.8 Derating per IEC 60512-3)
Upper Auxiliary Contact
Part
Number
160-15
320-25
- Wire -
AWG
mm²
#12
4
#18 / 14 1.5 / 2.5
-Ø
in.
0.16
0.18
A-
mm
4.1
4.6
-Ø
in.
0.11
0.09
B-
mm
2.8
2.2
ØA
[ 52.1 ]
2.05
ØB
0
50
50mm²
100
150
200
95mm²
250
300
Current (A)
70mm²
#4/0 AWG
Note: Temperature ratings based on Power Contacts energized only
Lower Auxiliary Contact
Part
Number
160-13
320-23
- Wire -
AWG
mm²
#10
6
#18 / 14 1.5 / 2.5
-Ø
in.
0.20
0.18
A-
mm
5.1
4.6
-Ø
in.
0.15
0.09
B-
mm
3.8
2.2
Housing Side View
[ 116.4 ]
4.58
[ 38.0 ]
1.50
ØA
[ 58.0 ]
2.28
ØB
Handle / Lever Assembly / Latch
Handle & Lever Assembly
Mounting Hardware
Latch Plate
Housing Front View
Upper Auxiliary Contacts
Main
Main
Power
Power
Contact
Contact
Housing Top View
[ 54.0 ]
2.13
[ 24.0 ]
0.94
[ 69.0 ]
2.72
[ 89.0 ]
3.50
Ø [ 6.6 ] (4)
0.26
14532
DS-A32EBCF REV07
RoHS
COMPLIANT
Lower Auxiliary Contacts
All Data Subject To Change Without Notice
