DF60-3EP-1016C

Description
Power to the Board 3P IN-LINE W/FLANGE SML SZ B-to-WIRE 45A
CategoryThe connector
File Size477KB,12 Pages
ManufacturerHirose Electric
Environmental Compliance
Download Datasheet Parametric Compare View All

DF60-3EP-1016C Online Shopping

Suppliers Part Number Price MOQ In stock
DF60-3EP-1016C - - View Buy Now

DF60-3EP-1016C Overview

Power to the Board 3P IN-LINE W/FLANGE SML SZ B-to-WIRE 45A

DF60-3EP-1016C Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerHirose Electric
Product CategoryPower to the Board
RoHSDetails
Contact GenderPin (Male)
Current Rating40 A
Voltage Rating1 kV
Number of Positions2 Position
Mounting StyleIn Line
Termination StyleCrimp
Pitch10.16 mm
PackagingBulk
Contact PlatingGold
Housing MaterialPolybutylene Terephthalate (PBT)
Number of Rows1 Row
Contact MaterialCopper
Wire Gauge Range12 AWG to 8 AWG
Maximum Operating Temperature+ 105 C
Minimum Operating Temperature- 55 C
Factory Pack Quantity100
Unit Weight0.571438 oz
65A 10.16mm pitch Wire-to-Board Connectors for Internal Power Supply
DF60 Series
(UL, C-UL, TÜV certified product)
Jun.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.

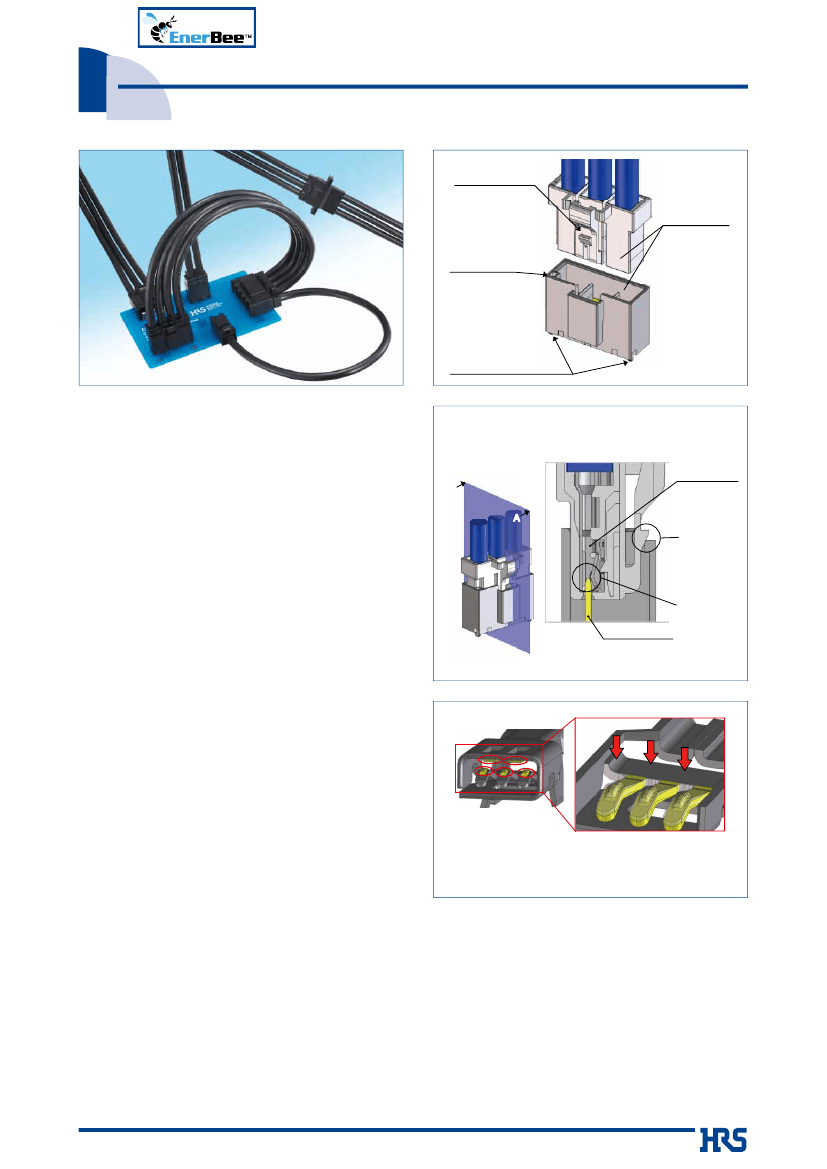

Fig.1
■Features
1. High current capacity
Capable of going to a max. of 65A when using
8 AWG with the single position connector.
(Please refer to the chart for the rated current in
other pin counts.)
Lock structure
½
2. Secure lock mechanism ensures
complete mating
A secure lock mechanism with a clear tactile and
audible click prevents insufficient mating. (Fig.2)
3. Highly reliable 5-point contact structure
Three independent contact springs provide a
secure contact with high contact reliability using
5-point of contact. (Fig.3)
4. Molded lance design
The lance is actually part of the housing instead of
being part of the terminal. This prevents tangled
wires during assembly.
Fig.2
5. Mis-insertion prevention for headers
The addition of a molded pin on the header allows
temporar y mounting retention and prevents
reverse mounting on the PCB. (Fig.1).
(Right angle pin header has a metal fitting for this
purpose)
6. Prevention of solder cracks
Glass-reinforced resin is used on pin header to
prevent solder cracks due to thermal contraction.
Three independent spring contacts provide a secure contact and a
high contact reliability with 5-points of contact.
Fig.3
7. Design Prevents short-circuits between
contacts
The wall structure between contacts isolates the
contacts and prevents short circuits from occuring.
(Fig.1)
8. Compliant to UL, C-UL and TÜV specifications
9. Glow Wire compliance(Compliant with IEC
60695-2-11)
2017.1e
1

DF60-3EP-1016C Related Products

DF60-3EP-1016C DF60-2P-1016DSA27 DF60-6P-1016DS27 DF60R-3P-1016DSA26 DF60A-6S-10.16C DF60A-1S-10.16C(15)
Description Power to the Board 3P IN-LINE W/FLANGE SML SZ B-to-WIRE 45A Power to the Board Power to the Board Power to the Board Power to the Board 6POS SOCKET 55A AWG 12 to 8 Power to the Board 1POS SOCKET 65A AWG 12 to 8
Product Attribute Attribute Value Attribute Value Attribute Value Attribute Value Attribute Value Attribute Value
Manufacturer Hirose Electric Hirose Electric Hirose Electric Hirose Electric Hirose Electric Hirose Electric
Product Category Power to the Board Power to the Board Power to the Board Power to the Board Power to the Board Power to the Board
Factory Pack Quantity 100 1 1 1 100 100
RoHS Details Details Details Details - -
