X1G003621005200 datasheet, PDF

Datasheet> All Categories > oscillator> X1G003621005200

X1G003621005200: DescriptionCMOS Output Clock Oscillator,; Categoryoscillator; File Size263KB，5 Pages; ManufacturerSeiko Epson Corporation; Environmental Compliance

Download Datasheet Parametric Compare View All

X1G003621005200 Overview

CMOS Output Clock Oscillator,

X1G003621005200 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Seiko Epson Corporation
Reach Compliance Code	unknown
Other features	STANDBY; ENABLE/DISABLE FUNCTION
maximum descent time	4.5 ns
Frequency Adjustment - Mechanical	NO
frequency stability	15%
Installation features	SURFACE MOUNT
Number of terminals	4
Nominal operating frequency	4.9152 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Oscillator type	CMOS
Output load	15 pF
physical size	2.5mm x 2.0mm x 0.7mm
longest rise time	4.5 ns
Maximum slew rate	3.5 mA
Maximum supply voltage	3.63 V
Minimum supply voltage	2.7 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	55/45 %
Base Number Matches	1

Preview

Download Datasheet

View All

Clock OSC

SG-211SCE

SG-211SCE 4.915200 MHz E

Product name

Product Number / Ordering code

X1G0036210052xx

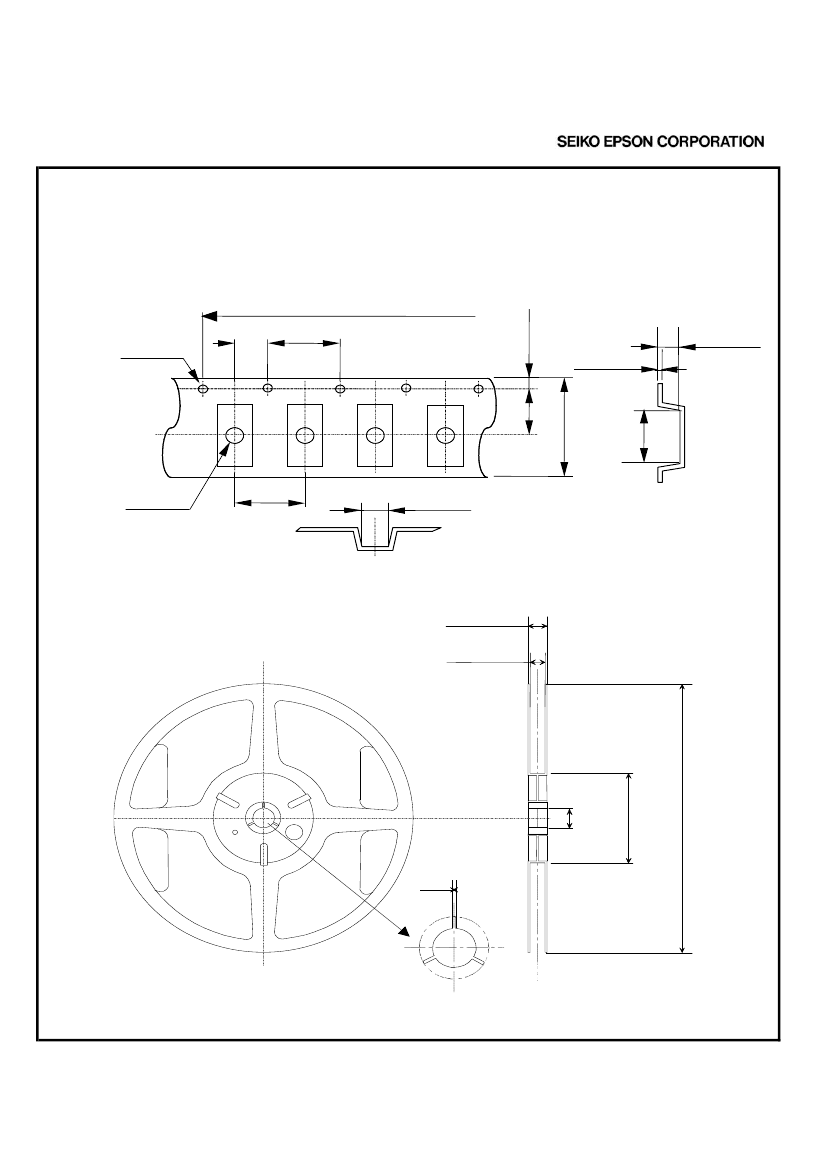

Please refer to the 8.Packing information about xx (last 2 digits)

Output waveform CMOS

Pb free / Complies with EU RoHS directive

Reference weight Typ. 13 mg

1.Absolute maximum ratings

Parameter

Symbol

Maximum supply voltage

Storage temperature

Input voltage

Min.

-0.6

-40

-0.6

Typ.

Max.

+125

Vcc+0.6

Unit

ºC

Conditions / Remarks

Storage as single product

ST terminal

Vcc-GND

T_stg

Vin

2.Specifications(characteristics)

Parameter

Symbol

Output frequency

Supply voltage

Operating temperature

Frequency tolerance

Current consumption

Stand-by current

Symmetry

Output voltage

Output load condition

Input voltage

Rise time

Fall time

Start-up time

Jitter

Min.

2.7

-20

-15

0.9Vcc

0.8Vcc

Typ.

4.915200

3.3

TBD

Max.

3.63

+70

3.5

5.0

0.1Vcc

0.2Vcc

4.5

Unit

MHz

ºC

x10

-6

µA

Conditions / Remarks

T_use

No load condition

ST = GND

50% Vcc Level L_CMOS=<15pF

IOH=-4mA

IOL=4mA

Vcc

T_use

f_tol

Icc

I_std

SYM

L_CMOS

t_str

RMS

p-p

acc

CMOS Load

ST terminal

dBc/Hz

x10

-6

0.2Vcc to 0.8Vcc Level, L_CMOS=15pF

t = 0 at 0.9Vcc

Deterministic Jitter Vcc=3.3V

Random Jitter Vcc=3.3V

δ(RMS of total distribution) Vcc=3.3V

Peak to Peak Vcc=3.3V

Accumulated Jitter(δ) n=2 to 50000

cycles

Off set Frequency: 12kHz to 20MHz Vcc=3.3V

Phase jitter

Phase noise

L(f)

Off set 1Hz Vcc=3.3V

Off set 10Hz Vcc=3.3V

Off set 100Hz Vcc=3.3V

Off set 1kHz Vcc=3.3V

Off set 10kHz Vcc=3.3V

Off set 100kHz Vcc=3.3V

Off set 1MHz Vcc=3.3V

Included in Frequency tolerance First year

Frequency aging

f_age

1 Page
