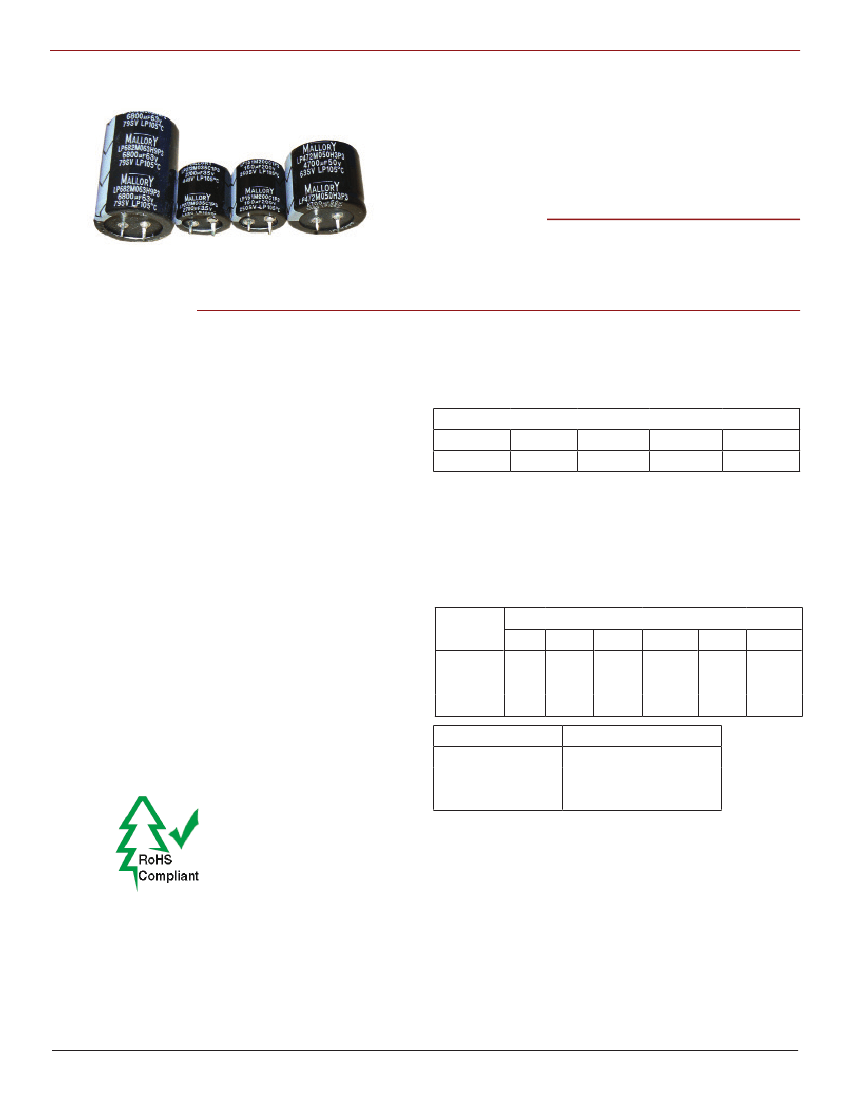

Type LP
105 ºC Snap-In Aluminum Electrolytic Capacitors
Stable ESR, Long Life, Snap-In
Type LP radial snap-in aluminum electrolytic
capacitors are small in size and are rated for low
voltage applications. Their durable construction
guarantees a long life while operating up to 105 ºC
with a stable ESR. These features make the Type LP
ideal for use in switch-mode power supplies.
Highlights
•
•
•
High Reliability
105 ºC

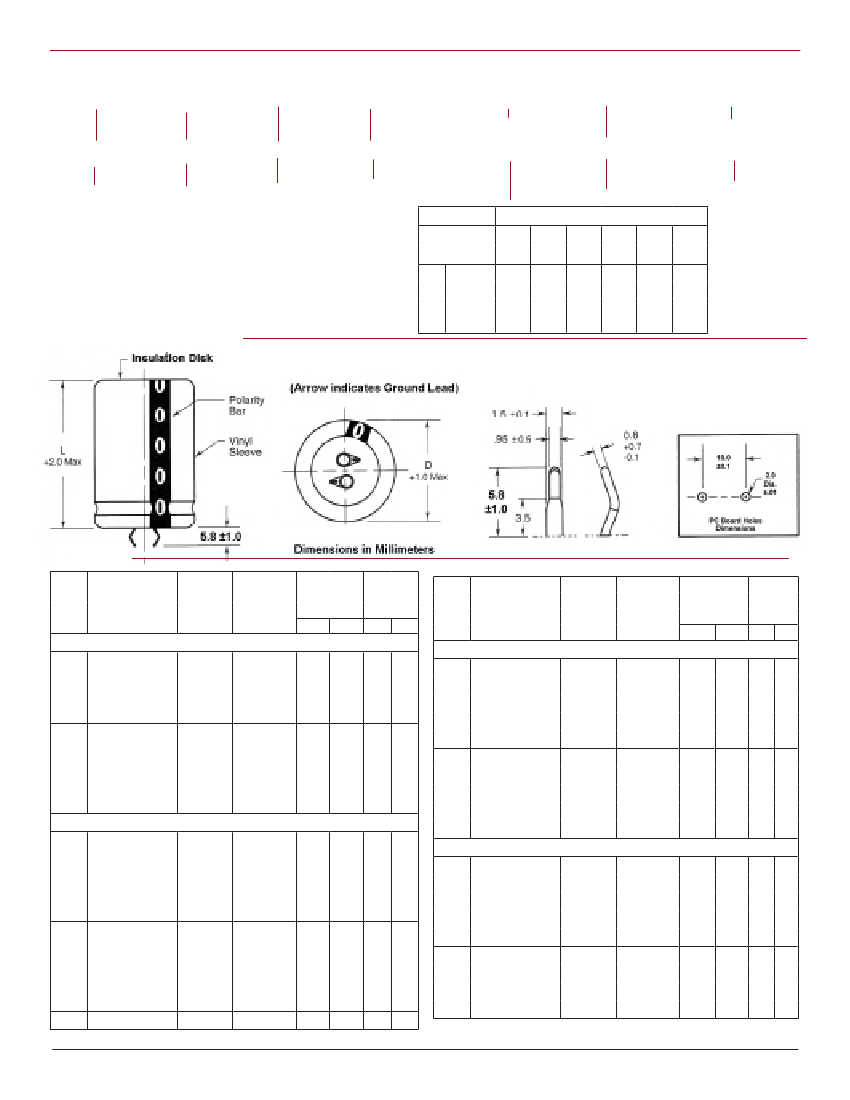

22 to 35 mm diameter with 10 mm lead spacing
Specifications
Capacitance Range:
Voltage Range:
Capacitance tolerance:
Operating Temperature Range:
Dissipation Factor:
100 to 47,000 µF
16 to 250 Vdc
±20%
–40 ºC to +105 ºC
DF at 120 Hz, +25 ºC
Vdc
DF %
16
30
25 - 35
25
50 - 63
20
100- 250
15
DC Leakage Test:
For values that are >1000 µF, the DF (%) increases
2% for every additional 1000 µF
I = .02CV
C = capacitance in µF
V = rated voltage
I = leakage current in µA
Rated
Vdc
10 to 50
0.90
1.00
1.00
1.00
Ripple Multipliers
60 Hz 100 Hz 300 Hz 1000 Hz 10 kHz 100 kHz
1.03
1.07
1.15
1.65
2.25
2.55
Voltage/Frequency Ripple Multipliers:
1.05
1.13
1.25
1.10
1.19
1.35
1.10
1.20
1.40
63 to 100 0.85
160 to 250 0.80
Temperature Ripple Multipliers:
Temperature
+85 ºC
+65 ºC
+45 ºC
Ripple Multiplier
The maximum ripple current at 105 ºC and 120 Hz are
the Ratings Table. Adjust to other temperature and fre-
quencies using the tables here.
Load Life Test:
Complies with the EU Directive
2002/95/EC requirement restricting
the use of Lead (Pb), Mercury (Hg),
Cadmium (Cd), Hexavalent chromium
(Cr(VI)), PolyBrominated Biphenyls
(PBB) and PolyBrominated Diphenyl
Ethers (PBDE).
1,000 h @ full load at +105 ºC per EIA IS-749
∆ Capacitance ±20%
ESR 200% of limit
DCL 100% of limit
Shelf Life:
500 h @ 105 ºC, capacitance, ≤200% ESR and
DC ±20%, initial requirements
Vibration:
10 to 55 Hz, 0.06” and 10 g max, 2 h in each
plane
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
