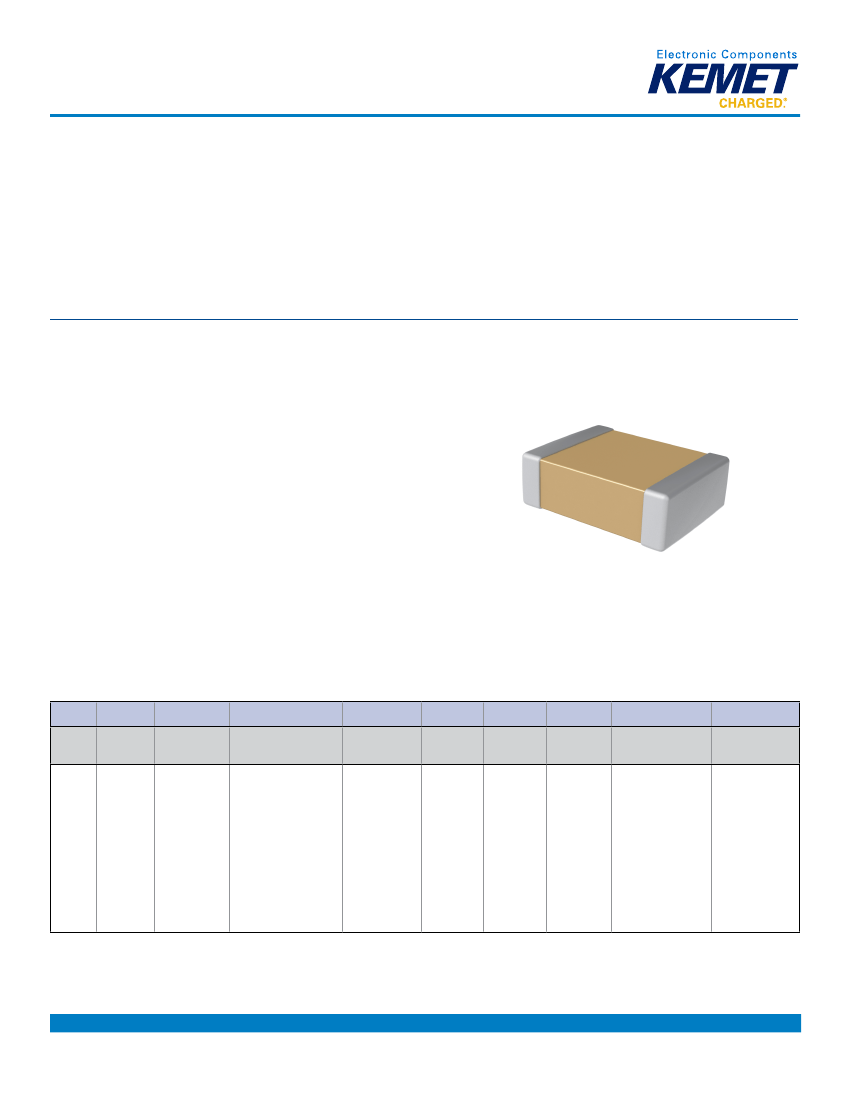

Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)

C0G Dielectric, 10 – 250 VDC (Commercial Grade)

Overview

KEMET’s C0G dielectric features a 125°C maximum operating

temperature and is considered “stable.” The Electronics

Components, Assemblies & Materials Association (EIA)

characterizes C0G dielectric as a Class I material. Components

of this classification are temperature compensating and are

suited for resonant circuit applications or those where Q and

stability of capacitance characteristics are required. C0G exhibits

no change in capacitance with respect to time and voltage and

boasts a negligible change in capacitance with reference to

ambient temperature. Capacitance change is limited to ±30

ppm/ºC from -55°C to +125°C.

Benefits

• -55°C to +125°C operating temperature range

• Lead (Pb)-Free, RoHS, and REACH compliant

• EIA 0201, 0402, 0603, 0805, 1206, 1210, 1808, 1812, 1825,

2220, and 2225 case sizes

• DC voltage ratings of 10 V, 16 V, 25 V, 50 V, 100 V, 200 V and 250 V

• Capacitance offerings ranging from 0.5 pF up to 0.47 μF

• Available capacitance tolerances of ±0.10 pF, ±0.25 pF, ±0.5

pF, ±1%, ±2%, ±5%, ±10%, and ±20%

• No piezoelectric noise

• Extremely low ESR and ESL

• High thermal stability

• High ripple current capability

Click image above for interactive 3D content

Open PDF in Adobe Reader for full functionality

Ordering Information

C

Ceramic

1206

C

104

Capacitance

Code (pF)

2 significant digits +

number of zeros.

Use 9 for 1.0 – 9.9 pF

Use 8 for 0.5 – .99 pF

e.g., 2.2 pF = 229

e.g., 0.5 pF = 508

J

Capacitance

Tolerance

2

B = ±0.10 pF

C = ±0.25 pF

D = ±0.5 pF

F = ±1%

G = ±2%

J = ±5%

K = ±10%

M = ±20%

3

Voltage

8 = 10 V

4 = 16 V

3 = 25 V

5 = 50 V

1 = 100 V

2 = 200 V

A = 250 V

G

Dielectric

G = C0G

A

C

TU

Case Size

Specification/

(L" x W")

Series

1

0201

0402

0603

0805

1206

1210

1808

1812

1825

2220

2225

C = Standard

Packaging/Grade

Failure Rate/

Termination Finish

3

Design

(C-Spec)

4

A = N/A

C = 100% Matte Sn Blank = Bulk

TU = 7" Reel

Unmarked

Flexible termination option is available. Please see FT-CAP product bulletin C1062_C0G_FT-CAP_SMD

Additional capacitance tolerance offerings may be available. Contact KEMET for details.

3

Additional termination finish options may be available. Contact KEMET for details.

4

Additional reeling or packaging options may be available. Contact KEMET for details.

1

2

One world. One KEMET

C1003_C0G • 1/13/2015

1

Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs) – C0G Dielectric, 10 – 250 VDC (Commercial Grade)

Dimensions – Millimeters (Inches)

W

L

T

B

S

EIA

Size

Code

0201

0402

0603

0805

1206

1210

1808

1812

1825

2220

2225

Metric

Size

Code

0603

1005

1608

2012

3216

3225

4520

4532

4564

5650

5664

L

Length

W

Width

T

Thickness

B

Bandwidth

0.15 (.006) ± 0.05 (.002)

0.30 (.012) ± 0.10 (.004)

0.35 (.014) ± 0.15 (.006)

0.50 (0.02) ± 0.25 (.010)

S

Separation

Minimum

N/A

0.30 (.012)

0.70 (.028)

0.75 (.030)

Mounting

Technique

Solder Reflow Only

0.60 (.024) ± 0.03 (.001) 0.30 (.012) ± 0.03 (.001)

1.00 (.040) ± 0.05 (.002) 0.50 (.020) ± 0.05 (.002)

1.60 (.063) ± 0.15 (.006) 0.80 (.032) ± 0.15 (.006)

2.00 (.079) ± 0.20 (.008) 1.25 (.049) ± 0.20 (.008)

3.20 (.126) ± 0.20 (.008) 1.60 (.063) ± 0.20 (.008)

3.20 (.126) ± 0.20 (.008) 2.50 (.098) ± 0.20 (.008)

Solder Wave or

Solder Reflow

See Table 2 for

0.50 (0.02) ± 0.25 (.010)

Thickness

4.70 (.185) ± 0.50 (.020) 2.00 (.079) ± 0.20 (.008)

0.60 (.024) ± 0.35 (.014)

4.50 (.177) ± 0.30 (.012)

3.20 (.126) ± 0.30 (.012)

0.60 (.024) ± 0.35 (.014)

N/A

Solder Reflow Only

4.50 (.177) ± 0.30 (.012) 6.40 (.252) ± 0.40 (.016)

5.70 (.224) ± 0.40 (.016) 5.00 (.197) ± 0.40 (.016)

5.60 (.220) ± 0.40 (.016) 6.40 (.248) ± 0.40 (.016)

Benefits cont'd

•

Preferred capacitance solution at line frequencies and into the MHz range

No capacitance change with respect to applied rated DC voltage

Negligible capacitance change with respect to temperature from -55°C to +125°C

No capacitance decay with time

Non-polar device, minimizing installation concerns

100% pure matte tin-plated termination finish allowing for excellent solderability

SnPb plated termination finish option available upon request (5% minimum)

Applications

Typical applications include critical timing, tuning, circuits requiring low loss, circuits with pulse, high current, decoupling, bypass,

filtering, transient voltage suppression, blocking and energy storage.
