Moisture Sensitivity Level (MSL) – This product is Hermetically Sealed and not Moisture Sensitive - MSL = N/A: Not Applicable
FEATURES:
• 32.768kHz in 2.0 x 1.6 x 0.7mm package
• Seam sealed package assures high reliability performance
• Low current consumption 240
µA
max.
• Suitable for RoHS compliant reflow
APPLICATIONS:
• Laptop
• Digital camera
• Wireless LAN
• Bluetooth and mobile communication
• LCD
• PDA and MP3 player
• Electricity, gas and water metering
Typical
32.768
Maximum
+60
+125
+100
3.63
2.625
1.89
240
15
0.1*Vdd
+3
60
55
5
60
10
Units
kHz
°C
°C
ppm
V
µA
pF
V
Notes
See options
See options
Standard
Option 1
Option 2
LVCMOS
STANDARD SPECIFICATIONS:
Parameters
Frequency Range
Operating Temperature
Storage Temperature
Overall Frequency Stability*
Supply Voltage (Vdd)
Supply Current (I
dd
)
Output Load
Output Voltage
Tri-state Function
Aging
Symmetry @1/2Vdd
Start-up Time
Rise/Fall Time (Tr/Tf)
Disable Current
V
OH
V
OL
Minimum
-10
-55
-100
2.97
2.375
1.71
3.3
2.5
1.8
120
0.9*Vdd
“1” (V
IH
≥0.7*Vdd)
: Oscillation
“0” (V
IL
≤0.3*Vdd)
: Hi Z
-3
40
50
45
50
ppm
%
ms
ns
µA
@ +25°C First y ear
Standard
Option S
OPTIONS AND PART IDENTIFICATION:
(Left blank if standard)
ASAK
- 32.768kHz -
-
Supply Voltage
Blank: 3.3V±10%
1: 2.5 V±5%
2: 1.8 V±5%
Operating Temp.*
Blank: -10°C ~ +60°C
E: -20°C ~ +70°C
F: -30°C ~ +70°C
N: -30°C ~ +85°C
L: -40°C ~ +85°C
Overall Freq. Stability
Blank: ±100ppm
J: ±20ppm (**)
R: ±25ppm
K: ±30 ppm
C: ±50 ppm
Symmetry
Blank: 40/60%
S: 45/55%
Packaging
Blank: Bulk
T: Tape & Reel
*Contact ABRACON for extended temperature range
** For standard temp. range -10° C to + 60° C only
ABRACON IS
ISO 9001: 2008
ISO 9001 / QS 9000
CE R TIFIED
LLC
2 Faraday, Suite# B
|
Irvine
|
CA 92618
Revised: 11.09.15
Ph. 949.546.8000
|
Fax. 949.546.8001
Visit
www.abracon.com
for Terms and Conditions of Sale
32.768kHz CERAMIC SMD LVCMOS CRYSTAL OSCILLATOR
ASAK

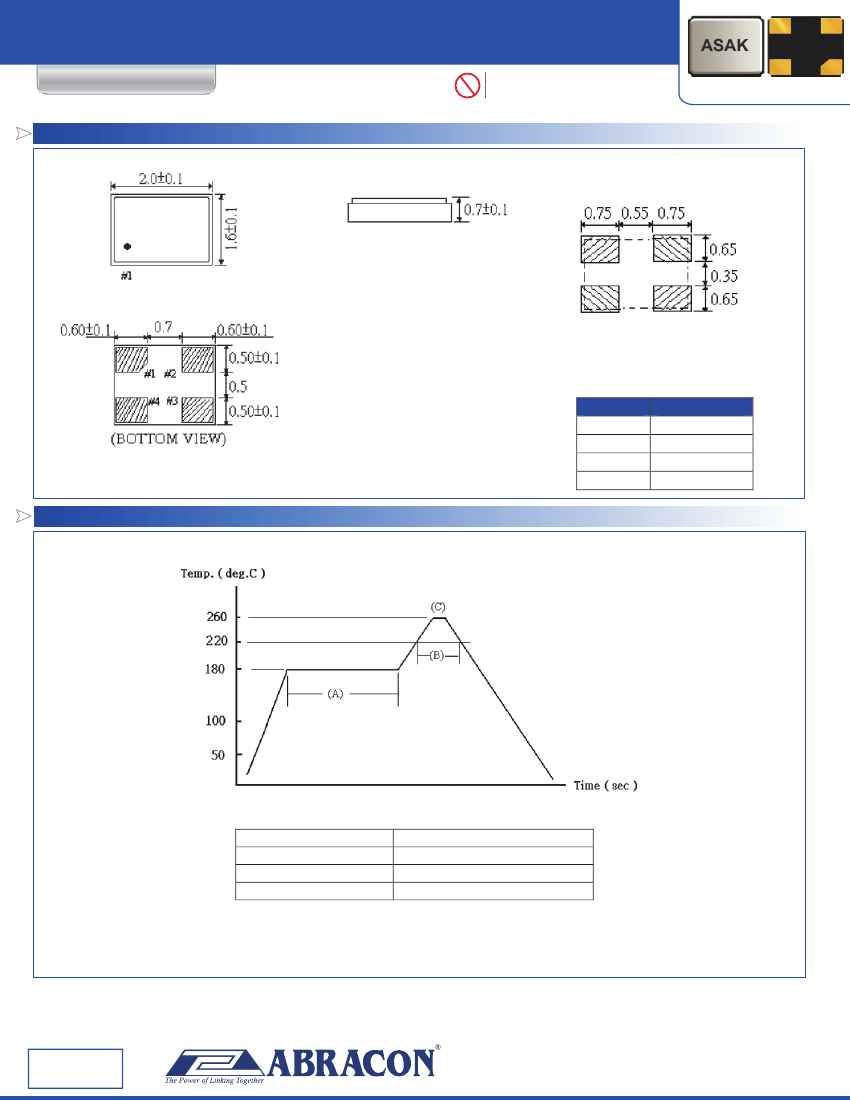

OUTLINE DIMENSIONS:
Pb
RoHS/RoHS II Compliant
2.0 x 1.6 x 0.7mm
Recommended Land Pattern
Note: Recommend using an approximately 0.01uF
bypass capacitor between PIN 2 and 4.
PIN #
1
2
3
4
Function
Enable/Disable
GND
Output
Vdd
Dimensions: mm
REFLOW PROFILE:
(A) Preheating Area
(B) Heating Area
(C) Peak Temperature
Ramp Rate
180±10°C, 90±30 seconds
220±10°C, 30 seconds max.
260°C, 10 seconds max.
3°C/second max.
ABRACON IS
ISO 9001: 2008
ISO 9001 / QS 9000
CE R TIFIED
LLC
2 Faraday, Suite# B
|
Irvine
|
CA 92618
Revised: 11.09.15
Ph. 949.546.8000
|
Fax. 949.546.8001
Visit
www.abracon.com
for Terms and Conditions of Sale
32.768kHz CERAMIC SMD LVCMOS CRYSTAL OSCILLATOR
ASAK

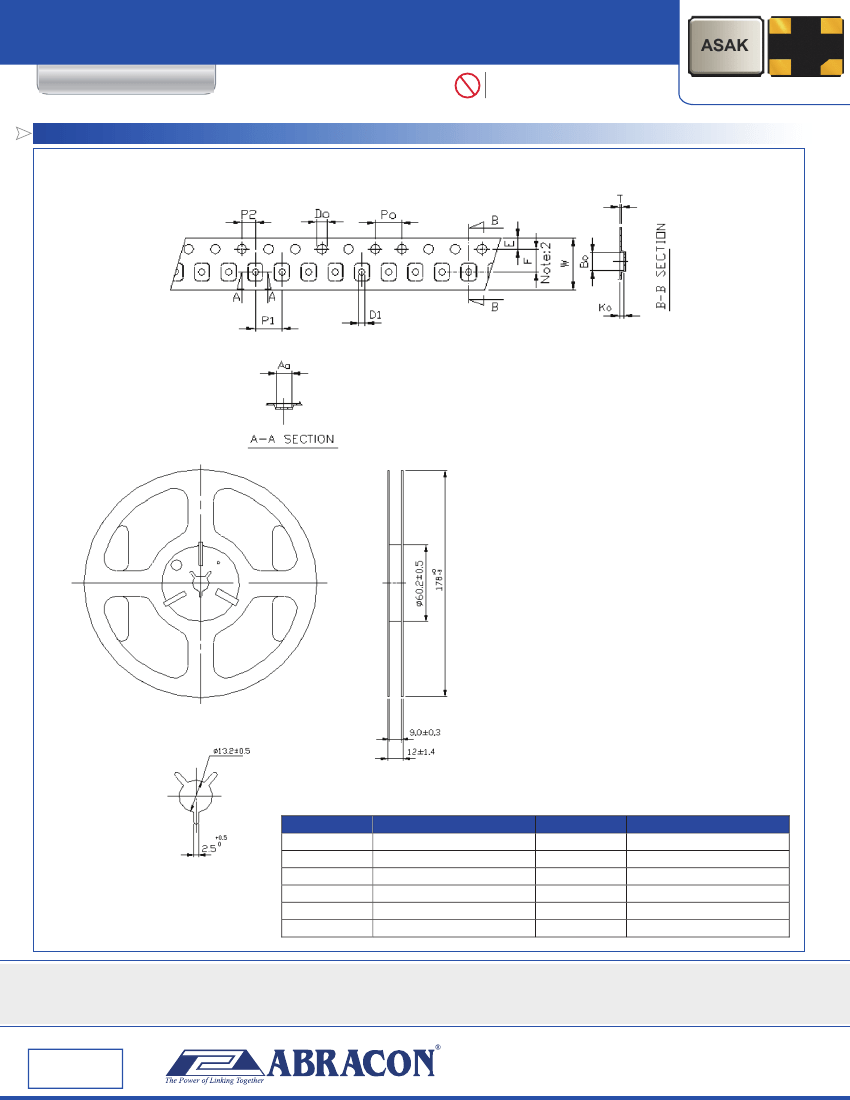

TAPE & REEL:
T= Tape and reel (1,000pcs/reel)
Pb
RoHS/RoHS II Compliant
2.0 x 1.6 x 0.7mm
Dimensions: mm
Symbol
A0
B0
K0
P0
P1
P2
Dimensions (mm)
1.85±0.10
2.25±0.10
0.95±0.10
4.0±0.10
4.0±0.10
2.0±0.05
Symbol
D0
D1
E
F
W
T
Dimensions (mm)
1.50±0.05
1.05±0.05
1.75±0.10
3.50±0.05
8.0±0.20
0.25±0.05
ATTENTION:
Abracon Corporation’s products are COTS – Commercial-Off-The-Shelf products; suitable for Commercial, Industrial and, where designated, Automotive Applica-
tions. Abracon’s products are not specifically designed for Military, Aviation, Aerospace, Life-dependant Medical applications or any application requiring high reliability where
component failure could result in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme operating environment, written consent and
authorization from Abracon Corporation is required. Please contact Abracon Corporation for more information.
