Features
n
Carbon element
n
Assortment of resistance tapers
n
Push latching shaft
n
Flatted, knurled and slotted shaft styles
n
Center detent option
F
RE
E
LE
AD
*R
oH
S
C
OM
PL
T
PTP90 Series Panel Control w/Push Latching Shaft

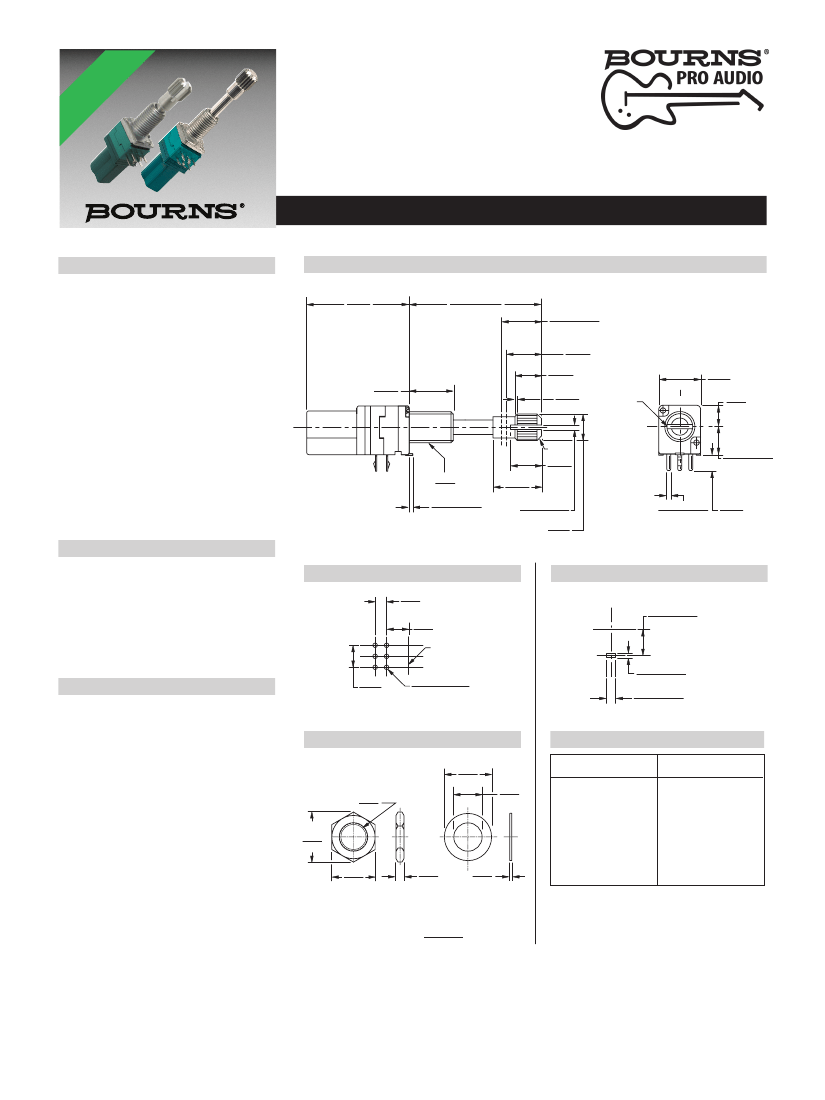

Product Dimensions
23.25
(0.915)
30.0 ± 0.8
(1.181 ± 0.031)
PUSH TRAVEL
9.0 ± 0.5
(0.354 ± 0.020)
PUSH LATCH TRAVEL
8.0
(0.315)
6.0
(0.236)
0.5
(0.020)
SHAFT SLOT
IS OPTIONAL
ANGLE
Y
X
Electrical Characteristics
Standard Resistance Range
........................1K ohms to 1 megohm
Standard Resistance Tolerance
R < 250K ohms .........................±20 %
R ≥ 250K ohms .........................±30 %
End Resistance
R < 50K ohms .............. 30 ohms max.
R ≥ 50K ohms ......... 0.1 % of TR max.
Insulation Resistance @ 250 VDC
............................. 100 megohms min.
Dielectric Withstanding Voltage
..............................................300 VAC
Tracking Error (-40 dB to 0 dB) .....±3 dB
Standard Taper .................. Linear, Audio
Power Rating
Linear ................................... 0.05 watt
Audio .................................. 0.025 watt
Slider Noise .......................100 mV max.
Operating Voltage ....... 50 VAC / 10 VDC
Ro VE LEA
HS RS D
C ION FRE
OM S E
PL AR
IA E
NT
*
(Shown with Knurled Shaft)
10.0
(0.394)
9.5
(0.374)
4.85
(0.191)
X
6.5 ± 0.5
(0.256 ± 0.002)
R2 R1
M7 x
0.75
0.030
C1
7.0
(0.276)
10.7
(0.421)
1.0 ± 0.1
(0.039 ± 0.004)
6.0
(0.236)
DIA.
1
2
3
Y
0.9 ± 0.1
(0.035 ± 0.004)
3.5
(0.138)
0.8 ± 0.2
(0.031 ± 0.002)
Environmental Characteristics
Operational Life ................15,000 cycles
TR Shift .....................................±15 %
Operating Temperature Range
..................................-10 °C to +55 °C
Resistance to Solder Heat ..............±5 %
IP Rating .........................................IP 40
Moisture Sensitivity Level .....................1
ESD Classification (HBM)................. N/A
Mechanical Characteristics
Mechanical Angle ..................310 ° max.
Operating Torque ..............20~250 gf-cm
Stop Strength................... 4 kgf-cm max.
Mounting Torque ............ 10 kgf-cm max.
Shaft Push Latch Force ..........40~500 gf
Push Latch Operating Life
......................................10,000 cycles
Soldering Condition
Manual ........... 300 °C ±5 °C for 3 sec.
Wave .............. 260 °C ±5 °C for 5 sec.
Wash ..................... Not recommended
Hardware ................One flat washer and
one mounting nut supplied with
each potentiometer
Mounting Hole Detail
2.5
(0.098)
5.0
(0.197)
MOUNTING
SURFACE
5.0
(0.197)
DIA.
1.0 +0.1/-0
(0.039 +0.004/-0)
6 PLCS.
Locating Lug Detail
Y
X
X
6.0 ± 0.2
(0.236 ± 0.008)
Y
0.8 ± 0.2
(0.315 ± 0.008)
2.0 ± 0.1
(0.079 ± 0.004)
Hardware
DIA.
12.0
(.472)
M7 x 0.75
(.030)
DIA.
12.7
(.500)
11.0
(.433)
DIA.
NUT
2.0
(.079)
0.5
(.020)
WASHER
DIA.
7.2
(.283)
Standard Resistance Table
Resistance
(Ohms)
1,000
2,000
5,000
10,000
20,000
50,000
100,000
200,000
500,000
1,000,000
Resistance
Code
102
202
502
103
203
503
104
204
504
105
MM
DIMENSIONS:
(INCHES)
*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.
Specifications are subject to change without notice.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
Users should verify actual device performance in their specific applications.
Applications
n
Multimedia sound systems
n
Mixers / drum machines / DJ equipment
n
Automotive sound systems
n
Portable electronics
n
Portable appliances
PTP90 Series Panel Control w/Push Latching Shaft

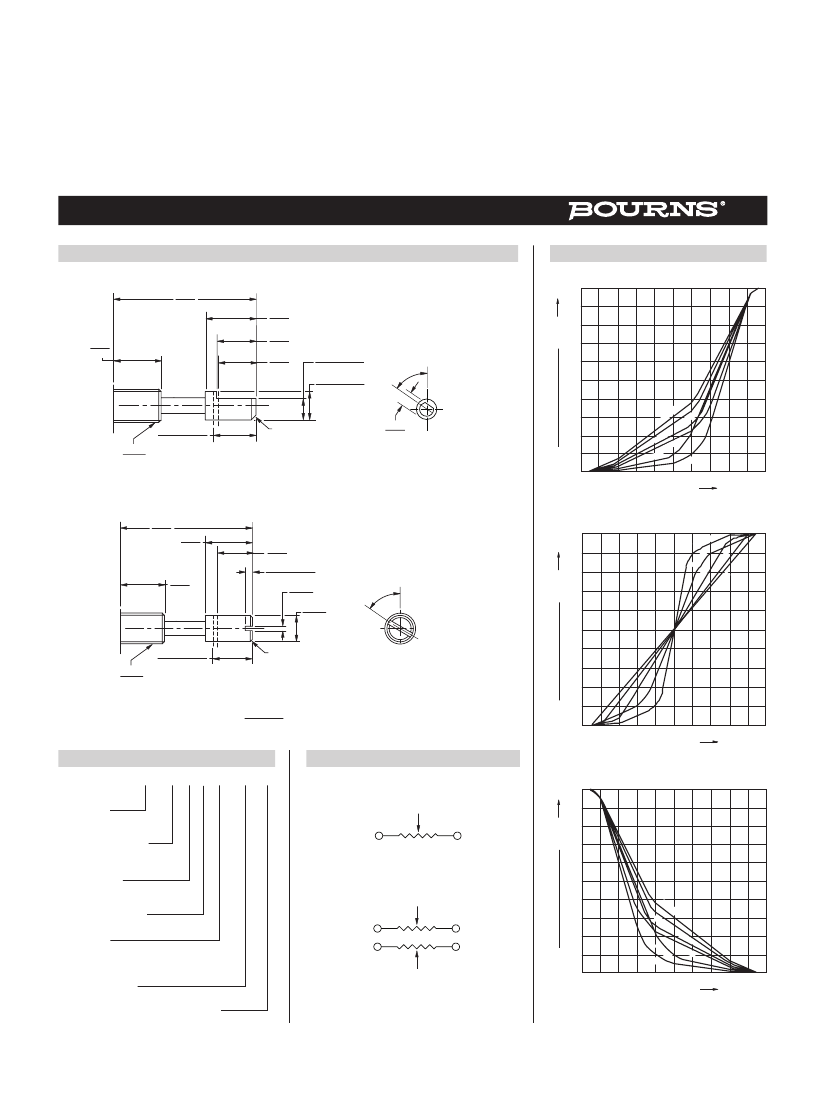

Additional Shaft Styles
Tapers
A Series Tapers
100
Flatted Shaft
30.0
(1.181)
10.7
(0.428)
8.3
(0.327)
8.0
(0.315)
PUSH LATCH
TRAVEL
90
Output Voltage across Terminals 1-2
X 100 (%)
Input Voltage across Terminals 1-3
80
70
60
50
40
30
20
10
0
10
20
30
(20
(3
0A
);A
6
10.0
(0.394)
DIA.
4.5 +0/-0.1
(0.177 +0.004)
6.0 +0/-0.05
(0.236 +0.002)
DIA.
60 ° ±10 °/-5 °
0.75
M7 X
(0.030)
9.0 ± 0.5
(0.354 ± 0.020)
PUSH TRAVEL
C1
4.5
(0.177)
SHAFT SHOWN IN
FULL CCW POSITION
(25
3
A);
A5
A
A);
4
A);A
(15
A2
(10A);
(05
1
A);A
40
50
60
70
80
90
100
Terminal 1
Rotational Travel (%)
Terminal 3
Slotted Shaft
30.0
(1.181)
10.7
(0.428)
PUSH LATCH
TRAVEL
8.0
(0.315)
1.6 ± 0.2
(0.063 ± 0.008)
1.0
(0.039)
6.0
(0.236)
DIA.
C1
B Series Tapers
100
90
Output Voltage across Terminals 1-2
X 100 (%)
Input Voltage across Terminals 1-3
80
70
60
50
40
30
20
10
0
10
20
30
40
50
60
70
80
90
100
);B5
(5B
);B
4
(4B
);B
3
(2
10.0
(0.394)
(3B
60 ° ±10 °/-5 °
M7 X
0.75
(0.030)
9.0 ± 0.5
(0.354 ± 0.020)
PUSH TRAVEL
SHAFT SHOWN IN
FULL CCW POSITION
MM
DIMENSIONS:
(INCHES)
(1
B
);B
1
B)
;B
2
Terminal 1
Rotational Travel (%)
Terminal 3
How To Order
PTP90 2 - 0 30 K - 103 B2
Schematics
Single Gang
R1 1
R1 1
C Series Tapers
Model Number
Designator
PTP90 = Panel Control
w/Push Latching Shaft
Number of Sections
1 = Single Gang
2 = Dual Gang
Center Detent
0 = No Detent
1 = Center Detent
Shaft Length (FMS)
30 = 30 mm
Shaft Style
F = Flatted Metal
K = Knurled (18 tooth serrated)
S = Slotted Metal
Resistance Code
(See Standard Resistance Table)
Resistance Taper (See Taper Charts)
Taper Series followed by Curve Number
2
2
Output Voltage across Terminals 1-2
X 100 (%)
Input Voltage across Terminals 1-3
100
90
3
3
80
70
60
50
40
30
20
10
0
10
20
30
(25
(3
0C
);C
Dual Gang
R1 1
R1 1
R2 1'
R2 1'
2
2
3
3
3'
3'
2'
2'
6
C)
;C5
(1
(20
C
(15
0C
)
);C
4
(05
;C
2
C);C
1
C);
C3
40
50
60
70
80
90
100
Terminal 1
Rotational Travel (%)
Terminal 3
REV. 08/14/17
Specifications are subject to change without notice.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
Users should verify actual device performance in their specific applications.
