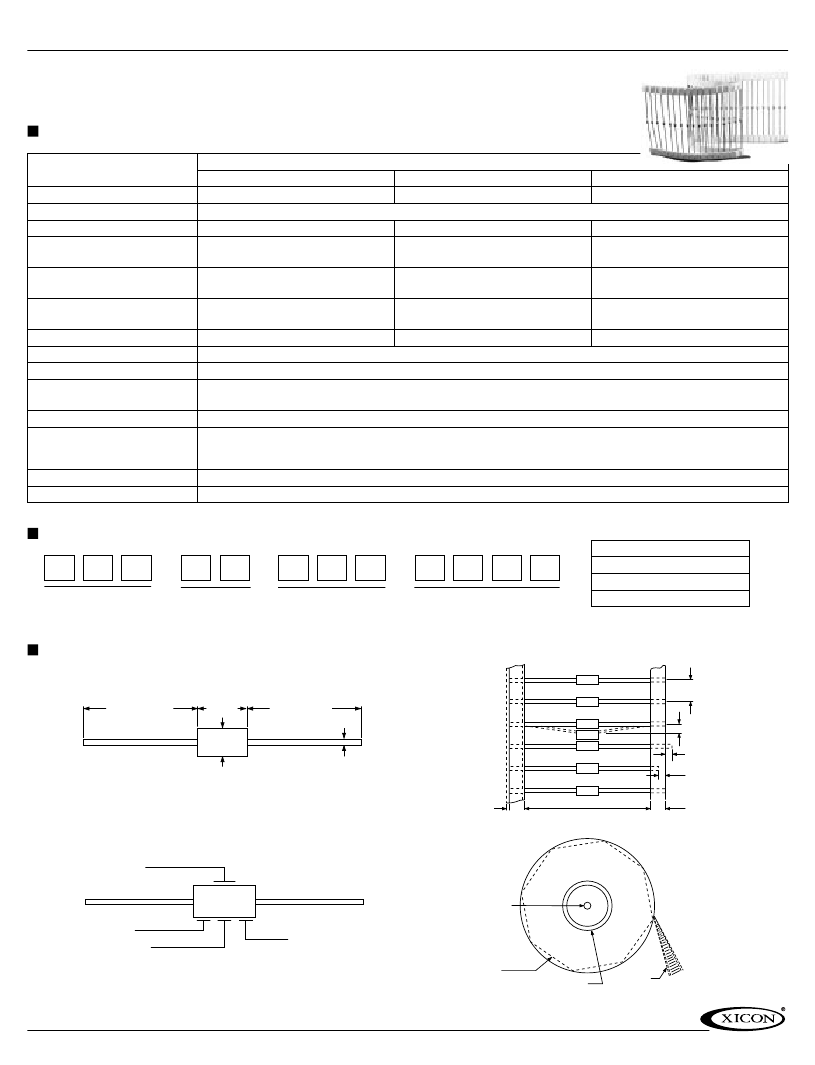

Ceramic Axial-Lead Capacitors (Small Body Style) CA10 Series
CHARACTERISTICS
Item
Operating Temperature Range
Working Voltage (WVDC)
Capacitance Range
Temperature Characteristics
Dissipation Factor (Tan
δ)
Measuring Conditions for
Capacitance and DF
Capacitance Aging
Insulation Resistance (IR)
Solderability Test
Resistance to Soldering Heat
Test
Rapid Change of Temp. Test
Life Test
NPO
-55°C ~ +125°C
10pF ~ 1200pF
>20pF is 0 ±30ppm/°C;
≤20pF
is 0 +120/-40ppm/°C
≥50pF
is
≤0.001;
<50pF is
≥1.5(150/C
+ 7) x 10
4
>1000pF is 1KHz, 1Vrms;
≤1000pF
is 1MHz, 1Vrms
Characteristics
X7R
-55°C ~ +125°C
50 (other voltages available upon special order, ask for details)
330pF ~ 27000pF
∆C
±15% maximum
over -55°C ~ +125°C
≤0.025
1KHz, 1Vrms
1000pF ~ 470,000pF
∆C
+22/-55% maximum
over +10°C ~ +85°C
≤0.030
1KHz, 0.3Vrms
Z5U
-25°C ~ +85°C
0
1.5% per decade hour
5% per decade hour
After 60 seconds charging at WV, 25°C:
≥100GΩ
or
≥1,000MΩ
per µF, whichever is less
235 ±5°C, immersion 2 ±0.5 seconds, 1.5mm ~ 2.0mm depth. At least 95% of leads should be well tinned
No visible damage. NPO is
≤
±0.5% or ±0.5pF; X7R is
≤+10/-5%;
Z5U is
≤+20/-10%.
Immersion in solder bath at
260 ±5°C for 10 ±1 seconds. Recovery for 24 ±2 hours.
No visible damage. NPO and X7R at -55°C ~ +125°C; Z5U at -25°C ~ +85°C. Recovery for 24 ±2 hours.
No visible damage. NPO
∆C/C
is
≤2%
or ±2pF; X7R
∆C/C
is
≤+10%;
Z5U
∆C/C
is
≤+20%.
DF is
≤1.5
x initial
requirement. IR is
≥0.25
x initial requirement. 1,000 hours at minimum temperature with 1.5 WV applied.
Recovery for 24 ±2 hours
No visible damage. 5 cycles for 30 min. each: 10Hz ~ 2000KHz, apm. 0.75mm or 98m/sec. Total duration is 6 hours.
No visible damage. Visual inspection test: VAL is 10N, VB is 5N.
Vibration Test
Robustness of Termination Test
PART NUMBERING SYSTEM
1st
digit
2nd
digit
#
ø's
1
4
Series
7
-
7
5
-
1
0
1
/
R
E
E
L
Temp. Coeff. & Tol. Code:
75 = NPO, 5%
71 = X7R, 10%
72 = Z5U, 20%
Temp.
Coeff. &
Tolerance
Capacitance (EIA)
(pF)
Suffix
DIMENSIONS (mm)
5.08
±0.51
20.0 min.
4.06
20.0 min.
1.2 max.
1.0 max.
ø2.54 max.
ø0.50
0.5
max.
52.4
±1.5
1.5 max.
6.0
±1.0
Capacitance
104
M5E
Tolerance Code
Rated Voltage Code
Dielectric Code
Optional
Octagonal
Shape
Leader
Option
13.89 - 38.10
(Standard 17)
Trailer
Option
