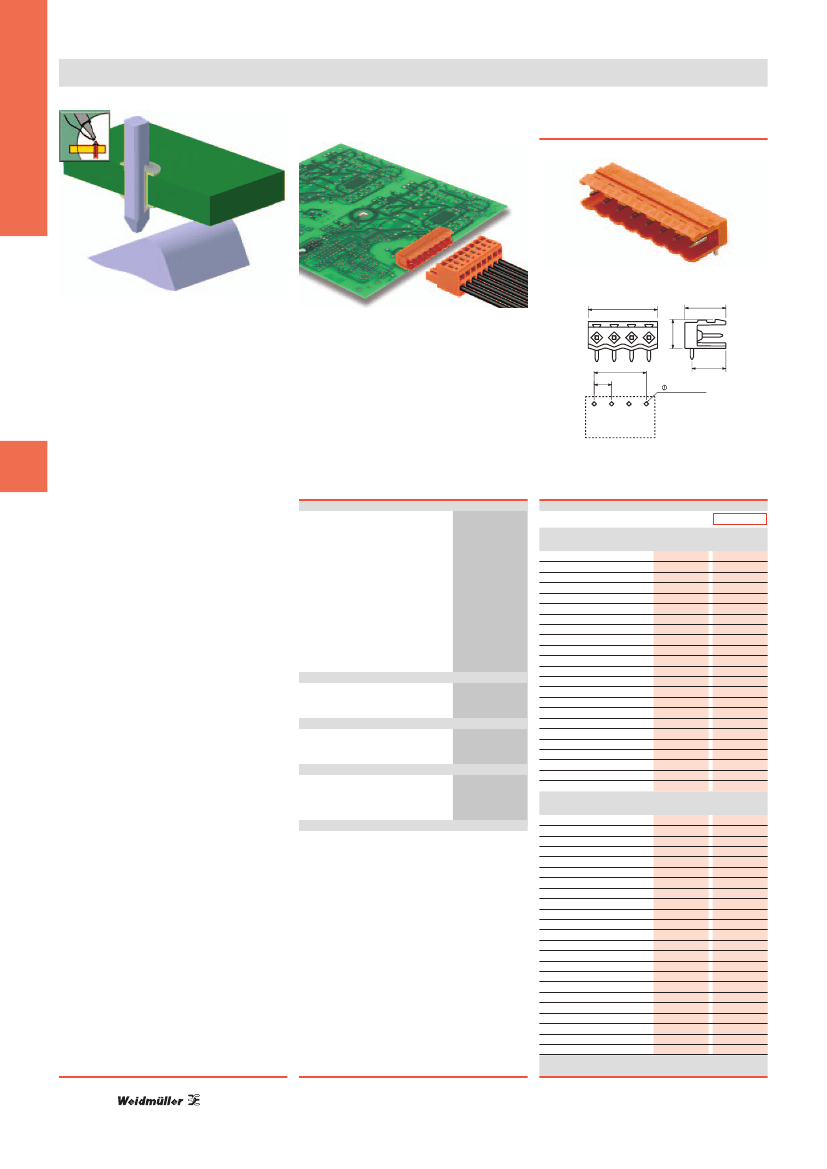

Solder connection pin headers
Omnimate Range
Pitch 5.00 / 5.08
SL 5.00/90
SL 5.08/90
SL 5.00/90
SL 5.08/90
L1+P
Weidmueller’s standard THT (Through-Hole Tech-
nology) pcb terminals and connectors have been
specifically designed for the Wave(Flow) soldering
process.
With the most frequently used pcb’s worldwide
being single layer 1.6 mm (0.062 inch) and 2.0 mm
(0.079 inch) thick, the solder pin length of pcb
terminals and connectors needs to be at least
3.2 mm (0.126 inch) long in order to provide
problem-free soldering.
8.4
0.33"
L1
P
10.0
0.394"
1.3+0.1
0.051"
• 250 V (IEC) / 300 V (UL)
• 18 A (IEC) / 15 A (UL)
12
0.472"
E
Technical data
Rated data acc. to IEC 664-1 / VDE 0110 (4.97)
Clamping range, max.
mm
2
Solid H05(07) V-U
mm
2
Stranded H07 V-R
mm
2
Flexible H05(07) V-K
mm
2
Flexible with ferrule
mm
2
Ferrule with plastic collar
mm
2
Stripping length
mm
Rated current
at ambient temperature
A
Overvoltage category
Pollution severity
Rated voltage
Rated impulse voltage
V
kV
20°C
18.0
III
3
250
4.0
III
2
320
4.0
40°C
15.0
II
2
400
4.0
Ordering data
Solder pin length
Colour
3.2 mm
orange
Qty.
100
100
100
50
50
50
50
50
50
50
50
50
50
50
50
20
20
20
20
20
20
20
20
Order no.
Order no.
1571130000
1571140000
1571150000
1571160000
1571170000
1571180000
1571190000
1571200000
1571210000
1571220000
1571110000
1571230000
1571240000
1571250000
1571260000
1571270000
1571280000
1571290000
1571300000
1571310000
1571320000
1571330000
1571340000
Order no.
1508060000
1508160000
1508260000
1508360000
1508460000
1508560000
1508660000
1508760000
1508860000
1508960000
1509060000
1509160000
1509260000
1509360000
1509460000
1509560000
1509660000
1509760000
1509860000
1509960000
1510060000
1510160000
1510260000
Pitch 5.00 mm
Poles
L1 mm (inch)
2
5.00 (0.197)
3
10.00 (0.394)
4
15.00 (0.591)
5
20.00 (0.787)
6
25.00 (0.984)
7
30.00 (1.181)
8
35.00 (1.378)
9
40.00 (1.575)
10
45.00 (1.772)
11
50.00 (1.969)
12
55.00 (2.165)
13
60.00 (2.362)
14
65.00 (2.559)
15
70.00 (2.756)
16
75.00 (2.953)
17
80.00 (3.150)
18
85.00 (3.346)
19
90.00 (3.543)
20
95.00 (3.740)
21
100.00 (3.937)
22
105.00 (4.134)
23
110.00 (4.331)
24
115.00 (4.528)
a
UL 1059 rated data - E60693
B
C
D
Rated voltage
V
300
300
Rated current
A
15.0
10.0
AWG conductor
r
CSA C22.2 rated data - LR12400 B
B
C
D
Rated voltage
V
300
300
Rated current
A
15.0
10.0
AWG conductor
Material data
Type of insulating material
PBT
Flammability class acc. UL94
V-0
Contact base material
CuSn
Contact plating
tin plated
Information
• Additional colours on request
• Gold-plated contact surfaces on request
• Rated current refers to rated cross-section and min. number
of poles
• Drawing information P = Pitch
Pitch 5.08 mm
Poles
L1 mm (inch)
Qty.
2
5.08 (0.200) 100
3
10.16 (0.400) 100
4
15.24 (0.600) 100
5
20.32 (0.800)
50
6
25.40 (1.000)
50
7
30.48 (1.200)
50
8
35.56 (1.400)
50
9
40.64 (1.600)
50
10
45.72 (1.800)
50
11
50.80 (2.000)
50
12
55.88 (2.200)
50
13
60.96 (2.400)
50
14
66.04 (2.600)
50
15
71.12 (2.800)
50
16
76.20 (3.000)
50
17
81.28 (3.200)
20
18
86.36 (3.400)
20
19
91.44 (3.600)
20
20
96.52 (3.800)
20
21
101.60 (4.000)
20
22
106.68 (4.200)
20
23
111.76 (4.400)
20
24
116.84 (4.600)
20
Order no.
E.18
Articles with coloured order number are kept permanently in stock at the central warehouse in Germany.
Delivery times see page X.2
