1510860000 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 1510860000

1510860000: DescriptionBoard Connector, 7 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal,; CategoryThe connector The connector; File Size222KB，1 Pages; ManufacturerWeidmuller; Websitehttp://www.weidmuller.com/; Environmental Compliance

Download Datasheet Parametric View All

1510860000 Overview

Board Connector, 7 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal,

1510860000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
Factory Lead Time	10 weeks
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	5.08 mm
Termination type	SOLDER
Total number of contacts	7
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

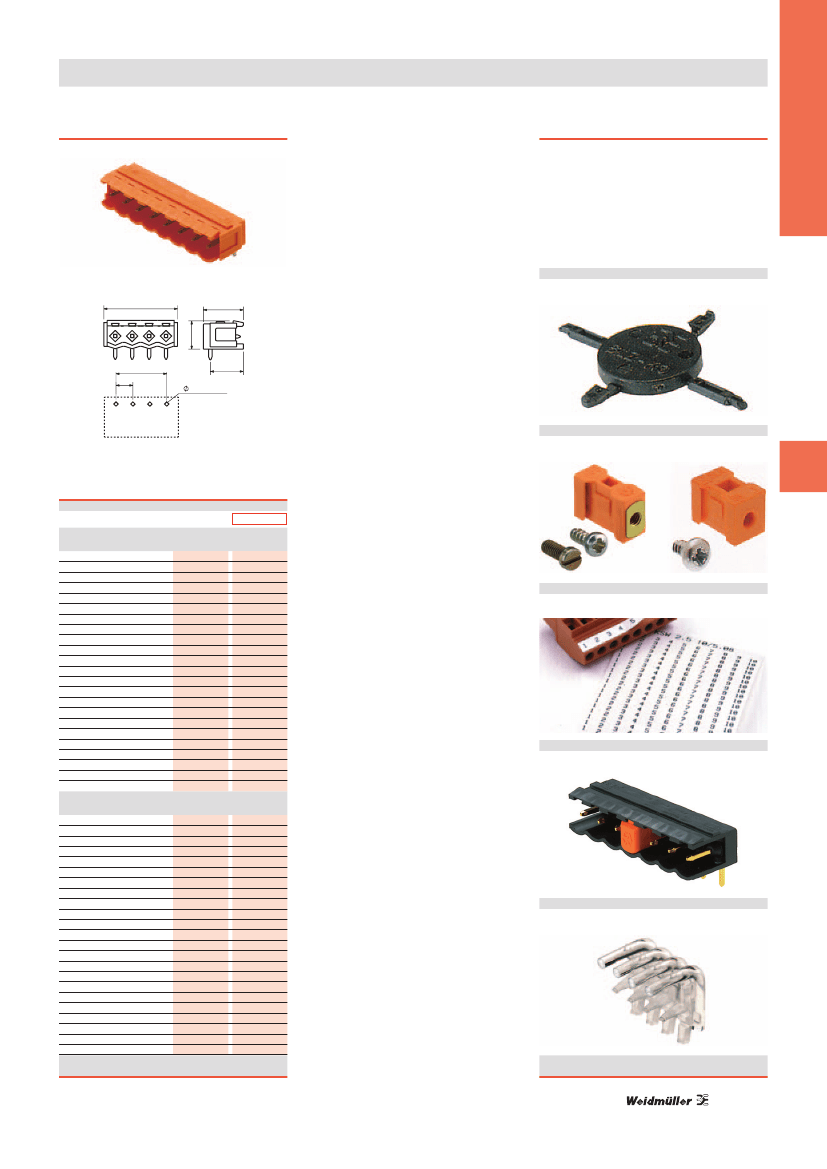

Solder connection pin headers

Omnimate Range

Pitch 5.00 / 5.08

SL 5.00/90B

SL 5.08/90B

Accessories

Coding element

See page L.10

L1+P+2

L1+P+0.078"

8.4

0.33"

10.0

0.394"

1.3+0.1

0.051"

0.472"

Fixing block

See page L.7

Ordering data

Solder pin length

Colour

3.2 mm

orange

Qty.

100

Order no.

1580860000

1580870000

1580880000

1580890000

1580900000

1580910000

1580920000

1580930000

1580940000

1580950000

1580960000

1580970000

1580980000

1580990000

1581000000

1581010000

1581020000

1581030000

1581040000

1581050000

1581060000

1581070000

1581080000

Order no.

1510360000

1510460000

1510560000

1510660000

1510760000

1510860000

1510960000

1511060000

1511160000

1511260000

1511360000

1511460000

1511560000

1511660000

1511760000

1511860000

1511960000

1512060000

1512160000

1512260000

1512360000

1512460000

1512560000

Pitch 5.00 mm

Poles

L1 mm (inch)

5.00 (0.197)

10.00 (0.394)

15.00 (0.591)

20.00 (0.787)

25.00 (0.984)

30.00 (1.181)

35.00 (1.378)

40.00 (1.575)

45.00 (1.772)

50.00 (1.969)

55.00 (2.165)

60.00 (2.362)

65.00 (2.559)

70.00 (2.756)

75.00 (2.953)

80.00 (3.150)

85.00 (3.346)

90.00 (3.543)

95.00 (3.740)

100.00 (3.937)

105.00 (4.134)

110.00 (4.331)

115.00 (4.528)

Marking strips

See page L.24

Partition element

See page L.11

Pitch 5.08 mm

Poles

L1 mm (inch)

Qty.

5.08 (0.200) 100

10.16 (0.400) 100

15.24 (0.600) 100

20.32 (0.800)

25.40 (1.000)

30.48 (1.200)

35.56 (1.400)

40.64 (1.600)

45.72 (1.800)

50.80 (2.000)

55.88 (2.200)

60.96 (2.400)

66.04 (2.600)

71.12 (2.800)

76.20 (3.000)

81.28 (3.200)

86.36 (3.400)

91.44 (3.600)

96.52 (3.800)

101.60 (4.000)

106.68 (4.200)

111.76 (4.400)

116.84 (4.600)

Order no.

Light tubes

See page L.16

Articles with coloured order number are kept permanently in stock at the central warehouse in Germany.

Delivery times see page X.2

E.19
