UUG0J332MNQ6ZD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> UUG0J332MNQ6ZD

UUG0J332MNQ6ZD: DescriptionAluminum Electrolytic Capacitors - SMD 3300uF 20% 6.3V High Capacitance-SMT; CategoryPassive components; File Size289KB，2 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp; Environmental Compliance

Download Datasheet Parametric Compare View All

UUG0J332MNQ6ZD Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	UUG0J332MNQ6ZD	-	-	View	Buy Now

UUG0J332MNQ6ZD Overview

Aluminum Electrolytic Capacitors - SMD 3300uF 20% 6.3V High Capacitance-SMT

UUG0J332MNQ6ZD Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Nichicon
Product Category	Aluminum Electrolytic Capacitors - SMD
RoHS	Details
Capacitance	3300 uF
Voltage Rating DC	6.3 VDC
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Packaging	Tray
Factory Pack Quantity	420
Unit Weight	0.131572 oz

Preview

Download Datasheet

View All

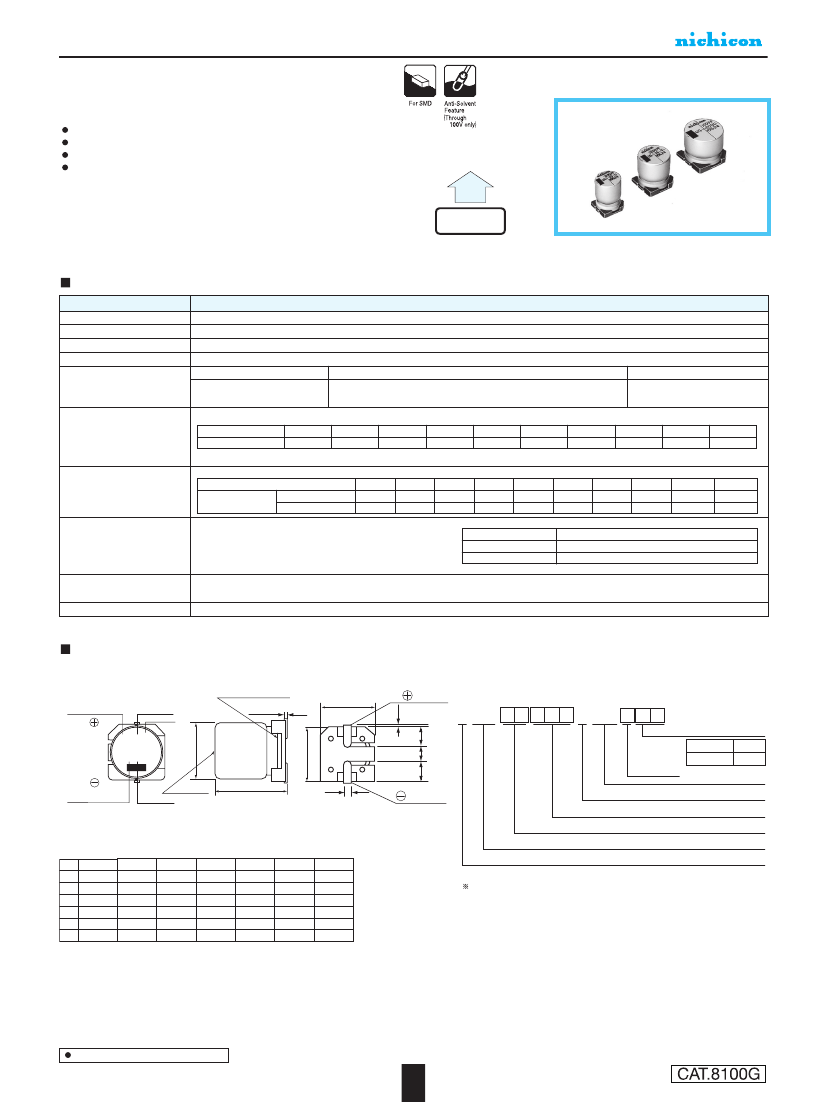

ALUMINUM ELECTROLYTIC CAPACITORS

UUG

Chip Type, Higher Capacitance Range

Chip Type, higher capacitance in larger case sizes (φ12.5,

φ16, φ18)

Designed for surface mounting on high density PC board.

Applicable to automatic mounting machine fed with carrier tape and tray.

Compliant to the RoHS directive (2011/65/EU).

UUJ

Wide

Temperature

UUG

Specifications

Item

Category Temperature Range

Rated Voltage Range

Rated Capacitance Range

Capacitance Tolerance

Leakage Current

Performance Characteristics

–40 to +85°C

6.3 to 450V

4.7 to 10000µF

± 20% at 120Hz, 20°C

Rated voltage (V)

—

6.3 to 100

160 to 450

After 1 minute's application of rated voltage at 20°C, leakage current is not

more than 0.03CV or 4 (µA), whichever is greater.

= 0.04CV+100 ( µA) max.

(1 minute's at 20°C)

Measurement frequency : 120Hz at 20°C

Tangent of loss angle (tan

δ)

Rated voltage (V)

tan

(MAX.)

6.3

0.28

0.24

0.20

0.16

0.14

0.12

0.10

100

0.08

160 to 250 400

•

450

0.25

0.20

For capacitance of more than 1000µF, add 0.02 for every increase of 1000µF.

Measurement frequency: 120Hz

Rated voltage (V)

Stability at Low Temperature

Impedance ratio

ZT / Z20 (MAX.)

Z–25°C / Z+20°C

Z–40°C / Z+20°C

6.3

100

160 to 250 400

•

450

Endurance

The specifications listed at right shall be met when the

capacitors are restored to 20°C after the rated voltage is

applied for 2000 hours at 85°C.

Capacitance change

tan

Leakage current

Within ±20% of the initial capacitance value

200% or less than the initial specified value

Less than or equal to the initial specified value

Shelf Life

Marking

After storing the capacitors under no load at 85°C for 1000 hours and then performing voltage treatment based on JIS C 5101-4

clause 4.1 at 20°C, they shall meet the specified values for the endurance characteristics listed above.

Black print on the case top.

Chip Type

Type numbering system (Example : 50V 330

Plastic platform

Trade mark

Voltage

Lot No.

nichicon

C ±0.2

0.5 MAX.

Positive

10 11 12 13

Package code

Taping

Tray

0.3 MAX.

U U G 1 H 3 3 1 M NQ 1 M S

A ±0.2 E

A ±0.2

330 µF

UG 50V

H1015

D ±0.5

B ±0.2

Size code

Pressure

relief vent

Capacitance

Series

L ±1.0

Configuration

Negative

Capacitance Tolerance (±20%)

Rated capacitance (330µF)

Rated voltage (50V)

Series name

(mm)

φD

12.5×13.5 12.5×16. 12.5×21. 16×16.5. 16×21.5. 18×16.5. 18×21.5.

4.8

5.4

6.4

4.8

13.6

17.1

19.1

13.6

17.1

19.1

13.6

4.0

6.3

4.0

13.5

16.0

16.5

21.5

16.5

21.5

21.0

H 1.0 to 1.4 1.0 to 1.4 1.0 to 1.4 1.0 to 1.4 1.0 to 1.4 1.0 to 1.4 1.0 to 1.4

Type

The vibration structure-resistant product is also available upon request,

please ask for details.

Dimension table in next page.

160

UUG0J332MNQ6ZD Related Products

	UUG0J332MNQ6ZD	UUG2G100MNQ6ZD	UUG2E330MNQ6ZD	UUG1A472MNQ6ZD
Description	Aluminum Electrolytic Capacitors - SMD 3300uF 20% 6.3V High Capacitance-SMT	Aluminum Electrolytic Capacitors - SMD 10uF 20% 400V High Capacitance-SMT	Aluminum Electrolytic Capacitors - SMD 33uF 20% 250V High Capacitance-SMT	Aluminum Electrolytic Capacitors - SMD 4700uF 20% 10V High Capacitance-SMT
Product Attribute	Attribute Value	-	Attribute Value	Attribute Value
Manufacturer	Nichicon	-	Nichicon	Nichicon
Product Category	Aluminum Electrolytic Capacitors - SMD	-	Aluminum Electrolytic Capacitors - SMD	Aluminum Electrolytic Capacitors - SMD
RoHS	Details	-	Details	Details
Capacitance	3300 uF	-	33 uF	4700 uF
Voltage Rating DC	6.3 VDC	-	250 VDC	10 VDC
Minimum Operating Temperature	- 40 C	-	- 40 C	- 40 C
Maximum Operating Temperature	+ 85 C	-	+ 85 C	+ 85 C
Packaging	Tray	-	Tray	Tray
Factory Pack Quantity	420	-	280	240
Unit Weight	0.131572 oz	-	0.131572 oz	0.217640 oz
