PM61300-4-RC datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Power management> transformer> PM61300-4-RC

Preview

PM61300-4-RC: DescriptionAudio Transformers / Signal Transformers 20uH 2500mA; CategoryPower management transformer; File Size217KB，1 Pages; ManufacturerBourns; Websitehttp://www.bourns.com; Environmental Compliance

Download Datasheet Parametric Compare View All

PM61300-4-RC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PM61300-4-RC	-	-	View	Buy Now

PM61300-4-RC Overview

Audio Transformers / Signal Transformers 20uH 2500mA

PM61300-4-RC Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	TURNS RATIO: 100, HEIGHT DIMENSION INCLUDES TERMINALS ALSO
high	7.1 mm
Maximum input voltage	13 V
JESD-609 code	e3
length	19.5 mm
Manufacturer's serial number	PM61300
Installation features	SURFACE MOUNT
Maximum operating frequency	60 kHz
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Output voltage 1	1300 V
method of packing	TAPE & REEL
physical size	L19.5XB16.5XH7.1 (mm)
rated power	6 W
surface mount	YES
Terminal surface	Tin (Sn)
Transformer type	INVERTER TRANSFORMER
width	16.5 mm
Base Number Matches	1

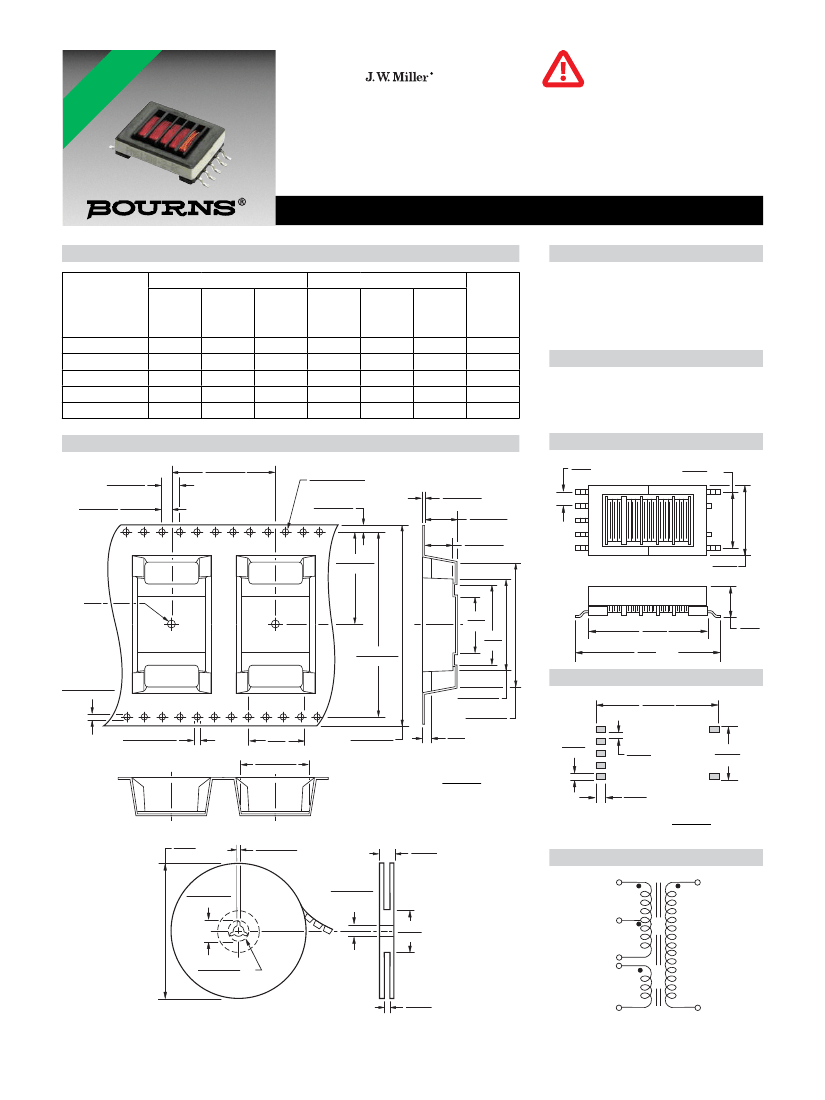

Preview

Download Datasheet

View All

PL

IA

NT

Features

■

Formerly

■

Power rating: 6 watts

■

Operating frequency: 60 KHz ±25 %

■

Tape and reel packaging

■

RoHS compliant*

*R

oH

S

CO

M

model

This series is currently available, but

not recommended for new designs.

Applications

■

LCD ﬂat panel displays

■

Notebook / palmtop computers

■

Portable instruments

■

Retail terminals

PM61300 Series - SMD CCFL Transformer

Electrical Speciﬁcations

PRIMARY

L ±10 %

@ 10

KHz

(μH)

44

27

20

DCR

Max.

(Ω)

0.61

0.82

1.10

1.88

2.34

DCR

Max.

(Ω)

132

175

290

SECONDARY

Bourns Part No.

PM61300-1-RC

PM61300-2-RC

PM61300-3-RC

PM61300-4-RC

PM61300-5-RC

Voltage

(V)

25

20

15

13

10.5

Voltage

(V)

1300

Irms

(mA)

70

Turns

Ratio

50

67

86

100

125

General Speciﬁcations

Operating Temperature

..................................-40 °C to +105 °C

Storage Temperature ...-40 °C to +105 °C

Soldering .......... 245 °C, 5 seconds max.

Dielectric Strength ................. 1500 Vrms

between windings

Materials

Core .............................................. Ferrite

Wire ................. Polyester-coated copper

Terminal Coating................................. Sn

Packaging ........250 pcs. per 17-inch reel

Product Dimensions

Packaging Speciﬁcations

4.00 ± 0.10

(.157 ± .004)

2.00 ± 0.15

(.079 ± .006)

24.00 ± 0.10

(.945 ± .004)

DIA.

1.50 + 0.10/-0.00

(.059 +.004/-.000)

1.75 ± 0.10

(.069 ± .004)

0.40 ± 0.05

(.016 ± .002)

8.05 ± 0.10

(.317 ± .004)

7.35 ± 0.10

(.289 ± .004)

20.20 ± 0.15

(.795 ± .006)

2.54

REF.

(0.10)

10.2

REF.

(0.402)

1

10

5

6

MAX.

16.5

(0.650)

2.00

(.079)

MIN.

40.40 ± 0.10

(1.590 ± .004)

1.70 +0.15/-0.05

(.067 +.006/-.002)

12.00

(.472)

18.00

(.709)

19.5

(0.768)

26.0

MAX.

(1.02)

7.1

(0.280)

MAX.

Recommended Pad Layout

20.00 ± 0.10

(.787 ± .004)

27.0 ± 0.15

(1.063 ± .006)

2.00

(.079)

26.50

(1.043)

1.50 +0.10/-0.00

(.059 +.004/-.000)

12.00

(.472)

15.57 ± 0.10

(.613 ± .004)

44.00 ± 0.30

(1.732 ± .012)

1.40

(0.055)

1.14

(0.045)

11.56

(0.455)

DIMENSIONS:

MM

(INCHES)

2.75

(0.108)

DIMENSIONS:

432

DIA.

(17.01)

2.0

±

0.5

(.079

±

.020)

50.4

(1.984)

13.0 ± 0.5

(.512 ± .020)

DIA.

50.0

(1.969)

13.0 ± 0.5

DIA.

(.512 ± .020)

46.0

(1.811)

MM

(INCHES)

Schematic

3

1/2 Primary

2

1/2 Primary

1

5

Feedback

4

6

High Voltage

Secondary

10

21.0

±

0.8

(.827

±

.031)

REV. 01/15

*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.

Speciﬁcations are subject to change without notice.

The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.

Users should verify actual device performance in their speciﬁc applications.

PM61300-4-RC Related Products

	PM61300-4-RC	PM61300-2-RC	PM61300-5	PM61300-3-RC	PM61300-3
Description	Audio Transformers / Signal Transformers 20uH 2500mA	Audio Transformers / Signal Transformers 44uH 10%	Audio Transformers / Signal Transformers 20uH 10%	Audio Transformers / Signal Transformers 27uH 10%	Audio Transformers / Signal Transformers 27uH 10%
Reach Compliance Code	compliant	compliant	unknown	compliant	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	TURNS RATIO: 100, HEIGHT DIMENSION INCLUDES TERMINALS ALSO	TURNS RATIO: 67, HEIGHT DIMENSION INCLUDES TERMINALS ALSO	HEIGHT DIMENSION INCLUDES TERMINAL ALSO, TURNS RATIO: 125:1	TURNS RATIO: 86, HEIGHT DIMENSION INCLUDES TERMINALS ALSO	HEIGHT DIMENSION INCLUDES TERMINAL ALSO, TURNS RATIO: 86:1
high	7.1 mm	7.1 mm	7.1 mm	7.1 mm	7.1 mm
Maximum input voltage	13 V	20 V	10.5 V	15 V	15 V
length	19.5 mm	19.5 mm	19.5 mm	19.5 mm	19.5 mm
Manufacturer's serial number	PM61300	PM61300	PM61300	PM61300	PM61300
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Maximum operating frequency	60 kHz	60 kHz	60 kHz	60 kHz	60 kHz
Maximum operating temperature	105 °C	105 °C	75 °C	105 °C	75 °C
Minimum operating temperature	-40 °C	-40 °C	-	-40 °C	-
Output voltage 1	1300 V	1300 V	1300 V	1300 V	1300 V
method of packing	TAPE & REEL	TAPE & REEL	BULK	TAPE & REEL	BULK
physical size	L19.5XB16.5XH7.1 (mm)	L19.5XB16.5XH7.1 (mm)	L19.5XB16.5XH7.1 (mm)	L19.5XB16.5XH7.1 (mm)	L19.5XB16.5XH7.1 (mm)
rated power	6 W	6 W	6 W	6 W	6 W
surface mount	YES	YES	YES	YES	YES
Transformer type	INVERTER TRANSFORMER	INVERTER TRANSFORMER	INVERTER TRANSFORMER	INVERTER TRANSFORMER	INVERTER TRANSFORMER
width	16.5 mm	16.5 mm	16.5 mm	16.5 mm	16.5 mm
Base Number Matches	1	1	1	1	1
Is it Rohs certified?	conform to	conform to	-	conform to	-
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	-	ROHS COMPLIANT	-
Is Samacsys	N	N	N	-	N
JESD-609 code	e3	e3	-	e3	-
Terminal surface	Tin (Sn)	Tin (Sn)	-	Tin (Sn)	-
