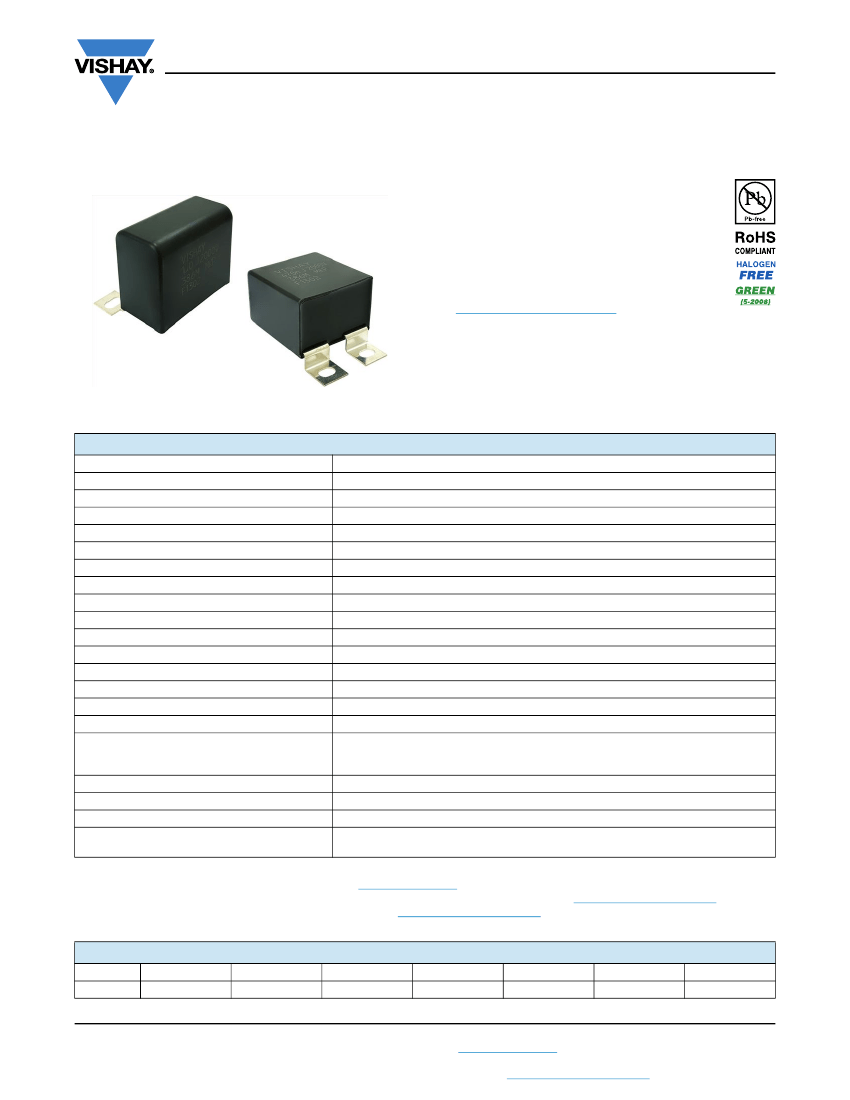

MKP386M Snubber
www.vishay.com
Vishay Roederstein
Metallized Polypropylene Film Capacitor
Radial Snubber Type
FEATURES
• Reduce EMI by clamping voltage and current
ringing
• High pulse strength (dV/dt up to 2500 V/μs)
• Low inductance construction (low ESL)
• Low ESR
• Material categorization:
for definitions of compliance please see
www.vishay.com/doc?99912
APPLICATIONS
•
•
•
•
Photovoltaic and wind inverters
Motor drives
Frequency converters
Direct mount on IGBT modules
QUICK REFERENCE DATA
Rated capacitance range
Capacitance tolerance
Rated (DC) voltage, U
NDC
Climatic testing class
Rated temperature
Maximum permissible case temperature
Rated (AC) voltage
Reference standards
Dielectric
Electrodes
Construction
Encapsulation
Terminals
Self inductance (L
S
)
Withstanding DC voltage between terminals
Test voltage between terminals and case
Insulation resistance
Performance grade
Stability grade
Life time expectancy
Marking
(1)
0.047 μF to 10 μF
± 5 %/± 10 %
700 V, 850 V, 1000 V, 1250 V, 1600 V, 2000 V, 2500 V
55/105/56
85 °C
105 °C
420 V, 400 V to 450 V, 425 V to 500 V, 450 V to 550 V, 450 V to 600 V, 700 V, 800 V
IEC 60384-17
Polypropylene film
Metallized film
Series construction
Flame retardant plastic case and epoxy resin sealed
Tinned coated copper
< 0.7 nH per mm of lead spacing
1.6 U
RDC
for 60 s (maximum rise time 1000 V/s; cut off current 10 mA)
1.4 U
RAC
+ 2000 V
DC
for 60 s
RC between leads, at 500 V after 1 min:
> 100 G for C
0.33 μF
> 30 000 s for C > 0.33 μF
Grade 1 (long life)
Grade 2
Operation life > 300 000 h - failure rate < 5 FIT (40 °C and 0.5 x U
R
)
C-value, tolerance code, rated voltage, manufacturer’s emblem, code for dielectric
material, manufacturer’s type designation, year and week, manufacturer’s location
Notes
• For more detailed data and test requirements contact
dc-film@vishay.com
• For general information like characteristics and definitions used for film capacitors follow the link:
www.vishay.com/doc?28147
(1)
See document “Voltage Proof Test for Metalized Capacitors” (www.vishay.com/doc?28169)
DC VOLTAGE RATINGS
U
RDC
U
RAC
700 V
DC
420 V
AC
850 V
DC
450 V
AC
1000 V
DC
500 V
AC
1250 V
DC
550 V
AC
1600 V
DC
600 V
AC
2000 V
DC
700 V
AC
2500 V
DC
800 V
AC
Revision: 08-Jun-16
Document Number: 28170
1
For technical questions, contact:
dc-film@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
MKP386M Snubber
www.vishay.com
Vishay Roederstein

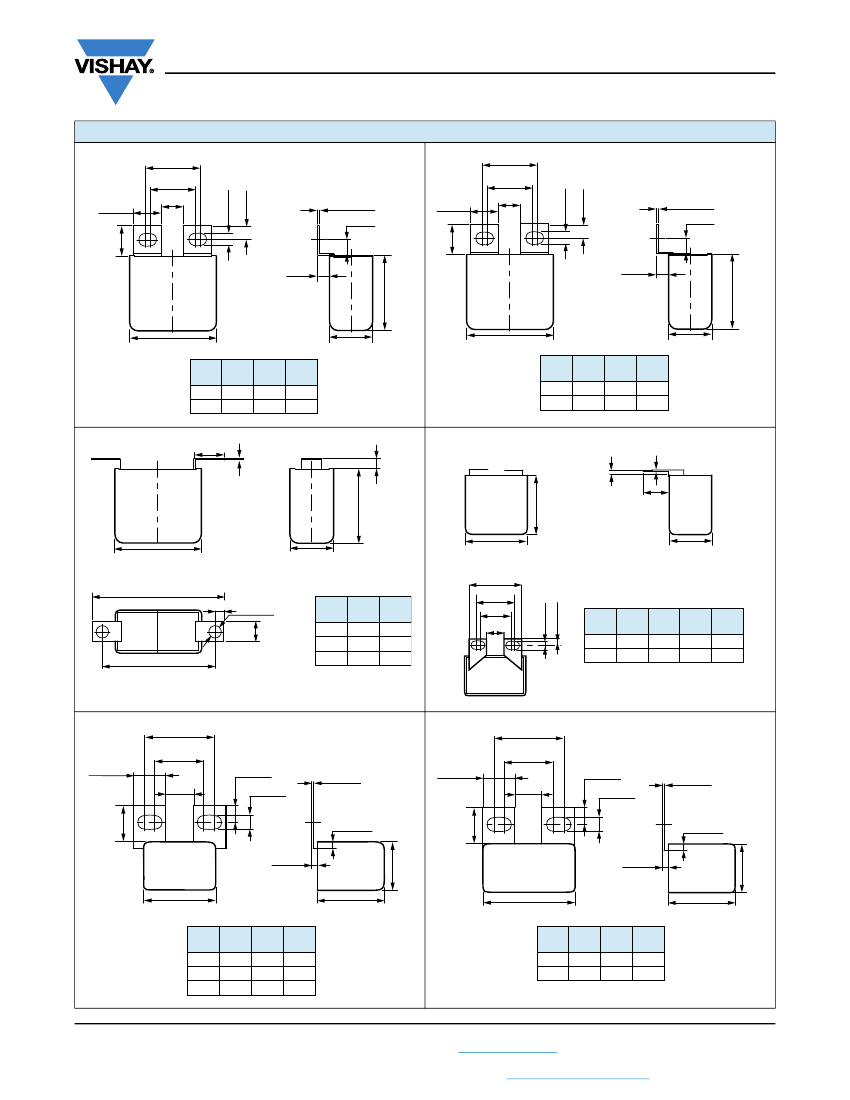

DIMENSIONS
in millimeters
AND AVAILABLE TERMINAL VERSIONS
T7
P1
P2
15 ± 0.3
8 ± 0.2
D
6.3 ± 0.1
12.8 max.
18 ± 1
3.5 ± 1.0
h
+ 0.5
-1
T8
15 ± 0.3
0.8 ± 0.1
P1
P2
D
8 ± 0.2
6.3 ± 0.1
1 ± 0.1
12.8 max.
18 ± 1
3.5 ± 1.0
+ 0.5
-1
h
l±1
L
33.5
44
58
P1
±1
32.3
42.3
57.3
P2
±1
22.7
32.7
47.7
D
min.
11
21
36
w±1
l±1
L
44
58
P1
±1
32.3
47.3
P2
±1
22.7
37.7
D
min.
11
26
w±1
COMPOSITION OF CATALOG NUMBER
MULTIPLIER
(nF)
Example
TOLERANCE
4 68 = 680 nF
2
3
TYPE
J
K
Y
±5%
±5%
L = 33.5 mm/44.0 mm
L = 58 mm
0.1
1
10
100
CAPACITANCE
(numerically)
± 10 % L = 33.5 mm/44.0 mm
4
5
MKP
386
M
4
68
160
DRAWING
L
(mm)
J
P
1
(mm)
T8
P
2
(mm)
DRAWING
METALLIZED
POLYPROPYLENE
SPECIAL CODE FOR TERMINAL
MINI VERSION SINGLE
METALLIZED
VOLTAGE
T1
T2
44
58
44
58
33.5
44
58
44
58
33.5
44
58
44
58
33.5
44
58
44
58
28 ± 0.5
43 ± 0.5
24.5 ± 0.5
39.5 ± 0.5
47 ± 0.5
57 ± 0.5
72 ± 0.5
28 ± 0.5
43 ± 0.5
32.3 ± 1
42.3 ± 1
57.3 ± 1
32.3 ± 1
47.3 ± 1
32.3 ± 1
42.3 ± 1
57.3 ± 1
32.3 ± 1
47.3 ± 1
23 ± 0.5
38 ± 0.5
19.5 ± 0.5
34.5 ± 0.5
-
-
-
22 ± 0.5
37 ± 0.5
22.7 ± 1
32.7 ± 1
47.7 ± 1
22.7 ± 1
37.7 ± 1
22.7 ± 1
32.7 ± 1
47.7 ± 1
22.7 ± 1
37.7 ± 1
070
085
100
125
160
200
250
700 V
DC
850 V
DC
1000 V
DC
1250 V
DC
1600 V
DC
2000 V
DC
2500 V
DC
T5
T4
T3
T6
T7
T8
Revision: 08-Jun-16
Document Number: 28170
3
For technical questions, contact:
dc-film@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
