HCMOS COMPATIBLE SURFACE MOUNT
LOW PROFILE (1.4max) CRYSTAL CLOCK OSCILLATOR
ASV2 SERIES
FEATURES:
• Seam sealed package
• Low height 1.4 mm max.
assures high reliability
• HCMOS compatible, 1.8V to 3.3V
DC
• Low stand-by current
• Tristate function
• Suitable for RoHS reflow
• Available for -40°C to 85°C extended temperature
Pb
RoHS
Compliant
7.0 x 5.0 x 1.4mm
| | | | | | | | | | | | | | |
APPLICATIONS:
• Clock signaling for µ Processors,
PC Motherboards and Graphic Cards
• Wireless communications
STANDARD SPECIFICATIONS:
Parameters
Frequency Range
Operating Temperature
Storage Temperature
Overall Frequency Stability
Supply Voltage (Vdd)
Frequency
0.012MHz Fo < 0.048MHz
1.8V
2.5V
3.3V
Minimum
0.012
0.012
0.012
-10
-55
-100
2.97
3.3V
5
5
7
20
30
30
40
Typical
-----
-----
-----
-----
-----
-----
3.3
2.5V
5
5
7
15
20
20
30
Maximum
124.999
133
133
+70
+125
+100
3.63
1.8V
N/A
5
5
15
15
20
N/A
Units
MHz
°C
°C
ppm
V
Notes
See options
See options
See options
Input Current
0.048MHz Fo < 1.5MHz
1.5MHz Fo < 20MHz
20MHz Fo < 50MHz
50MHz Fo < 70MHz
70MHz Fo < 125MHz
125MHz Fo 133MHz
Frequency
0.012MHz Fo < 1.0MHz
1.0MHz Fo < 20MHz
20MHz Fo < 50MHz
50MHz Fo < 70MHz
70MHz Fo < 125MHz
125MHz Fo 133MHz
mA
(max)
Symmetry (@ 1/2Vdd)
40
3.3V
200
10
6
3
3
3
50
2.5V
200
10
6
3
3
3
60
1.8V
N/A
10
6
3
3
N/A
%
See options
Rise and Fall
Time
(Tr/Tf)**
ns
(max)
Measured between
10% and 90% of Vdd
with 15pF load
CMOS
(5TTL compatible)
Output Load
Output Voltage
Start-up Time
Tri-state function (Stand-by) :
Vdd
1.8
2.5
3.3
VOH
VOL
0.9*Vdd
-----
-----
VIH
1.26
1.75
2.0
-----
-----
-5.0
-----
-----
-----
-----
-----
-----
-----
-----
-----
-----
15
-----
0.1*Vdd
8.0
VIL
0.5
0.5
0.5
10
40.0
+5.0
pF
V
V
ms
"1" (VIH ≥ 0.7*Vdd)
or Open: Oscillation
V
uA
ps
ppm
@+25°C First y ear
"0" (VIH < 0.3*Vdd)
: Hi Z
Disable current
Absolute Period jitter
(Reference only. Please contact Abracon for
each frequencies.)
:
Aging
ABRACON
IS
IS
ISO9001:2008
CERTIFIED
CERTIFIED
Revised: 10.29.10
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit
www.abracon.com
for Terms & Conditions of Sale
HCMOS COMPATIBLE SURFACE MOUNT
LOW PROFILE (1.4max) CRYSTAL CLOCK OSCILLATOR
ASV2 SERIES
Pb
RoHS
Compliant
7.0 x 5.0 x 1.4mm
| | | | | | | | | | | | | |
|
OPTIONS & PART IDENTIFICATION:
(Left blank if standard)
ASV2
-
MHz -
-
-
Packaging
Blank: Bulk
T: Tape & Reel
P/N and Vdd (V)
ASV2: 3.3
±10%
ASV21: 2.5
±10%
ASV22: 1.8
±10%
Frequency in MHz
e.g. 24.576MHz
14.31818MHz
26.000MHz
Operating Temp.
I: 0°C ~ +50°C
D: -10°C ~ +60°C
E: -20°C ~ +70°C
F: -30°C ~ +70°C
N: -30°C ~ +85°C
L: -40°C ~ +85°C
Freq. Stability
J: ± 20 ppm(*)
R: ± 25 ppm
K: ± 30 ppm
H: ± 35 ppm
C: ± 50 ppm
Symmetry
Blank: 40/60% @1/2Vdd
S: 45/55% @1/2Vdd
Output Load
Blank: 15 pF
L1: 50 pF
L2: 15 TTL
L3: 50 TTL
(*) Temp option I, D, E, F,
N and -10°C ~ +70°C only.
OUTLINE DRAWING:
Dimensions: mm
PIN
1
2
3
4
ABRACON IS
ISO9001:2008
CERTIFIED
CE RTIFIED
Tristate Enable/Disable
FUNCTION
GND/Case
Output
Vdd
Note : It is recommended
to use an approximately
0.01uF bypass capacitor
between PIN 2 and 4.
Revised: 10.29.10
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000| fax 949-546-800
| www.abracon.com
1
Visit
www.abracon.com
for Terms & Conditions of Sale
HCMOS COMPATIBLE SURFACE MOUNT
LOW PROFILE (1.4max) CRYSTAL CLOCK OSCILLATOR
ASV2 SERIES

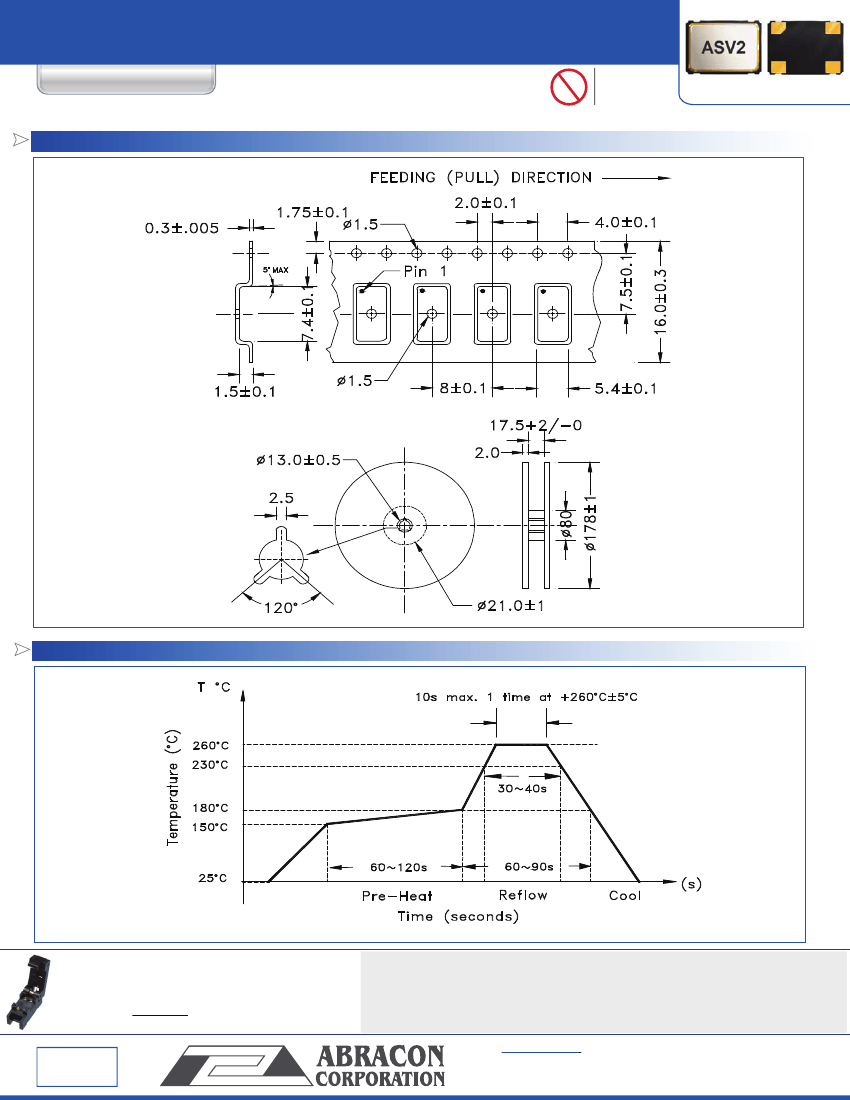

TAPE & REEL:
Tape and reel 1,000pcs/reel
Pb
RoHS
Compliant
7.0 x 5.0 x 1.4mm
| | | | | | | | | | | | | | |
Dimensions: mm
REFLOW PROFILE:
Need a test socket for the ASV2 Series? To view
compatible
PRECISION TEST & BURN-IN SOCKETS
for these parts,
click here.
P/N AXS-7050-04-17
