5698110821 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> 5698110821

5698110821: DescriptionFerrite Cores & Accessories 98 Pot Core P11/7S Ind 1650 nH 25% TOL; CategoryPassive components; File Size509KB，1 Pages; ManufacturerFair Rite; Environmental Compliance

Download Datasheet Parametric View All

5698110821 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5698110821	-	-	View	Buy Now

5698110821 Overview

Ferrite Cores & Accessories 98 Pot Core P11/7S Ind 1650 nH 25% TOL

5698110821 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Fair Rite
Product Category	Ferrite Cores & Accessories
RoHS	Details
Product	Ferrite Cores
Core	P Core
Core Size	11 x 7
Inductance	1.65 uH
Tolerance	25 %
Core Material	98
Packaging	Bulk
Inside Diameter	9.2 mm
Outside Diameter	11.1 mm
Outside Height	3.3 mm
Factory Pack Quantity	7280
Unit Weight	0.067021 oz

Preview

Download Datasheet

View All

Pot Cores (5698110821)

Part Number: 5698110821

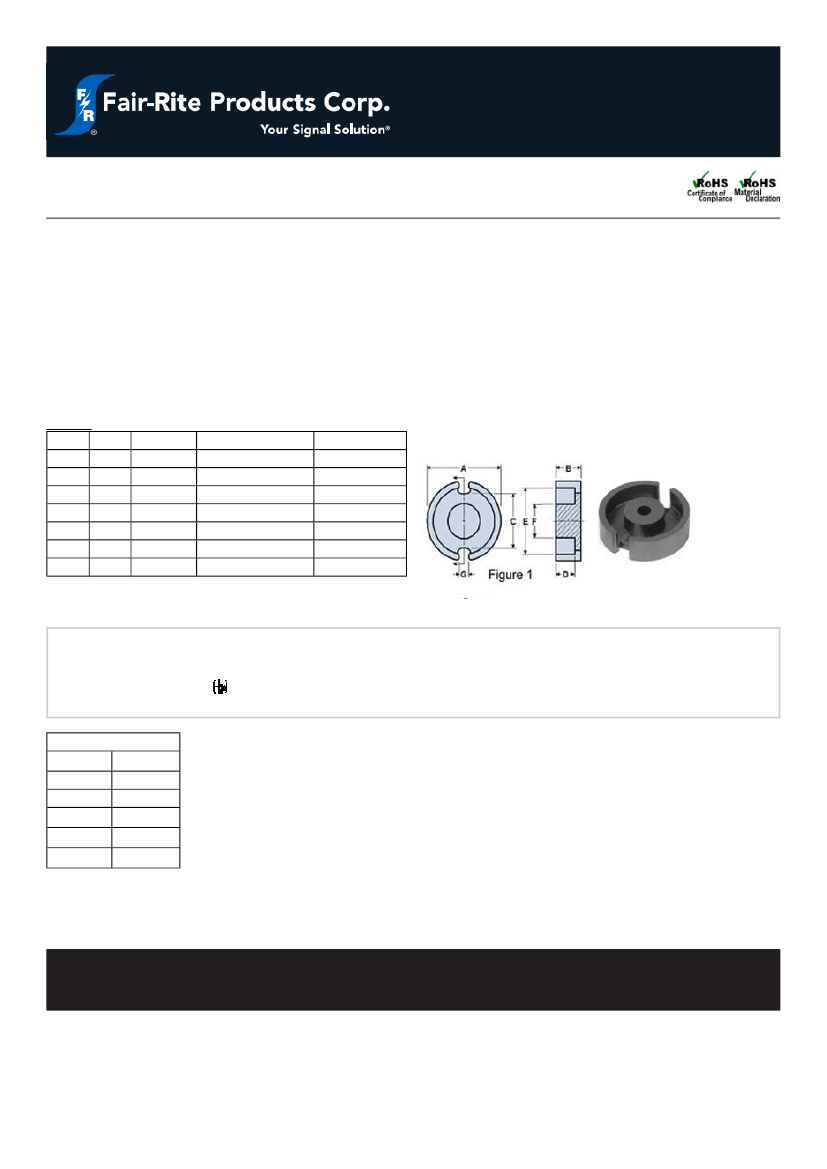

98 POT CORE SET

Pot cores have found application in all types of inductive devices. The core configuration provides a high degree of self-

shielding. It also facilitates gapping to enhance utility for a variety of magnetic designs.

Pot cores can be supplied with the center post gapped to a mechanical dimension or an A

value.

Weight indicated is per pair or set.

Weight: 1.9.000 (g)

Dim mm mm tol

11.1 ±0.20

3.3

±0.10

6.8

±0.25

2.3

±0.15

9.2

±0.20

4.6

±0.10

2.2

±0.30

nominal inch

0.437

0.13

0.268

0.091

0.362

0.181

0.087

inch misc.

Chart Legend

Σl/ A : Core Constant, l

: Effective Path Length, A

: Effective Cross- Sectional Area, V

Effective Core Volume

: Inductance Factor

Explanation of Part Numbers: Digits 1 & 2 = product class and 3 & 4 = material grade.

Electrical Properties

(nH)

1650 ±25%

Ae(cm ) 0.173

-1

Σl/ A(cm ) 9.5

(cm)

1.65

(cm )

0.284

min

(cm ) 0.145

value is measured at 1 kHz, B < 10 gauss.

Fair- Rite Products Corp.

•

One Commercial Row, Wallkill, New York 12589-0288

888-324-7748 • 845-895-2055 • Fax: 845-895-2629 • ferrites@fair- rite.com • www.fair- rite.com
