LG11-0246NTLF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> LG11-0246NTLF

LG11-0246NTLF: DescriptionCommon Mode Chokes / Filters CMC SMD Gullwing Single 24uH 0.4Ohm; CategoryPassive components; File Size342KB，2 Pages; ManufacturerHALO Electronics; Environmental Compliance

Download Datasheet Parametric View All

LG11-0246NTLF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LG11-0246NTLF	-	-	View	Buy Now

LG11-0246NTLF Overview

Common Mode Chokes / Filters CMC SMD Gullwing Single 24uH 0.4Ohm

LG11-0246NTLF Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	HALO Electronics
Product Category	Common Mode Chokes / Filters
RoHS	Details
Termination Style	SMD/SMT
Inductance	24 uH
Impedance	-
Tolerance	-
Maximum DC Current	-
Maximum DC Resistance	400 mOhms
Self Resonant Frequency	-
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Package / Case	SMD-8
Length	7.62 mm
Width	7.11 mm
Height	5.08 mm
Packaging	Tube
Product	Common Mode Chokes
Type	CMC Filter
Application	-
Core Material	-
Diameter	-
Operating Temperature Range	- 40 C to + 85 C
Q Minimum	-
Shielding	Shielded
Mounting Style	SMD/SMT
Lead Diameter	0.46 mm
Lead Spacing	1.27 mm
Factory Pack Quantity	67
Test Frequency	-

Preview

Download Datasheet

View All

1:1:1:1

CMC Filters

8 Pin DIL and 8 & 16 Pin SMD Packages

Conflict

FREE

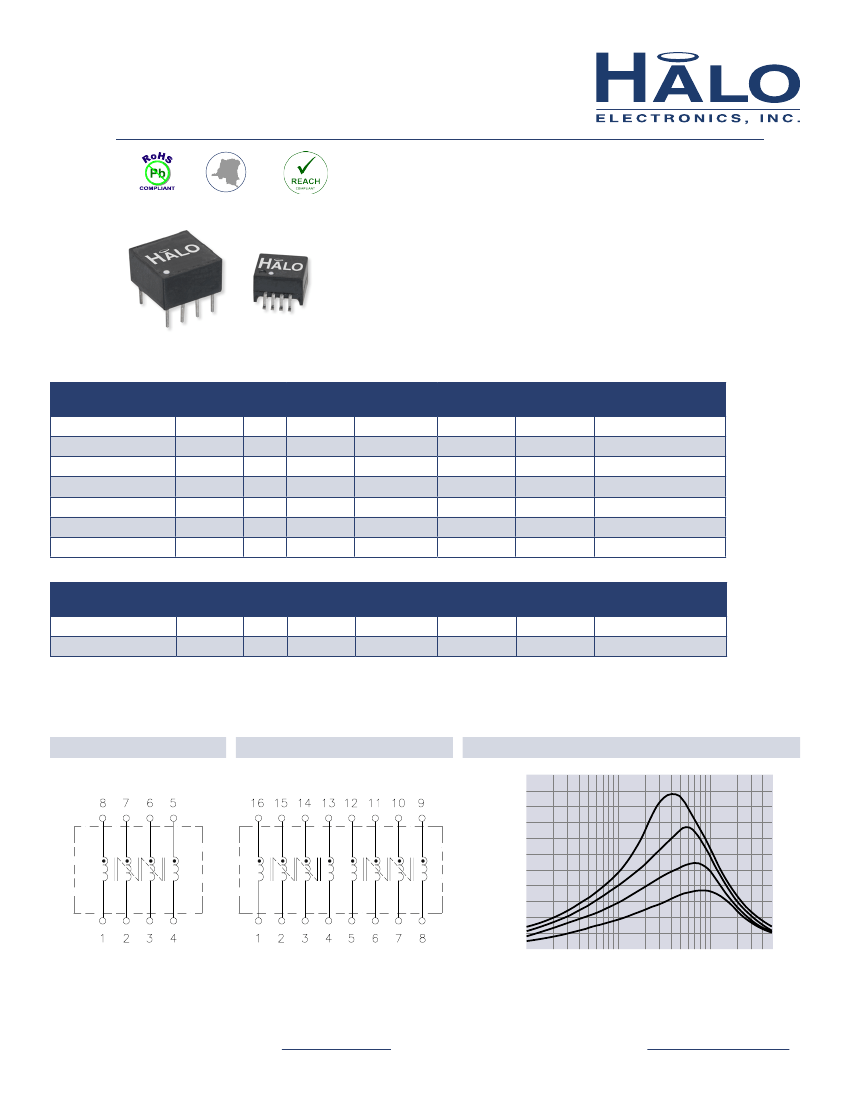

Product Features:

CMC Filters for Data Communications and Telecom

Applications

Compatible with IEEEE 802.3 and 802.5

Hi-Pot 500Vrms

Turns Ratio (±3%): 1:1:1:1

UL Recognized Components

Single

Part Number

LD11-0086FLF

LD11-0166FLF

LD11-0246FLF

LD11-0366FLF

LG11-0246NTLF

LG11-0366NTLF

LG11-RP36NTLF

Package

DIL

PoE

OCL

(µH typ.)

OCL

(µH typ.)

(µH max.)

0.10

0.15

0.20

0.25

0.20

(µH max.)

0.20

Cw/w

(pF max.)

Cw/w

(pF max.)

DCR

(Ω max.)

0.20

0.25

0.40

0.45

0.40

DCR

(Ω max.)

0.30

0.45

Impedance/Freq.

Curve (typ.)

Impedance/Freq.

Curve (typ.)

Dual

Part Number

LG11-0346N1LF

LG11-0366N1LF

Package

PoE

Notes:

1. Pb-Free parts are RoHS 6/6 compliant. RoHS (7a) parts contain lead per exemption 7a which is set to expire in July 2016.

2. Please contact the factory or representative for individual datasheets or additional information.

3. Parts on this datasheet can be used in -40 to +85°C applications.

F/NT Schematic

N1 Schematic

2.5K

IMPEDANCE ( )

1.5K

0.5K

Impedance/Freq. Curve

FREQUENCY (MHz)

100

500

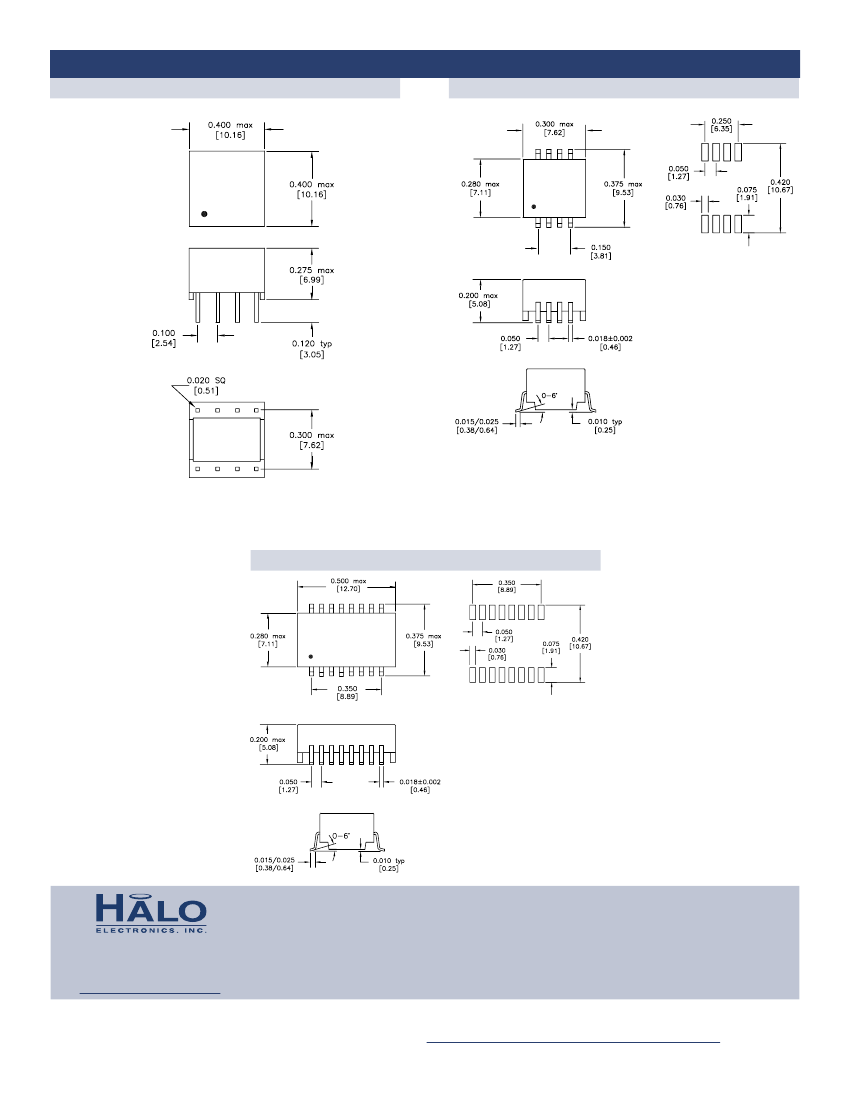

For additional information contact your

local representative,

or HALO’s support staff at (650) 903-3800 or

info@haloelectronics.com
