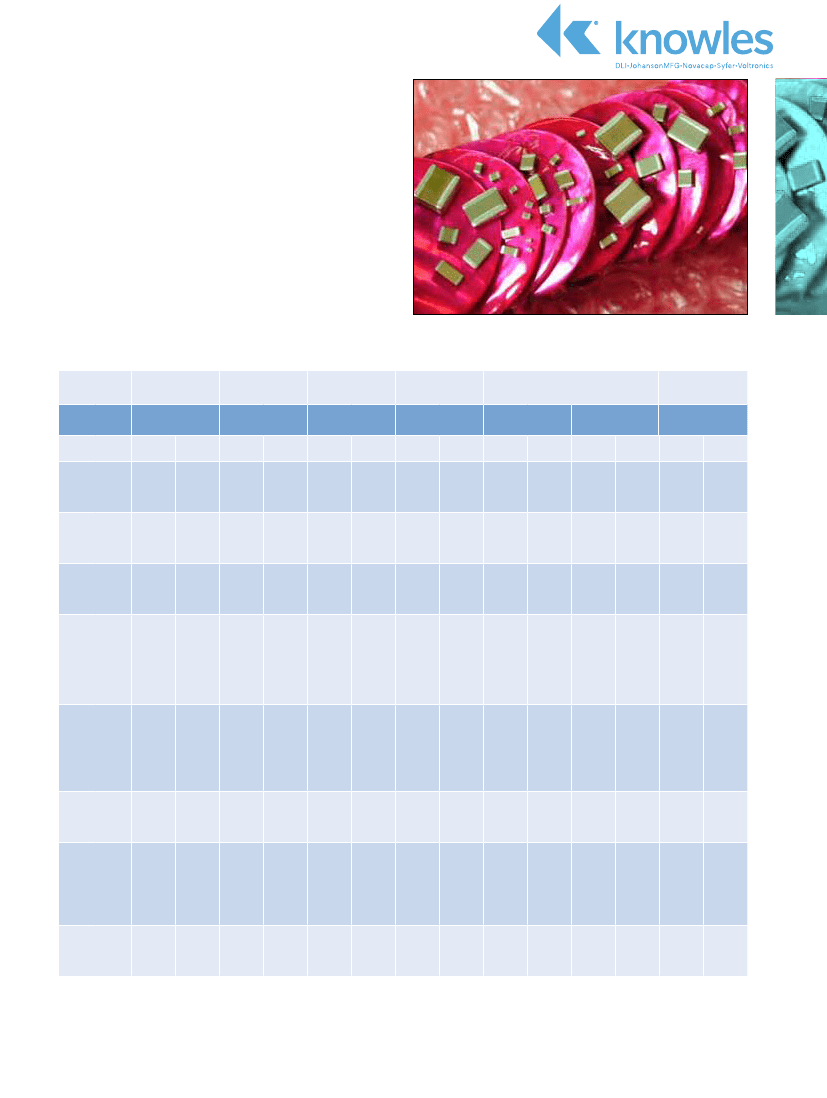

High Capacitance Chip -
X7R, X5R
A range of High Capacitance value BME MLC chip capacitors, in stable
Class II dielectrics X7R and X5R, with a spread of capacitance values
offered up to 100µF.
Comparable circuit designs can be achieved at typically a third to a
fifth of the capacitance values because of the low ESR characteristics
these parts exhibit. As a consequence they are also ideal to replace
Tantalum and Low ESR Electrolytic Capacitors without polarity
concerns. They find application as power supply bypass capacitors,
smoothing capacitors, input/output filters in DC-DC Converters and in
digital circuits and LCD modules.
Parts are RoHS Compliant and suitable for reflow soldering process.
●
●
●
Nickel Barrier terminations with tin, tin/lead or gold flash
Capacitance tolerances available: ±10%, ±20%
Available with high reliability screening. Contact the Knowles
Capacitors Sales Office for details
Capacitance values - High Capacitance Chip
Size
Tmax
inches:
mm:
0402
0.024
0.61
0603
0.035
0.89
0805
0.054
1.37
1206
0.072*
1.83
0.085*
2.16
1210
0.110*
2.79
1812
0.110*
2.79
Dielectric
4V
X7R
X5R
X7R
X5R
22µF†
X7R
X5R
X7R
X5R
100µF†
X7R
X5R
X7R
X5R
X7R
X5R
-
6.3V
470nF
1µF
2.2µF†
4.7µF†
4.7µF
10µF†
22µF†
47µF†
47µF†
47µF†
100µF†
-
10V
15nF
22nF
33nF
47nF
100nF
220nF
1µF
2.2µF
4.7µF
10µF†
10µF†
10µF
22µF†
22µF†
22µF†
47µF†
-
16V
220nF
470nF
100nF
220nF
470nF
100nF
1µF
2.2µF
4.7µF
470nF
1.0µF
2.2µF
4.7µF†
4.7µF
10µF
10µF
10µF
22µF†
4.7µF†
10µF†
22µF†
-
25V
6.8nF
10nF
47nF
100nF
10nF
220nF
470nF
1.0µF
220nF
470nF
1.0µF
2.2µF
1.0µF
2.2µF
4.7µF
2.2µF
4.7µF
2.2µF
4.7µF
10µF
4.7µF
10µF
3.3µF†
4.7µF†
4.7µF†
10µF†
22µF†
-
35V
2.2µF†
4.7µF†
10µF
-
50V
10nF
100nF
220nF
470nF
100nF
470nF
1.0µF
220nF
470nF
1.0µF
220nF
470nF
1.0µF
2.2µF
470nF
1.0µF
2.2µF
4.7µF
4.7µF
1.0µF
4.7µF†
4.7µF†
10µF†
-
100V
100nF
220nF
1.0µF
1.0µF
2.2µF
† Denotes only available
in ±20% capacitance tolerance
1.0µF
2.2µF
-
* Denotes non standard chip thickness. Order code needs to have an 'X' inserted
together with the dimension in inches -e.g. X072 where dimension is 0.072".
www.knowlescapacitors.com
Should be ordered as Novacap parts.
High Capacitance Chip -
X7R, X5R

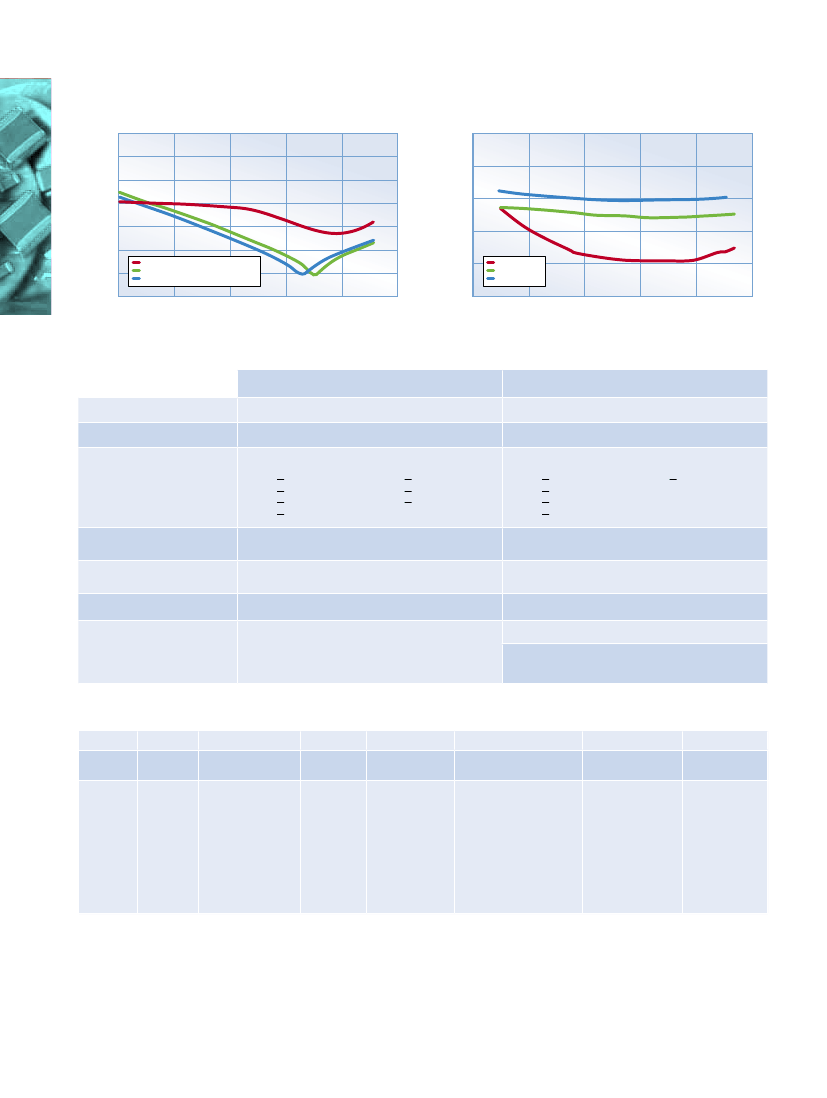

Comparison with other dielectric capacitors
Impedance Curves
ESR Characteristics
10,000
1,000
10
Impedance
(Ω)
Impedance
(Ω)
22µF Tantalum Cap +0.1µF MLC, standard
4.7µF MLC
10µF MLC
100
10
1
0.1
0.01
0.001
1
10
100
1,000
10,000
100,000
1
0.1
0.01
0.001
4.7µF, MLC
10µF, Tantalum
47µF, Aluminum
1
10
100
1,000
10,000
100,000
Frequency (KHz)
Frequency (KHz)
Dielectric characteristics
X7R (BB) Stable
Operating temperature range:
Temperature coefficient:
-55°C to 125°C
±15%
DC
Max.
3.5% max except:
Dissipation factor:
0402
0603
0805
0805
>
>
>
>
0.1µF = 5%,
0.22µF = 10%,
1.0µF = 5%,
2.2µF = 10%,
1206 > 2.2µF = 10%,
1210 > 4.7µF = 5%,
1210 > 22µF = 10%
X5R (BW) Stable
-55°C to 85°C
±15%
DC
Max.
5% max except:
0402
0603
0805
1206
>
>
>
>
1.0µF
1.0µF
4.7µF
4.7µF
=
=
=
=
10%,
10%,
10%,
10%,
1210 > 10µF = 10%
Insulation resistance @25ºC:
Dielectric withstanding voltage:
Ageing Rate:
>10GW or >100WF
whichever is less
250%
X7R 3.5% typical
>10GW or >100WF
whichever is less
250%
X5R 5% typical
1KHz, 1.0 ±0.2 VRMS
Test parameters @ 25°C:
1KHz, 1.0 ±0.2 VRMS
120Hz, 0.5 ±0.1 VRMS
for 22µF, 47µF & 100µF
Ordering information - High Capacitance Chip Capacitors
1206
Chip
sizes
0402
0603
0805
1206
1210
1812
W
Dielectric
BB* = X7R
BW*= X5R
476
Capacitance
Value in Picofarads.
Two significant figures,
followed by number
of zeros:
476
= 47µF
(47,000,000pF)
K
Tolerance
K
= ± 10%
M
= ± 20%
6R3
Voltage-VDCW
Two significant
figures, followed by
number of zeros.
R denotes decimal
point:
6R3
= 6.3V
501
= 500V
N
Termination
N
= Nickel Barrier
(100% tin)
Y
= Nickel Barrier
NG
= Nickel Barrier
Gold Flash
X080
Thickness option
Blank = Standard
thickness
X
= special thickness,
specified in inches:
X085
= 0.085”
T
Packing
No suffix = Bulk
T
= Tape & Reel
(90% tin/10% lead)
*Formerly
B & W codes
Note: BME parts available with added high reliability test. Consult the factory.
Should be ordered as Novacap parts.
www.knowlescapacitors.com
