RB851Y datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> RB851Y

RB851Y: Description0.03 A, 3 V, 2 ELEMENT, SILICON, SIGNAL DIODE; CategoryDiscrete semiconductor diode; File Size128KB，3 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric View All

RB851Y Overview

0.03 A, 3 V, 2 ELEMENT, SILICON, SIGNAL DIODE

RB851Y Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
Parts packaging code	SC-75A
package instruction	R-PDSO-F4
Contacts	4
Reach Compliance Code	compli
ECCN code	EAR99
Configuration	SEPARATE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.46 V
JESD-30 code	R-PDSO-F4
JESD-609 code	e2
Humidity sensitivity level	1
Number of components	2
Number of terminals	4
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Maximum output current	0.03 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	3 V
Maximum reverse current	0.7 µA
Reverse test voltage	1 V
surface mount	YES
technology	SCHOTTKY
Terminal surface	Tin/Copper (Sn/Cu)
Terminal form	FLAT
Terminal location	DUAL
Maximum time at peak reflow temperature	10

Preview

Download Datasheet

View All

RB851Y

Diodes

Schottky barrier diode

RB851Y

Applications

High frequency detection

External dimensions

(Unit : mm)

Land size figure

(Unit : mm)

0.5

0.22±0.05

0.13±0.05

(3)

Features

1) Ultra small mold type. (EMD4)

2) Low Ct and high detection efficiency.

0.45

1.6±0.1

(4)

1.2±0.1

1.6±0.1

1.0

0½0.1

EMD4

(1)

(2)

Construction

Silicon epitaxial planar

Structure

0.5

1.0±0.1

0.5

0.5±0.05

ROHM : EMD4

JEITA : SC-75A Size

dot (year week factory)

Taping specifications

(Unit : mm)

4.0±0.1

2.0±0.05

φ1.5±0.1

1.75±0.1

0.3±0.1

3.5±0.05

1.65±0.1

5.5±0.2

8.0±0.2

1.65±0.1

1PIN

4.0±0.1

φ0.8±0.1

0½0.1

0.65±0.1

Absolute maximum ratings

(Ta=25°C)

Param eter

Revers e voltage (repetitive peak)

Revers e voltage (DC)

Junction tem perature

Storage tem perature

(*1) Rating of per diode

Sym bol

Ts tg

Lim its

125

-40 to +125

Unit

℃

Electrical characteristics

(Ta=25°C)

Param eter

Forward voltage

Re vers e current

Capacitance between term inal

Sym bol

Min.

Typ.

0.8

Max.

0.46

0.7

Unit

µA

=1m A

=1V

=0V , f=1MHz

Conditions

Rev.A

1.65±0.01

1.55

1/2

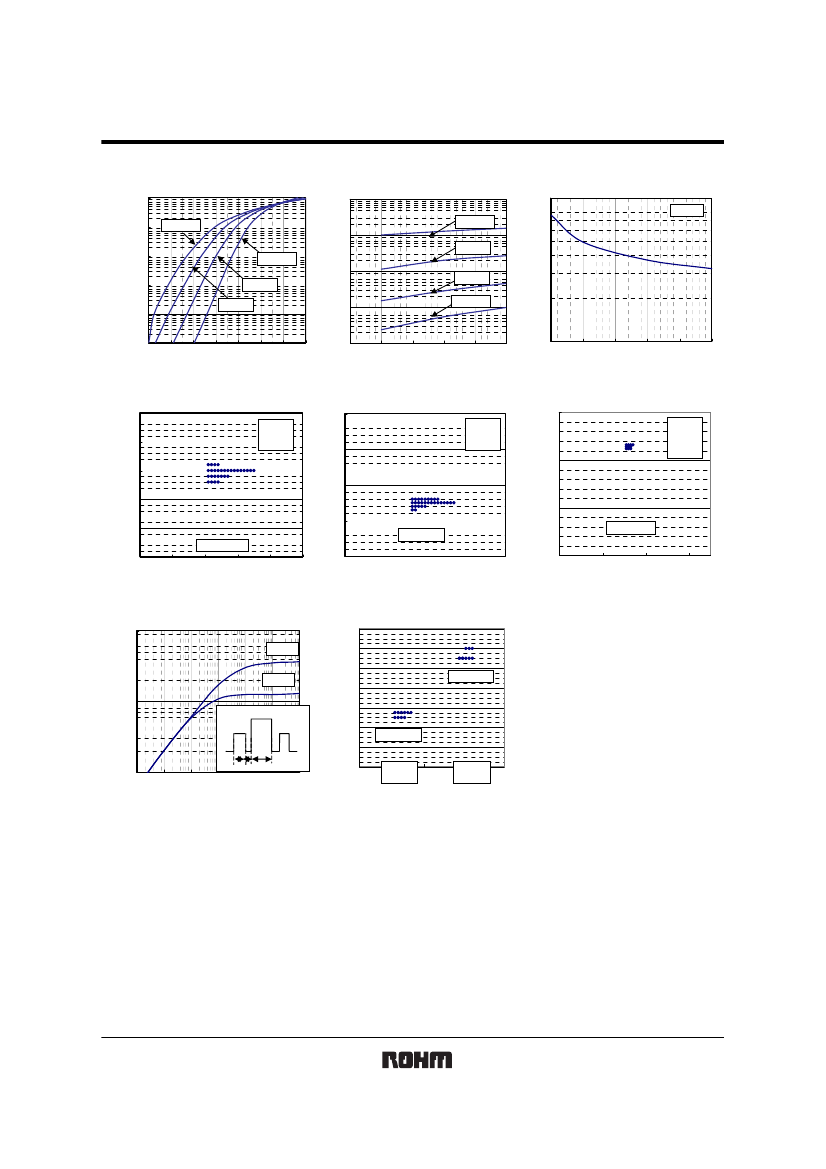

Appendix

Notes

No technical content pages of this document may be reproduced in any form or transmitted by any

means without prior permission of ROHM CO.,LTD.

The contents described herein are subject to change without notice. The specifications for the

product described in this document are for reference only. Upon actual use, therefore, please request

that specifications to be separately delivered.

Application circuit diagrams and circuit constants contained herein are shown as examples of standard

use and operation. Please pay careful attention to the peripheral conditions when designing circuits

and deciding upon circuit constants in the set.

Any data, including, but not limited to application circuit diagrams information, described herein

are intended only as illustrations of such devices and not as the specifications for such devices. ROHM

CO.,LTD. disclaims any warranty that any use of such devices shall be free from infringement of any

third party's intellectual property rights or other proprietary rights, and further, assumes no liability of

whatsoever nature in the event of any such infringement, or arising from or connected with or related

to the use of such devices.

Upon the sale of any such devices, other than for buyer's right to use such devices itself, resell or

otherwise dispose of the same, no express or implied right or license to practice or commercially

exploit any intellectual property rights or other proprietary rights owned or controlled by

ROHM CO., LTD. is granted to any such buyer.

Products listed in this document are no antiradiation design.

The products listed in this document are designed to be used with ordinary electronic equipment or devices

(such as audio visual equipment, office-automation equipment, communications devices, electrical

appliances and electronic toys).

Should you intend to use these products with equipment or devices which require an extremely high level of

reliability and the malfunction of with would directly endanger human life (such as medical instruments,

transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other

safety devices), please be sure to consult with our sales representative in advance.

About Export Control Order in Japan

Products described herein are the objects of controlled goods in Annex 1 (Item 16) of Export Trade Control

Order in Japan.

In case of export from Japan, please confirm if it applies to "objective" criteria or an "informed" (by MITI clause)

on the basis of "catch all controls for Non-Proliferation of Weapons of Mass Destruction.

Appendix1-Rev1.1
