CD17FD301JO3F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> CD17FD301JO3F

CD17FD301JO3F: DescriptionMica Capacitors 300pF 500V +/-5%; CategoryPassive components; File Size418KB，3 Pages; ManufacturerCornell Dubilier; Environmental Compliance

Download Datasheet Parametric Compare View All

CD17FD301JO3F Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CD17FD301JO3F	-	-	View	Buy Now

CD17FD301JO3F Overview

Mica Capacitors 300pF 500V +/-5%

CD17FD301JO3F Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Cornell Dubilier
Product Category	Mica Capacitors
RoHS	Details
Termination Style	Radial
Capacitance	300 pF
Voltage Rating	500 V
Tolerance	5 %
Length	11.9 mm
Width	5.3 mm
Height	9.9 mm
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 150 C
Packaging	Bulk
Operating Temperature Range	- 55 C to + 150 C
Product	Mica Standard Dipped Capacitors
Capacitance - nF	0.3 nF
Dissipation Factor DF	0.0005
Lead Spacing	5.9 mm
Factory Pack Quantity	100

Preview

Download Datasheet

View All

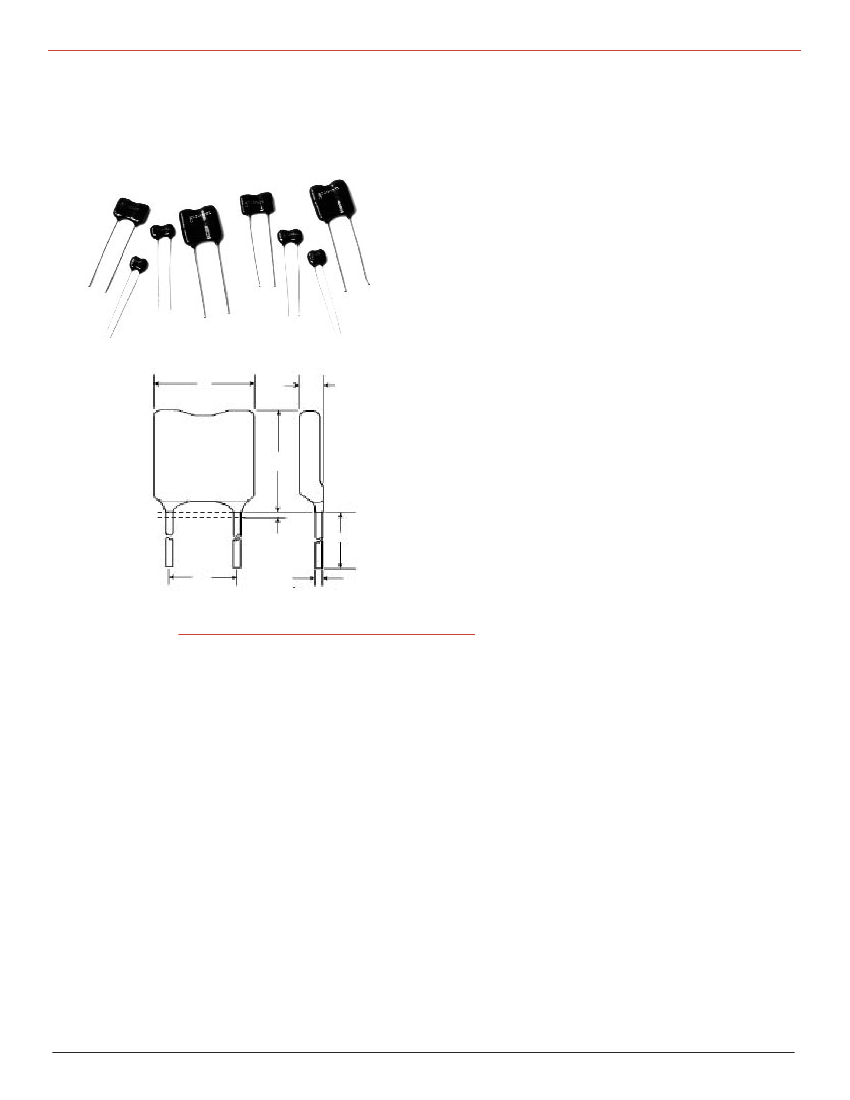

CD17，CD18&CDV18型

高频云母电容器

Types CD17, CD18 & CDV18

High-Frequency Mica Capacitors

High-Frequency Capacitors for CATV and RF Applications

CD17，CD18型保证可控，

适用于有线电视和高频设备

Types CD17 and CD18 assure controlled, reasonance-

到达1GHZ共谐振无限制。

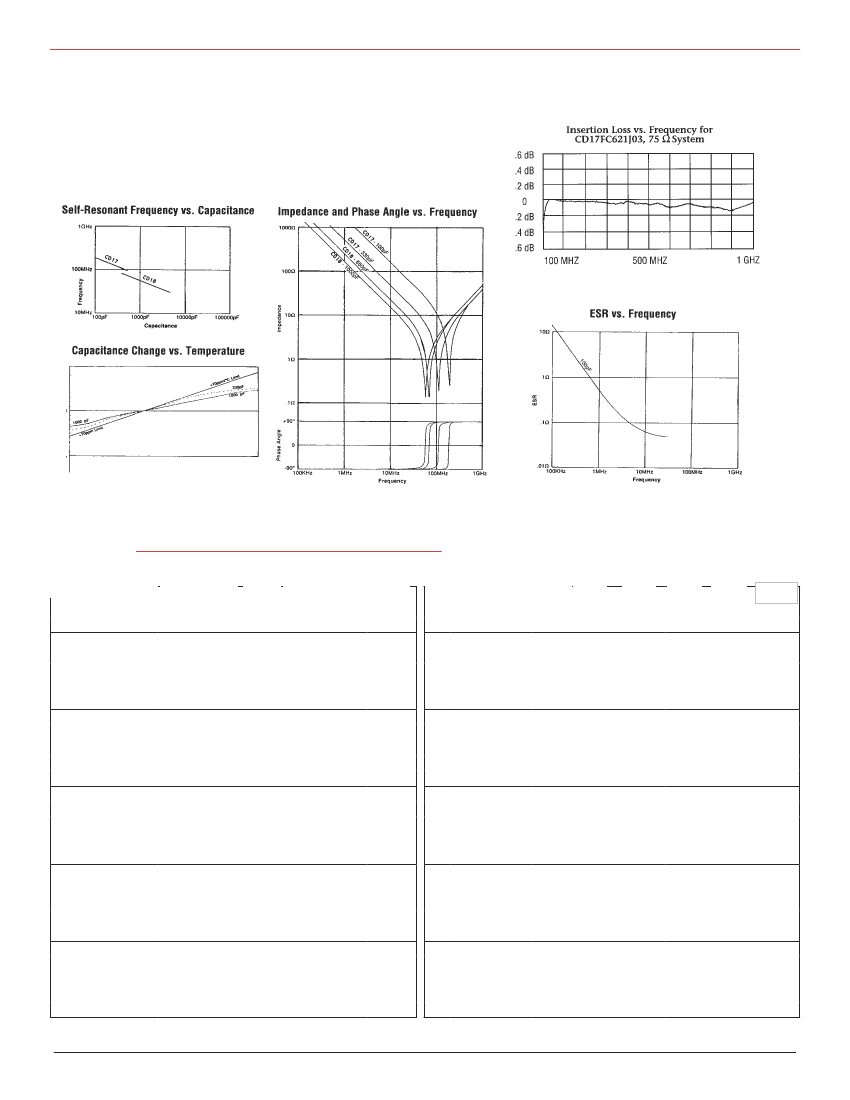

free performance through 1 GHz. Insertion loss data is

插入损耗对所有频率范围在+/- 0.1dB是很平稳

的。

typically ﬂat within ±0.1 dB over the entire frequency

在特别的情况下插入损耗在+/- 0.2db是很平稳的。

range, and is speciﬁed to be ﬂat within ±0.2 dB.

Interchangeable with the most popular, common mica

Max

对一般常用的云母电容器，这些型号是可以互换的。

CD17型和CD15型在尺寸和角距是相½的。

capacitors, Type CD17 is available in the same case

CD18型和CD19型在尺寸和角距是相½的

sizes and lead spacing as CD15; CD18, in the same

Max.

Measued at →

point where

phenolic cone

becomes a

cylinder

case sizes and lead spacing as CD19, and CDV18, in

the same as CDV19.

CDV18型和CDV19型在尺寸和角距是相½的

.078” Max.

No Solder

±.031

1” Min.

规范

符合Ememption #5环保材料

Speciﬁcations

电容量范围

RoHS Compliant with Exemption #5

Capacitance Range:

1 pF to 5,100 pF

电压范围

电容误差

Voltage Range:

100 Vdc to 1,000 Vdc

Capacitance Tolerance:

±1⁄2 pF (D), ±1 pF (C), ±1⁄2% (E),

±1% (F), ±2% (G), ±5% (J)

温度范围

损耗因数

Temperature Range:

–55 °C to +150 °C

0.0005 (Typical)

电压上升速率的½力

Dissipation Factor (DF):

dV/dt

Capability:

100,000 V/µs minimum

振动阻抗

电容量和电压的变化

Capacitance Change with Voltage:

Zero (0)

Shock Resistance:

Delamination free

CDE Cornell Dubilier•1605 E. Rodney French Blvd.•New Bedford, MA 02744•Ph: (508)996-8561•Fax: (508)996-3830• www.cde.com

CD17FD301JO3F Related Products

	CD17FD301JO3F	CD17CD100JO3	CD17FD101JO3F	CD17FD121JO3F	CD18FD751JO3F	CD17CD020DO3F
Description	Mica Capacitors 300pF 500V +/-5%	Mica Capacitors 10pF 500V +/-5%	Mica Capacitors 100pF 500V +/-5%	Mica Capacitors 120pF 500V +/-5%	Mica Capacitors 750pF 500V +/-5%	Mica Capacitors 2pF 500V +/-0.5pF
Product Attribute	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value
Manufacturer	Cornell Dubilier	Cornell Dubilier	Cornell Dubilier	Cornell Dubilier	Cornell Dubilier	Cornell Dubilier
Product Category	Mica Capacitors	Mica Capacitors	Mica Capacitors	Mica Capacitors	Mica Capacitors	Mica Capacitors
RoHS	Details	N	Details	Details	Details	Details
Termination Style	Radial	Radial	Radial	Radial	Radial	Radial
Capacitance	300 pF	10 pF	100 pF	120 pF	750 pF	2 pF
Voltage Rating	500 V	500 V	500 V	500 V	500 V	500 V
Tolerance	5 %	5 %	5 %	5 %	5 %	0.5 pF
Length	11.9 mm	11.4 mm	11.4 mm	11.7 mm	16.5 mm	11.4 mm
Width	5.3 mm	4.3 mm	4.3 mm	4.6 mm	5.3 mm	4.3 mm
Height	9.9 mm	9.1 mm	9.1 mm	9.4 mm	13 mm	9.1 mm
Minimum Operating Temperature	- 55 C	- 55 C	- 55 C	- 55 C	- 55 C	- 55 C
Maximum Operating Temperature	+ 150 C	+ 150 C	+ 150 C	+ 150 C	+ 150 C	+ 150 C
Packaging	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk
Operating Temperature Range	- 55 C to + 150 C	- 55 C to + 150 C	- 55 C to + 150 C	- 55 C to + 150 C	- 55 C to + 150 C	- 55 C to + 150 C
Product	Mica Standard Dipped Capacitors	Mica Standard Dipped Capacitors	Mica Standard Dipped Capacitors	Mica Standard Dipped Capacitors	Mica Standard Dipped Capacitors	Mica Standard Dipped Capacitors
Dissipation Factor DF	0.0005	0.0005	0.0005	0.0005	0.0005	0.0005
Lead Spacing	5.9 mm	5.9 mm	5.9 mm	5.9 mm	8.7 mm	5.9 mm
Factory Pack Quantity	100	100	100	100	50	100
Capacitance - nF	0.3 nF	-	0.1 nF	0.12 nF	0.75 nF	-
