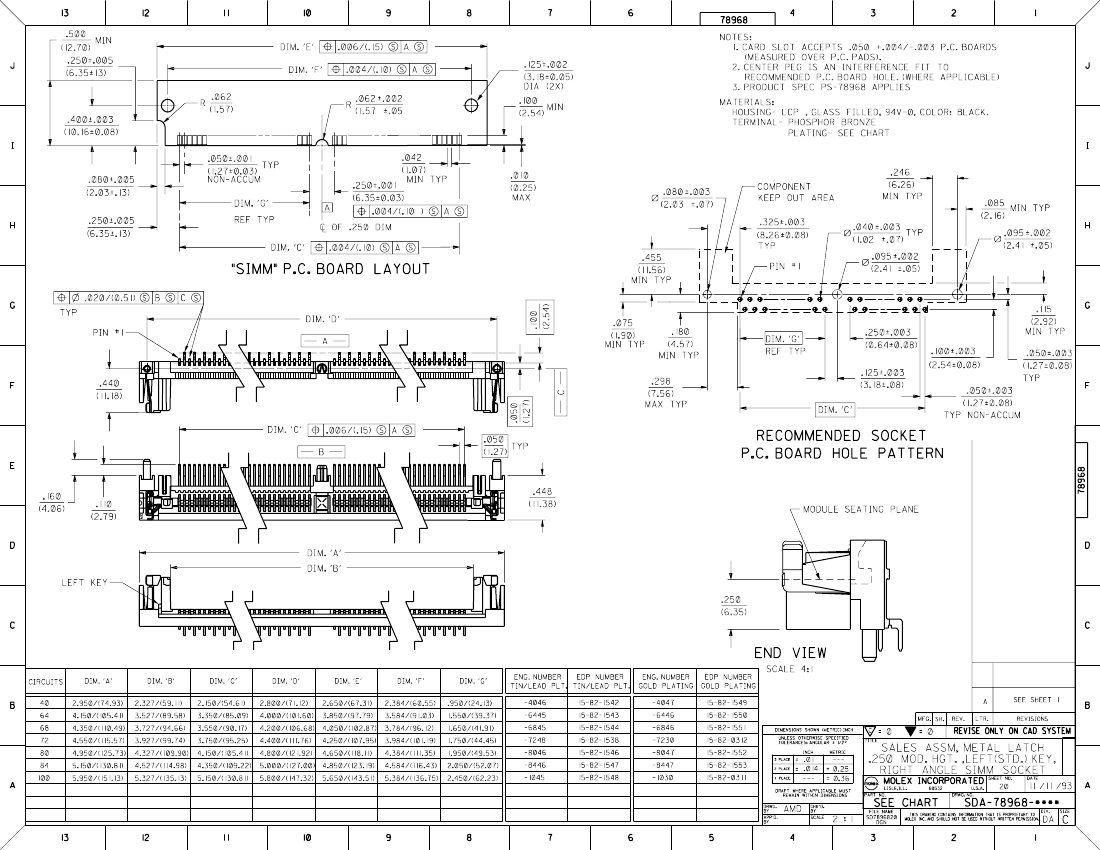

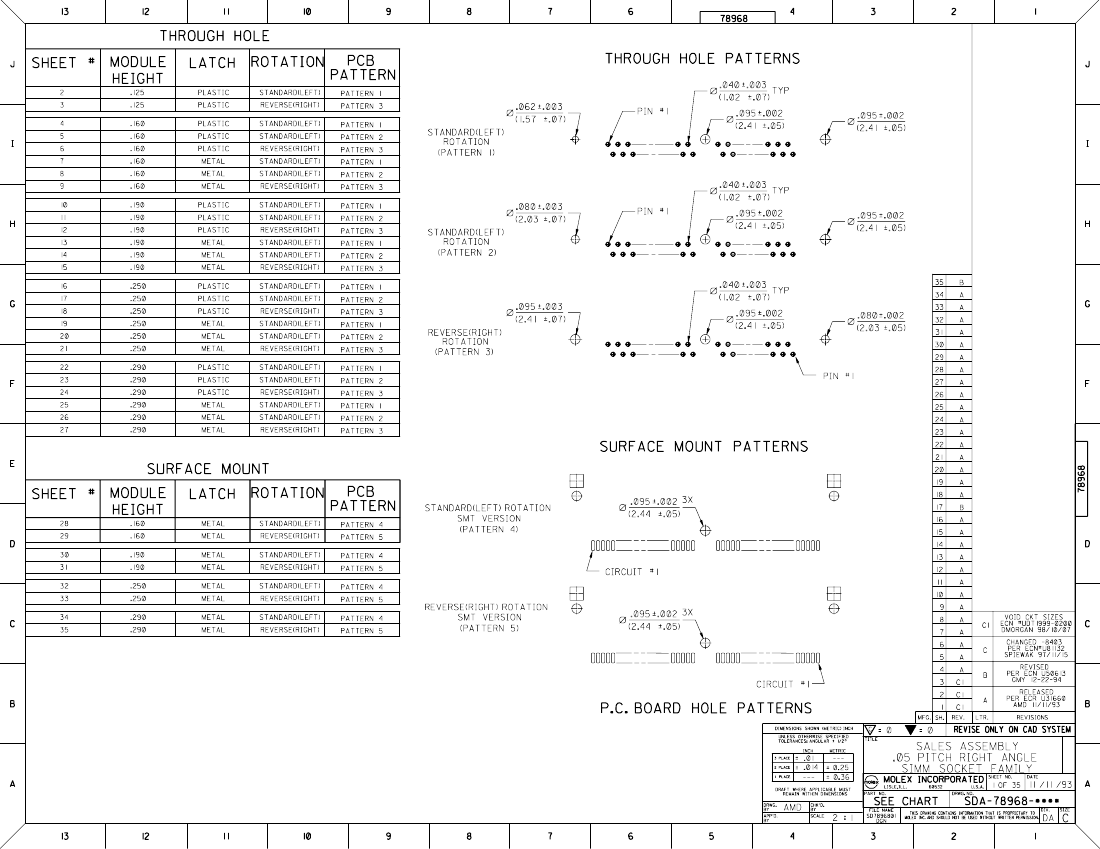

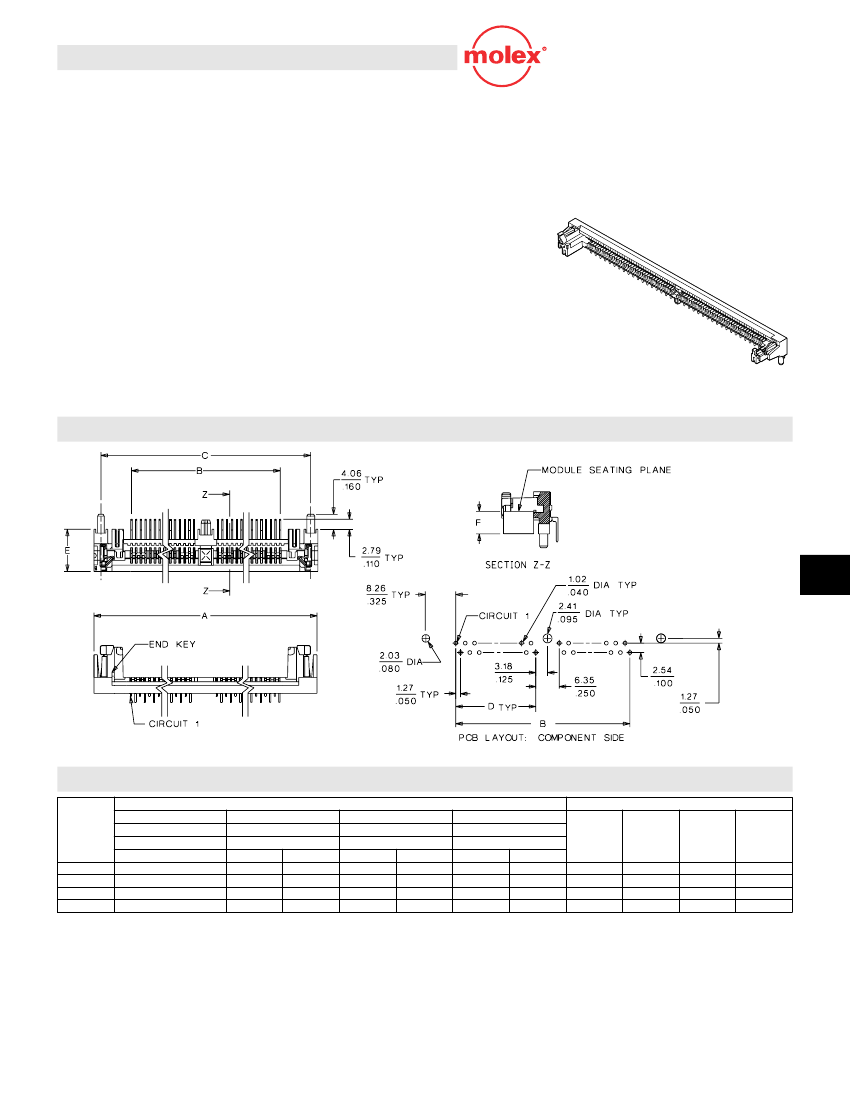

Card Edge Connector, 68 Contact(s), 1 Row(s), Female, Right Angle, 0.05 inch Pitch, Solder Terminal, Latch & Eject, Black Insulator, Socket
| Parameter Name | Attribute value |
| Reach Compliance Code | unknow |
| Other features | MODULE ORIENTATION: RIGHT ANGLE, STAGGERED CONFIGURATION |
| Board mount options | POLARIZATION POST |
| body width | 0.388 inch |
| body length | 4.35 inch |
| Body/casing type | SOCKET |
| Connector type | CARD EDGE CONNECTOR |
| Contact to complete cooperation | AU ON NI |
| Contact completed and terminated | TIN OVER NICKEL |
| Contact point gender | FEMALE |
| Contact material | PHOSPHOR BRONZE |
| Contact resistance | 30 mΩ |
| Contact style | BELLOWED TYPE |
| DIN compliance | NO |
| Dielectric withstand voltage | 1000VAC V |
| Durability | 25 Cycles |
| Filter function | NO |
| IEC compliance | NO |
| maximum insertion force | ZIF N |
| Insulation resistance | 5000000000 Ω |
| Insulator color | BLACK |
| insulator material | LIQUID CRYSTAL POLYMER (LCP) |
| MIL compliance | NO |
| Manufacturer's serial number | 78968 |
| Plug contact pitch | 0.05 inch |
| Mixed contacts | NO |
| Installation option 1 | LATCH & EJECT |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 2 |
| Number of rows loaded | 1 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -40 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | STAGGERED |
| PCB contact row spacing | 0.1 mm |
| Plating thickness | 30u inch |
| polarization key | POLARIZED RIB(S) |
| Rated current (signal) | 1 A |
| Guideline | UL, CSA |
| reliability | COMMERCIAL |
| Terminal length | 0.11 inch |
| Terminal pitch | 2.54 mm |
| Termination type | SOLDER |
| Total number of contacts | 68 |
| UL Flammability Code | 94V-0 |
| Base Number Matches | 1 |
